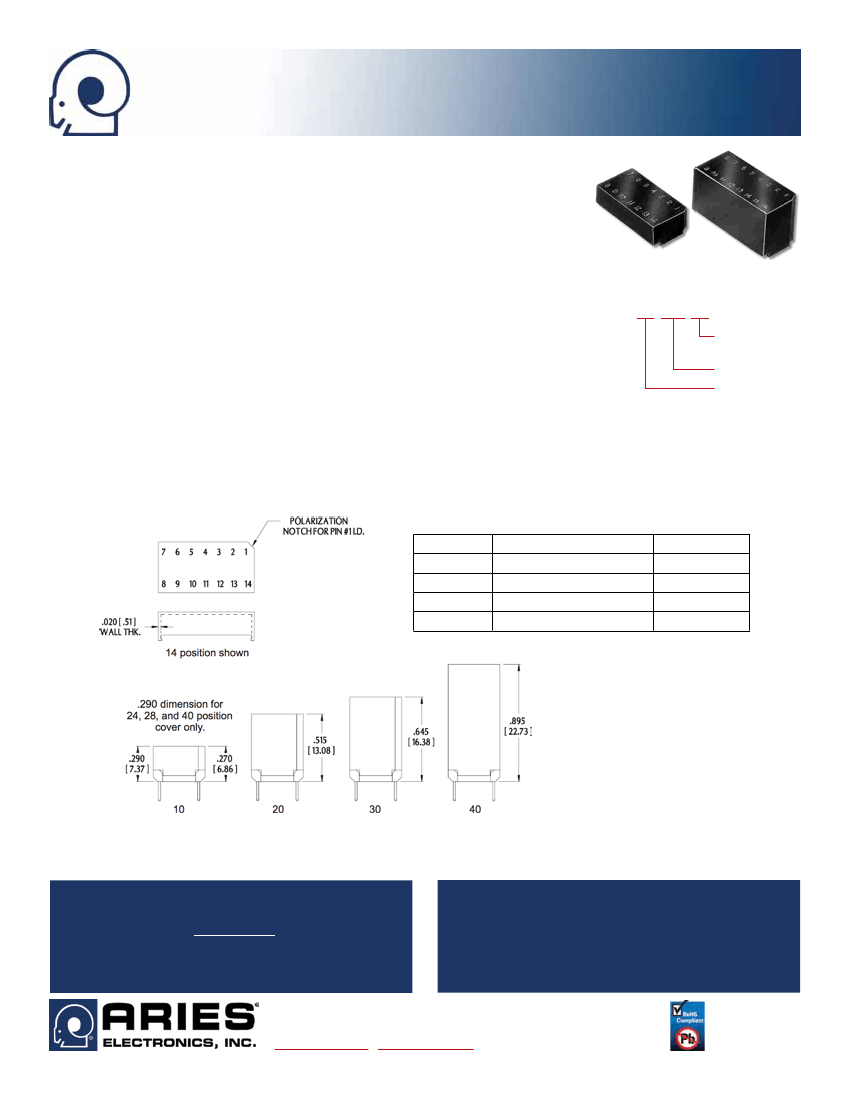

Series 650
Header Covers
FEATURES
• Useful for Mounting Components (Resistors, Diodes, etc.)
• Four Ample Cover Heights from 1/8" [3.18] to 3/4" [19.05] high
• Pin Positions Numbered on Cover with Identification Polarization Notch
• Specifically Designed to Snap onto Aries Series 0600 Series Headers
GENERAL SPECIFICATIONS
•
STANDARD COVER: Black UL 94V-0 4/6 Nylon
ORDERING INFORMATION
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE: 0.035 ±0.002 [0.89 ± 0.05] dia.
XX-650-XX
Cover Number
(See Table)
Series
No. of Pins
(See Table)
Cover No.
10
20
30
40
Max. Component Height
0.125 [3.18]
0.375 [9.53]
0.500 [12.70]
0.750 [19.05]
No. of Pins
4-24, 28, 40
14, 16, 24
14, 16
14, 16
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR MATING DIP HEADER, SEE DATA SHEET 12032
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12033
Rev. 6.1
1 of 1
