LT1761CS5-2.5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LT1761CS5-2.5

LT1761CS5-2.5: DescriptionIC VREG 2.5 V FIXED POSITIVE LDO REGULATOR, 0.45 V DROPOUT, PDSO5, PLASTIC, SOT-23, 5 PIN, Fixed Positive Single Output LDO Regulator; CategoryPower/power management The power supply circuit; File Size501KB，8 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LT1761CS5-2.5 Overview

IC VREG 2.5 V FIXED POSITIVE LDO REGULATOR, 0.45 V DROPOUT, PDSO5, PLASTIC, SOT-23, 5 PIN, Fixed Positive Single Output LDO Regulator

LT1761CS5-2.5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	SOT-23
package instruction	LSSOP, TSOP5/6,.11,37
Contacts	5
Reach Compliance Code	compliant
ECCN code	EAR99
Adjustability	FIXED
Maximum drop-back voltage 1	0.45 V
Nominal dropback voltage 1	0.3 V
Maximum absolute input voltage	20 V
Maximum input voltage	20 V
Minimum input voltage	3 V
JESD-30 code	R-PDSO-G5
JESD-609 code	e0
length	2.9 mm
Maximum grid adjustment rate	0.01%
Maximum load regulation	0.08%
Humidity sensitivity level	1
Number of functions	1
Output times	1
Number of terminals	5
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	0.1 A
Maximum output voltage 1	2.575 V
Minimum output voltage 1	2.415 V
Nominal output voltage 1	2.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSOP5/6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	245
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.45 mm
surface mount	YES
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	3%
width	1.625 mm

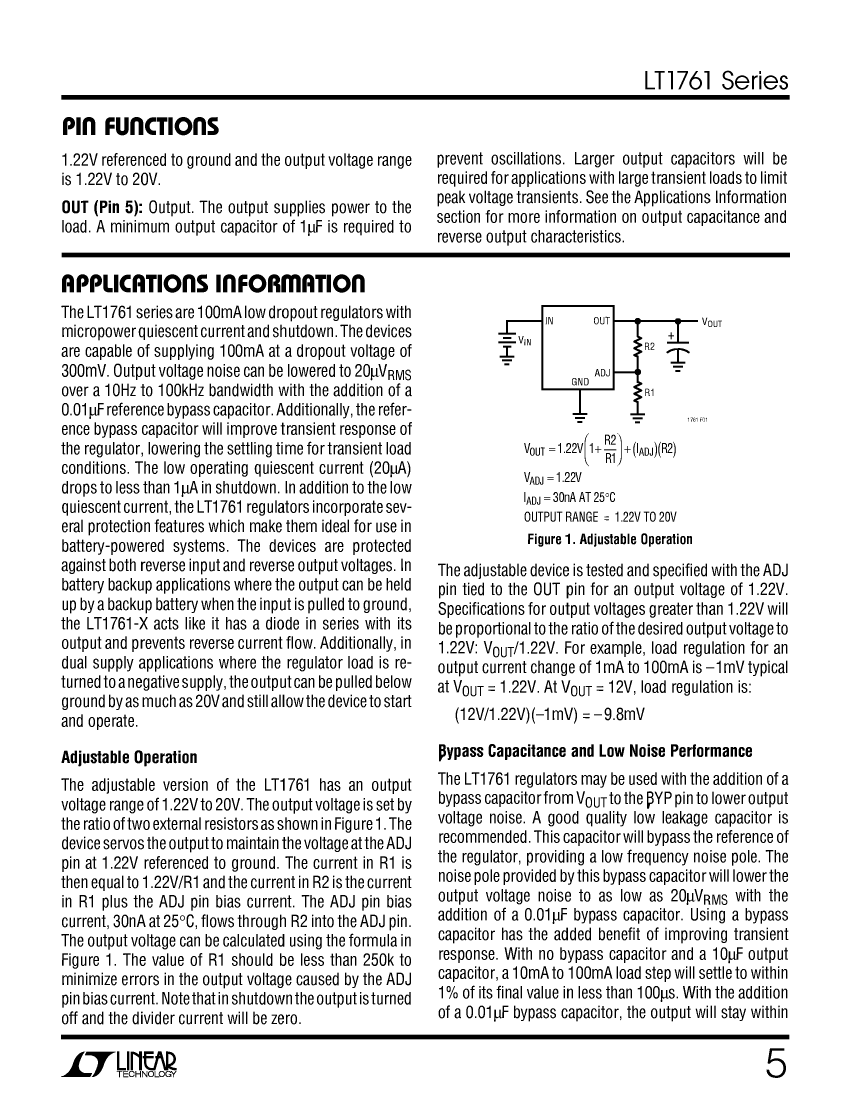

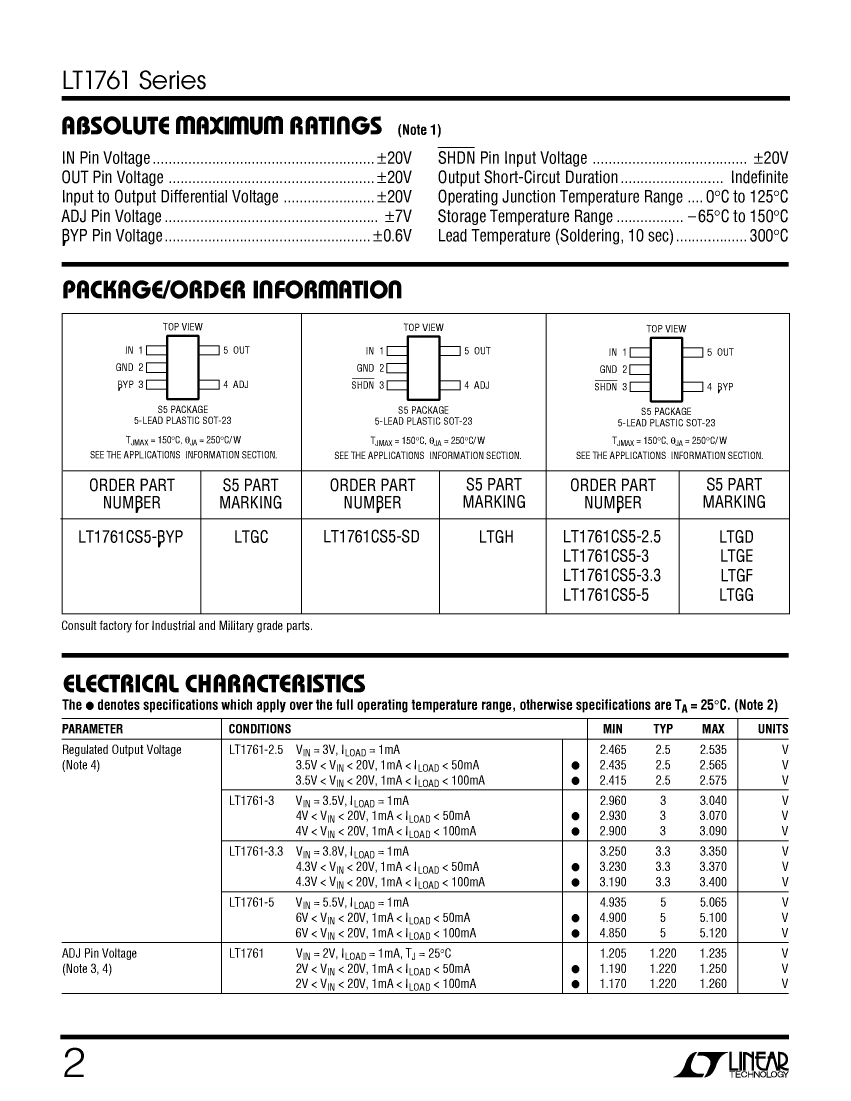

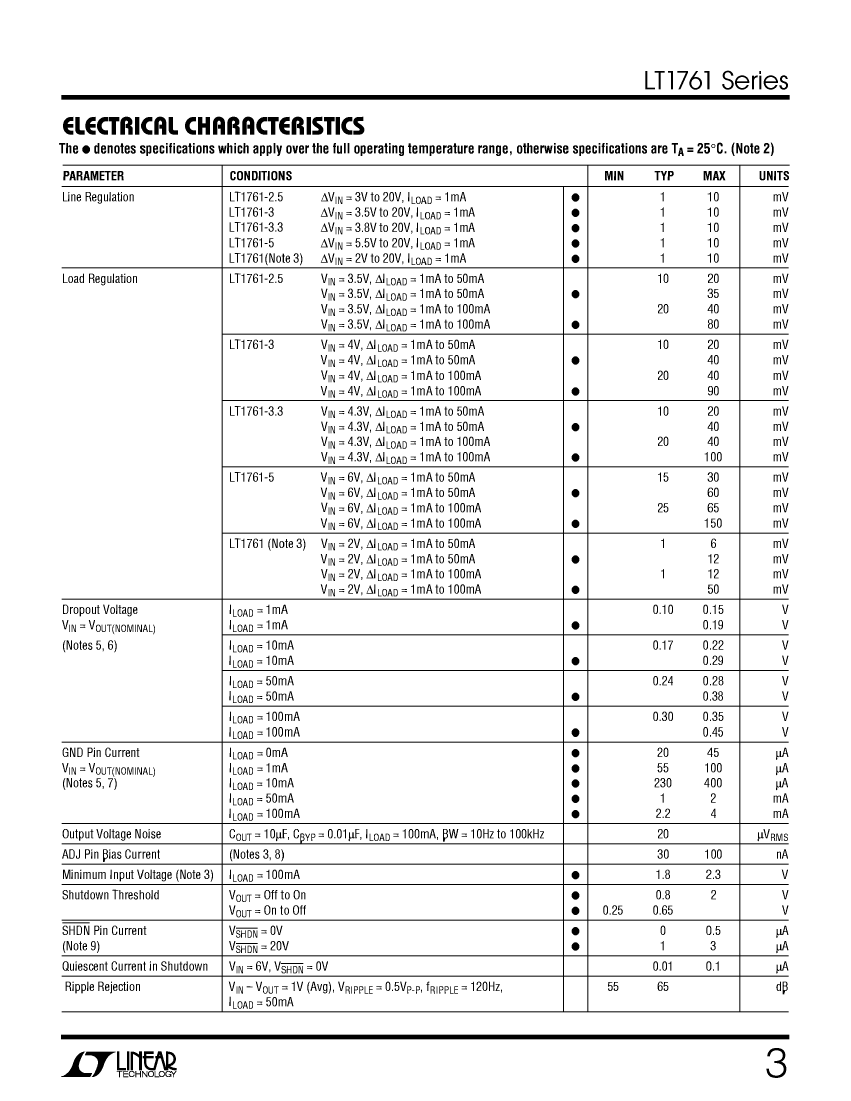

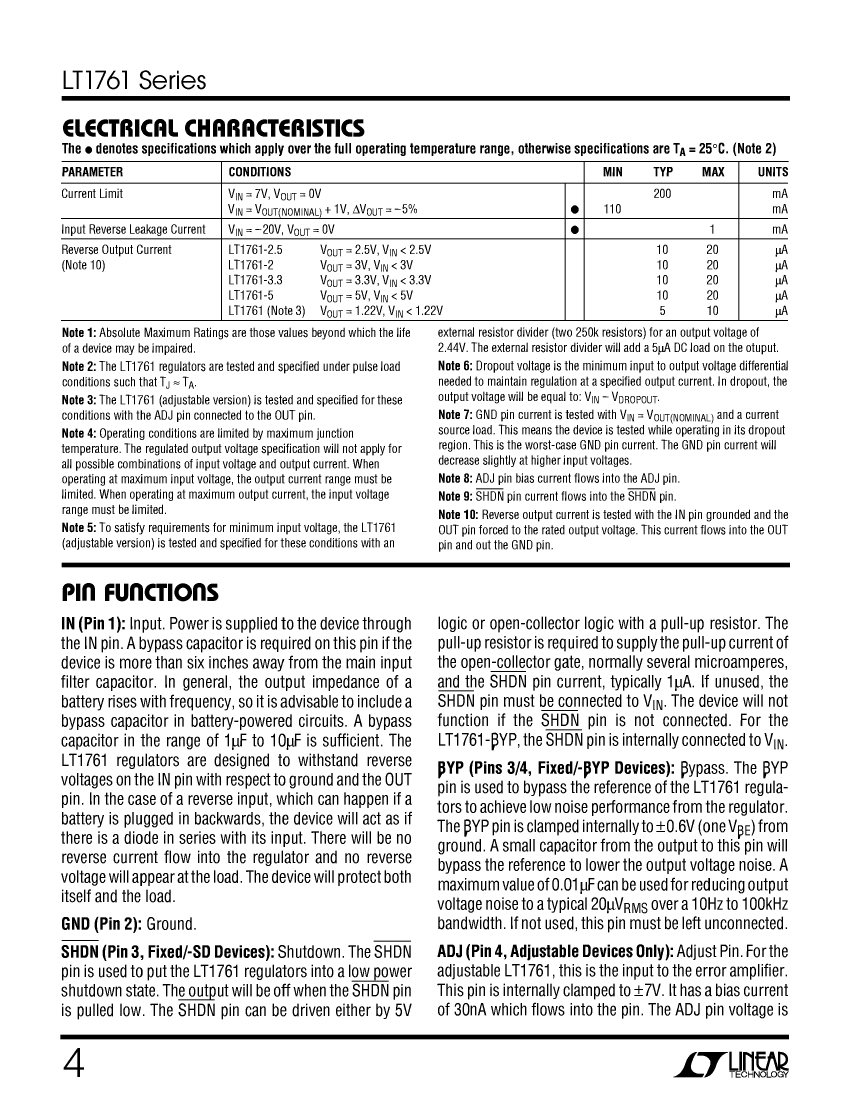

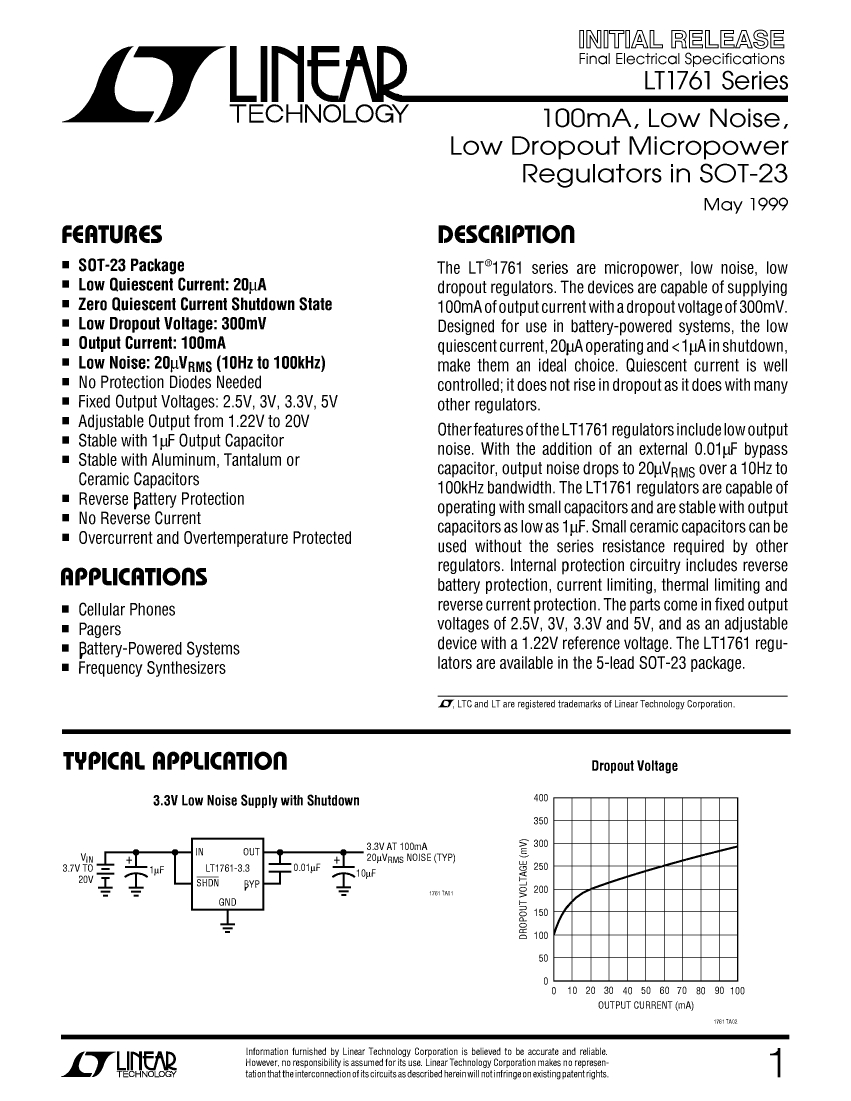

Preview

Download Datasheet

View All

LT1761CS5-2.5 Related Products

	LT1761CS5-2.5	LT1761CS5-3.3	LT1761CS5-3	LT1761CS5-5	LT1761CS5-BYP	LT1761CS5-SD
Description	IC VREG 2.5 V FIXED POSITIVE LDO REGULATOR, 0.45 V DROPOUT, PDSO5, PLASTIC, SOT-23, 5 PIN, Fixed Positive Single Output LDO Regulator	IC VREG 3.3 V FIXED POSITIVE LDO REGULATOR, 0.45 V DROPOUT, PDSO5, PLASTIC, SOT-23, 5 PIN, Fixed Positive Single Output LDO Regulator	IC VREG 3 V FIXED POSITIVE LDO REGULATOR, 0.45 V DROPOUT, PDSO5, PLASTIC, SOT-23, 5 PIN, Fixed Positive Single Output LDO Regulator	IC VREG 5 V FIXED POSITIVE LDO REGULATOR, 0.45 V DROPOUT, PDSO5, PLASTIC, SOT-23, 5 PIN, Fixed Positive Single Output LDO Regulator	IC VREG 1.22 V-20 V ADJUSTABLE POSITIVE LDO REGULATOR, 0.45 V DROPOUT, PDSO5, PLASTIC, SOT-23, 5 PIN, Adjustable Positive Single Output LDO Regulator	IC VREG 1.22 V-20 V ADJUSTABLE POSITIVE LDO REGULATOR, 0.45 V DROPOUT, PDSO5, PLASTIC, SOT-23, 5 PIN, Adjustable Positive Single Output LDO Regulator
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
Parts packaging code	SOT-23	SOT-23	SOT-23	SOT-23	SOT-23	SOT-23
package instruction	LSSOP, TSOP5/6,.11,37	LSSOP, TSOP5/6,.11,37	LSSOP, TSOP5/6,.11,37	LSSOP, TSOP5/6,.11,37	LSSOP, TSOP5/6,.11,37	LSSOP, TSOP5/6,.11,37
Contacts	5	5	5	5	5	5
Reach Compliance Code	compliant	compliant	compliant	compliant	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Adjustability	FIXED	FIXED	FIXED	FIXED	ADJUSTABLE	ADJUSTABLE
Maximum drop-back voltage 1	0.45 V	0.45 V	0.45 V	0.45 V	0.45 V	0.45 V
Nominal dropback voltage 1	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V
JESD-30 code	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5
JESD-609 code	e0	e0	e0	e0	e0	e0
length	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm
Humidity sensitivity level	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1
Output times	1	1	1	1	1	1
Number of terminals	5	5	5	5	5	5
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current 1	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Maximum output voltage 1	2.575 V	3.4 V	3.09 V	5.12 V	20 V	20 V
Minimum output voltage 1	2.415 V	3.19 V	2.9 V	4.85 V	1.22 V	1.22 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP	LSSOP	LSSOP	LSSOP	LSSOP
Encapsulate equivalent code	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	245	245	245	245	245	245
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.45 mm	1.45 mm	1.45 mm	1.45 mm	1.45 mm	1.45 mm
surface mount	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.95 mm	0.95 mm	0.95 mm	0.95 mm	0.95 mm	0.95 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	1.625 mm	1.625 mm	1.625 mm	1.625 mm	1.625 mm	1.625 mm
Maximum absolute input voltage	20 V	20 V	20 V	20 V	-	-
Maximum input voltage	20 V	20 V	20 V	20 V	-	-
Minimum input voltage	3 V	3.8 V	3.5 V	5.5 V	-	-
Maximum grid adjustment rate	0.01%	0.01%	0.01%	0.01%	-	-
Maximum load regulation	0.08%	0.1%	0.09%	0.15%	-	-
Nominal output voltage 1	2.5 V	3.3 V	3 V	5 V	-	-
Maximum voltage tolerance	3%	3%	3%	3%	-	-
Base Number Matches	-	1	1	1	1	-
