Z86C4016VEC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PQCC44,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，23 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

Z86C4016VEC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PQCC44,

Z86C4016VEC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IXYS
Reach Compliance Code	unknown
Has ADC	NO
Address bus width	16
bit size	8
CPU series	Z8
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQCC-J44
length	16.59 mm
Number of I/O lines	32
Number of terminals	44
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	236
rom(word)	4096
ROM programmability	MROM
speed	16 MHz
Maximum slew rate	25 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.59 mm

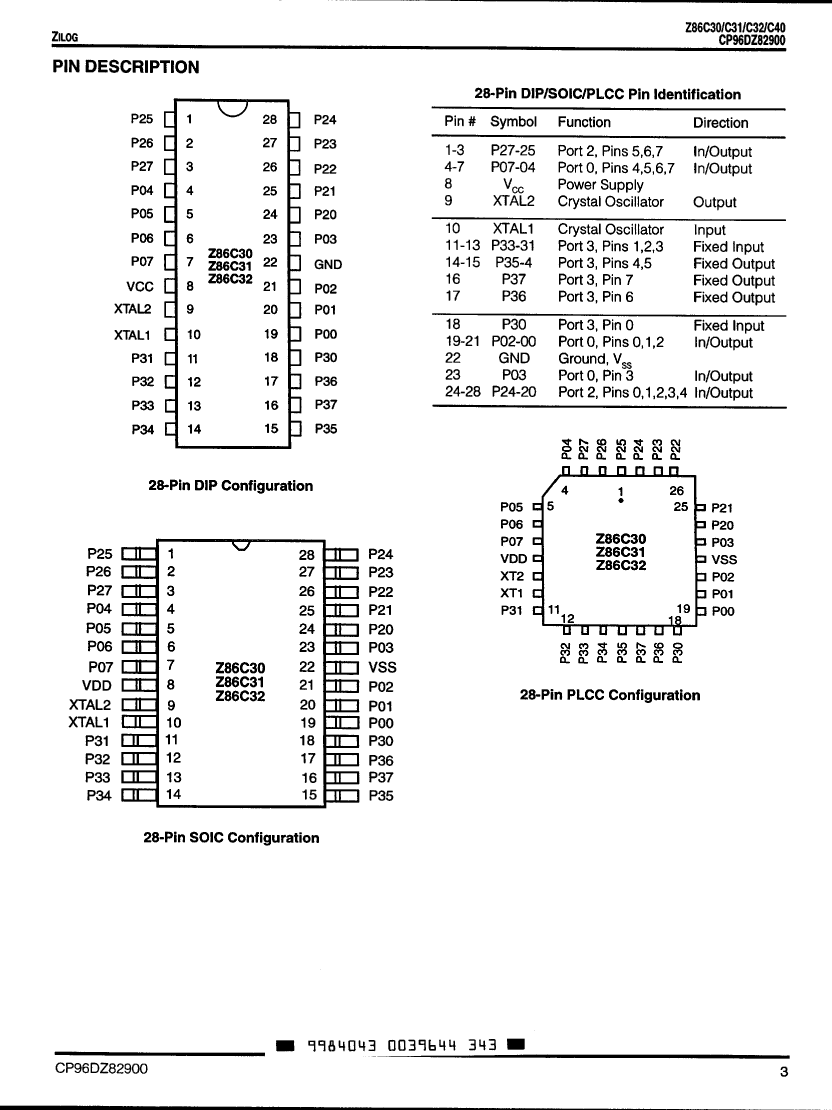

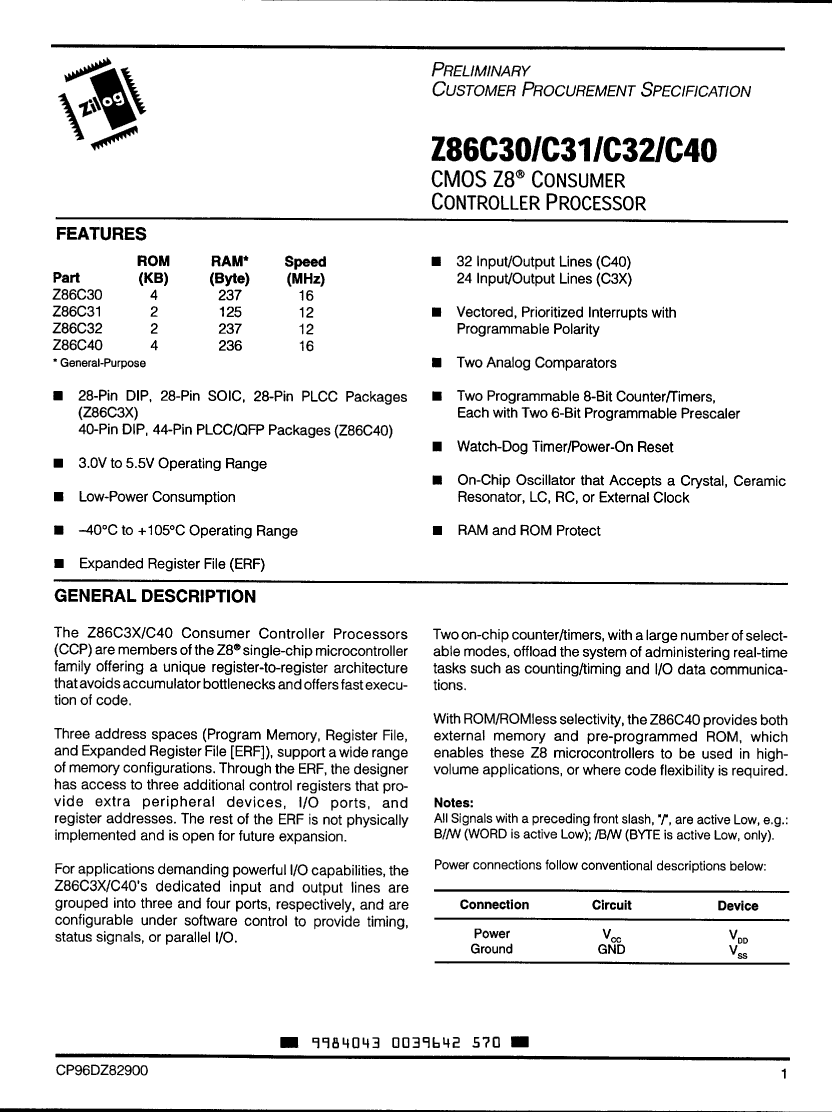

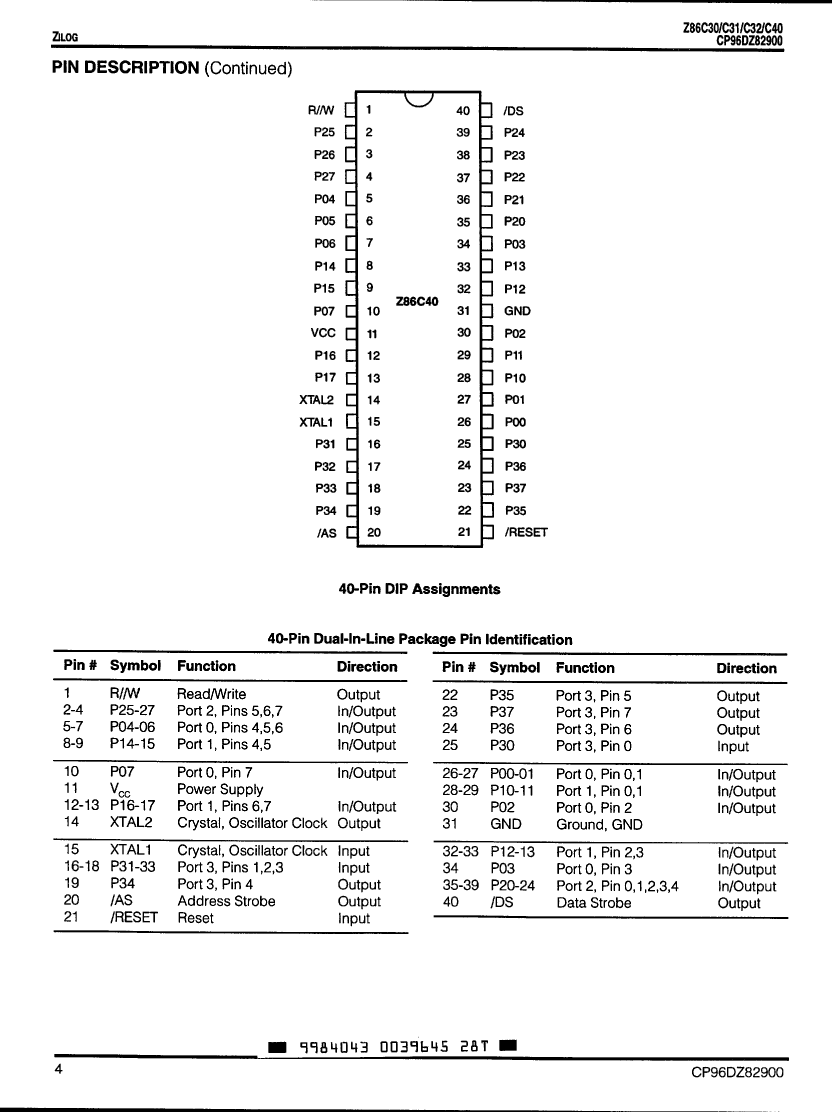

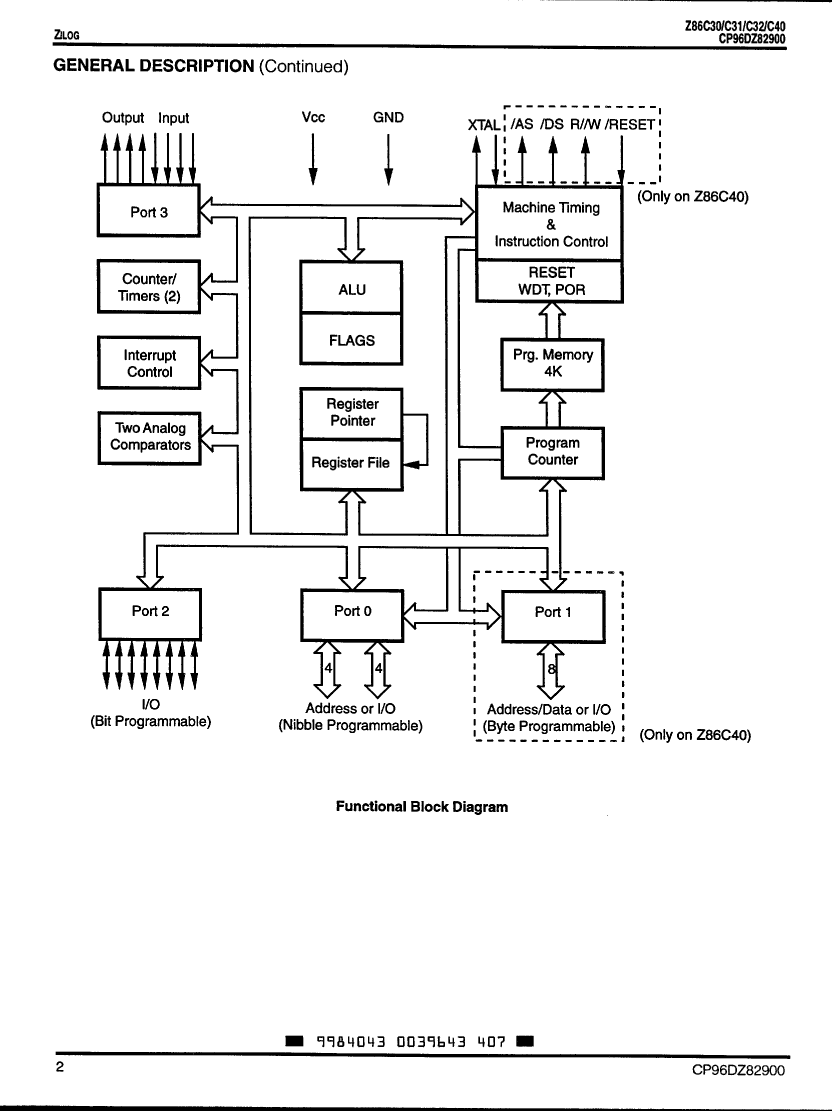

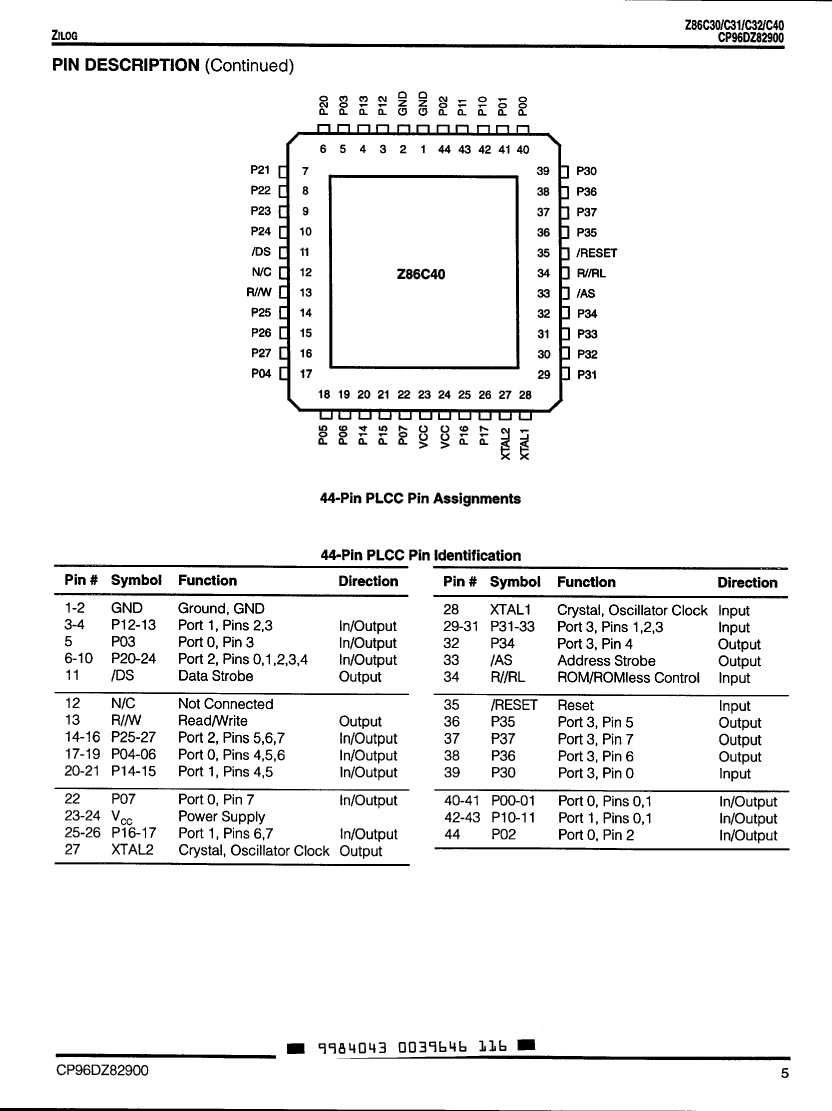

Preview

Download Datasheet

View All

Z86C4016VEC Related Products

	Z86C4016VEC	Z86C3016SEC	Z86C3112PEC	Z86C4016FEC
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PQCC44,	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDSO28,	Microcontroller, 8-Bit, MROM, Z8 CPU, 6MHz, CMOS, PDIP28,	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PQFP44,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	IXYS	IXYS	IXYS	IXYS
Reach Compliance Code	unknown	unknown	unknown	unknow
Has ADC	NO	NO	NO	NO
Address bus width	16	8	8	16
bit size	8	8	8	8
CPU series	Z8	Z8	Z8	Z8
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
JESD-30 code	S-PQCC-J44	R-PDSO-G28	R-PDIP-T28	S-PQFP-G44
length	16.59 mm	17.9 mm	36.46 mm	10 mm
Number of I/O lines	32	24	24	32
Number of terminals	44	28	28	44
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	SOP	DIP	QFP
Encapsulate equivalent code	LDCC44,.7SQ	SOP28,.4	DIP28,.6	QFP44,.57SQ,32
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	SMALL OUTLINE	IN-LINE	FLATPACK
power supply	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	236	237	125	236
rom(word)	4096	4096	2048	4096
ROM programmability	MROM	MROM	MROM	MROM
speed	16 MHz	16 MHz	12 MHz	16 MHz
Maximum slew rate	25 mA	25 mA	20 mA	25 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	J BEND	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	0.8 mm
Terminal location	QUAD	DUAL	DUAL	QUAD
width	16.59 mm	7.5 mm	15.24 mm	10 mm
