PQ1S27 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> PQ1S27

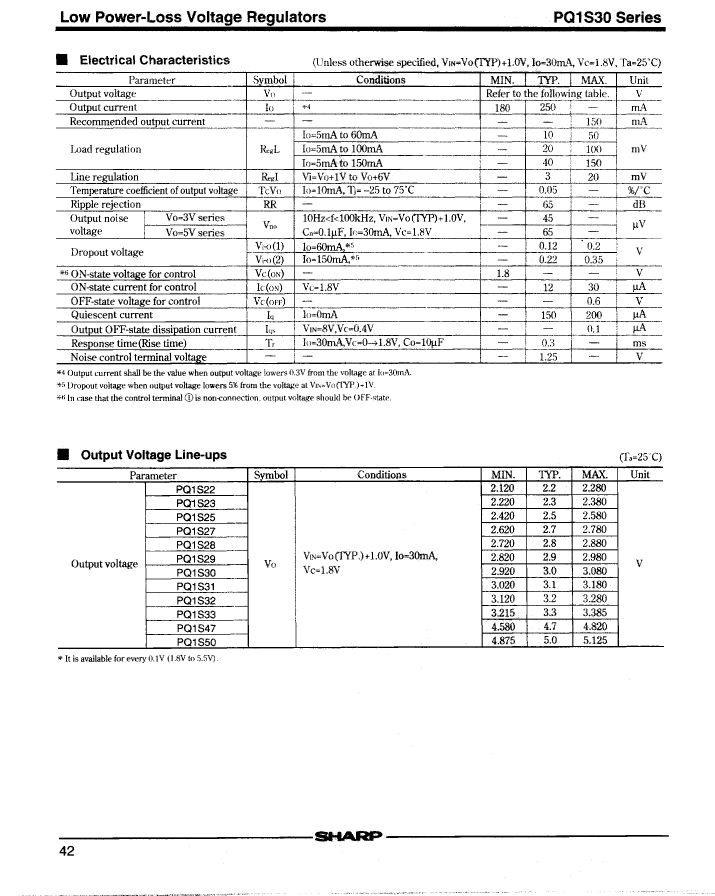

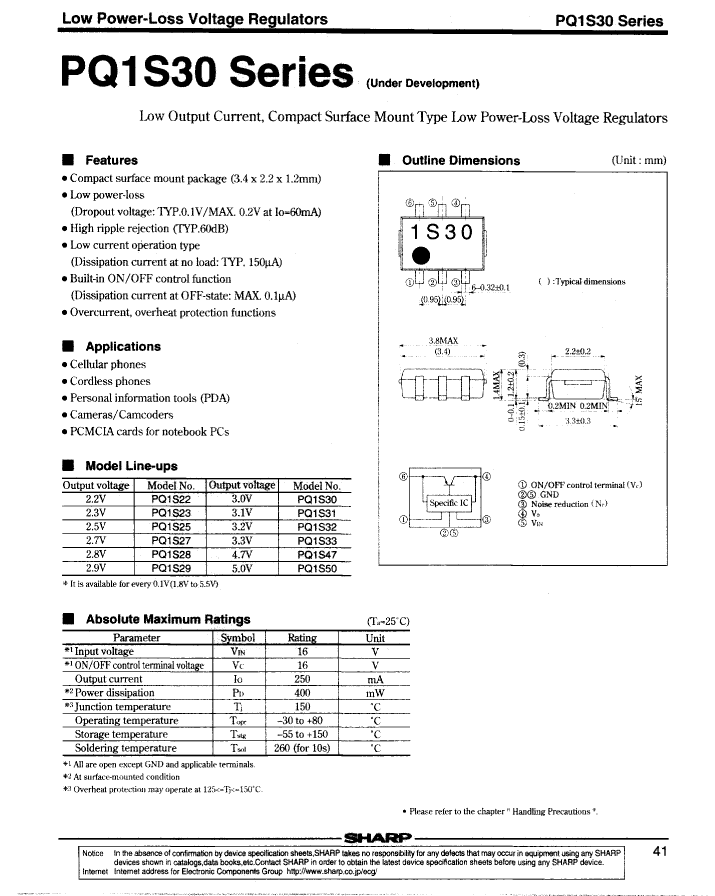

PQ1S27: DescriptionFixed Positive Standard Regulator, 2.7VPDSO6, 3.40 X 2.20 MM, 1.20 MM HEIGHT, COMPACT, SMT-6; CategoryPower/power management The power supply circuit; File Size107KB，2 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

PQ1S27 Overview

Fixed Positive Standard Regulator, 2.7VPDSO6, 3.40 X 2.20 MM, 1.20 MM HEIGHT, COMPACT, SMT-6

PQ1S27 Parametric

Parameter Name	Attribute value
Maker	SHARP
package instruction	3.40 X 2.20 MM, 1.20 MM HEIGHT, COMPACT, SMT-6
Reach Compliance Code	unknown
Maximum input voltage	8.7 V
Minimum input voltage	3.7 V
JESD-30 code	R-PDSO-G6
length	3.4 mm
Number of functions	1
Number of terminals	6
Working temperatureTJ-Max	75 °C
Working temperature TJ-Min	-25 °C
Maximum output current 1	0.15 A
Maximum output voltage 1	2.78 V
Minimum output voltage 1	2.62 V
Nominal output voltage 1	2.7 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	1.4 mm
surface mount	YES
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
width	2.2 mm

Preview

Download Datasheet

View All

PQ1S27 Related Products

	PQ1S27	PQ1S29	PQ1S28	PQ1S25	PQ1S23	PQ1S22
Description	Fixed Positive Standard Regulator, 2.7VPDSO6, 3.40 X 2.20 MM, 1.20 MM HEIGHT, COMPACT, SMT-6	Fixed Positive Standard Regulator, 2.9VPDSO6, 3.40 X 2.20 MM, 1.20 MM HEIGHT, COMPACT, SMT-6	Fixed Positive Standard Regulator, 2.8VPDSO6, 3.40 X 2.20 MM, 1.20 MM HEIGHT, COMPACT, SMT-6	Fixed Positive Standard Regulator, 2.5VPDSO6, 3.40 X 2.20 MM, 1.20 MM HEIGHT, COMPACT, SMT-6	Fixed Positive Standard Regulator, 2.3VPDSO6, 3.40 X 2.20 MM, 1.20 MM HEIGHT, COMPACT, SMT-6	Fixed Positive Standard Regulator, 2.2VPDSO6, 3.40 X 2.20 MM, 1.20 MM HEIGHT, COMPACT, SMT-6
Maker	SHARP	SHARP	SHARP	SHARP	SHARP	SHARP
package instruction	3.40 X 2.20 MM, 1.20 MM HEIGHT, COMPACT, SMT-6	3.40 X 2.20 MM, 1.20 MM HEIGHT, COMPACT, SMT-6	3.40 X 2.20 MM, 1.20 MM HEIGHT, COMPACT, SMT-6	3.40 X 2.20 MM, 1.20 MM HEIGHT, COMPACT, SMT-6	3.40 X 2.20 MM, 1.20 MM HEIGHT, COMPACT, SMT-6	3.40 X 2.20 MM, 1.20 MM HEIGHT, COMPACT, SMT-6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum input voltage	8.7 V	8.9 V	8.8 V	8.5 V	8.3 V	8.2 V
Minimum input voltage	3.7 V	3.9 V	3.8 V	3.5 V	3.3 V	3.2 V
JESD-30 code	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6
length	3.4 mm	3.4 mm	3.4 mm	3.4 mm	3.4 mm	3.4 mm
Number of functions	1	1	1	1	1	1
Number of terminals	6	6	6	6	6	6
Working temperatureTJ-Max	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Working temperature TJ-Min	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum output current 1	0.15 A	0.15 A	0.15 A	0.15 A	0.15 A	0.15 A
Maximum output voltage 1	2.78 V	2.98 V	2.88 V	2.58 V	2.38 V	2.28 V
Minimum output voltage 1	2.62 V	2.82 V	2.72 V	2.42 V	2.22 V	2.12 V
Nominal output voltage 1	2.7 V	2.9 V	2.8 V	2.5 V	2.3 V	2.2 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP	LSSOP	LSSOP	LSSOP	LSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.95 mm	0.95 mm	0.95 mm	0.95 mm	0.95 mm	0.95 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	2.2 mm	2.2 mm	2.2 mm	2.2 mm	2.2 mm	2.2 mm
Base Number Matches	-	1	1	1	1	-
