D5V0F2U3LP
2 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
Product Summary
V
BR (min)
6V
I
PP (max)
1.5A
C
T (typ)
0.5pF
Features
Low Profile Package (0.53mm max) and Ultra-small PCB
Footprint Area (1.08 x 0.68mm max) Suitable for Compact
Portable Electronics
Provides ESD Protection per IEC 61000-4-2 Standard:
Air ±15kV, Contact ±15kV
2 Channels of ESD Protection
Low Channel Input Capacitance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Description
This new generation TVS is designed to protect sensitive electronics
from the damage due to ESD. The combination of small size and high
ESD surge capability makes it ideal for use in portable applications
such as cellular phones, digital cameras, and MP3 players.
Applications
Cellular Handsets
Portable Electronics
Computers and Peripheral
Mechanical Data
X1-DFN1006-3
Case: X1-DFN1006-3
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: NiPdAu over Copper leadframe. Solderable per MIL-
STD-202, Method 208
e4
Weight: 0.001 grams (approximate)
Bottom View
Device Schematic
Ordering Information
(Note 4)
Product
D5V0F2U3LP-7B
Notes:
Compliance
Standard
Marking
Q1
Reel Size (inches)
7
Tape Width (mm)
8
Quantity per Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Q1
Top View
Bar Denotes
Cathode Side
Q19 = Product Type Marking Code
D5V0F2U3LP
Document number: DS36742 Rev. 1 - 2
1 of 4
www.diodes.com
April 2014
© Diodes Incorporated
D5V0F2U3LP
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Peak Pulse Current
ESD Protection – Contact Discharge
ESD Protection – Air Discharge
Symbol
I
PP
V
ESD_Contact
V
ESD_Air
Value
1.5
±15
±15
Unit
A
kV
kV
Conditions
8/20µs (Note 7)
Standard IEC 61000-4-2
Standard IEC 61000-4-2
Thermal Characteristics
Characteristic
Power Dissipation (Note 5)
Thermal Resistance, Junction to Ambient T
A
= +25°C
Operating and Storage Temperature Range
Symbol
P
D
R
θJA
T
J
, T
STG
Value
300
417
-55 to +150
Unit
mW
C/W
C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Standoff Voltage
Channel Leakage Current (Note 6)
Reverse breakdown voltage
Clamping Voltage, Positive Transients (Note 7)
Channel Input Capacitance (Note 8)
Dynamic Resistance
Notes:
Symbol
V
RWM
I
R
V
BR
V
C
C
T
Min
—
—
6.0
—
—
—
Typ
—
—
—
10
0.5
0.4
0.9
Max
5.5
100
—
12
—
Unit
V
nA
V
V
pF
0.65
—
Ω
R
DYN
—
Test Conditions
V
R
= 5V, Any I/O to GND
I
R
= 1mA
I
PP
= 1A, t
p
= 8/20μs
V
R
= 0V, f = 1MHz, Any I/O to
GND
V
R
= 2.5V, f = 1MHz, Any I/O to
GND
I
PP
= 1A, t
p
= 8/20μs
5. Device mounted on FR-4 PCB pad layout (2oz copper) as shown on Diodes, Inc. suggested pad layout AP02001, which can be found on our website at
http://www.diodes.com.
6. Short duration pulse test used to minimize self-heating effect.
7. Clamping voltage value is based on an 8x20µs peak pulse current (I
pp
) waveform.
8. Measured from any I/O to GND.
9. For information on the impact of Diodes' USB 2.0 compatible ESD protectors on signal integrity including eye diagram plots, please refer to AN77 at the
following URL: http://www.diodes.com/destools/appnote_dnote.html.
250
225
P
D
, POWER DISSIPATION (mW)
200
175
150
125
100
75
50
25
0
PEAK PULSE DERATING % OF
PEAK POWER OR CURRENT
Note 5
100
75
50
25
0
0
25
50
150
75
100 125
T
A
, AMBIENT TEMPERATURE (°C)
Figure 1 Power Derating Curve
175
0
25
50
75 100 125 150 175 200
T
A
, AMBIENT TEMPERATURE (°C)
Figure 2 Pulse Derating Curve
D5V0F2U3LP
Document number: DS36742 Rev. 1 - 2
2 of 4
www.diodes.com
April 2014
© Diodes Incorporated
D5V0F2U3LP
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
1000
I
PP
, PEAK PULSE CURRENT (%I
pp
)
100
Peak Value I
pp
100
T
A
= 150°C
10
T
A
= 125°C
Half Value I
pp
/2
50
1
T
A
= 85°C
T
A
= 25°C
0.1
T
A
= -55°C
0
8x20 Waveform
as defined by R.E.A.
0
20
40
60
t, TIME (
s)

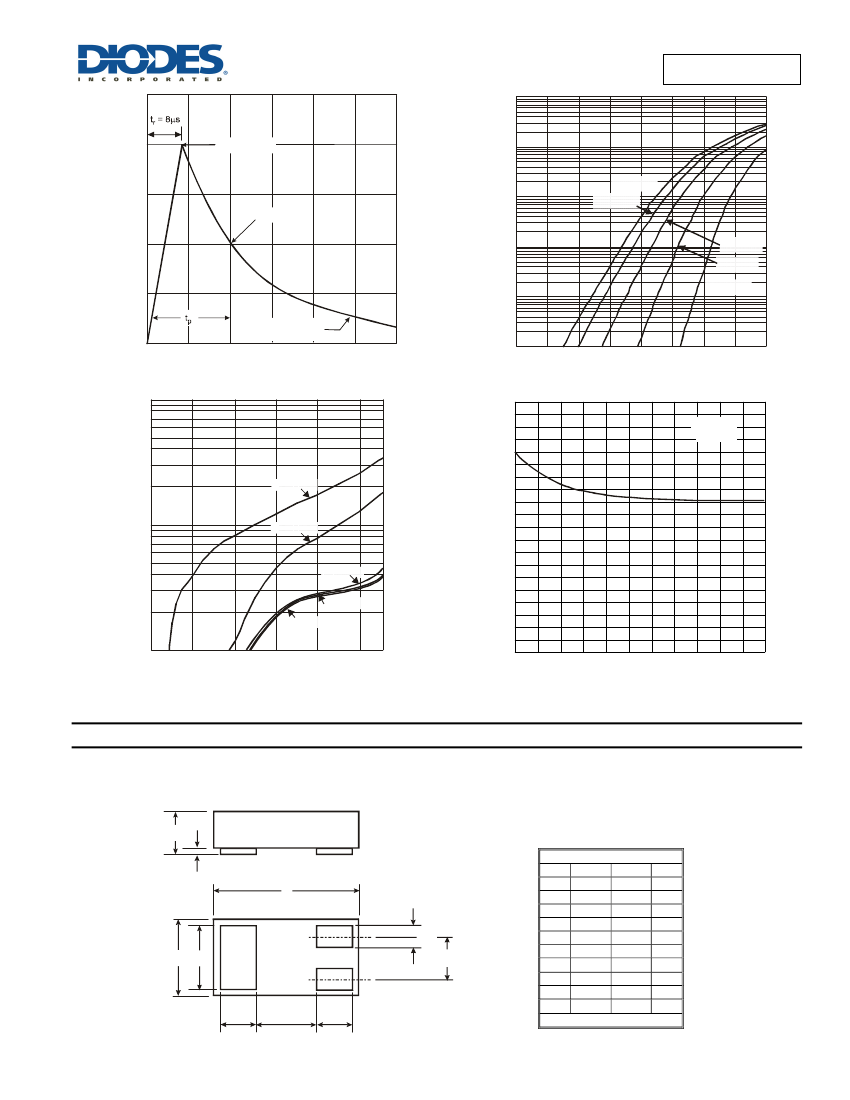

Figure 3 Pulse Waveform
0.01
300 400 500 600 700 800 900 1000 1100
V
F
, INSTANTANEOUS FORWARD VOLTAGE (mV)
Figure 4 Typical Forward Characteristics
100
0.6
0.55
f = 1MHz
Note 8
8
Note
I
R
, LEAKAGE CURRENT (nA)
T
A
= 150°C
C
T
, TOTAL CAPACITANCE (pF)
0.5
0.45
0.4
10
T
A
= 125°C
0.35
0.3
T
A
= 85°C
T
A
= 25°C
T
A
= -55°C
0.25
0.2
0.15
0.1
0
1 1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
R
, REVERSE VOLTAGE (V)
Figure 6 Total Capacitance vs. Reverse Voltage
0.5
1
0
2
3
4
5 5.5
V
R
, REVERSE VOLTAGE (V)
Figure 5 Typical Reverse Characteristics
1
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
A
A1
D
b1
E
b2
e
DFN1006-3
Dim Min
Max Typ
A
0.47
0.53 0.50
A1
0
0.05 0.03
b1
0.10
0.20 0.15
b2
0.45
0.55 0.50
D
0.95 1.075 1.00
E
0.55 0.675 0.60
e
0.35
L1
0.20
0.30 0.25
L2
0.20
0.30 0.25
L3
0.40
All Dimensions in mm
L2
L3
L1
D5V0F2U3LP
Document number: DS36742 Rev. 1 - 2
3 of 4
www.diodes.com
April 2014
© Diodes Incorporated
D5V0F2U3LP
Suggested Pad Layout
C
X
1
X
G2
Y
Z
G1
Dimensions
Z
G1
G2
X
X1
Y
C
Value (in mm)
1.1
0.3
0.2
0.7
0.25
0.4
0.7
