5536536-1 datasheet, PDF - EEWORLD Datasheet

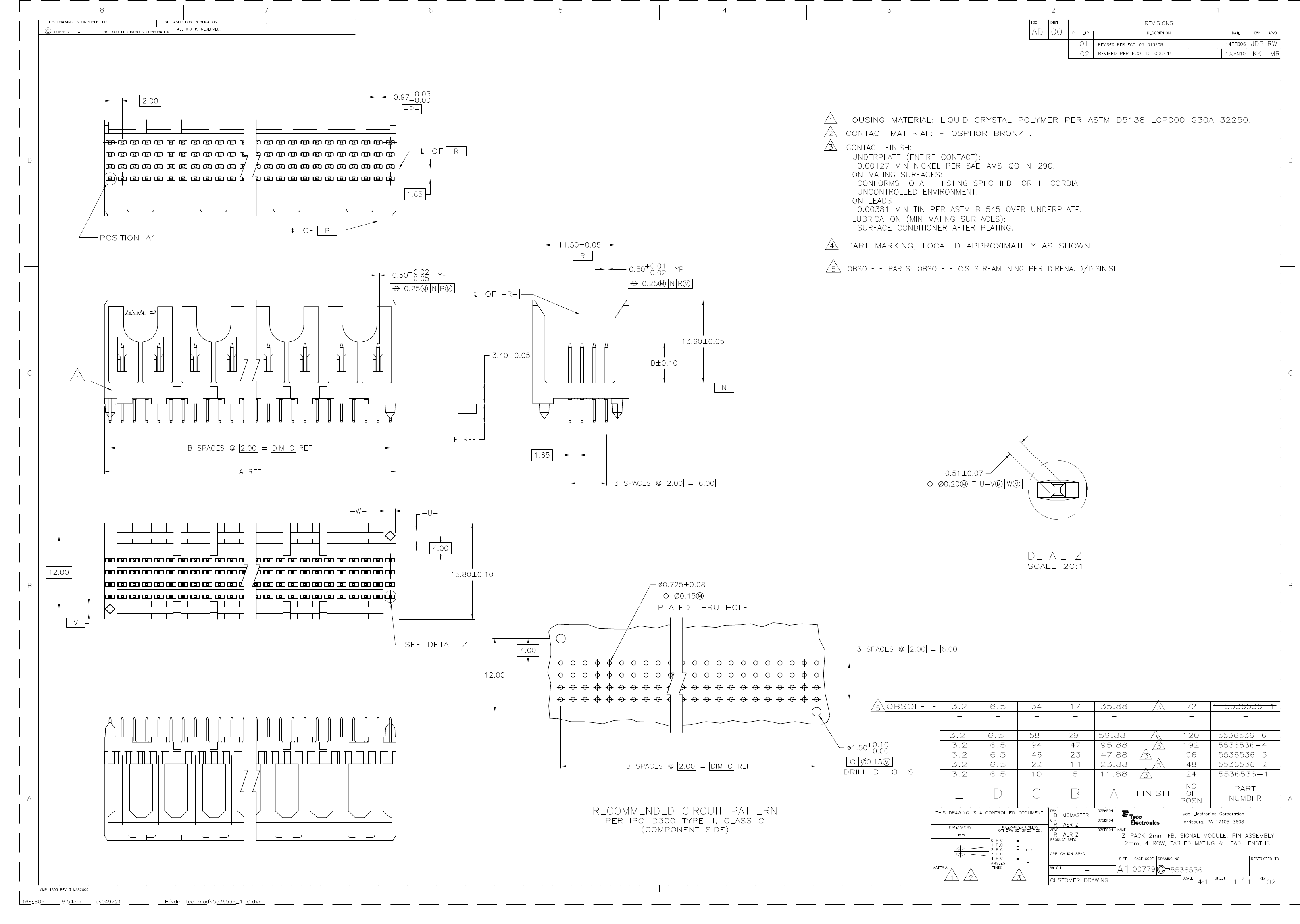

5536536-1: Description2mmfb,asy,024,sig,hdr,SL,3.20; CategoryThe connector; File Size158KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5536536-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5536536-1	-	-	View	Buy Now

2mmfb,asy,024,sig,hdr,SL,3.20

Parameter Name	Attribute value
Datasheets
5536536
RoHS Informati
5536536-1 Statement of Compliance
RoHS 2 Stateme
Standard Package	1,152
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	-
Connector Type	Header, Male Pins
Connector Style	Futurebus
Number of Positions	24
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	4
Number of Columns	-
Mounting Type	Through Hole
Terminati	Solde
Contact Layout, Typical	-
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	-
Col	-
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-55°C ~ 125°C
Voltage Rating	30V
Mating Products	5223650-1-ND - 2MM FB,4RV,REC,ASY,024,PF,4.25A31571-ND - CONN RECEPT RT/A 2MM 24POS 30AUA31567-ND - CONN RECEPT RT/A 2MM 24POS 30AUA31562-ND - CONN RECEPT RT/A 2MM 24POS 30AU

	5536536-1	5536536-2	5536536-3
Description	2mmfb,asy,024,sig,hdr,SL,3.20	2mmfb,asy,048,sig,hdr,SL,3.20	2mmfb,asy,096,sig,hdr,SL,3.20
Standard Package	1,152	288	720
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tube	Tube	Tube
Connector Type	Header, Male Pins	Header, Male Pins	Header, Male Pins
Connector Style	Futurebus	Futurebus	Futurebus
Number of Positions	24	48	96
Number of Positions Loaded	All	All	All
Pitch	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	4	4	4
Mounting Type	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde
Features	Board Guide	Board Guide	Board Guide
Contact Finish	Gold	Gold	Gold
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Voltage Rating	30V	30V	30V
Mating Products	5223650-1-ND - 2MM FB,4RV,REC,ASY,024,PF,4.25A31571-ND - CONN RECEPT RT/A 2MM 24POS 30AUA31567-ND - CONN RECEPT RT/A 2MM 24POS 30AUA31562-ND - CONN RECEPT RT/A 2MM 24POS 30AU	5223660-2-ND - 2MM FB,4RV,REC,ASY,048,SL,3.205223655-2-ND - 2MM FB,4RV,REC,ASY,048,SL,4.255223650-2-ND - 2MM FB,4RV,REC,ASY,048,PF,4.25A31572-ND - CONN RECEPT RT/A 2MM 48POS 30AUA31568-ND - CONN RECEPT RT/A 2MM 48POS 30AUA31563-ND - CONN RECEPT RT/A 2MM 48POS 30AU	A31573-ND - CONN RECEPT RT/A 2MM 96POS 30AUA31569-ND - CONN RECEPT RT/A 2MM 96POS 30AUA31564-ND - CONN RECEPT RT/A 2MM 96POS 30AU
