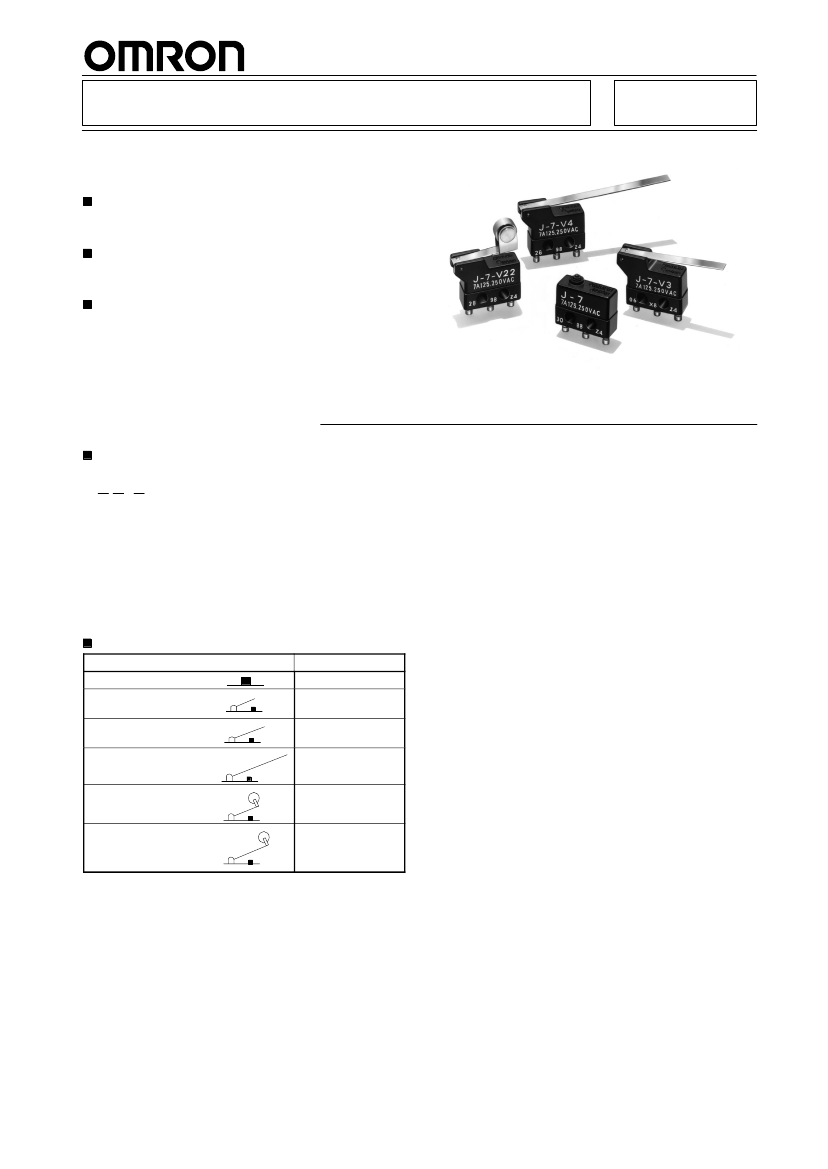

Ultra Subminiature Basic Switch
Subminiature Models Capable of
Large-capacity Loads
Snap-action switch allows large-capacity switching
(7 A at 250 VAC) in spite of its small size
(8.9 12.7 5.1 mm).
Particularly suitable as control switches for
applications where there are restrictions on
installation space and weight.
Easy positioning, as the pin plunger is located in
alignment with the center line of one of the two
mounting holes.
J
RC
Ordering Information
Model Number Legend
J-7j-j
1
2
3
1.
2.
Ratings
7:
7 A at 250 VAC
Contact Material
None: Gold-plated silver
Y:
Silver
3.
Actuator
None: Pin plunger
V:
Short hinge lever
V3:
Hinge lever
V4:
Long hinge lever
V22: Short hinge roller lever
V2:
Hinge roller lever
List of Models
Actuator
Pin plunger
Short hinge
lever
Hinge lever
Long hinge lever
Short hinge roller
lever
Hinge roller lever
J-7
J-7-V
J-7-V3
J-7-V4
J-7-V22
Model
J-7-V2
Note:
Externally mounted levers JAL and JAL2 are sold sepa-
rately. Refer to page 208.
203
J
J
Specifications
Ratings
Rated voltage
125 VAC
250 VAC
Note:
7A
7A
Resistive load
The ratings values apply under the following test conditions:
Ambient temperature: 20±2°C
Ambient humidity: 65±5%
Operating frequency: 30 operations/min
Switching Capacity per Load (Reference Values)
Voltage
NC
125 VAC
250 VAC
8 VDC
14 VDC
30 VDC
125 VDC
250 VDC
Note:
7A
7A
7A
7A
5A
0.4 A
0.2 A
Non-inductive load
Resistive load
NO
Lamp load
NC
1.5 A
1.5 A
1.5 A
1.5 A
1.5 A
0.4 A
0.2 A
NO
0.7 A
0.7 A
0.7 A
0.7 A
0.7 A
0.4 A
0.2 A
NC
4A
4A
3A
3A
3A
0.03 A
0.02 A
Inductive load
Inductive load
NO
Motor load
NC
2.5 A
2.5 A
2.5 A
2.5 A
2.5 A
0.03 A
0.02 A
NO
1.3 A
1.3 A
1.3 A
1.3 A
1.3 A
0.03 A
0.02 A
1. The above values are for the steady-state current.
2. Inductive load has a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. Lamp load has an inrush current of 10 times the steady-state current.
4. Motor load has an inrush current of 6 times the steady-state current.
Characteristics
Operating speed
Operating frequency
Insulation resistance
Contact resistance (initial value)
Dielectric strength
0.05 mm to 1 m/s (pin plunger models)
Mechanical: 400 operations/min max.
Electrical: 30 operations/min max.
100 MΩ min. (at 500 VDC)
15 mΩ max.
600 VAC, 50/60 Hz for 1 min between terminals of the same polarity
1,500 VAC, 50/60 Hz for 1 min between each terminal and non-current-carrying metal part and
between current-carrying metal part and ground.
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Destruction: 1,000 m/s
2
{approx. 100G} max.
Malfunction: 200 m/s
2
{approx. 20G} max. (pin plunger models)
Mechanical: 10,000,000 operations min. (60 operations/min)
Electrical: 50,000 operations min. (30 operations/min)
IEC IP40
Class I
175
–10°C to 80°C (at ambient humidity of 60% max.) (with no icing)
85% max. (for 5°C to 35°C)
Approx. 1 g (pin plunger models)
Vibration resistance (see note 2)
Shock resistance (see note 2, 3)
Durability (see note 4)
Degree of protection
Degree of protection against
electric shock
Proof tracking index (PTI)
Ambient operating temperature
Ambient operating humidity
Weight
Note:
2. Malfunction: 1 ms max.
1. The data given above are initial values.
3. For the pin plunger models, the values are at the free position and total travel position. For the lever models, they are at the total
travel position.
4. For testing conditions, consult your OMRON sales representative.
204
J
Approved Standards
Consult your OMRON sales representative for specific models with
standard approvals.
J
Contact Form
SPDT
UL508 (File No. E41515)/
CSA C22.2 No. 55 (File No. LR21642)
Rated voltage
125 VAC
250 VAC
7A
J-7
Contact Specifications
Contact
Specification
Material
Gap (standard value)
Inrush
current
t
NC
NO
Rivet
Silver plated
Gold plated
0.35 mm
15 A max.
7 A max.
30 mA at 5 VDC
Minimum applicable load
Engineering Data (Reference Values)
Mechanical Durability
100,000
70,000
50,000
30,000
Without load
Operating frequency:
400 operations/min
Ambient temperature: 20±2
°C
Ambient humidity: 65±5%
Electrical Durability
1,000
700
Resistive load: cosφ = 1
Operating frequency:
20 operations min. max.
cosφ=1
Ambient temperature: 20±2
°C
Ambient humidity: 65±5%
125 VAC
Number of operations (x10
3
)
Number of operations (x10
3
)
500
300
200
100
70
50
30
20
10
250 VAC
10,000
7,000
5,000
3,000
1,000
0
0.1
0.2
0.3
0.4
0.5
0
1
2
3
4
5
6
7
8
Overtravel (mm)
Switching current (A)
205
J
J
Dimensions

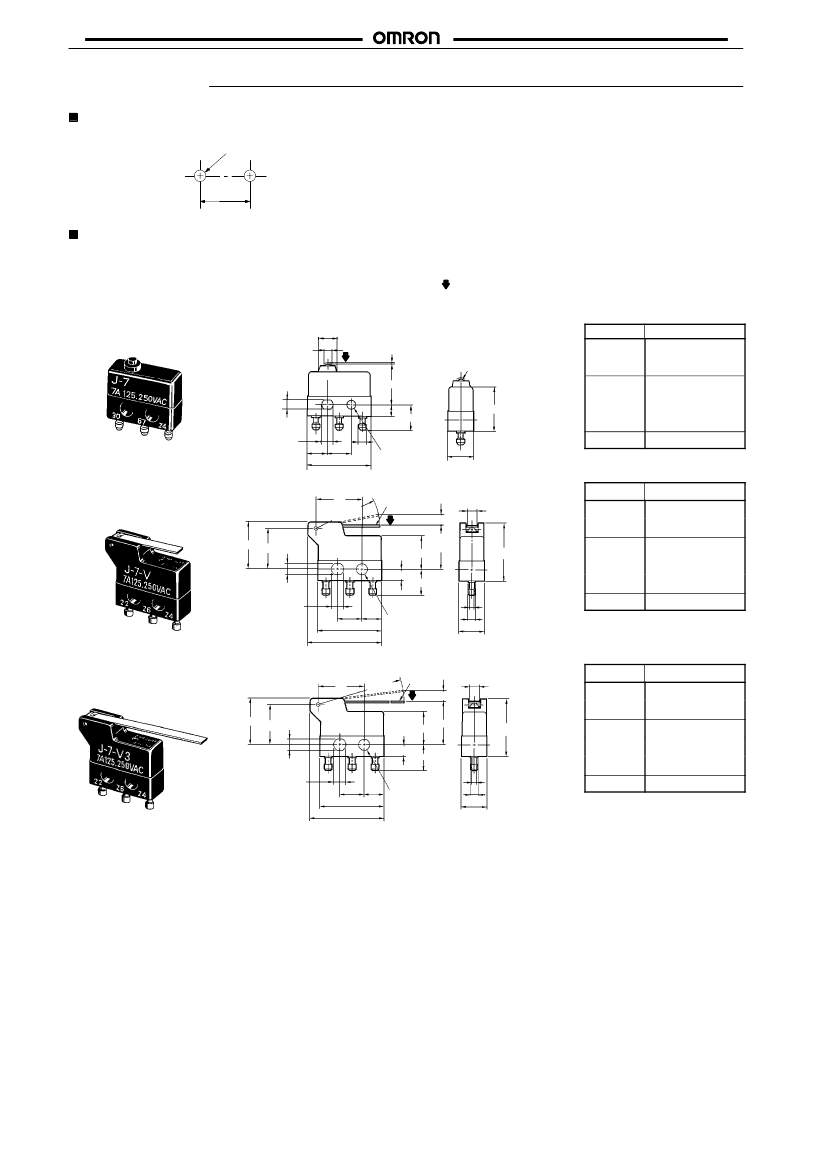

Mounting Holes
Note:
All units are in millimeters unless otherwise indicated.
M 2.3 screw holes
4.8
±
0.1
Dimensions and Operating Characteristics
Note:
1. All units are in millimeters unless otherwise indicated.
2. Unless otherwise specified, a tolerance of
±0.2
mm applies to all dimensions.
3. The operating characteristics are for operation in the A direction ( ).
Pin Plunger Models
J-7
1.5 dia.
3.5 dia.
A
PT
0.8R (plastic pin plunger)
2.35
–0.025
+0.05
Model
OF max.
RF min.
PT max.
8.9
J-7
1.37 N {
{140 g }
gf}
0.27 N {28 gf}
0.6 mm
0.1 mm
0.15 mm
8.1±0.3 mm
OP
2.3
5.1
OT min.
MD max.
OP
2.5
+0.05
dia.
–0.025
3.95
4.8±0.05
12.7
1.5 dia.
2.35
–0.025
dia.
+0.05
5.1±0.1

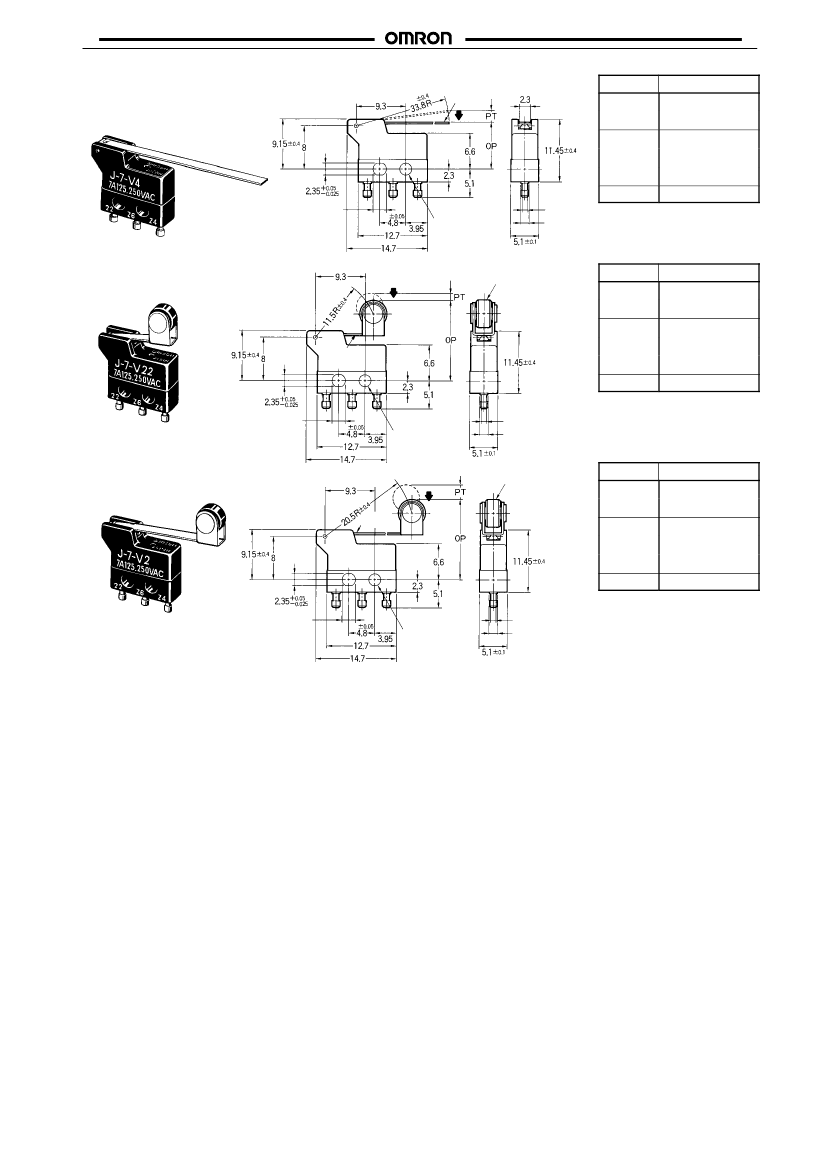

Short Hinge Lever Models
J-7-V
9.3
12.7R±0.4
t = 0.3
(see note)
A
PT
OP
Model
2.3
J-7-V
0.49 N { g }
{50 gf}
0.08 N {9 g}
1.7 mm
0.35 mm
0.5 mm
8.3±1.2 mm
OF max.
RF min.
11.45±0.4
9.15±0.4 8
2.3
2.35
–0.025
2.5
+0.05
dia.
–0.025
4.8±0.05 3.95
12.7
14.7
+0.05
6.6
PT max.
OT min.
MD max.
5.1
1 dia.
1.5 dia.
5.1±0.1
Note:
OP
2.35
–0.025
dia.
+0.05
Stainless-steel spring lever
Hinge Lever Models
J-7-V3
9.15±0.4
9.3
t = 0.3
(see note)
A
22R±0.4
PT
6.6 OP
2.3
2.3
Model
OF max.
RF min.
PT max.
OT min.
MD max.
1 dia.
1.5 dia.
J-7-V3
0.29 N { g }
{30 gf}
0.04 N {5 gf}
2.9 mm
0.5 mm
0.7 mm
8.3±1.9 mm
8
11.45±0.4
2.35
–0.025
+0.05
2.5
–0.025
dia.
+0.05
5.1
4.8±0.05 3.95
12.7
14.7
2.35
–0.025
dia.
5.1±0.1
+0.05
OP
Note:
Stainless-steel spring lever
206
