SMBJ2K3.0 thru SMBJ2K5.0
SMBG2K3.0 thru SMBG2K5.0
SCOTTSDALE DIVISION
UNIDIRECTIONAL LOW VOLTAGE
SURFACE MOUNT TRANSIENT
VOLTAGE SUPPRESSOR
APPEARANCE
WWW .
Microsemi
.C
OM
DESCRIPTION
The SMBJ2K3.0-5.0 or SMBG2K3.0-5.0 series of surface mount 2000 Watt
unidirectional Transient Voltage Suppressors (TVSs) provide low voltage
transient protection in a Working Standoff Voltage (V
WM
) selections from 3.0
to 5.0 volts. Response time of clamping action is virtually instantaneous and
may also be used for protection from ESD or EFT per IEC61000-4-2 and
IEC61000-4-4, or for inductive switching environments and induced RF.
They can also be used for protecting other sensitive components from
secondary lightning effects per IEC61000-4-5 and class levels defined
herein. Microsemi also offers numerous other TVS products to meet higher
and lower power demands and special applications. Also available in military
equivalent screening levels by adding a prefix identifier as further described
in the Features section. Microsemi also offers numerous other TVS products
to meet higher and lower power applications.
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com
FEATURES
•
•
•

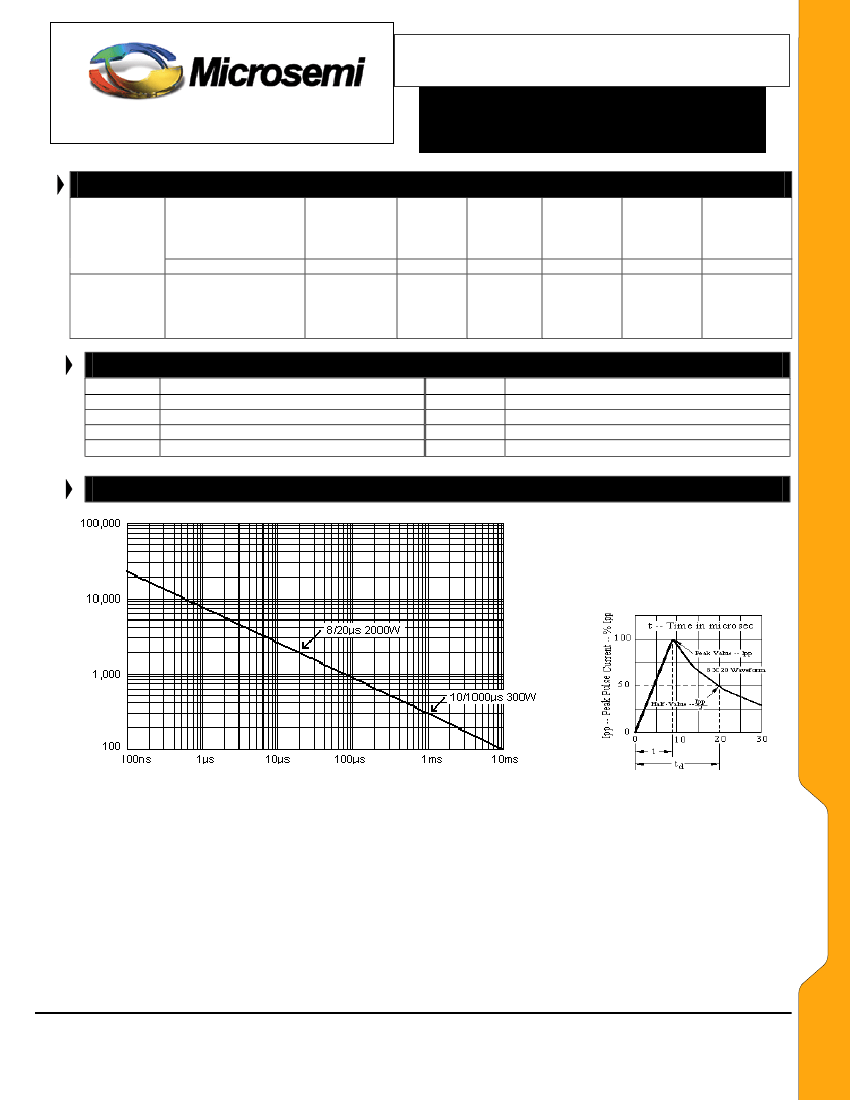

Suppresses transients up to 2000 watts @ 8/20 µs (see
Figure 1 and 2)
Fast response
Optional 100%
screening for avionics grade
is available
by adding MA prefix to part number for added 100%
temperature cycle -55
o
C to +125
o
C (10X) as well as surge
(3X) and 24 hours HTRB with post test V
Z
& I
R
(in the
operating direction for unidirectional or both directions for
bidirectional)
Options for screening in accordance with MIL-PRF-19500
for JAN, JANTX, JANTXV, and JANS are available by
adding MQ, MX, MV, or MSP prefixes respectively to part
numbers.
Moisture classification is Level 1 with no dry pack required
per IPC/JEDEC J-STD-020B
Consult factory for bidirectional options
•
•
APPLICATIONS / BENEFITS
Selections for 3.0 to 5.0 V Working Peak Standoff
(V
WM
) voltage
Economical unidirectional TVS series in surface
mount with flat handling surface for accurate
placement
Voltage and reverse (leakage) current lowest
available
Protects sensitive components such as IC’s,
2
CMOS, Bipolar, BiCMOS, ECL, DTL, T L, etc.
Protection from switching transients & induced RF
Compliant to IEC61000-4-2 and IEC61000-4-4 for
ESD and EFT protection respectively
Secondary lightning protection per IEC61000-4-5
with 42 Ohms source impedance for Class 1
•
•
•
•
•
•
•
•
MAXIMUM RATINGS
•
Peak Pulse Power dissipation at 25
o
C: 2000 watts at 8/20
µs
or 300 Watts at 10/1000
µs
(also see Figure 1 and 4)
•
Clamping Voltage at 10 Amps @ 8/20
µs
shown on page 2
•
Impulse repetition rate (duty factor): 0.01% maximum
•
t
clamping
(0 volts to
V
(BR)
min.): < 100 ps
•
Operating and Storage temperature: -65
o
C to +150
o
C
•
Thermal resistance: 25
º
C/W junction to lead, or 90
º
C/W
junction to ambient when mounted on FR4 PC board (1oz
Cu) with recommended footprint (see last page)
•
Steady-State Power dissipation: 5 watts at T
L
= 25
o
C, or
1.38 watts at T
A
= 25
º
C when mounted on FR4 PC board
with recommended footprint
•
Forward Voltage at 25
o
C: 3.5 Volts maximum @ 30 Amp
peak impulse of 8.3 ms half-sine wave (unidirectional only)
•
Solder temperatures: 260
o
C for 10 s (maximum)
Copyright
2002
5-28-2004 REV F
MECHANICAL AND PACKAGING
•
•
•
•
•
•
CASE: Void-free transfer molded thermosetting
epoxy body meeting UL94V-0
FINISH: Tin-Lead plated over copper and readily
solderable per MIL-STD-750, method 2026
MARKING: Body marked without SMBJ or SMBG
part number prefix, e.g. 2K3.0, 2K3.3, 2K4.0, etc.
POLARITY: Band denotes cathode
WEIGHT: 0.1 grams (approximate)
TAPE & REEL option: Standard per EIA-481-1-A
with 12 mm tape, 750 per 7 inch reel or 2500 per
13 inch reel (add “TR” suffix to part number)

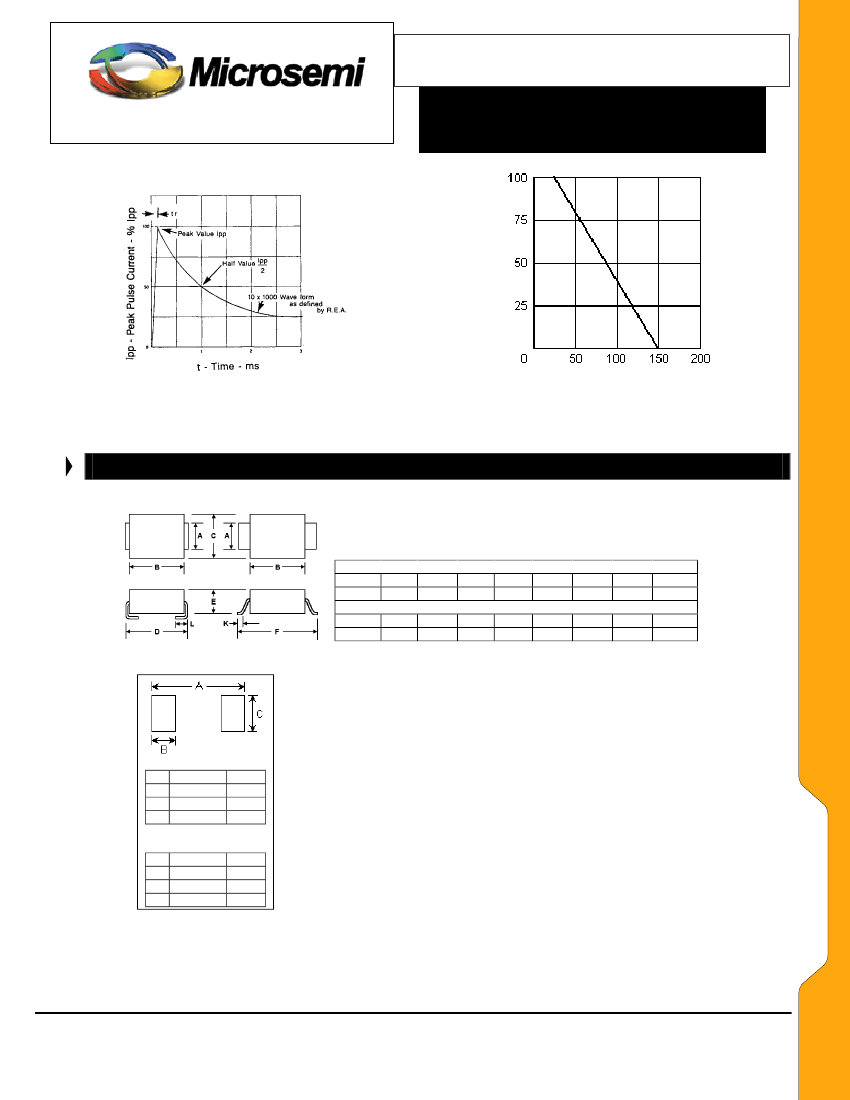

See package dimensions on last page
SMBG&J2K3.0-5.0
•
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 1
