80Z0509CSMD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 80Z0509CSMD

80Z0509CSMD: DescriptionDC-DC Unregulated Power Supply Module, 1 Output, Hybrid, SMD-16; CategoryPower/power management The power supply circuit; File Size46KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

80Z0509CSMD Overview

DC-DC Unregulated Power Supply Module, 1 Output, Hybrid, SMD-16

80Z0509CSMD Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
package instruction	SOP,
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	5.25 V
Minimum input voltage	4.75 V
Nominal input voltage	5 V
JESD-30 code	R-PDSO-G16
length	25.4 mm
Number of functions	1
Output times	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Nominal output voltage	-9 V
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	5.97 mm
surface mount	YES
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL
Fine-tuning/adjustable output	NO
width	10.03 mm

Preview

Download Datasheet

View All

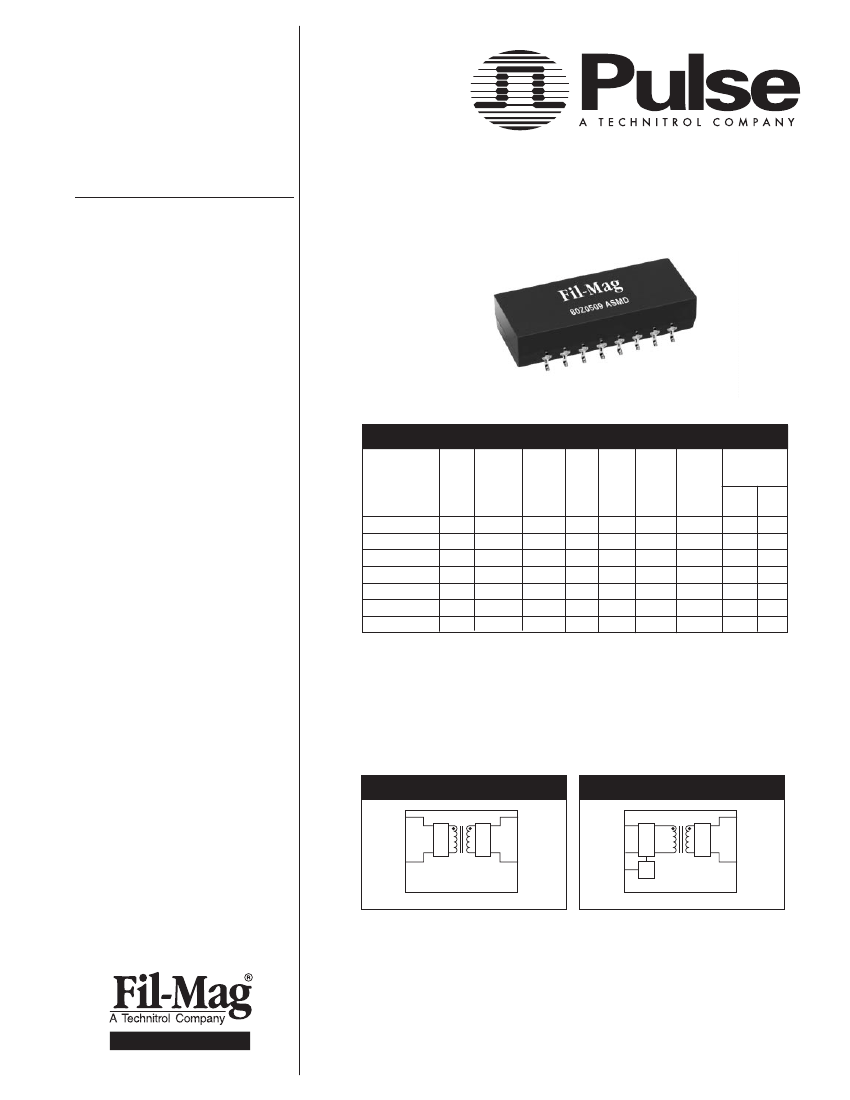

Surface Mount, Low Power

DC/DC Converters for

Ethernet Applications:

80Z0509XSMD and

80Z1209XSMD

Key Features

All Pulse components are

manufactured in ISO 9000

registered facilities to meet the

highest international standards

High MTBF due to low parts

count

100% burn-in at 70°C

100% tested on ATE

Surface mount assembly

technology

High efficiency ratings

Operating temperature is

0° to 70°C

Enable function provides

power down feature

Ideal for motherboard, pocket

LAN, PCMCIA LAN card

applications

Continuous short circuit

protection

Microminiature DC/DC Converters

for Ethernet

Electrical Specifications at 25°C

Input

VDC

Input

Voltage

Tolerance

±5%

Enable

Func-

tion

Low TTL

Low*

Hi TTL

Low TTL

Iso-

Output

lation

VDC

Vrms

500

-9

Regu-

lated

Output

Current

mA max

200

Ripple

@ 20 MHz BW

mVpp

max

100

mVpp

Typ

Part No

80Z0509 ASMD

80Z1209 ASMD

80Z0509 BSMD

80Z1209 BSMD

80Z0509 CSMD

80Z1209 CSMD

80Z1209 DSMD

Surface Mount

Designed and tested to

withstand I.R. profiles

Pick and place compatible

Molded for high integrity

16-pin package

Available in tubes; tape and

reel optional

* Enable:

Enable requires open collector.

General Specifications

Power Ratings: Up to 1.8 W

Switching Frequency: 80 KHz min (110 kHz typ)

Output Voltage Accuracy: ±5% nominal line at full load

Minimum Efficiency: >68% nominal line at full load

MTBF: 1,700 khr typical at 40ºC

No Enable 80Z _ _ _ _ ASMD

Vin + 3

7 Vout +

Enable 80Z _ _ _ _ _ SMD

Vin + 3

Inverter

Transformer

7 Vout +

Vin – 1

Inverter

Rectifier

and Filter

8 Vout –

Enable

Rectifier

and Filter

8 Vout –

Note:

80Z0509 BSMD: pin 2 is Low Enable TTL

80Z1209 BSMD: pin 2 is Low Enable Open Collector

80Z ___ CSMD: pin 2 is High Enable TTL

80Z1209 DSMD: pin 2 is Low Enable TTL

Fil-Mag Legacy Products

2.0200.E (10/96)

80Z0509CSMD Related Products

	80Z0509CSMD	80Z1209CSMD	80Z0509BSMD	80Z1209ASMD	80Z1209BSMD	80Z1209DSMD
Description	DC-DC Unregulated Power Supply Module, 1 Output, Hybrid, SMD-16	DC-DC Unregulated Power Supply Module, 1 Output, 1.8W, Hybrid	DC-DC Unregulated Power Supply Module, 1 Output, 1.8W, Hybrid	DC-DC Unregulated Power Supply Module, 1 Output, Hybrid, SMD-16	DC-DC Unregulated Power Supply Module, 1 Output, 1.8W, Hybrid	DC-DC Unregulated Power Supply Module, 1 Output, Hybrid, SMD-16
Maker	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
Reach Compliance Code	compliant	unknown	unknown	compliant	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	5.25 V	12.6 V	5.25 V	12.6 V	12.6 V	12.6 V
Minimum input voltage	4.75 V	11.4 V	4.75 V	11.4 V	11.4 V	11.4 V
Nominal input voltage	5 V	12 V	5 V	12 V	12 V	12 V
JESD-30 code	R-PDSO-G16	R-XDSO-G5	R-XDSO-G5	R-PDSO-G16	R-XDSO-G5	R-PDSO-G16
Number of functions	1	1	1	1	1	1
Output times	1	1	1	1	1	1
Number of terminals	16	5	5	16	5	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Nominal output voltage	-9 V	-9 V	-9 V	-9 V	-9 V	-9 V
Package body material	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO
