ZSS-107-03-S-D-0740 datasheet, PDF

Datasheet> All Categories > The connector> The connector> ZSS-107-03-S-D-0740

ZSS-107-03-S-D-0740: DescriptionBoard Stacking Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size542KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

ZSS-107-03-S-D-0740 Overview

Board Stacking Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

ZSS-107-03-S-D-0740 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	SHROUDED
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	ZSS
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

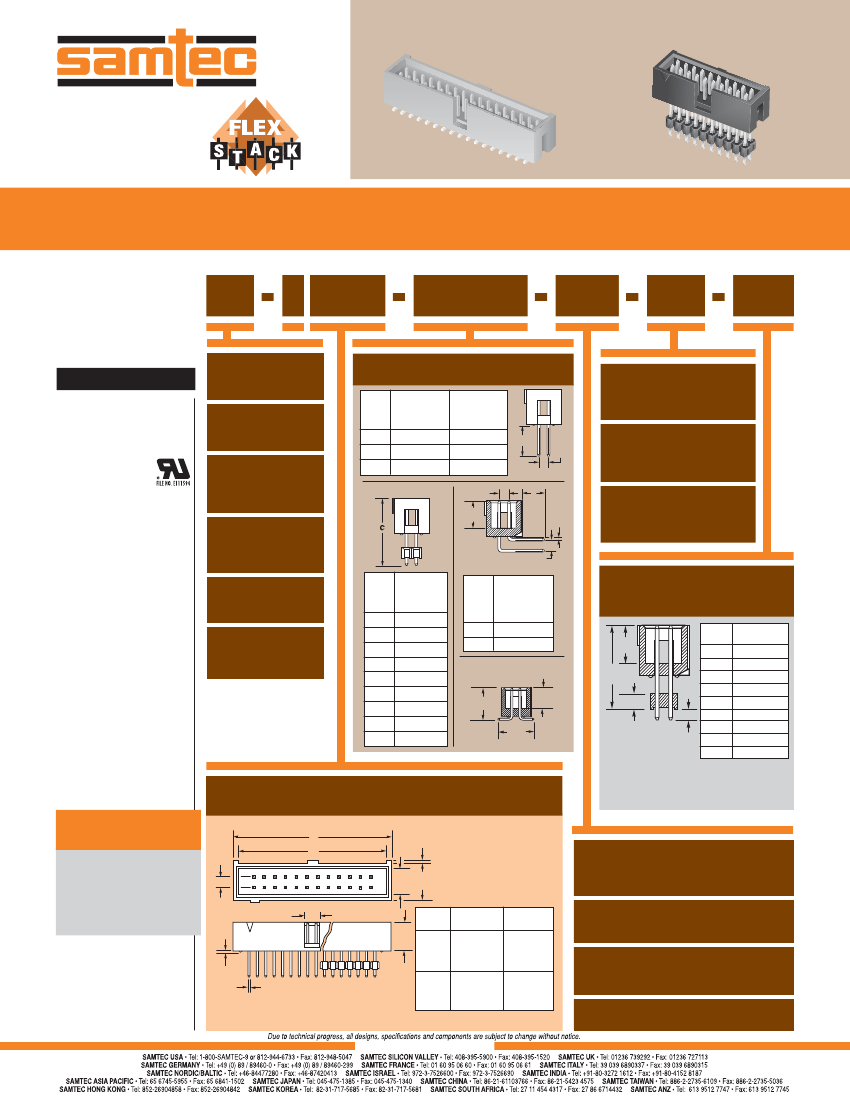

F-208

ZSS–110–03–S–D–0715

HTSS–117–01–S–DV

SHROUDED HEADER

TSS, HTSS, ZSS

Mates with:

SSW, SSQ, ESW, ESQ,

SSM, BCS, IDSD

TST, HTST, ZST

Mates with:

IDSD

TSS, TST, HTSS, HTST,

ZSS, ZST SERIES

PLATING

OPTION

TAIL

OPTION

BODY

HEIGHT

TYPE

STRIP

NO. PINS

PER ROW

LEAD

STYLE

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?TSS,

www.samtec.com?TST,

www.samtec.com?HTSS,

www.samtec.com?HTST,

www.samtec.com?ZSS or

www.samtec.com?ZST

Insulator Material:

Black Glass Filled

Polyester (TSS, TST, ZSS, ZST)

Natural PCT (HTSS, HTST)

Insulation Resistance:

5000 MΩ min

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27µm) Ni

Current Rating:

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Flamability Rating:

UL 94V-O

Withstanding Voltage:

1000 VRMS

RoHS Compliant:

Yes

TSS

= Top Shrouded

Connector Strip

Specify “LEAD STYLE”

from chart

HTSS/HTST

TSS/TST

STRAIGHT

LEAD STRAIGHT

STYLE TAIL LENGTH TAIL LENGTH

(A)

–D

= Double Row Through-hole

(Lead style –01, –02 & –03 only or

BODY HEIGHT must be speciﬁed)

TST

= Top Shrouded

Cable Strip

HTSS

= High Temp

Top Shrouded

Connector Strip

–01

–02

–03

(2,92) .115

(4,19).165

(14,35) .565

(3,30) .130

(4,57) .180

(14,73) .580

(2,54)

.100

(6,35)

.250

(2,54)

.100

–DV

= Double Row Surface Mount

(Lead style –01 only)

(HTSS, HTST only)

–D

(5,08)

.020

–D–RA

= Double Row Right Angle

(Lead style –04 & –05 only)

(ZSS, ZST N/A)

HTST

= High Temp

Top Shrouded

Cable Strip

ZSS/ZST

LEAD OVERALL

STYLE LENGTH

(C)

(2,54) .100

–D–RA

TSS/TST/

HTSS/HTST

LEAD RIGHT ANGLE

STYLE TAIL LENGTH

(B)

ZSS

= Elevated

Connector Strip

–“XXXX”

= Body Height

(ZSS, ZST & –D only)

LEAD MAX. BODY

HEIGHT

STYLE

ZST

= Elevated

Cable Strip

Processing:

Max Processing Temp:

HTSS & HTST only:

230°C for 60 seconds, or

260°C for 20 seconds 3x

Lead–Free Solderable:

Yes (HTSS, HTST)

Wave Only (TSS, TST,

ZSS, ZST)

SMT Lead Coplanarity:

(0,15mm) .006"

–01

–02

–03

–04

–05

–06

–07

–08

–09

(16,00) .630

(18,54) .730

(21,08) .830

(23,62) .930

(26,16) 1.030

(28,70) 1.130

(31,24) 1.230

(33,78) 1.330

(36,32) 1.430

–04

–05

(3,30) .130

(5,84) .230

(6,35)

.250

Body

Height

HTSS/HTST

Lead Style –01

(10,16)

.400

(11,18)

.440

(6,35)

.250

(2,54)

.100

(2,29)

.090

MIN

–DV

–01

–02

–03

–04

–05

–06

–07

–08

–09

.540 (13,72)

.640 (16,26)

.740 (18,80)

.840 (21,34)

.940 (23,88)

1.040 (26,42)

1.140 (28,96)

1.240 (31,50)

1.340 (34,04)

For board stacking height add .085" (2,16mm)

when mated with SSW series.

05, 07, 08, 10, 12, 13, 15, 17, 20, 25, 32, 36

(Call Samtec for other sizes.)

(2,54)

.100

(0,38)

.015

Example: ZST-1XX-01-X-X-465 mated with

SSW = (13,97mm) .550" board space

APPLICATION

SPECIFIC OPTION

• Alignment Pins

• Single Row

• Locking Leads

• Polarized

Call Samtec.

–G

= 10µ" (0,25µm) Gold on contact area,

Gold ﬂash on balance

(Not available on -DV)

(6,35) (8,89)

.250 .350

(5,1)

.20

TYPE

STRIP

(8,89)

.350

–S

= 30µ" (0,76µm) Gold on contact area,

Matte Tin on tail

(0,38)

.015

(0,64) .025 SQ TYP

HTSS

TSS

ZSS

HTST

TST

ZST

Note:

Some lengths, styles

and options are non-standard,

non-returnable. ZSS, ZST are

non-standard, non-returnable.

TSS , TST

ZSS, ZST

(2,54) .100 (2,54) .100

X No. of

Positions

+ (1,27) .050 + (3,81).150

(2,54).100

X No. of

Positions

+ (5,08).200 + (7,62) .300

–L

= 10µ" (0,25µm) Gold on contact area,

Matte Tin on tail

–T

= Matte Tin

WWW.SAMTEC.COM
