SDF5N100JAAEGSN datasheet, PDF

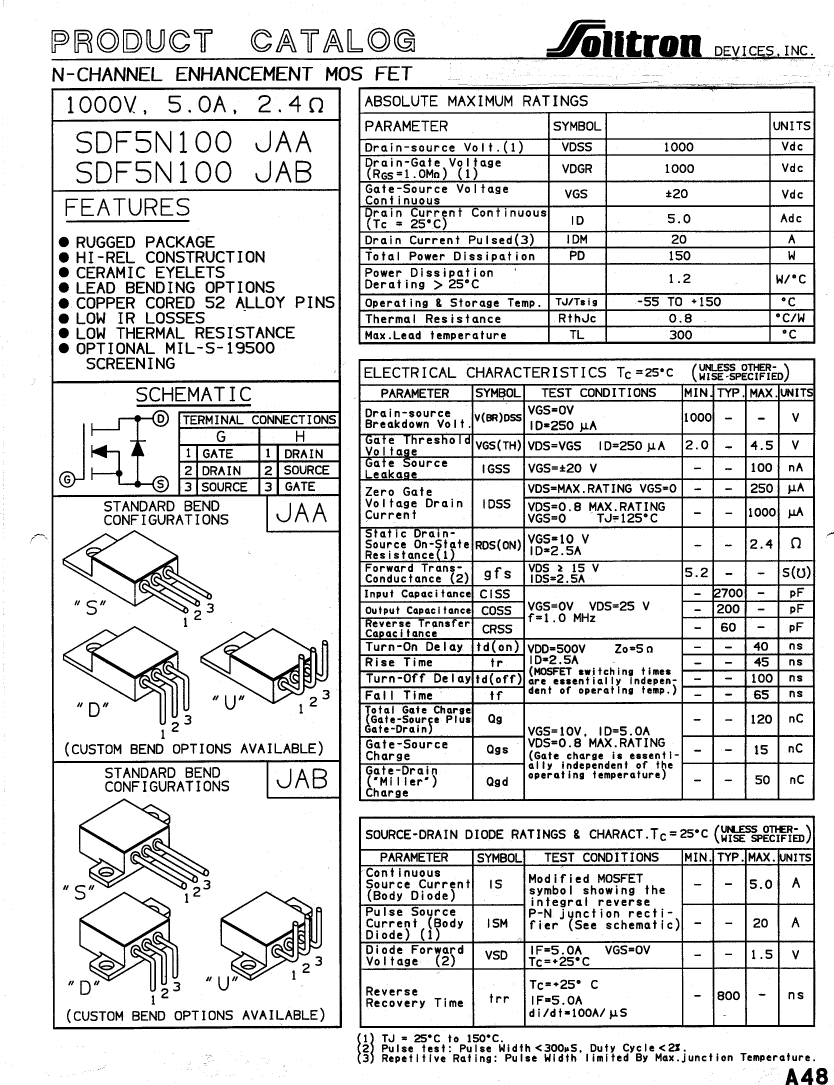

SDF5N100JAAEGSN: DescriptionPower Field-Effect Transistor, 5A I(D), 1000V, 2.4ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA,; CategoryDiscrete semiconductor The transistor; File Size167KB，1 Pages; ManufacturerSolitron Devices Inc.

Download Datasheet Parametric View All

SDF5N100JAAEGSN Overview

Power Field-Effect Transistor, 5A I(D), 1000V, 2.4ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA,

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Solitron Devices Inc.
Objectid	1404826132
package instruction	FLANGE MOUNT, S-MSFM-P3
Reach Compliance Code	unknown
compound_id	5341928
Other features	HIGH RELIABILITY
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	1000 V
Maximum drain current (Abs) (ID)	5 A
Maximum drain current (ID)	5 A
Maximum drain-source on-resistance	2.4 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-254AA
JESD-30 code	S-MSFM-P3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	METAL
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	150 W
Maximum power dissipation(Abs)	150 W
Maximum pulsed drain current (IDM)	20 A
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Maximum off time (toff)	165 ns
Maximum opening time (tons)	85 ns
