DO3314-222MLD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> DO3314-222MLD

DO3314-222MLD: Description1 ELEMENT, 2.2 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size119KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DO3314-222MLD Overview

1 ELEMENT, 2.2 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

DO3314-222MLD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	1313
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	1313
structure	Unshielded
core material	FERRITE
DC Resistance	0.2 Ω
Nominal inductance(L)	2.2 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	1.4 mm
Package length	3.3 mm
Package form	SMT
Package width	3.3 mm
method of packing	TR, 13 Inch
Maximum rated current	1.3 A
self resonant frequency	90 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Silver/Palladium/Platinum - with Glass fri
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

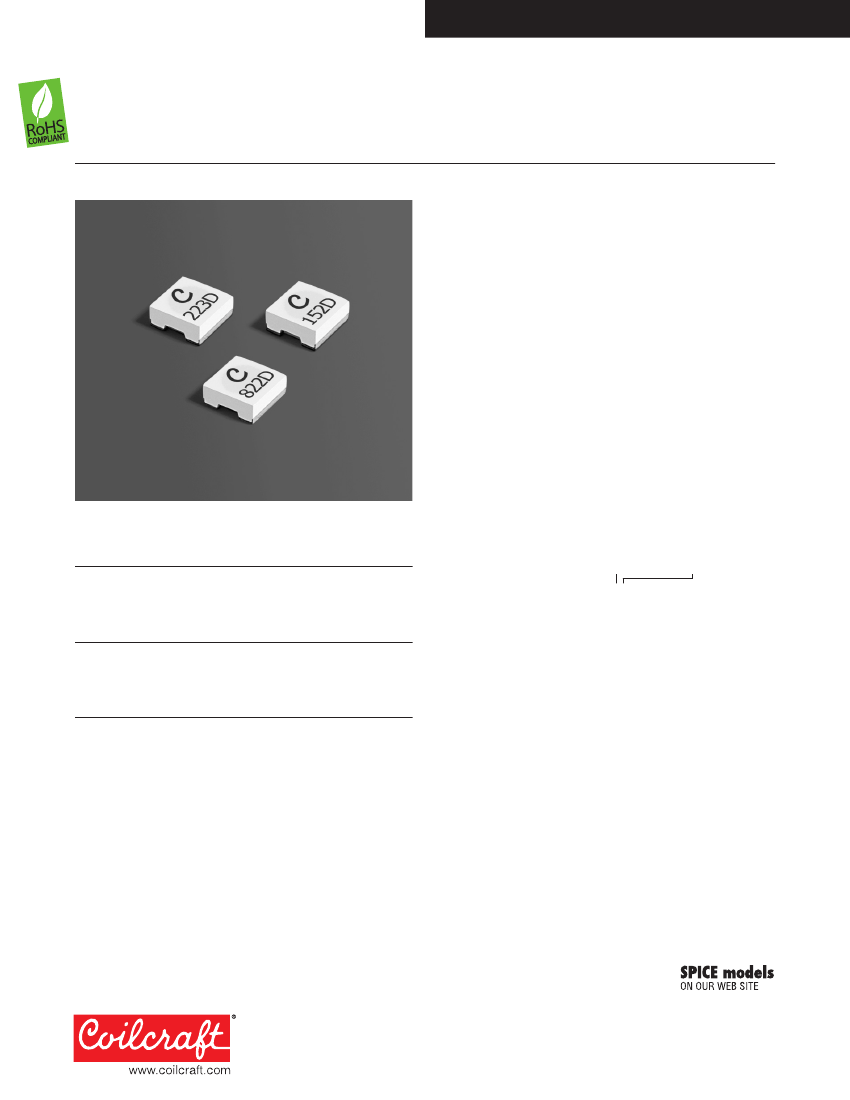

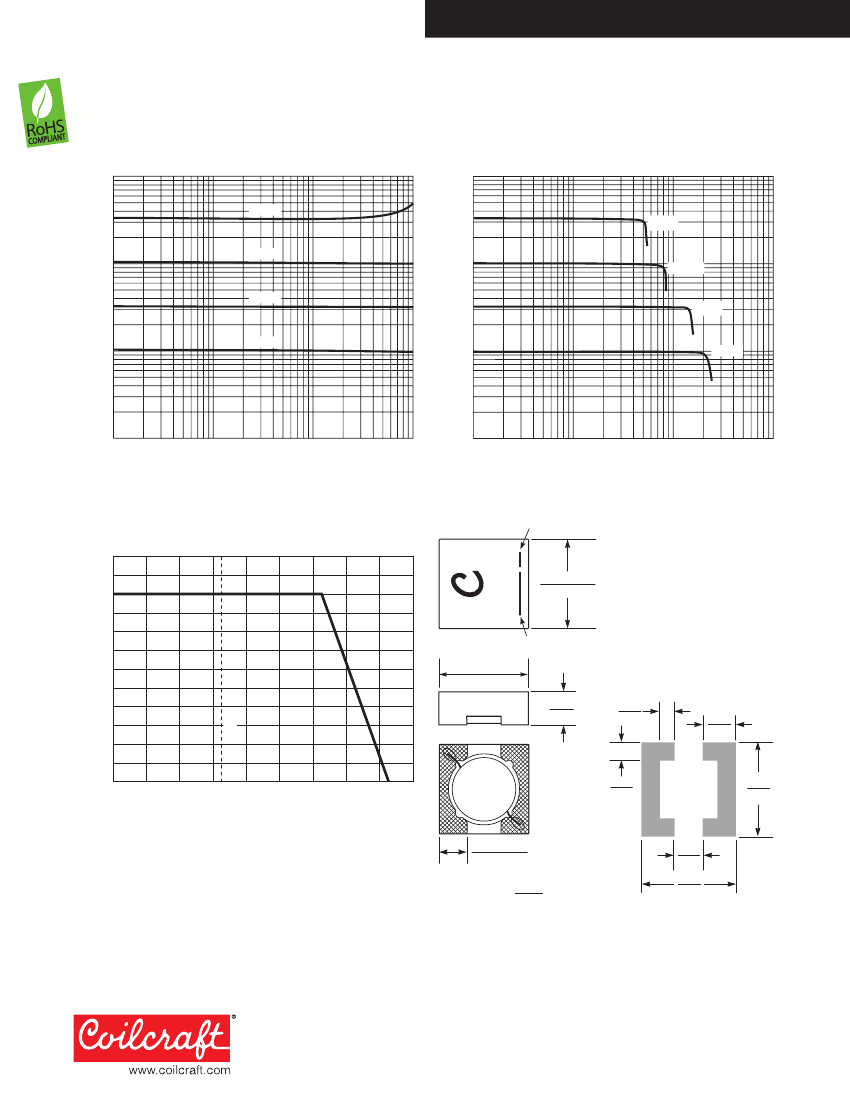

Document 295 -1

SMT Power Inductors - DO3314

• Only 3.3 mm square, 1.4 mm high!

• Handles current up to 1.7 Amps rms

Designer’s Kit C358

contains 3 each of all values

Core material

Ferrite

Core and winding loss

See www.coilcraft.com/coreloss

Terminations

RoHS compliant silver-palladium-platinum-glass frit.

Other terminations available at additional cost.

Weight

45.9 – 50.2 mg

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide,

0.23 mm thick, 8 mm pocket spacing, 1.37 mm pocket depth

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pdf.

Part

DO3314-102ML_

DO3314-152ML_

DO3314-222ML_

DO3314-332ML_

DO3314-472ML_

DO3314-682ML_

DO3314-822ML_

DO3314-103ML_

DO3314-153ML_

DO3314-223ML_

DO3314-333ML_

number

DCR

SRF

±20%

max

typ

(µH) (Ohms) (MHz)

1.0

0.11

160

1.5

0.14

140

2.2

0.20

3.3

0.26

4.7

0.32

6.8

0.44

8.2

0.47

0.52

0.86

1.20

1.62

Isat

(A)

2.10

2.00

1.60

1.40

1.20

0.92

0.90

0.80

0.68

0.56

0.51

Irms

(A)

1.70

1.40

1.30

1.20

1.10

0.80

0.75

0.65

0.50

0.40

1. When ordering, please specify

termination

and

packaging

codes:

DO3314-333MLC

Termination: L

= RoHS compliant silver-palladium-platinum-glass frit

Special order:

= RoHS tin-silver-copper (95.5/4/0.5)

= non-RoHS tin-lead (63/37).

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic

tape (1000 parts per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge), use

code letter C instead.

= 13″ machine-ready reel. EIA-481 embossed plastic

tape (3500 parts per full reel).

2. Inductance tested at 100 kHz, 0.1 Vrms.

3. DCR measured on a micro-ohmmeter.

4. SRF measured using Agilent/HP 4191A or equivalent.

5. DC current at which the inductance drops 10% (typ) from its value

without current.

6. Current that causes a 40°C temperature rise from 25°C ambient.

7. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 295-1

Revised 10/08/08

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.

DO3314-222MLD Related Products

	DO3314-222MLD	DO3314-153MLD
Description	1 ELEMENT, 2.2 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 15 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	1313	1313
Reach Compliance Code	compli	compliant
ECCN code	EAR99	EAR99
uppercase and lowercase codes	1313	1313
structure	Unshielded	Unshielded
core material	FERRITE	FERRITE
DC Resistance	0.2 Ω	0.86 Ω
Nominal inductance(L)	2.2 µH	15 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Package height	1.4 mm	1.4 mm
Package length	3.3 mm	3.3 mm
Package form	SMT	SMT
Package width	3.3 mm	3.3 mm
method of packing	TR, 13 Inch	TR, 13 Inch
Maximum rated current	1.3 A	0.65 A
self resonant frequency	90 MHz	30 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO
surface mount	YES	YES
Terminal surface	Silver/Palladium/Platinum - with Glass fri	Silver/Palladium/Platinum - with Glass frit
Terminal location	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz
Tolerance	20%	20%
Base Number Matches	1	1

Recommended Resources
