Variable capacitance diode for AM tuning
AMチューナ用電圧可変容量ダイオード
KV1270NT, KV1610S, KV1613L
FEATURES
Included Twin Element: KV1270NT, KV1610S
Included Cathode-common Triple Element: KV1613L
Excellet Matching Between Elements
Excellent Linearity of The CV Curve
High Q: Q=200 to
Extra Large Capacitance Ratio: Q=17.0 /18.5 to
ツインタイプ素子1組搭載:KV1270NT,
KV1610S
カ½ードコモン3素子搭載:
KV1613L
優れた素子間マッチング
CV特性の優れた直線性
高いQ値:
Q=200~
極めて大きな容量変化比:
A=17.0 / 18.5~
CLASSIFICATION
Rank
C
C
1
MIN
MAX
1
446.0
481.0
2
475.0
510.0
PACKAGE OUTLINE
Part name
KV1270NT
TO92-3
KV1610S
KV1613L
SOT23-3
SOT23L-6
610
613
Package
Marking Pin configulation
270
ORDERING INFORMATION
KV1270NT
KV1610STL…Storage direction: TL(Left type)
KV1613LTL…Storage direction: TL(Left type)
* Part name + Storage direction
ABSOLUTE MAXIMUM RATINGS
Parameter
Reverse Voltage
Forward Current
Power Dissipation
Storage Temperature Range
Operating Temperature Range
項目
Symbol
記号
逆方向電圧
順方向電流
許容消費電力
保存温度範囲
動½温度範囲
V
R
I
F
P
D
T
STG
T
OP
Rating
定格
16
26
50
100
-55 to 150
-55 to +85
Unit
単½
Remarks
備考
KV1270NT,KV1613L
V
KV1610S
mA
mW
°C
°C
ELECTRICAL CHARCTERISTICS
T
A
=25°C
Parameter
Symbol
Units
Conditions
Value
規格
項目
記号
単½
条件
MIN
TYP
MAX
V
R
12
V
Reverse Voltage
逆方向電圧
I
R
=10µA
I
R
100
nA
V
R
=10V
Reverse Current
逆方向電流
C
1
446.0
510.0
pF
V
R
=1V, f=1MHz
18.0
26.0
KV1270NT V
R
=8V,
Diode Capacitance
容量値
C
8
pF
19.0
27.0
KV1610S, KV1613L f=1MHz
2.5
KV1270NT
V
R
=1V,
1.0
KV1610S
%
∆C
1
f=1MHz
3.0
KV1613L
3.0
KV1270NT
V
R
=4V,
%
2.0
KV1610S
Capacitance Tolerance
容量偏差
∆C
4
f=1MHz
3.5
KV1613L
3.0
KV1270NT
V
R
=8V,
2.0
KV1610S
%
∆C
8
f=1MHz
3.5
KV1613L
Q
Q
200
V
R
=1V, f=1MHz
17.0
KV1270NT
A
C /C
Capacitance Ratio
容量変化比
18.5
KV1610S, KV1613L
1 8
* Diode Capactance measured with Agilent 4279A or equivalent instruments ( at OSC level 20±5mVrms )
容量測定器は、Agilent
4279A又は相½品。OSCレベル 20±5mVrms。
2003 FALL
KV1270NT, KV1610S, KV1613L
SEMICONDUCTOR SELECTION GUIDE
DISCRETE DEVICES
半導½セレクションガイド
個別半導½

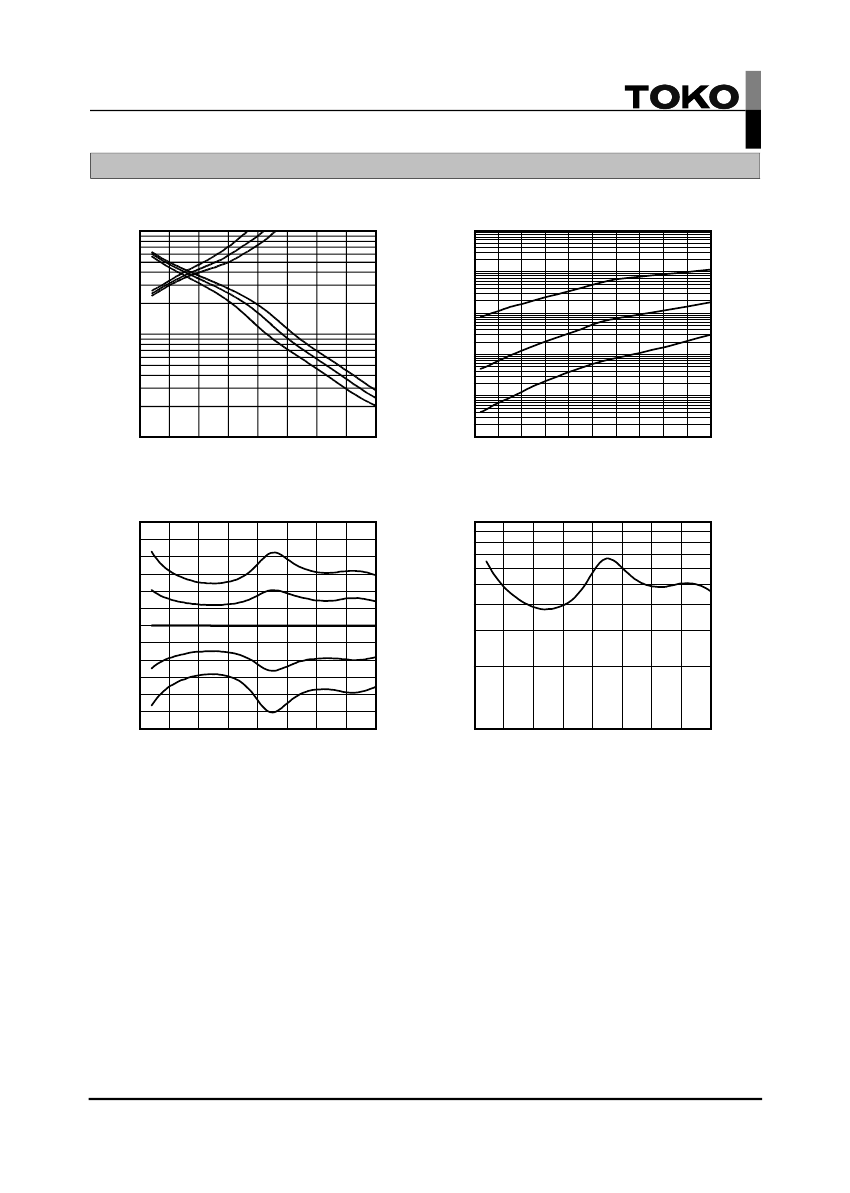

TYPICAL PREFORAMNCE CHARACTERISTICS
Capacitance, Q versus Reverse Voltage
逆方向電圧対容量、Q
f=1MHz, T
A
=25°C
1000
1000
Reverse Current versus Reverse Voltage
逆方向電圧対逆電流
T
A
=+25 / +55 / +85°C
10n
1n
I
R
, Reverse Current(A)
C, Capaciance(pF)
T
A
=+85°C
T
A
=+55°C
100p
T
A
=+25°C
100
100
Q
10p
1p
10
0.0
1.0
2.0 3.0 4.0 5.0 6.0
V
R
, Reverse Voltage(V)
7.0
10
8.0
100f
0.0 2.0 4.0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0
V
R
, Reverse Voltage(V)
C(T
A
)/C(25°C) versus Reverse Voltage
逆方向電圧対C(T
A
)/C(25°C)
f=1MHz T
A
=-55 to +85°C
1.06
1.04
T
A
=+85°C
Capacitance Temperature Coefficient versus Reverse Voltage
f=1MHz, T
A
=25°C
逆方向電圧対温度係数
∆C/∆T
A
, Temperature Coefficient(ppm/°C)
1000
C(T
A
)/C(25°C)
1.02
1.00
T
A
=+55°C
T
A
=+25°C
T
A
=-15°C
T
A
=-55°C
0.98
0.96
0.94
0.0
1.0
2.0 3.0 4.0 5.0 6.0
V
R
, Reverse Voltage(V)
7.0
8.0
100
0.0
1.0
2.0 3.0 4.0 5.0 6.0
V
R
, Reverse Voltage(V)
7.0
8.0
