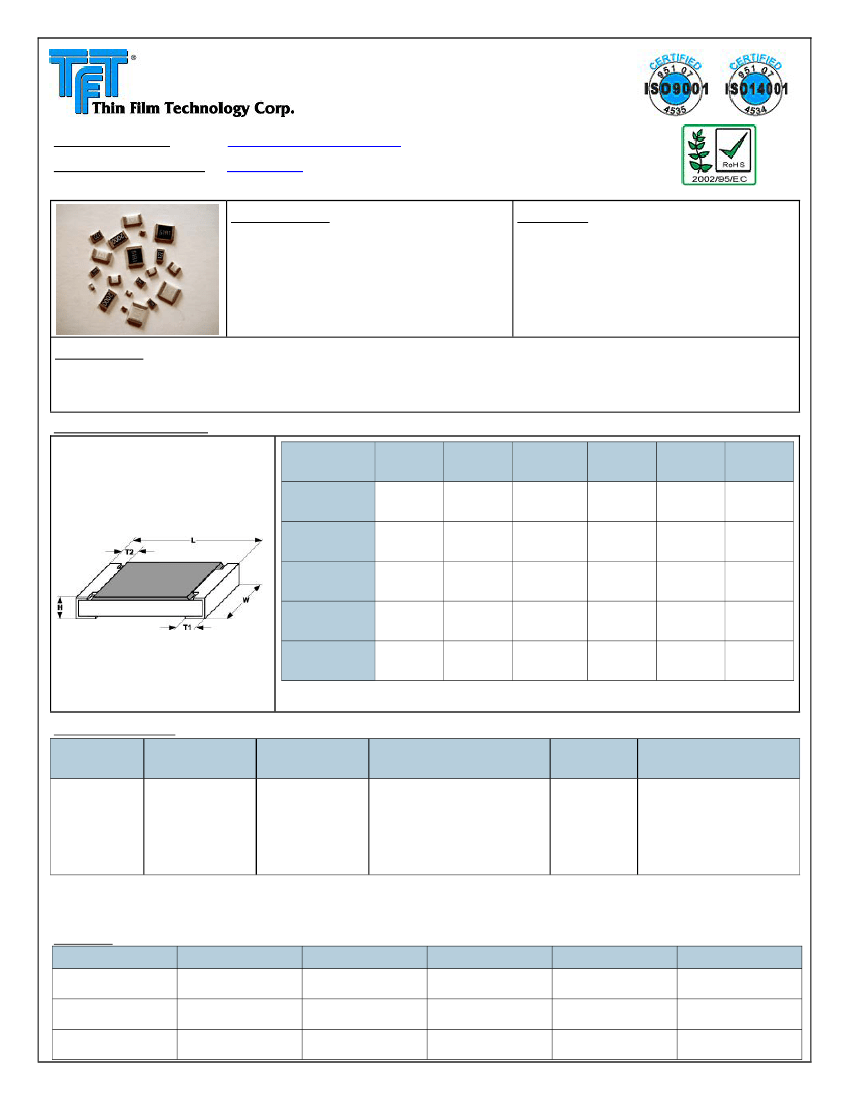

RR02M585.00 Rev B - Page 1 of 2
Product Family:
Part Number Series:
Precision Chip Resistor
RR Series
Construction:
High Purity Alumina Substrate
Ni alloy thin-film resistive element
Wrap around electrodes
100% matte tin over Ni terminations
(RoHS compliant and Pb Free)
Features:
0201, 0402, 0603, 0805, 1206 and 1210
sizes
TCR’s down to ±5 ppm/°C
Resistance down to 10Ω available
High volume production suitable for
commercial and special applications
Description:
These precision chip resistors offer excellent performance and tolerance in TCR, current noise, and linearity for high
frequency circuit applications and other applications requiring precision and stability. High volume manufacturing allows
for lower costs for the customer.
Product Dimensions:
Dimension
L
W
H
T1
T2
RR0306
(0201)
0.024
±0.002
0.012
±0.002
0.009
±0.001
0.005
±0.002
0.005
±0.002
RR0510
(0402)
0.039
±0.002
0.020
±0.002
0.014
±0.002
0.010
±0.002
0.008
±0.004
RR0816
(0603)
0.063
±0.008
0.031
±0.008
0.016
±0.004
0.012
±0.008
0.012
±0.008
RR1220
(0805)
0.079
±0.008
0.049
±0.008
0.016
±0.004
0.016
±0.008
0.016
±0.008
RR1632
(1206)
0.126
±0.008
0.063
±0.008
0.016
±0.004
0.018
±0.008
0.020
±0.008
RR2632
(1210)
0.126
±0.008
0.102
±0.008
0.016
±0.004
0.018
±0.008
0.020
±0.008
All dimensions are shown in inches, but use metric size when ordering as shown in the part numbering
section. English case sizes are shown in parenthesis.
Part Numbering:
Ex: RR0816P203D-*
Product
Designator
Size W x L
(Metric)
0306
0510
0816
1220
1632
2632
Temp. Coefficient of
Resistance (TCR)
V = ±5ppm/°C
N = ±10ppm/°C
P = ±25ppm/°C
Q = ±50ppm/°C
R = ±100ppm/°C
Resistance Value
For 1632 & 2632 sizes, use 4 digit code
for all values. For all other sizes, use 3
digit code for E24 values and 4 digit
code for E-96 values. “R” denotes
decimal position as necessary
Resistance
Tolerance
T&R Packaging Quantity
Only applies to RR1632 and
RR2632 products in 5K reels. No
other products in this series use
T&R indicators in the part numbers.
-T5 = 5,000
(see note)
RR
B = ±0.10%
D = ±0.50%
F = ±1.00%
* Note 1: Tape quantity codes can be left off when ordering or requesting quote. These will be assigned by us based on part/quantity ordered.
* Note 2: All part numbers will automatically have a “-C” or a “-LF” appended to the end of them to indicate RoHS compliance/Pb Free (RoHS 6/6).
The RR1632 and RR2632 will use the “-LF” and all other part sizes will use the “-C”. This will be automatically assigned by TFT. This part
series is no longer available in non-RoHS.
Examples:
Part Number
RR0816P203D-C
RR1220Q49R9D-C
RR1632V2002B-*
Size (English)
0816 (0603)
1220 (0805)
1632 (1206)
TCR
±25ppm/°C (P)
±50ppm/°C (Q)
±5ppm/°C (V)
Resistance (ohms)
20,000 (203)
E-24=3 digit
49.9 (49R9)
E-96=4 digit
20,000 (2002)
4 digit
Tolerance
±0.5%
±0.5%
±0.1%
Tape Qty
5,000
5,000
1,000 / 5,000
Thin Film Technology Corp. / 1980 Commerce Drive, North Mankato, MN 56003 (USA) / (507) 625-8445 / www.thin-film.com

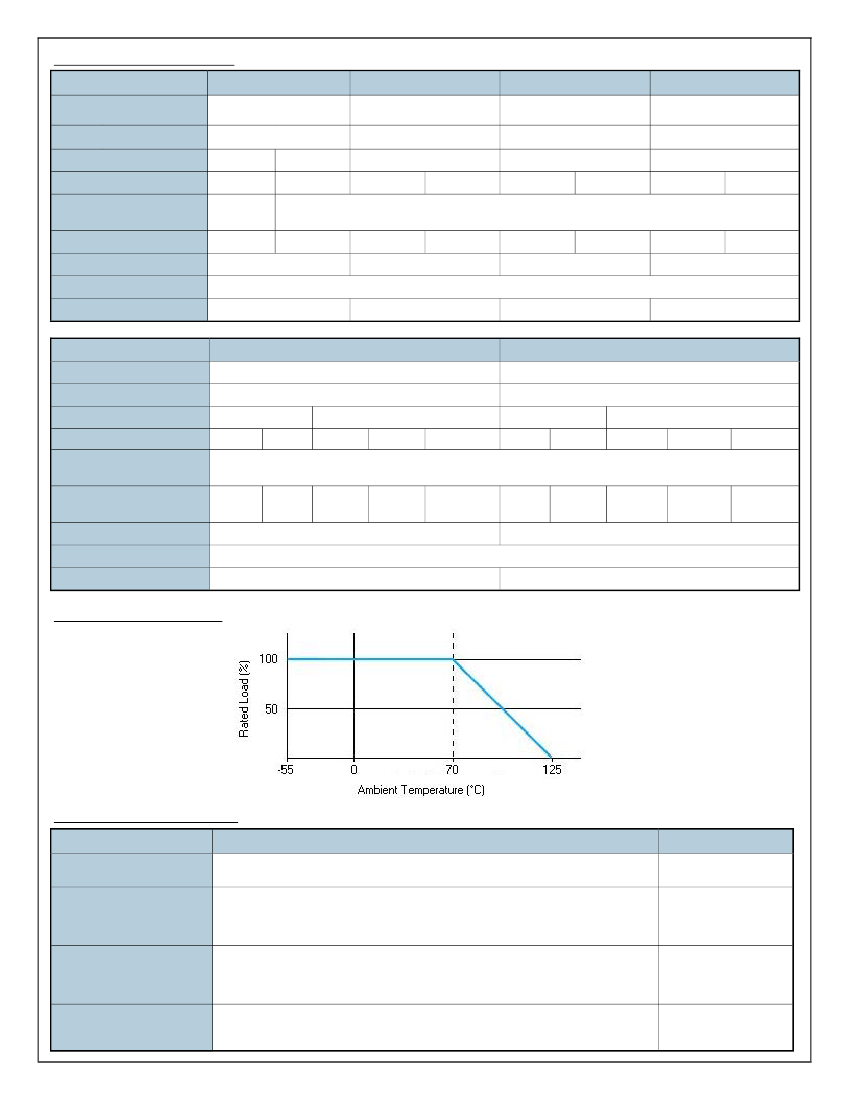

RR02M585.00 Rev B - Page 2 of 2
Electrical Specifications:
Type
English Size
Power
Tolerance% (code)
Resistance Range (Ω)
Resistance Offering
TCR ppm/°C (code)
Max Operating Voltage
Operating Temp. Range
Packaging
Type
English Size
Power
Tolerance% (code)
Resistance Range (Ω)
Resistance Offering
TCR ppm/°C (code)
Max Operating Voltage
Operating Temp. Range
Packaging
±50 (Q)
±25 (P)
±5 (V)
±10 (N)
RR0306
0201
1/20 Watt
±1.0(F)
10~30
E-24
Values
±100 (R)
±25 (P)
±0.5(D)
33~22k
RR0510
0402
1/16 Watt
±0.5(D)
10~97.6
100~100k
RR0816
0603
1/16 Watt
±0.5(D)
10~97.6
100~360k
RR1220
0805
1/10 Watt
±0.5(D)
10~97.6
100~1M
E-24, E-96 Values
±100 (R)
25 V
-55°C ~ 125°C
10,000 pcs/reel
RR1632
1206
1/8 Watt
±25 (P)
±50 (Q)
75 V
5,000 pcs/reel
RR2632
1210
1/4 Watt
±0.1(B)
100~200k
100~200k
51~1M
±25 (P)
50 (Q)
100 V
±25 (P)
15 V
5,000 pcs/reel
5,000 pcs/reel
±0.5(D)
10~49.9
51~1M
±0.5(D)
10~49.9
51~2M
100~330k
±0.1(B)
100~330k
51~2M
E-24, E-96 Values
±25 (P)
±50 (Q)
±25 (P)
±5 (V)
±10 (N)
±25 (P)
150 V
-55°C ~ 125°C
1,000pcs/reel or 5,000pcs/reel
200 V
1,000pcs/reel or 5,000pcs/reel
Power Derating Curve:
Reliability Specifications:
Test
Short Time Overload
Load Life
Test Method
Applied voltage: 2.5X rated voltage or 2X maximum operating voltage, whichever is less.
Test duration: 5 seconds
Test Temperature: 70°C
Applied voltage: rated voltage
Test period: 1000 hours with power cycling as follows:
90 min. power ON/30 min. power OFF,
Test Condition: 40°C/95% RH
Applied voltage: rated voltage
Test period: 1000 hours with power cycling as follows:
90 min. power ON/30 min. power OFF
Repeat 5 cycles as follows:
-55°C(30 min.) / Room temp (2 min) /
+125°C(30 min.) / Room temp (2 min)
Specification
±0.5% +0.05Ω
±0.5% +0.05Ω
Moisture Load Life
±0.5% +0.05Ω
Temperature Cycle
±0.5% +0.05Ω
Thin Film Technology Corp. / 1980 Commerce Drive, North Mankato, MN 56003 (USA) / (507) 625-8445 / www.thin-film.com
