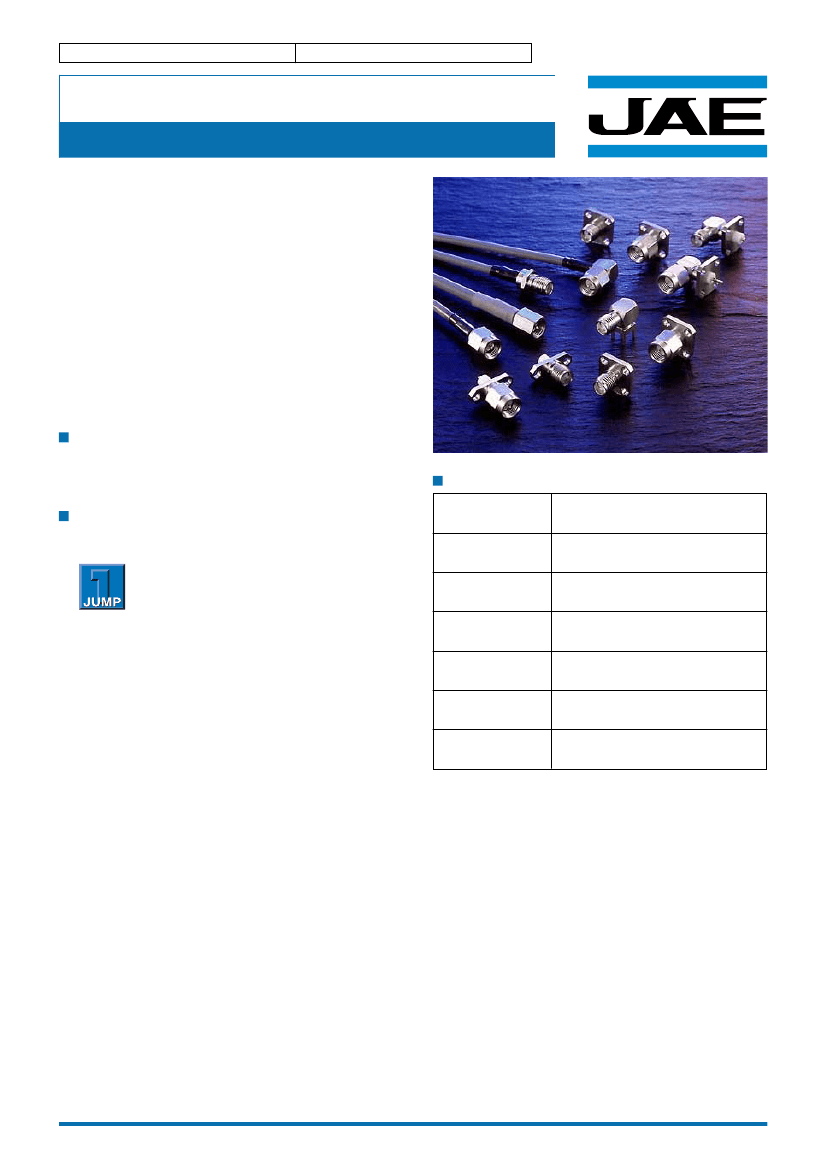

Frequency range to 3GHz • Small size Coaxial Connectors
Threaded coupling(1/4-36UNS)
SMA Series Connectors
SMA series coaxial connectors are small size, with threaded
coupling, conforming to the general purpose standards
(MIL-C-39012, JEITA RC-5234).
It enables high density packaging inside equipment, as well
as compact interconnection between subassemblies and
between units.
Applicable frequencies : from DC up to 3 GHz. High perfor-
mance with a VSWR of 1.2 or less.
A wide variety of products, panel-mount receptacles,
enable diversified mount styles.
Lightweight, compact in size and rugged construction.
A high degree of reliability provides stable electric
continuity and high frequency performance.
Products applicable up to about 20 GHz are available.
For detail, please consult us.
For the cable application type, harnessed connectors
which satisfy your specification are supplied.
•
•
•
•
•
APPLICATIONS
Telecommunications and instrumentation,
Communications Equipment, Measuring Instruments.
Multimedia Equipment.
GENERAL SPECIFICATIONS
Applicable
Frequency Range
Impedance

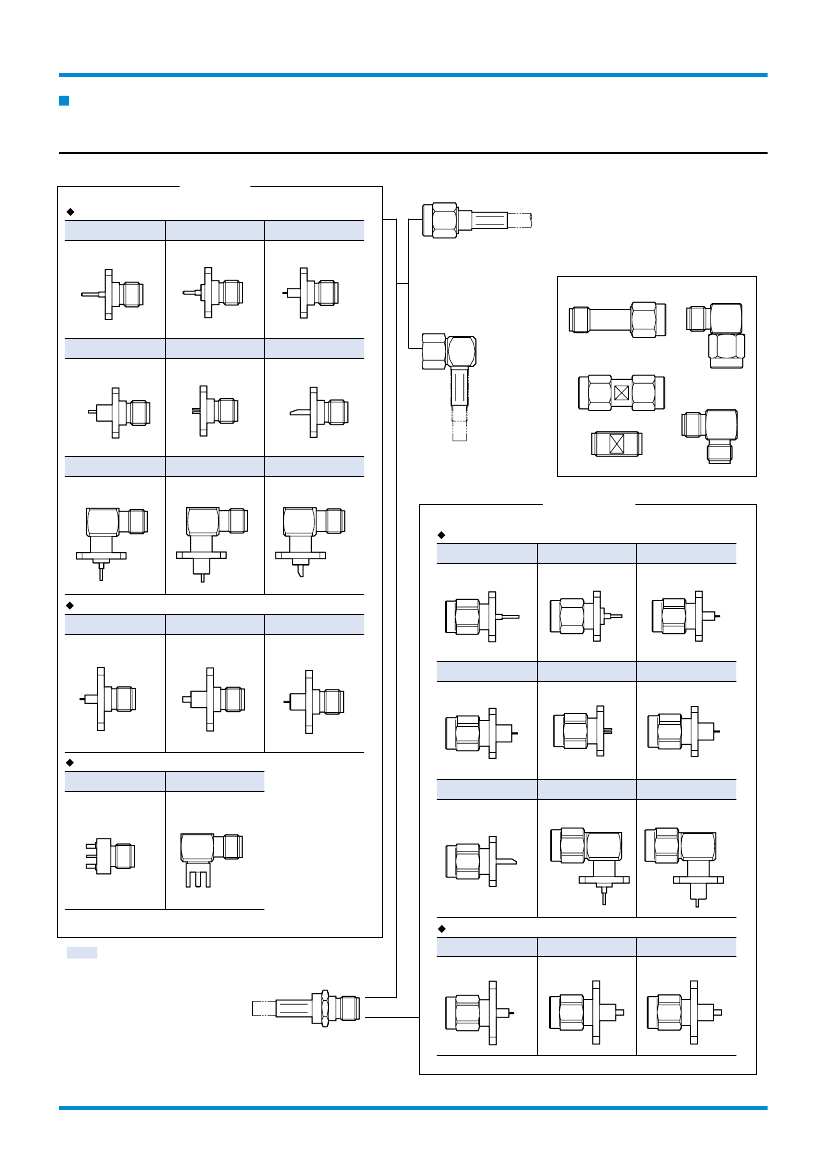

TYPES & COMBINATIONS
DC to 3GHz
50 ohms
1.2 max.(DC to 3GHz)
1000 VACr.m.s.
5000 megohms min.(500 VDC)
Center Contacts: 4 milliohms max.
Outer Contacts: 4 milliohms max.
1.5D-2V,1.5D-2W,2.5D-2V
•
Click the button.
V.S.W.R.
D.W.Voltage
Insulation
Resistance
Contact
Resistance
Applicable Cable
* The products and specifications contained in this catalog are subject to change
without notice. When considering use of or placing an order for products
included in this catalog, please check first with our sales department.
