BT-C534RD

Description
Smart/Normal 7 Seg Numeric LED Display, High Efficiency Red/orange, 13.208mm, TD-07, 30 PIN
CategoryLED optoelectronic/LED    photoelectric

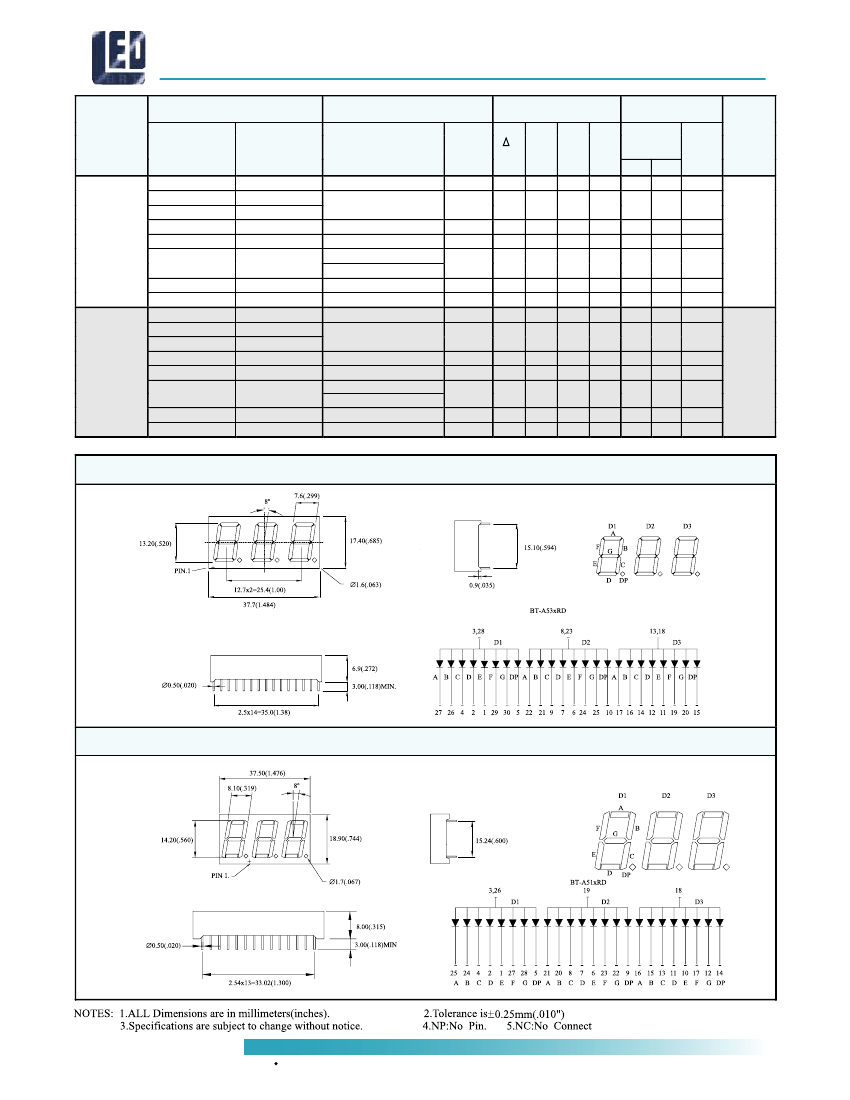

File Size325KB，1 Pages
ManufacturerBRIGHT
Websitehttp://www.brightled.co.kr/
Download Datasheet Parametric Compare View All

BT-C534RD Overview

Smart/Normal 7 Seg Numeric LED Display, High Efficiency Red/orange, 13.208mm, TD-07, 30 PIN

BT-C534RD Parametric

Parameter NameAttribute value
MakerBRIGHT
package instructionTD-07, 30 PIN
Reach Compliance Codeunknown
colorHIGH EFFICIENCY RED/ORANGE
ConfigurationCOMMON CATHODE, 3 DIGITS WITH DECIMAL POINT
Display height13.208 mm
Maximum forward current0.03 A
Number of functions3
Optoelectronic device typesSMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet
Three Digit LED Displays
7-Segment
Part No.
Digit Size
Common
Anode
BT-A531RD
BT-A535RD
BT-A535RE
BT-A532RD
BT-A533RD
BT-A534RD
BT-A536RD
BT-A53DRD
BT-A511RD
BT-A515RD
BT-A515RE
BT-A512RD
BT-A513RD
BT-A514RD
BT-A516RD
BT-A51DRD
Common
Cathode
BT-C531RD
BT-C535RD
BT-C535RE
BT-C532RD
BT-C533RD
BT-C534RD
BT-C536RD
BT-C53DRD
BT-C511RD
BT-C515RD
BT-C515RE
BT-C512RD
BT-C513RD
BT-C514RD
BT-C516RD
BT-C51DRD
Chip
Material/Emitted
Color
GaAsP/Red
GaP/ Bright Red
GaP/ Green
GaAsP/GaP/ Yellow
GaAsP/GaP/ Hi-Eff.Red
GaAsP/GaP/ Orange
GaAlAs/ SH Super Red
GaAlAs/ DH Super Red
GaAsP/Red
GaP/ Bright Red
GaP/ Green
GaAsP/GaP/ Yellow
GaAsP/GaP/ Hi-Eff.Red
GaAsP/GaP/ Orange
GaAlAs/ SH Super Red
GaAlAs/ DH Super Red
Absolute Maximum
Ratings
Electro-optical
Data(At 10mA)
Drawing
Peak
Vf
Iv. Typ.
No.
Wave
If
Ifp
λ
Pd
(v)
Per.Seg.
Length (nm) (mw) (mA) (mA)
(mcd)
λ
p(nm)
Typ. Max.
655
40
80
40
200 1.7 2.0
1.0
700
568
585
635
660
660
655
700
568
585
635
660
660
90
30
35
45
20
20
40
90
30
35
45
20
20
40
80
80
80
80
80
80
40
80
80
80
80
80
15
30
30
30
30
30
40
15
30
30
30
30
30
50
150
150
150
150
150
200
50
150
150
150
150
150
2.2
2.2
2.1
2.0
1.7
1.7
1.7
2.2
2.2
2.1
2.0
1.7
1.7
2.5
2.5
2.5
2.5
2.5
2.5
2.0
2.5
2.5
2.5
2.5
2.5
2.5
1.5
3.0
2.0
3.0
7.0
8.0
0.6
1.2
3.0
2.0
3.0
6.0
7.0
TD-08
TD-07
0.52"
Three-Digit
0.56"
Three-Digit
TD-07
BT- A53xRD
C
TD-08
BT- A51xRD
C
AMERICAN BRIGHT
(909) 628-5050 FAX (909) 628-5006
© 2003 American Bright Optoelectronics Corporation. Specifications subject to change without notice
.
www.americanbrightled.com
DSP-47
