90325-5914 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 90325-5914

90325-5914: Description14 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size67KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

90325-5914 Overview

14 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

90325-5914 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	90325
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0
Base Number Matches	1

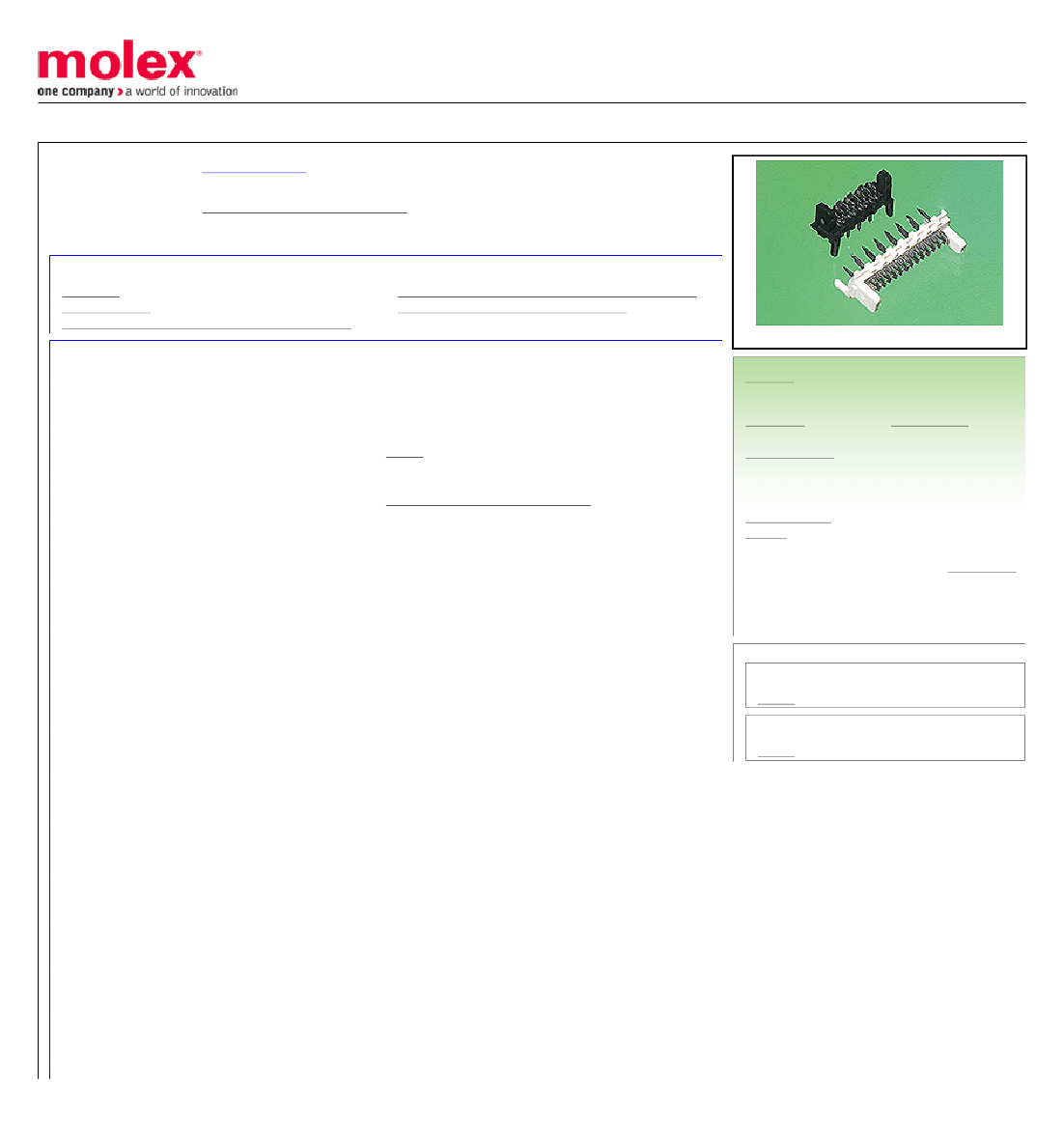

Preview

Download Datasheet

View All

This document was generated on 10/10/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0903253006

Active

Picoflex Ribbon-Cable Connectors

Picoflex PF-50 Header, PdNi with Gold Flash Plating, Vertical, Low Profile, with PCB

Pegs, 6 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-99020-0011-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Capable

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Packaging Specification PK-90325-002-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

PCB Headers

90325

Signal, Wire-to-Board

Low Profile

Picoflex Ribbon-Cable Connectors

Picoflex

800753676848

Black

100

94V-0

None

Yes

Brass

Gold over Palladium Nickel

Polyester

0.310/g

Vertical

Yes

1.60mm

Bag

1.27mm

Yes

-40° to +105°C

Through Hole

1.2A

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/61/2018 (27 June

2018)

Halogen-Free

Status

Not Low-Halogen

For more information, please visit Contact US

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

90325 Series

Mates With

90327 IDT Connector
