UG2001 - UG2005
2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER
Features
·
·
·
·
·
·
·
Glass Passivated Die Construction
Diffused Junction
Ultra-Fast Switching for High Efficiency
High Current Capability and Low Forward
Voltage Drop
Surge Overload Rating to 60A Peak
Low Reverse Leakage Current
Plastic Material: UL Flammability
Classification Rating 94V-0
A
B
A
D
C
Mechanical Data
·
·
·
·
·
·
Case: Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Marking: Type Number
Weight: 0.4 grams (approx.)
Mounting Position: Any
Dim
A
B
C
D
DO-15
Min
25.40
5.50
0.686
2.60
Max
¾
7.62
0.889
3.6
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
(Note 1)
@ T
A
= 55°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave Superimposed on Rated Load
(JEDEC Method)
Forward Voltage
Peak Reverse Current
at Rated DC Blocking Voltage
Reverse Recovery Time (Note 3)
Typical Junction Capacitance (Note 2)
Typical Thermal Resistance Junction to Ambient
Operating and Storage Temperature Range
@ I
F
= 2.0A
@ T
A
= 25°C
@ T
A
= 100°C
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
RM
t
rr
C
j
R
qJA
T
j,
T
STG
@ T
A
= 25°C unless otherwise specified
UG2001
50
35
UG2002
100
70
UG2003
200
140
2.0
60
UG2004
400
280
UG2005
600
420
Unit
V
V
A
A
1.0
8.0
100
50
20
50
-65 to +150
1.3
1.7
V
mA
ns
10
pF
K/W
°C
Notes:
1. Valid provided that leads are maintained at ambient temperature at a distance of 9.5mm from the case.
2. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
3. Measured with I
F
= 0.5A, I
R
= 1.0A, I
rr
= 0.25A. See figure 5.
DS27009 Rev. A1-2
1 of 2
UG2001 - UG2005
I
(O)
, AVERAGE FWD RECTIFIED CURRENT (A)
2.0
I
F
, INSTANTANEOUS FWD CURRENT (A)
10
UG2002 - UG2003
1.6
UG2004
1.2
1.0
UG2005
0.8
0.1
0.4
Single phase half-wave
60Hz resistive or inductive load
0
25
50
75
100
125
150
175
200
0.01
0.6
T
j
= 25
°
C
Pulse width = 300
µ
s
0.8
1.0
1.2
1.4
1.6
1.8
2.0
T
A
, AMBIENT TEMPERATURE (
°
C)

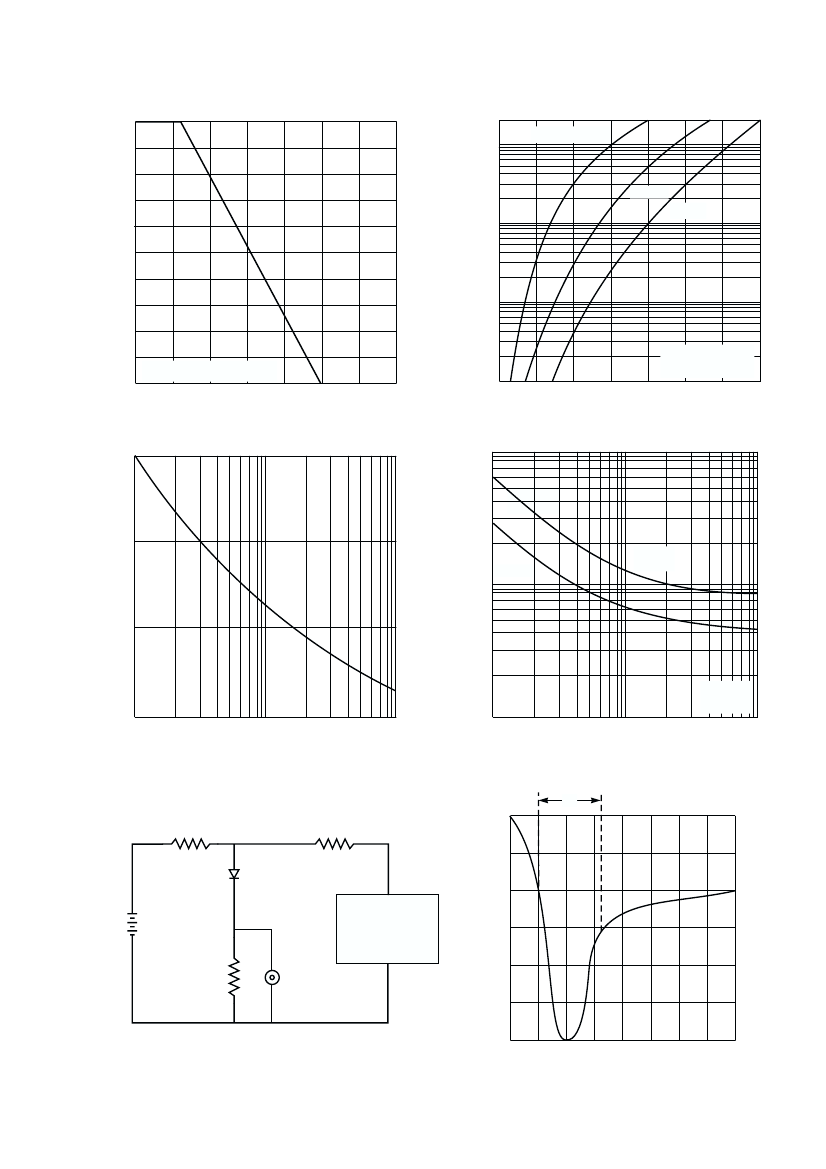

Fig. 1 Forward Current Derating Curve
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
60
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
100
40
C
j
, CAPACITANCE (pF)
UG2005
UG2001 -
UG2004
10
20
0
1
10
NUMBER OF CYCLES AT 60Hz
Fig. 3 Peak Forward Surge Current
100
1
1
10
T
j
= 25
°
C
f = 1.0MHz
100
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Junction Capacitance
t
rr
50
Ω
NI (Non-inductive)
Device
Under
Test
50V DC
Approx
10
Ω
NI
+0.5A
(-)
Pulse
Generator
(Note 2)
(+)
(-)
0A
-0.25A
1.0
Ω
NI
Oscilloscope
(Note 1)
(+)
Notes:
1. Rise Time = 7.0ns max. Input Impedance = 1.0M
Ω
, 22pF.
2. Rise Time = 10ns max. Input Impedance = 50
Ω
.
-1.0A
Set time base for 50/100 ns/cm
Fig. 5 Reverse Recovery Time Characteristic and Test Circuit
DS27009 Rev. A1-2
2 of 2
UG2001 - UG2005
