M20-9953306: DescriptionBoard Connector, 66 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size608KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

M20-9953306 Overview

Board Connector, 66 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

M20-9953306 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MATE LENGTH=0.240\"
body width	0.2 inch
subject depth	0.303 inch
body length	3.3 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	3.0024 N
Insulation resistance	1000000000000 Ω
MIL compliance	NO
Manufacturer's serial number	M20
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	66
UL Flammability Code	94V-0
Evacuation force-minimum value	.5004 N

Preview

Download Datasheet

View All

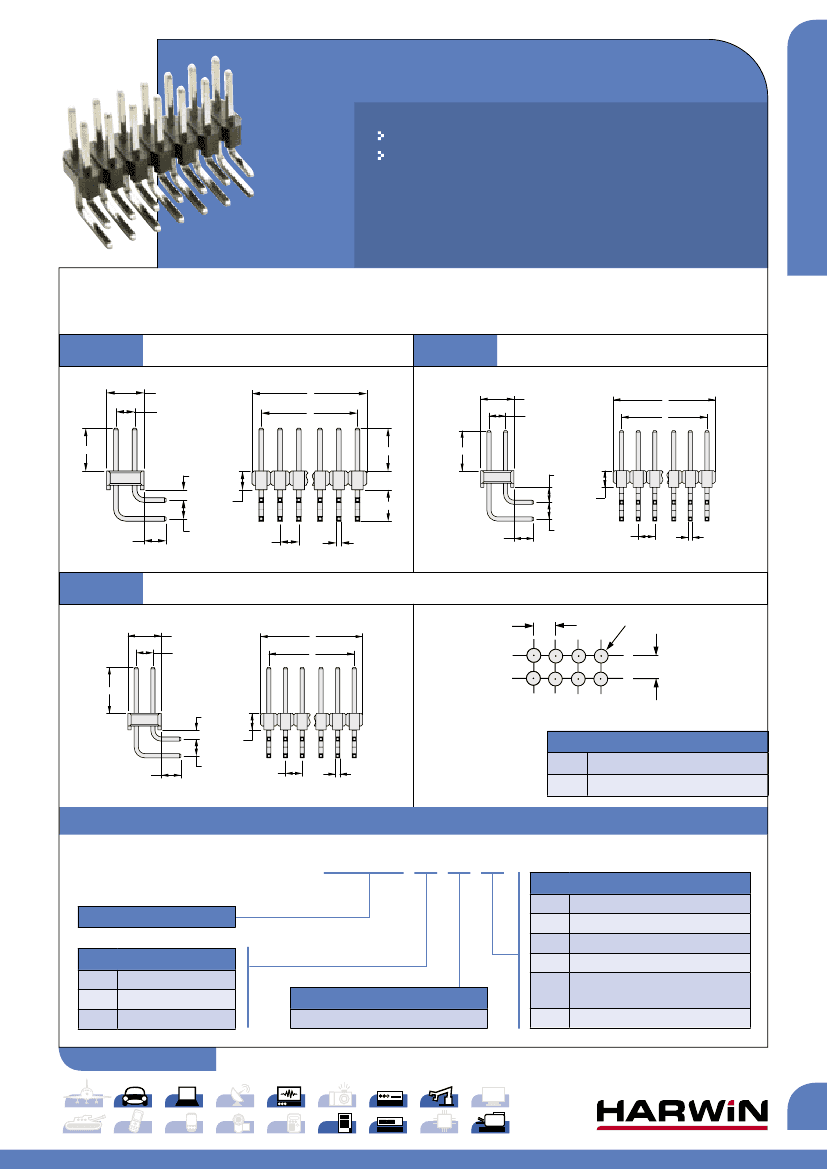

Horizontal PC Tail Male Connectors – Double Row

Horizontal orientation for 90° board-to-board applications.

Un-shrouded pin headers can be cut into smaller sizes.

5.8mm

5.08

2.54

A

6.1mm

5.08

2.54

A

B

5.80

1.40

2.54

GOLD

6.10

2.30

2.54

TIN

2.54

3.00

2.54

0.64 SQ

3.00

2.54

0.64 SQ

7.0mm

2.54

5.08

2.54

Hole Ø 1.0

A

B

2.54

7.00

1.40

2.54

Recommended PC Board Pattern

CALCULATION

2.54

3.00

A

0.64 SQ

2.54 x No. of ways per row

2.54 x (No. of ways per row – 1)

B

HOW TO ORDER

M20 – 9 XX XX XX

FINISH

SERIES CODE

SIZE

70

74

95

7.0mm Mating Height

5.8mm Mating Height

6.1mm Mating Height

05

06

22

42

Gold (M20-972, 998, 970, 995)

Tin/Lead

Gold + Tin/Lead (M20-976, 974)

Gold + Tin (M20-976, 974)

Gold, Hi-Temp Mould (M20-972,

998, 970, 995)

Tin

NO. OF WAYS PER ROW

02 to 40

45

46

www.harwin.com

53

2.54mm (.100") PITCH

M20 Connectors
