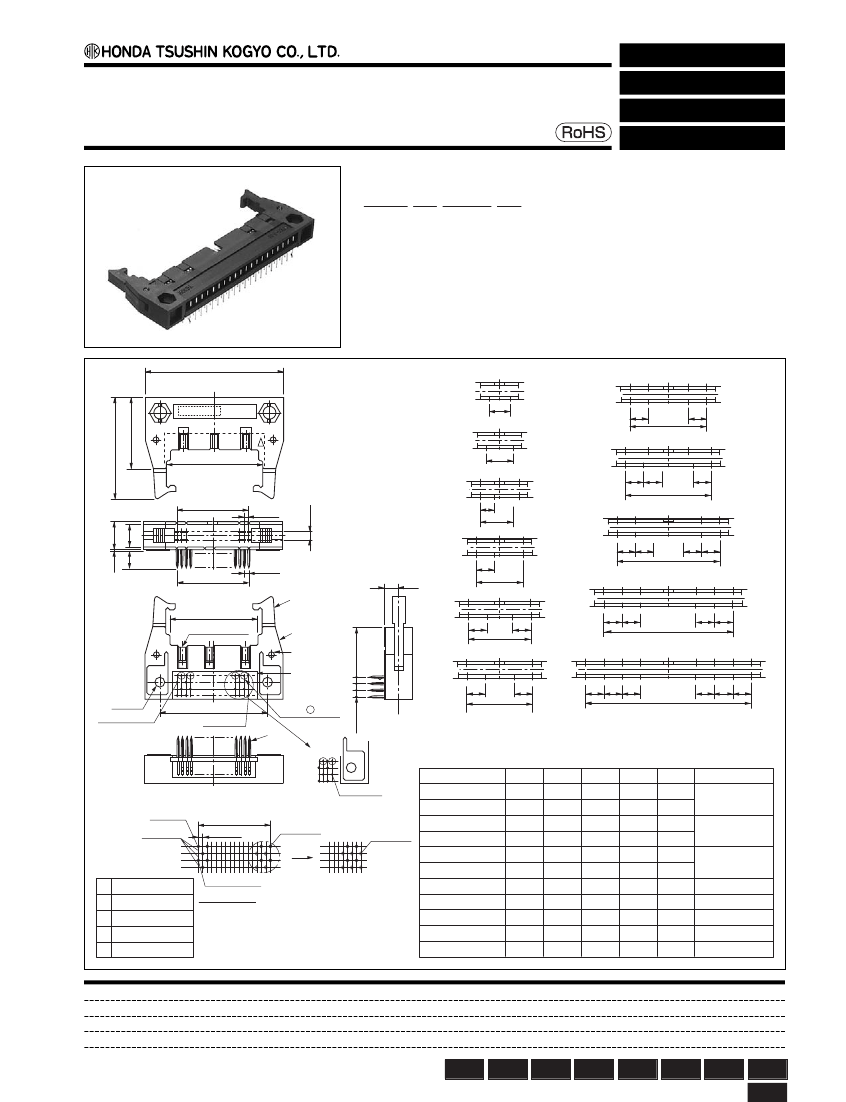

1.27 mm pitch connector
Right-angle through hole type male connector for PCB
RPS-( )RLM-( )+
●
Configuration of product Part No.
For PCB
Right-angle Through hole
KINK shape
RPS- ( ) RLM- ( )+
➀
➁
➂
¢
➀
Series name
➁
No. of contacts: 20, 26, 34, 40, 50, 52, 60, 68, 80, 100 or 120
➂
Type of contact
RLM: Right-angle through hole type, male with latch
➃
Misinsertion-prevention-key grooves
Blank: None
For using key grooves, refer to the drawing shown below.
A
For 20-contact
connector
B
8.89
A
4
3
2
1
For 60-contact
connector
D
8.89
34.29
C
B
8.89
A
20
28.5
B
2
1.27
2.54
C
0.3 7.2
3.4 5.6
C
13.5 REF.
D
Key grooves
1.905≈3
2-ø2.7
LAST POS.
E
POS.#1
ø0.8
1.905
±0.06
±0.05
1.27
±0.05
●
Components
➀
Latch
➁
Insulator
➂
Ground pin
➃
Bracket
➄
Contacts
LAST POS.
Form of 20,40,52,60,68,80,100
RPS-60RLM-( )+
Mating side or 120-contact connectors
RPS-68RLM-( )+
RPS-80RLM-( )+
Recommended PCB layout
RPS-100RLM-( )+
RPS-120RLM-( )+
Mating connectors:
RPS-( )FK+, RPS-D( )( )F( )+
RPS-D80( )FC( )+ (80-contact connector only)
HONDA
For 26-contact
connector
For 34-contact
connector
C
2
4
B
12.7
A
3
2
1
For 68-contact
connector
1
E
8.89
D
C
8.89
39.37
B
8.89
A
7.62
B
A
4
1
3
2
1
17.78
For 80-contact
connector
F
8.89
E
D
8.89
46.99
C
8.89
B
8.89
A
For 40-contact
connector
C
1.27
3.9
8.89
B
21.59
A
6
5
4
3
2
1
¡
™
£
¢
4 kink-formed
places
(See marks)
For 50-
contact
connector
2
For 100-contact
1
connector
F
D
8.89
C
27.94
B
8.89
A
8.89
E
D
8.89
56.69
A
C
B
8.89 8.89
For 52-
contact
connector
2
1
For 120-
contact
connector
D
8.89
29.21
C
B
8.89
A
8
7
6
5
4
3
2
1
H
G
F
E
8.89 8.89 8.89
72.35
D
A
C
B
8.89 8.89 8.89
∞
Key-location symbols and key-groove dimensions
●
Dimensions
POS.#1
Form of 20,40,52,60,68,80,100
or 120-contact connectors
POS.#1
POS.#1
Part No.
RPS-20RLM-( )+
RPS-26RLM-( )+
RPS-34RLM-( )+
RPS-40RLM-( )+
RPS-50RLM-( )+
RPS-52RLM-( )+
A
30.4
34.2
39.3
43.1
49.5
50.7
55.8
60.9
68.5
81.2
93.9
B
18.77
22.58
27.66
31.47
37.82
39.09
44.17
49.25
56.87
69.57
82.27
C
11.43
15.24
20.32
24.13
30.48
31.75
36.83
41.91
49.53
62.23
74.93
D
16.17
19.98
25.06
28.87
35.22
36.49
41.57
46.65
54.27
66.97
79.67
E
21.59
25.40
30.48
34.29
40.64
41.91
46.99
52.07
59.69
72.39
85.09
Standard location symbol
for key groove location
A,B,AB
1C,2A,AC
1D,2A,AD
1D,4A,AD
1E,4A,AE
1F,4A,AF
1F,6A,AF
1H,8A,AH
C
±0.1
Others
Wire
wrapping Crimping Soldering
IDC
Press-in
SMT
Through
hole
