UFT2015: DescriptionRectifier Diode, 1 Phase, 2 Element, 10A, 150V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size125KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

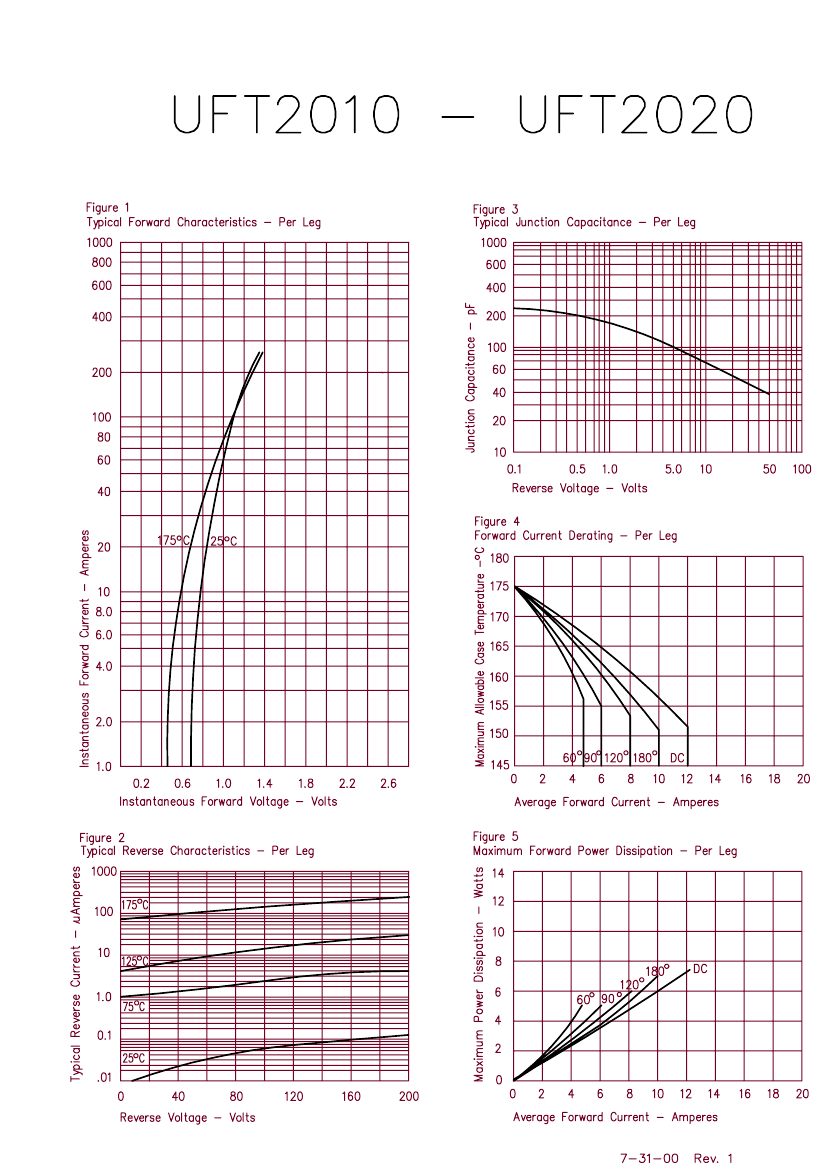

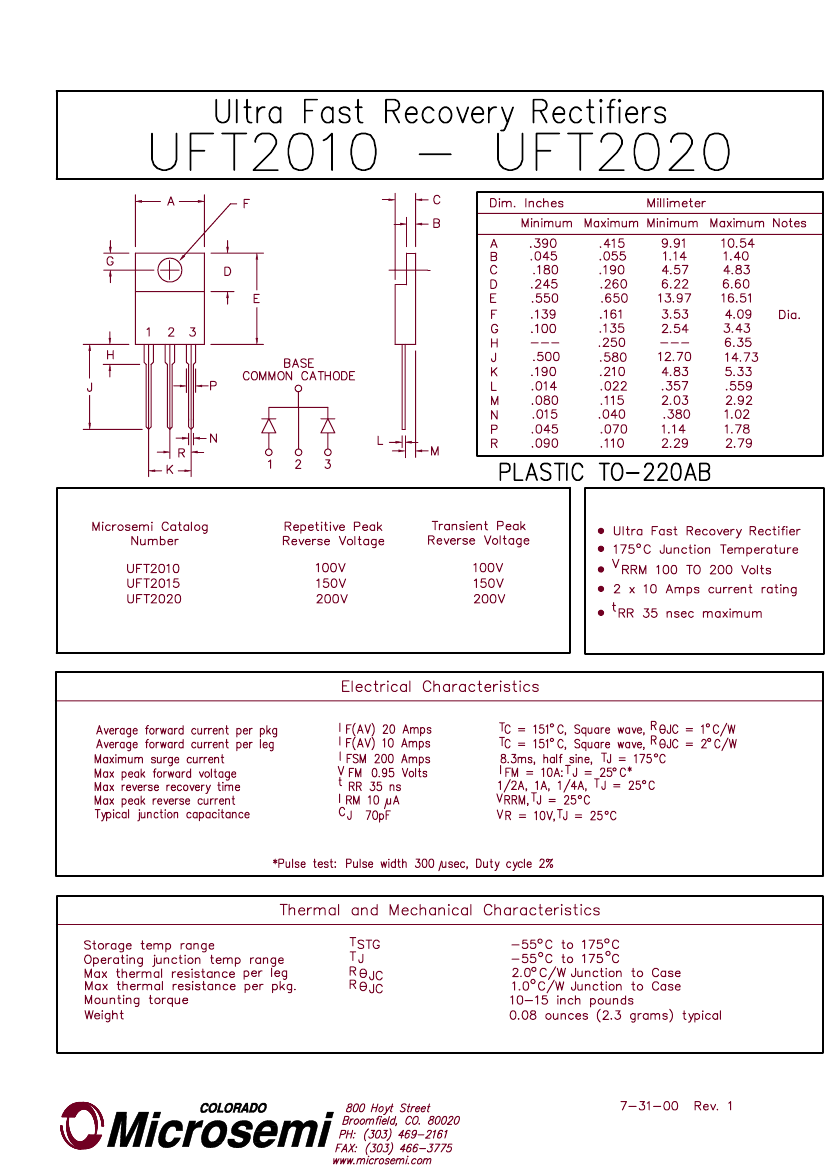

UFT2015 Overview

Rectifier Diode, 1 Phase, 2 Element, 10A, 150V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-2

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1439108607
Parts packaging code	TO-220AB
package instruction	PLASTIC PACKAGE-2
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	200 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	150 V
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

	UFT2015	UFT2020	291C43A5F832BA
Description	Rectifier Diode, 1 Phase, 2 Element, 10A, 150V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-2	ULTRA FAST RECOVERY RECTIFIERS	Precision, Long-life Compact 12mm Size Optical Encoder
Is it Rohs certified?	incompatible	incompatible	-
Parts packaging code	TO-220AB	TO-220AB	-
package instruction	PLASTIC PACKAGE-2	R-PSFM-T3	-
Contacts	3	3	-
Reach Compliance Code	unknown	compli	-
ECCN code	EAR99	EAR99	-
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	-
Shell connection	CATHODE	CATHODE	-
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	-
Diode component materials	SILICON	SILICON	-
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	-
Maximum forward voltage (VF)	0.95 V	0.95 V	-
JEDEC-95 code	TO-220AB	TO-220AB	-
JESD-30 code	R-PSFM-T3	R-PSFM-T3	-
Maximum non-repetitive peak forward current	200 A	200 A	-
Number of components	2	2	-
Phase	1	1	-
Number of terminals	3	3	-
Maximum operating temperature	175 °C	175 °C	-
Minimum operating temperature	-55 °C	-55 °C	-
Maximum output current	10 A	10 A	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Package shape	RECTANGULAR	RECTANGULAR	-
Package form	FLANGE MOUNT	FLANGE MOUNT	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-
Certification status	Not Qualified	Not Qualified	-
Maximum repetitive peak reverse voltage	150 V	200 V	-
Maximum reverse recovery time	0.035 µs	0.035 µs	-
surface mount	NO	NO	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-
Terminal location	SINGLE	SINGLE	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-
