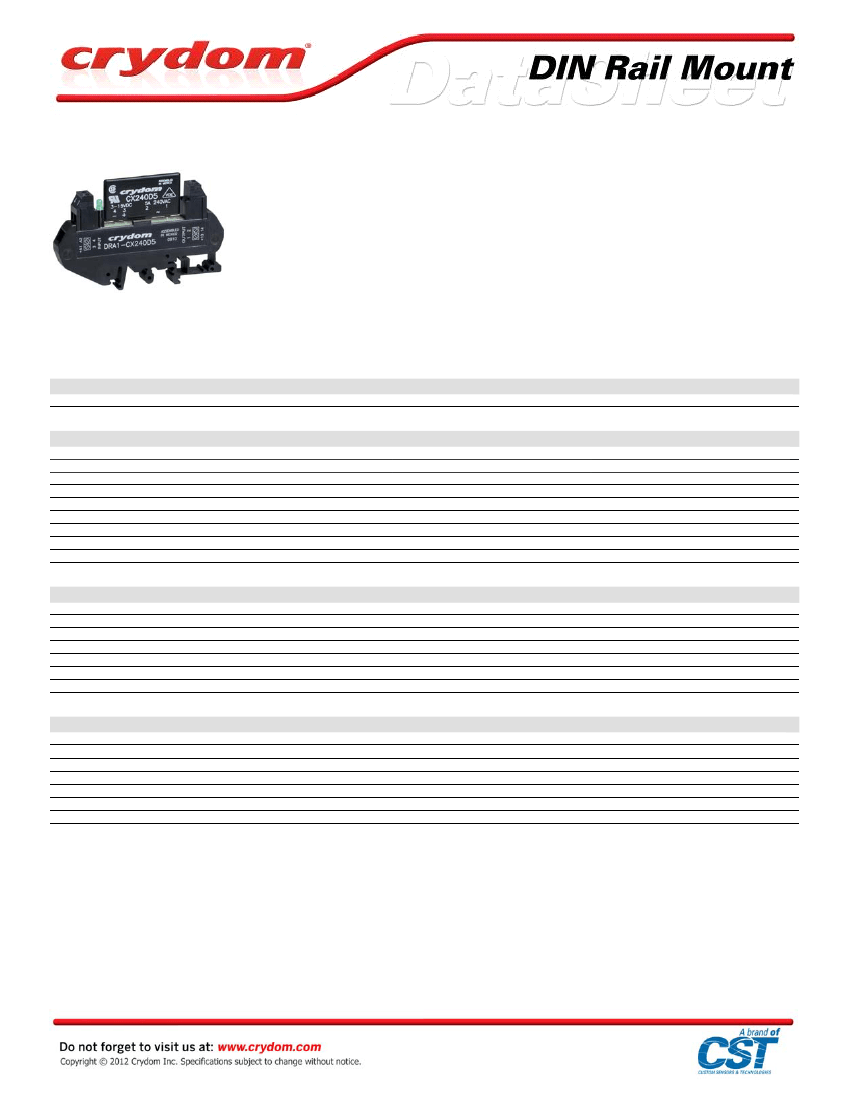

DRA1 CX Series
• 10mm Single Channel DIN Rail Mount SSR Assembly
• AC Ratings up to 280 VAC and 5 Amps
• 90-140VAC control
• Cage style screw terminals for easy connection
• Fits standard 35mm DIN rail
• Includes LED Status indicator
PRODUCT SELECTION
Description
90-140 Vrms Control
5A
DRA1-CX240A5
5A
DRA1-CX240A5R
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage [VAC]
Transient Overvoltage [Vpk]
Maximum Load Current [Arms] (2)
Minimum Load Current [Arms]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum off-state dv/dt @ maximum rated voltage [V/µsec] (3)
Maximum 1 Cycle Surge Current (50/60 Hz) [Apk]
Maximum I²t for fusing (50/60 Hz, 1/2 cycle) [A² sec]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
DRA1-CX240A5(R)
12-280
600
5
0.06
0.1
500
239/250
285/260
1.4
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Must Turn On Voltage
Must Turn Off Voltage
Typycal Input Current
Nominal Input Impedance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [µsec]
DRA1-CX240A5(R)
90-140 Vrms
90 Vrms
10 Vrms
10 mA
14.1K Ohm
10
40
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 VDC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Encapsulation
Parameters
4000 VRMS
10
9
Ohms
10 pF
-30 to 80°C
-30 to 125 °C
0.063 lb (28.6g)
Themally Conductive Epoxy
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.

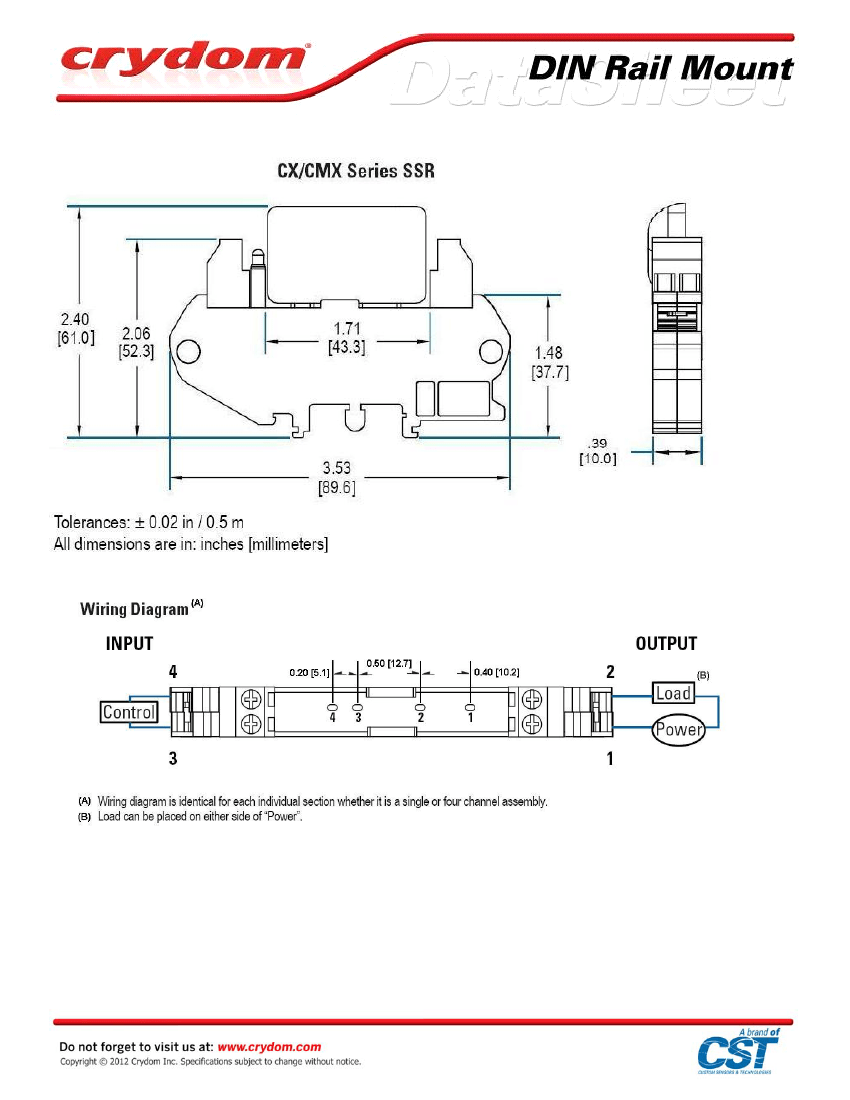

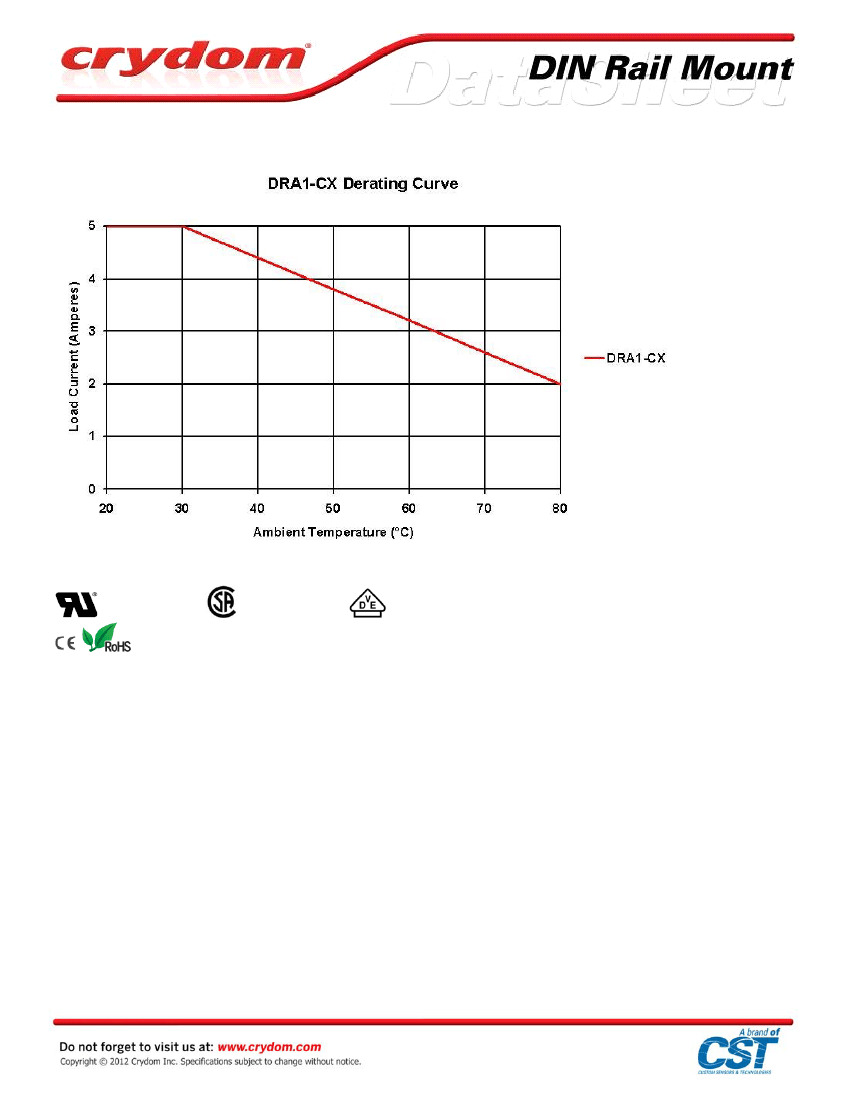

2) See Derating chart on page 3.
3) Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
