DSD2410_10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> DSD2410_10

DSD2410_10: DescriptionTRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX; CategoryLED optoelectronic/LED; File Size644KB，5 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml

Download Datasheet Parametric Compare View All

DSD2410_10 Overview

TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX

DSD2410_10 Parametric

Parameter Name	Attribute value
Minimum operating temperature	-30 Cel
Maximum operating temperature	80 Cel
Processing package description	ROHS COMPLIANT, PLASTIC PACKAGE-4
each_compli	Yes
EU RoHS regulations	Yes
state	NRFND
Optoelectronic device type	TRIGGER OUTPUT SSR
control_voltage	3.5 V
input type	DC
Maximum insulation voltage	4000 V
jesd_609_code	e3
Number of components	1
_state_current_max	25 A
verall_heigh	22 mm
verall_length	48 mm
sub_category	Solid State Relays
terminal coating	TIN
dditional_feature	UL RECOGNIZED, ZERO VOLTAGE CROSSING

Preview

Download Datasheet

View All

DSD / DLD Series

• Time-delay solid-state relays

• Ratings from 10A to 50A @ 240 VAC

• External time adjustment

• DC control

• Zero-crossing (resistive loads) output

• Ideal for compressor applications

•

CE Compliant to EN60950-1

PRODUCT SELECTION

Description

3.5-15 VDC Control

10 A

DSD2410

DLD2410

25 A

DSD2425

DLD2425

50 A

DSD2450

DLD2450

OUTPUT SPECIFICATIONS (voltage) (1)

Description

Operating Voltage (47-63Hz) [Vrms]

Transient Overvoltage [Vpk]

Maximum Off-State Leakage Current @ Rated Voltage [mArms]

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (2)

48-280

600

500

OUTPUT SPECIFICATIONS (current) (1)

Description

Maximum Load Current (3) [Arms]

Minimum Load Current (3) [Arms]

Maximum Surge Current (16.6ms) [Apk]

Maximum On-State Voltage Drop @ Rated Current [Vpk]

Thermal Resistance Junction to Case (Rjc) [°C/W]

Maximum I²t for Fusing (8.3 msec) [A²sec]

Minimum Power Factor (with Maximum Load)

10 A

0.04

120

1.6

1.48

0.5

25 A

0.04

250

1.6

1.02

260

0.5

50 A

0.04

625

1.6

0.63

1620

0.5

INPUT SPECIFICATIONS (1)

Description

Control Voltage Range

Maximum Turn-On Voltage

Maximum Turn-Off Voltage

Typical Input Current

Nominal Input Impedance

Maximum Turn-On Time [msec] (4)

Maximum Turn-Off Time [msec]

Maximum Reset Time [µsec] (5)

DC Control

3.5-15 VDC

3.5 VDC

1.0 VDC

3.4 mA @ 5 Vdc, 11.4 mA @ 15 Vdc

1500 Ohm

Adlustable, See Table

1/2 Cycle

100

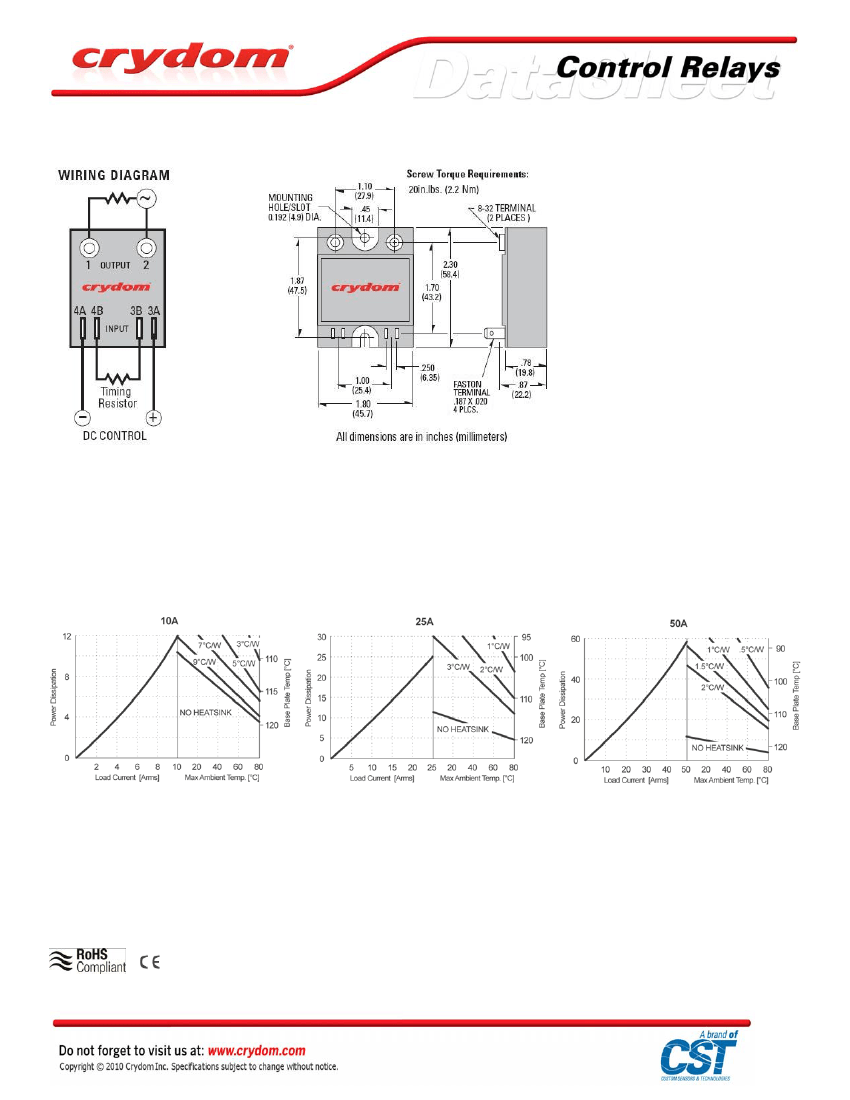

TYPICAL TURN-ON DELAY

Resistor

0 (Short)

10K

100K

470K

1.0M (4)

Time DSD

.10 sec

.19 sec

.94 sec

4.0 sec

8.3 sec

Time DLD

1.6 sec

3.1 sec

15 sec

64 sec

133 sec

DSD2410_10 Related Products

	DSD2410_10	DSD2410	DSD2425
Description	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX
Minimum operating temperature	-30 Cel	-30 °C	-30 °C
Maximum operating temperature	80 Cel	80 °C	80 °C
input type	DC	DC	DC
Maximum insulation voltage	4000 V	4000 V	4000 V
Number of components	1	1	1
Is it lead-free?	-	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to
Maker	-	Crydom	Crydom
package instruction	-	ROHS COMPLIANT, PLASTIC PACKAGE-4	ROHS COMPLIANT, PLASTIC PACKAGE-4
Reach Compliance Code	-	compli	compli
Other features	-	UL RECOGNIZED, ZERO VOLTAGE CROSSING	UL RECOGNIZED, ZERO VOLTAGE CROSSING
control voltage	-	3.5 V	3.5 V
JESD-609 code	-	e3	e3
Maximum on-state current	-	10 A	25 A
Optoelectronic device types	-	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR
total height	-	22 mm	22 mm
total length	-	48 mm	48 mm
Terminal surface	-	Tin (Sn)	Tin (Sn)
