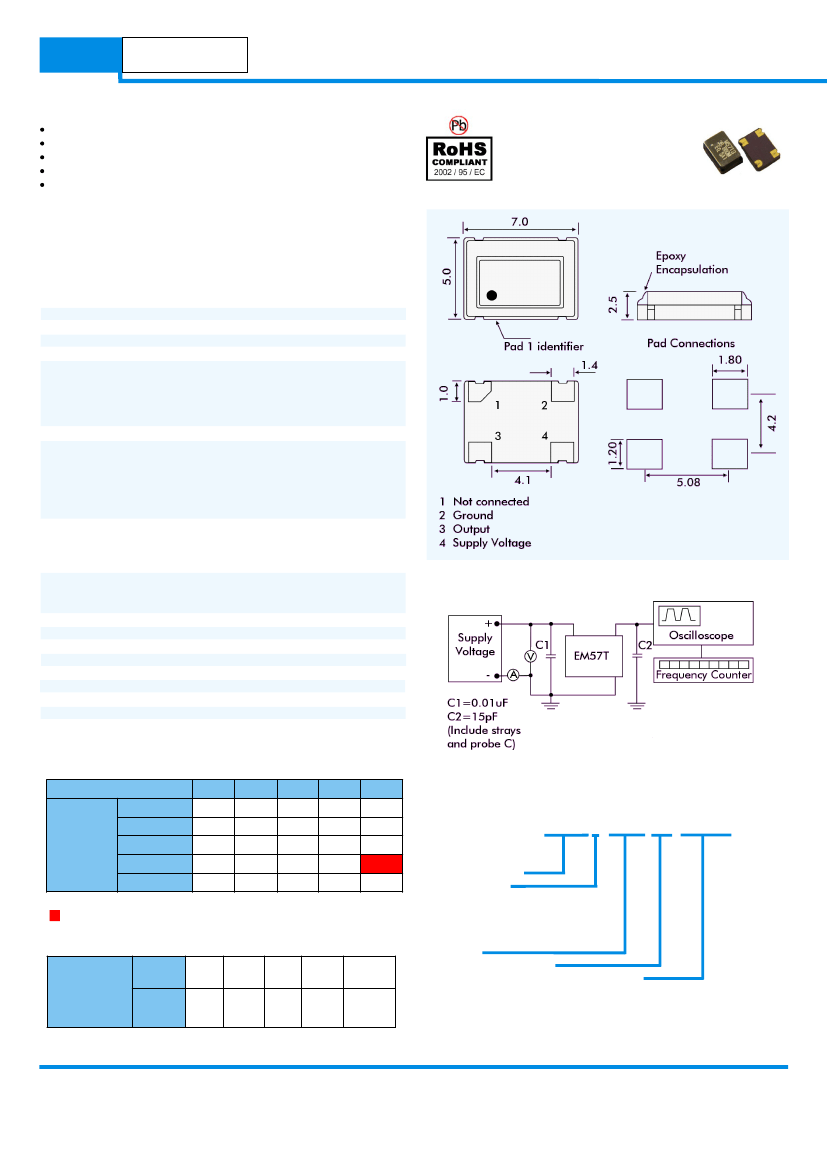

EURO
QUARTZ
Miniature SMD package 7 x 5mm
Wide frequency range: 2.5MHz to 170MHz
Stability from ±0.5ppm over 0° to +50°C
±1ppm over -40 to +85°C available
Supply voltage 2.8 Volts to 5.0 Volts
DESCRIPTION
EM57T series TCXOs are packaged in the industry-standard 7x5mm
SMD format. With HCMOS output, close tolerances are available
from ±0.5ppm over 0° to 50°C to ±1ppm over -40° to +85°C. The
parts have a 0.01uF decoupling capacitor built-in.
SPECIFICATION
Product Series Code:
Frequency Range:
Output Waveform:
Initial Calibration Tolerance*:
Standard Frequencies:
EM57T
2.5MHz to 170.0MHz
Square wave HCMOS
±3ppm at 25°C
10.0, 12.80, 13.0, 14.40,
16.0, 16.3840, 19.200,
19.440, 19.680, 20.0, 38.880,
77.760 and 155.52MHz
(Partial
list)
See table
±1.0 ppm max. first year
±0.3 ppm max. ±5% change
±0.3 ppm max. ±10% change
±1ppm max. for one reflow
(Measured after 24 hours)
+2.8 VDC (Code ‘28’)
+3.0 VDC (Code ‘3’)
+3.3 VDC (Code ‘33’)
+5.0 VDC (Code ‘5’)
80% Vdd min.
10% Vdd max.
10ns max. (20%~80%)
50%±10% (at 50%Vdd)
10ms max.
30mA max. (Freq. dependent)
15pF
See table
AC block, DC coupled
-50° to +100°C
EM57T Series TCXO
HCMOS 7 x 5 x 2.5mm SMD
EM57T - OUTLINES AND DIMENSIONS
Operating Temperature Range:
Frequency Stability
vs. Ageing:
vs. Voltage Change:
vs. Load Change:
vs. Reflow:
Supply Voltage:
Output Voltage Levels
Logic ‘1’ HIGH:
Logic ‘0’ LOW:
Rise & Fall Times:
Duty Cycle (Symmetry):
Start-up Time:
Current Consumption:
Output Load:
SSB Phase Noise:
Output Format:
Storage Temperature:
EM57T - TEST CIRCUIT
* Stability over temperature will be from this measured initial frequency
FREQUENCY STABILITY
Frequency Stability (ppm)
0 ~ +50
-10 ~ +60
Temperature
Range (°C)
-20 ~ +70
-30 ~ +75
-40 ~ +85
P
±0.5
P
ASK
x
x
x
±1.0
P
P
P
P
P
±1.5
P
P
P
P
P
±2.0
P
P
P
P
P
±2.5
P
P
P
P
P
EM57T - PART NUMBERING PROCEDURE
Example:
EM57T3-19.44-2.5/-30+75
= available, x = not available, ASK = contact Technical Sales
= standard specification
PHASE NOISE
Offset
(Hz)
SSB Phase Noise
at 25°C
EM57T
100MHz
(dBc/Hz)
10
100
1k
10k
100k
Series Description
Supply Voltage
28 = 2.8 VDC
3 = 3.0 VDC
33 = 3.3 VDC
5 = 5.0 VDC
Frequency
Stability over OTR (ppm)
Operating Temperature Range (OTR) (°C)
-72
-110
-125
-132
-125
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk
www.euroquartz.co.uk
