HMC188MS8 Overview

Passive SMT Freq. Doubler, 1.25 - 3.0 GHz

HMC188MS8 Parametric

Parameter Name	Attribute value
Brand Name	Analog Devices Inc
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ADI
package instruction	MSOP-8
Contacts	8
Manufacturer packaging code	HRM-8-1
Reach Compliance Code	unknown
ECCN code	EAR99
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum frequency conversion loss	19 dB
Maximum input power (CW)	27 dBm
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of terminals	8
Maximum operating frequency	3000 MHz
Minimum operating frequency	1250 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	TSSOP8,.19
RF/Microwave Device Types	FREQUENCY DOUBLER
surface mount	YES
technology	GAAS
Terminal surface	Tin/Lead (Sn/Pb)

HMC188MS8 Preview

HMC188MS8

188MS8E

v04.0709

GaAs MMIC SMT PASSIVE FREQUENCY

DOUBLER, 1.25 - 3.0 GHz INPUT

Typical Applications

Features

Conversion Loss: 15 dB

Fo, 3Fo, 4Fo Isolation: 45 dB

Input Drive Level: 10 to 20 dBm

FREQ. MULTIPLIERS - PASSIVE - SMT

The HMC188MS8 / HMC188MS8E is suitable for:

• Wireless Local Loop

• LMDS, VSAT, and Point-to-Point Radios

• UNII & HiperLAN

• Test Equipment

Functional Diagram

General Description

Electrical Specifi cations,

= +25° C, As a Function of Drive Level

Parameter

Min.

Input = +10 dBm

Typ.

1.75 - 2.75

3.5 - 5.5

Max.

Min.

Frequency Range, Input

Frequency Range, Output

Conversion Loss

FO Isolation

(with respect to input level)

3FO Isolation

(with respect to input level)

4FO Isolation

(with respect to input level)

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

The HMC188MS8 & HMC188MS8E are miniature

frequency doublers in plastic 8-lead MSOP packages.

The suppression of undesired fundamental and higher

order harmonics is 45 dB typical with respect to input

signal levels. The doubler uses the same diode/balun

technology used in Hittite MMIC mixers. The doubler

is ideal for high volume applications where frequency

doubling of a lower frequency is more economical than

directly generating a higher frequency. The passive

Schottky diode doubler technology contributes no

measurable additive phase noise onto the multiplied

signal.

Input = +15 dBm

Typ.

1.5 - 2.5

3.0 - 5.0

Max.

Input = +20 dBm

Min.

Typ.

1.25 - 3.0

2.5 - 6.0

Max.

Units

GHz

7 - 16

For price, delivery, and to place orders: Analog Devices, Inc.,

For price, delivery, and to place orders, please contact Hittite

Way, P.O. Box 9106, Norwood, MA 02062-9106

Microwave Corporation:

One Technology

20 Alpha Road, Chelmsford, MA 01824 Phone:

Phone: 781-329-4700 • Order online at www.analog.com

978-250-3343 Fax: 978-250-3373

Application Support: Phone: 1-800-ANALOG-D

Order On-line at www.hittite.com

HMC188MS8

188MS8E

v04.0709

GaAs MMIC SMT PASSIVE FREQUENCY

DOUBLER, 1.25 - 3.0 GHz INPUT

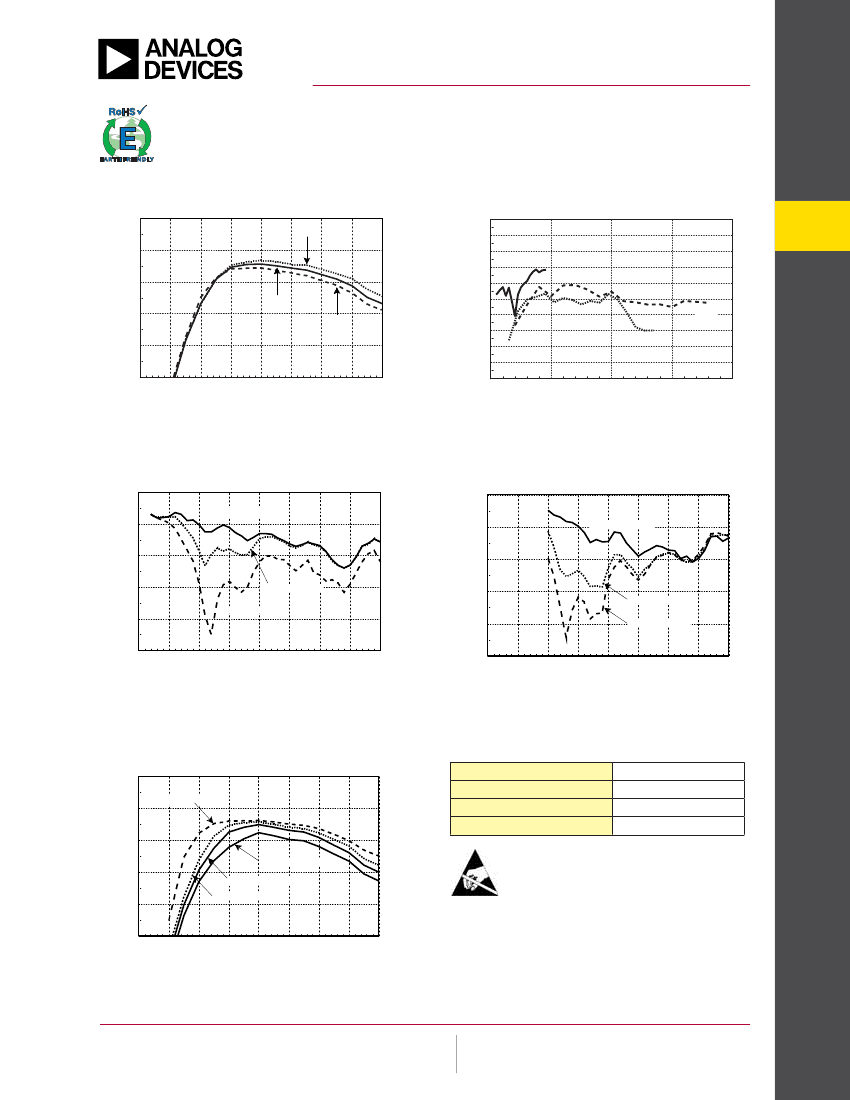

Conversion Loss @ +15 dBm Drive Level

-40C

CONVERSION LOSS (dB)

-10

Isolation @ +15 dBm Drive Level*

-10

-20

ISOLATION (dB)

-30

-40

-50

-60

-70

4Fo

3Fo

-20

+25C

-30

-40

-50

OUTPUT FREQUENCY (GHz)

+85C

-80

-90

-100

FREQUENCY (GHz)

*With respect to input level

Input Return Loss vs. Drive Level

INPUT RETURN LOSS (dB)

Input = +10 dBm

Output Return Loss vs. Drive Level

OUTPUT RETURN LOSS (dB)

-5

Input = +10 dBm

-15

-20

-25

-10

-15

-20

-25

Input = +15 dBm

Input = +20 dBm

INPUT FREQUENCY (GHz)

OUTPUT FREQUENCY (GHz)

Note: Output return loss measured at 2fo, with +10dBm,

+15 dBm, and +20 dBm drive levels on input of doubler.

Conversion Loss vs. Drive Level

Absolute Maximum Ratings

Input Drive

Storage Temperature

Operating Temperature

ESD Sensitivity (HBM)

+27 dBm

-65 to +150 °C

-40 to +85 °C

Class 1A

CONVERSION LOSS (dB)

Input = +20 dBm

-10

-20

Input = +10 dBm

-30

Input = +13 dBm

-40

Input = +15 dBm

ELECTROSTATIC SENSITIVE DEVICE

OBSERVE HANDLING PRECAUTIONS

-50

OUTPUT FREQUENCY (GHz)

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

For price, delivery, and to place orders, please contact Hittite

Way, P.O. Box 9106, Norwood, MA 02062-9106

Microwave Corporation:

One Technology

20 Alpha Road, Chelmsford, MA 01824 Phone:

Phone: 781-329-4700 • Order online at www.analog.com

978-250-3343 Fax: 978-250-3373

Application Support: Phone: 1-800-ANALOG-D

Order On-line at www.hittite.com

7 - 17

FREQ. MULTIPLIERS - PASSIVE - SMT

HMC188MS8

188MS8E

v04.0709

GaAs MMIC SMT PASSIVE FREQUENCY

DOUBLER, 1.25 - 3.0 GHz INPUT

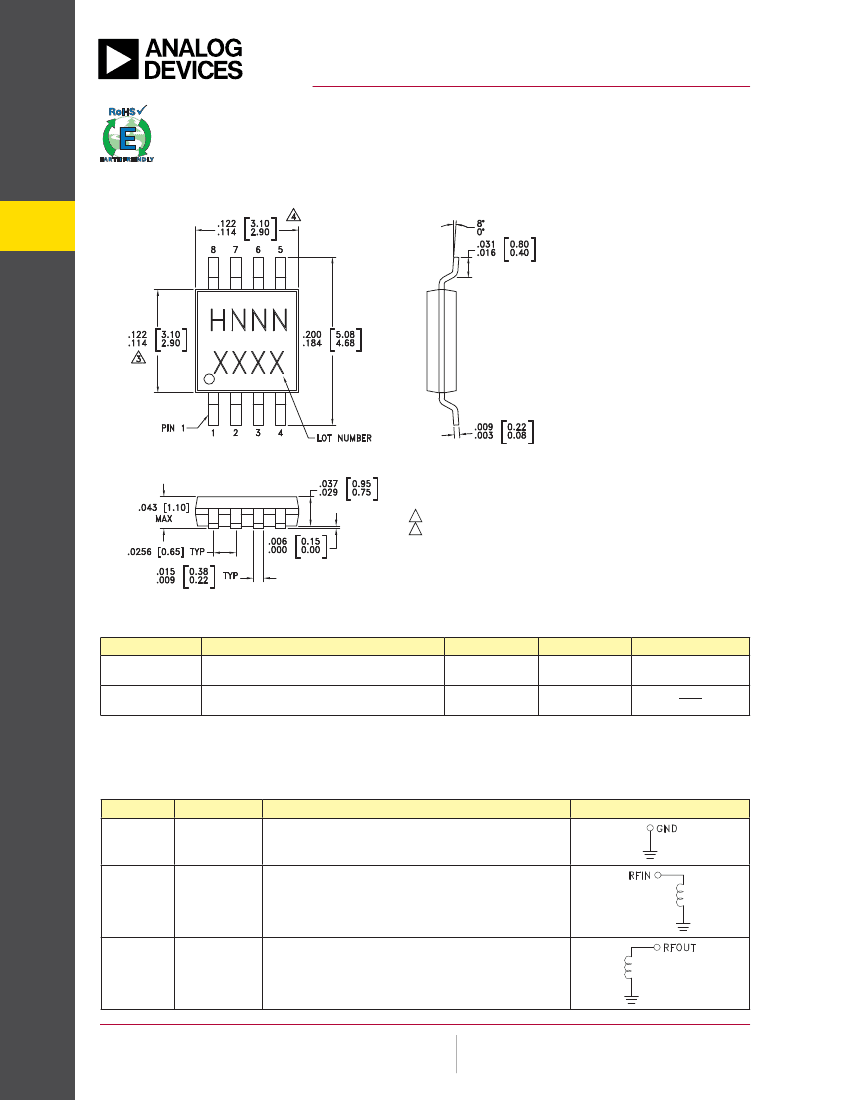

Outline Drawing

FREQ. MULTIPLIERS - PASSIVE - SMT

Package Information

Part Number

HMC188MS8

HMC188MS8E

Package Body Material

Low Stress Injection Molded Plastic

Description

NOTES:

1. LEADFRAME MATERIAL: COPPER ALLOY

2. DIMENSIONS ARE IN INCHES [MILLIMETERS].

3. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.15mm PER SIDE.

4. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.25mm PER SIDE.

5. ALL GROUND LEADS MUST BE SOLDERED TO PCB RF GROUND.

RoHS-compliant Low Stress Injection Molded Plastic

100% matte Sn

[1] Max peak reflow temperature of 235 °C

[2] Max peak reflow temperature of 260 °C

[3] 4-Digit lot number XXXX

Pin Description

Pin Number

1, 3 - 6, 8

Function

GND

All ground leads must be soldered to PCB RF/DC ground.

RFIN

Pin is DC coupled and matched to 50 Ohms from 1.25 to 3.0 GHz

RFOUT

Pin is DC coupled and matched to 50 Ohms from 2.5 to 6.0 GHz

7 - 18

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

For price, delivery, and to place orders, please contact Hittite

Way, P.O. Box 9106, Norwood, MA 02062-9106

Microwave Corporation:

One Technology

20 Alpha Road, Chelmsford, MA 01824 Phone:

Phone: 781-329-4700 • Order online at www.analog.com

978-250-3343 Fax: 978-250-3373

Application Support: Phone: 1-800-ANALOG-D

Order On-line at www.hittite.com

Lead Finish

Sn/Pb Solder

MSL Rating

MSL1

[1]

Package Marking

[3]

H188

XXXX

H188

XXXX

[2]

Interface Schematic

HMC188MS8

188MS8E

v04.0709

GaAs MMIC SMT PASSIVE FREQUENCY

DOUBLER, 1.25 - 3.0 GHz INPUT

Evaluation PCB

FREQ. MULTIPLIERS - PASSIVE - SMT

7 - 19

List of Materials for Evaluation PCB 103313

[1]

Item

J1 - J3

PCB

[2]

Description

104610 Eval Board

PCB Mount SMA Connector

1,000 pF Capacitor, 0603 Pkg.

HMC188MS8 / HMC188MS8E

x4 Active Multiplier

[1] Reference this number when ordering complete evaluation PCB

[2] Circuit Board Material: Rogers 4350

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

For price, delivery, and to place orders, please contact Hittite

Way, P.O. Box 9106, Norwood, MA 02062-9106

Microwave Corporation:

One Technology

20 Alpha Road, Chelmsford, MA 01824 Phone:

Phone: 781-329-4700 • Order online at www.analog.com

978-250-3343 Fax: 978-250-3373

Application Support: Phone: 1-800-ANALOG-D

Order On-line at www.hittite.com

The circuit board used in the final application should

be generated with proper RF circuit design tech-

niques. Signal lines should have 50 ohm imped-

ance while the package ground leads and exposed

paddle should be connected directly to the ground

plane similar to that shown. The evaluation circuit

board shown is available from Hittite upon request.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

HMC188MS8 Related Products

	HMC188MS8	HMC188MS8TR	HMC188MS8E
Description	Passive SMT Freq. Doubler, 1.25 - 3.0 GHz	Passive SMT Freq. Doubler, 1.25 - 3.0 GHz	Passive SMT Freq. Doubler, 1.25 - 3.0 GHz
Brand Name	Analog Devices Inc	Analog Devices Inc	Analog Devices Inc
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	conform to
Maker	ADI	ADI	ADI
Contacts	8	8	8
Manufacturer packaging code	HRM-8-1	HRM-8-1	HRM-8-1
Reach Compliance Code	unknown	unknown	unknown
JESD-609 code	e0	e0	e3
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	TSSOP8,.19	TSSOP8,.19	TSSOP8,.19
RF/Microwave Device Types	FREQUENCY DOUBLER	FREQUENCY DOUBLER	FREQUENCY DOUBLER
surface mount	YES	YES	YES
technology	GAAS	GAAS	GAAS
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)
package instruction	MSOP-8	-	MSOP-8
ECCN code	EAR99	-	EAR99
Characteristic impedance	50 Ω	-	50 Ω
structure	COMPONENT	-	COMPONENT
Maximum frequency conversion loss	19 dB	-	19 dB
Maximum input power (CW)	27 dBm	-	27 dBm
Maximum operating frequency	3000 MHz	-	3000 MHz
Minimum operating frequency	1250 MHz	-	1250 MHz

Recommended Resources

Series voltage regulator circuit diagram with adjustable output voltage

Simple gas/smoke alarm circuit

Microprocessor controlled relay circuit

45kHz low pass state variable filter

15V regulated power supply circuit using thyristor protection

forward converter circuit

That brother has done scsi programming: I have to do something very low-level and implement some basic hard disk operations without the support of an operating system....; max Embedded System

Who can help me draw a schematic diagram of a power-off switch?: Well... First of all, I have been printing 3D products recently. After the photosensitive resin is printed, it still needs UV light curing, so I bought a lamp for girls to bake nail polish... Unfortun...; cardin6 Creative Market

Newbies ask for help with msp430g2553 breathing light routine: Is it possible to use the P1 port of g2553 to control the brightness changes of eight LEDs, giving the feeling of a shooting star, with the previous one being the brightest and then decreasing, and ha...; sda76767 Microcontroller MCU

The most annoying brain teaser: [size=5]Question: A person wearing golden clothes. Answer: A name that startles people. Question: The number "3" walks on the road... turns a somersault... and then turns another... Answer: Three time...; open82977352 Talking

#PowerfulADI clock products [Basic knowledge of clocks ABC - what is time jitter]: When discussing jitter, we are not referring to the deviation of a single edge, but the deviation of many edges in the clock signal. It is random time jitter, which is characterized by statistical dis...; 雨中 ADI Reference Circuit

I would like to ask about the phase relationship of the all-pass response: [i=s]This post was last edited by sunboy25 on 2021-7-4 09:44[/i]I would like to ask why the phase relationship of the universal response Hap is *2...; sunboy25 Analog electronics

Shortcut: L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components
