REVISION CW
NOTES:
DO NOT
SCALE FROM
THIS PRINT
1. MINIMUM PUSHOUT FORCE TO BE 12 OZ RETENTION FOR CONTACTS AND WELD TABS.
C1
2. COPLANARITY: .004[.10] = POS 02 THRU 26
No OF POSITIONS
.006[.15] = POS 27 THRU 50
3. MANUFACTURING IN PROCESS DIMENSION DESIGNED TO ACHIEVE FINAL ASSEMBLY.
LEAD STYLE -01: (-5 THRU -50 ALL
4.
C
REPRESENTS A CRITICAL DIMENSION.
POSITIONS AVAILABLE)
5. [ ] DIMENSIONS ARE IN MILLIMETERS.
LEAD STYLE -02: (-5 THRU -50 ALL
6. MEASURED FROM BEND.
POSITIONS AVAILABLE)
7. DIMENSION CHANGED PER REVISION AD.
ALL OTHER LEAD STYLES: (-5 THRU -50 MULTIPLES OF 5)
CONTACT ENGINEERING FOR INFORMATION.
LEAD STYLES -11, -12 POS 12, 16, 17 ALSO AVAILABLE
8. SIDES OF PLASTIC BODIES ON ALL LEAD STYLES EXCEPT
LEAD STYLES -21, -22, -31, -32
THE -01 & -02 WILL BE SOLID, NOT RIBBED.
POS 12 AND 13 ALSO AVAILABLE
9. MEASURE FROM TIPS OF PIN.
10. NOTE DELETED.
11. .003[.08] MAXIMUM TERMINAL BURR.
LEAD STYLE
12. .005 MAXIMUM HEIGHT VARIATION BETWEEN ANY TWO PINS.
THROUGH HOLE SURFACE MOUNT
13. MINIMUM LOCKING CLIP RETENTION TO BE 8 OZS.
-01 (SEE FIG. 1)
-02 (SEE FIG. 2)
14. THIS FEATURE ONLY PRESENT ON -01 &-02 LEAD STYLES.
CW

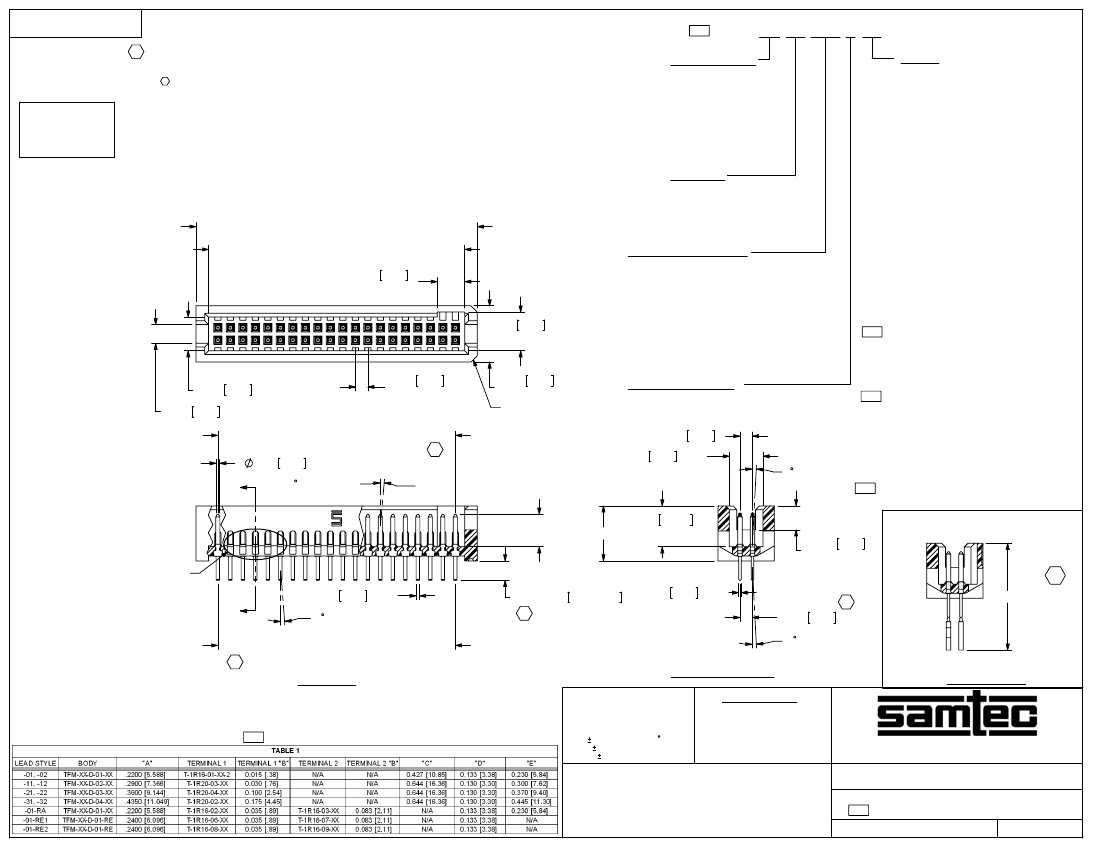

TFM-1XX-XX-XXX-X-XXX
OPTION
-A: ALIGNMENT PIN (USE TFM-XX-D-XX-A,
SEE TABLE 1) (SEE FIG. 8 SHEET 3)
(NOT AVAILABLE FOR -RA OR -RE)
-LC: LOCKING CLIP (USE LC-05-TM)
(NOT AVAILABLE FOR -RA OR -RE)
(SEE FIG. 10 SHEET 3) (SEE NOTE 13)
-P: PICK AND PLACE PAD (USE PPP-04)
(AVAILABLE IN ALL POSITIONS)
(NOT AVAILABLE FOR -RA OR -RE,
SEE FIG. 7 SHEET 3)
-RA: RIGHT ANGLE
(AVAILABLE ONLY IN LEAD STYLE: -01
SEE FIG. 5, SHEET 2)
-TR: TAPE AND REEL (SEE FIG. 4, SHEET 5)
-SA: STAKED ALIGNMENT PIN (SEE FIG. 9,
SHEET 3)(NOT AVAILABLE FOR
-RA OR -RE)
-K: POLYIMIDE FILM (SEE FIG. 3)
-WT: WELD TABS (USE WT-25-XX-T)
(AVAILABLE ON -01 AND -02 LEAD
STYLES ONLY) (SEE FIG. 6 SHEET 2)
(AVAILABLE ON -05, -07, -10, -15,
-20, -25, AND -30 POS ONLY)
(AVAILABLE WITH -L AND -S
PLATING ONLY) (NOT AVAILABLE
CW WITH -A, -LC, -RA, OR -SA OPTIONS)
*-RE1: RIGHT ANGLE ELEVATED .062 PCB
(USE TFM-XX-D-01-RE, NOT AVAILABLE
WITHOUT -WT, AVAILABLE IN LEAD
STYLE -01 ONLY, AVAILABLE IN -5
THRU -30 POSITIONS ONLY)
CW (SEE FIG. 11, SHEET 4)
*-RE2: RIGHT ANGLE ELEVATED .093 PCB
(USE TFM-XX-D-01-RE, NOT AVAILABLE
WITHOUT -WT, AVAILABLE IN LEAD
STYLE -01 ONLY, AVAILABLE IN -5
THRU -30 POSITIONS ONLY)
(SEE FIG. 12, SHEET 4)
(No. OF POSITIONS x .050[1.27]) + .125[3.18] REF
(No. OF POSITIONS x .050[1.27]) + .025[.64] REF
.110 2.79
REF
.155 3.94
REF
01
.135 3.43 REF
.075 1.91 REF
(No. OF POSITIONS x .050[1.27]) - .050[1.27]
C7
-11 (SEE FIG. 1)
-21 (SEE FIG. 1)
-31 (SEE FIG. 1)
-12 (SEE FIG. 2)
-22 (SEE FIG. 2)
-32 (SEE FIG. 2)
02
PLATING SPECIFICATION
-S: SELECTIVE
-L: LIGHT SELECTIVE
-F: FLASHED GOLD
-P: GOLD FLASHED PALLADIUM NICKEL
-G: GOLD
-H: HEAVY GOLD
-SM: SELECTIVE HEAVY GOLD, MATTE TIN TAIL
-LM: SELECTIVE LIGHT GOLD, MATTE TIN TAIL
-FM: SELECTIVE FLASH GOLD, MATTE TIN TAIL
-STL: SELECTIVE TIN LEAD
BODY SPECIFICATION
-D: DOUBLE ROW
.050 1.27
.135 3.43 REF
.050 1.27
REF
.225 5.72
REF
SEE NOTE 14
.018 0.46
"A"
2 MAX SWAY
(TYP)
"D" REF
2 MAX TOE
(TYP)
CW * = NOT RELEASED FOR PRODUCTION
.1635 4.153
REF
"A" REF
.096 2.44
(SEE NOTE 7)
C17
SEE NOTE 8
"A"
.014 0.36 REF
2 MAX SWAY (TYP)
.078±.003 1.97±0.08
C2
.010 0.25 REF
.050 1.27
C8
"C"
-.002[.05]
+.004[.10]
(No. OF POSITIONS x .050[1.27]) - .050[1.27]
C5
2 MAX TOE (TYP)
THROUGH HOLE
-01, -11, -21, -31
CW
FIGURE 1
SECTION "A"-"A"
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
IN-PROCESS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2.5:1
INSULATOR: LIQUID CRYSTAL POLYMER, COLOR: BLACK
TERMINAL: PHOSPHOR BRONZE
.050 X .050 TERMINAL STRIP
CW
F:\DWG\SW\Exisprod\ASSEMBLY\050\TFM-1XX-XX-XXX-X-XXX.SLDDRW
TFM-1XX-XX-XXX-X-XXX
7-10-2007
SHEET
1
OF
5
BY:
B RAY
REVISION CW
THROUGH HOLE
-02, -12, -22, -32
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1
"A"
-.000[.00]
+.012[.30]
FIGURE 2

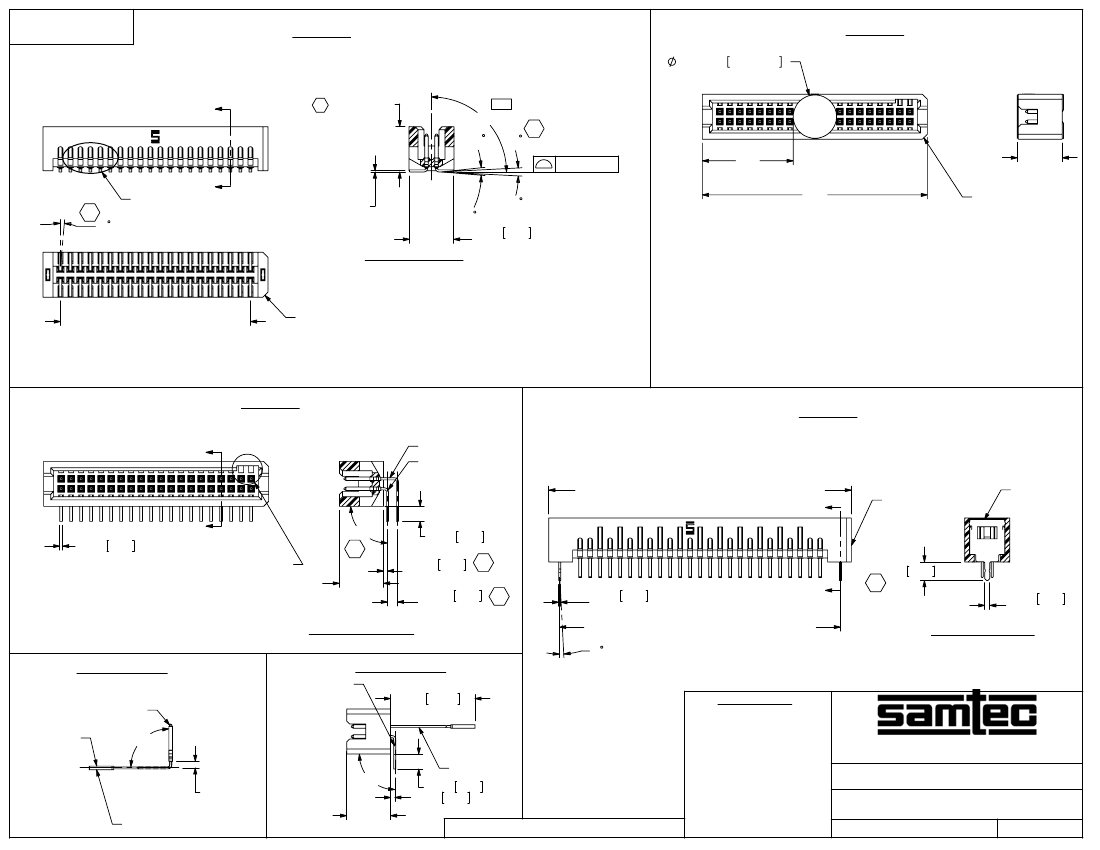

-K: POLYIMIDE FILM PAD
.216±.005 5.49±0.13
FIGURE 3
"B"
C3
CW
90°
3
2
C11
SEE NOTE 2
"B"
C10
"S"
(SEE NOTE)
"R"
(SEE NOTE)
NOTE: “R” = OVERALL LENGTH (REF)
“S” = {(“R” - .216[5.49] /2} ±.020[.51]
"E"
(SEE TABLE 1)
SEE NOTE 14
SEE NOTE 8
3 MAX SWAY
(TYP)
FLUSH TO .012[.30] MAX
(SEE NOTE 6)
7 (-12, -22 & -32 STYLES)
3 (-02 STYLE ONLY)
01 03
SECTION "B"-"B"
.220 5.59
REF
02
No. OF POSITIONS x .050) -.050[1.27]
(TOL ACCUM ±.005[.13] OVER 50 POS.)
SEE NOTE 14
-RA OPTION
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1
02
"C"
TERMINAL 2
TERMINAL 1
FIGURE 5
-WT OPTION
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1
FIGURE 6
(No. OF POSITONS x .050[1.27]) + .263[6.68] REF
"D"
01
.014 0.36 REF
"C"
NOTCH TO BE
ORIENTED AS SHOWN
"A" REF
90°
C13
TFM-XX-D-01-WT
WT-25-04-T
.075 1.91 REF
.020 0.51
C14
(SEE NOTE 9)
.050 1.27
C15
(SEE NOTE 9)
.010 0.25
REF (TYP)
(No. OF POSITIONS x .050[1.27]) + .154[3.91]
2 MAX SWAY (TYP)
.093 2.35 (TYP)
.025 0.64
REF (TYP)
"D"
C16
SECTION "C"-"C"
(ORIENT I.D. MARK AS SHOWN)
(FOR -RA OPTION ONLY)
TERMINAL 1
I.D. MARK
90°
90°
"A" REF
TERMINAL 2
.075 1.91 REF
.020 0.51
SECTION "D"-"D"
IN-PROCESS 1
IN-PROCESS 2
TERMINAL 1
.422 10.71
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
"B"
(SEE NOTE 3)
(SEE TABLE 1)
CARRIER STRIP
.050 X .050 TERMINAL STRIP
TFM-1XX-XX-XXX-X-XXX
7-10-2007
SHEET
2
OF
5
F:\DWG\SW\Exisprod\ASSEMBLY\050\TFM-1XX-XX-XXX-X-XXX.SLDDRW
BY:
B RAY
REVISION CW

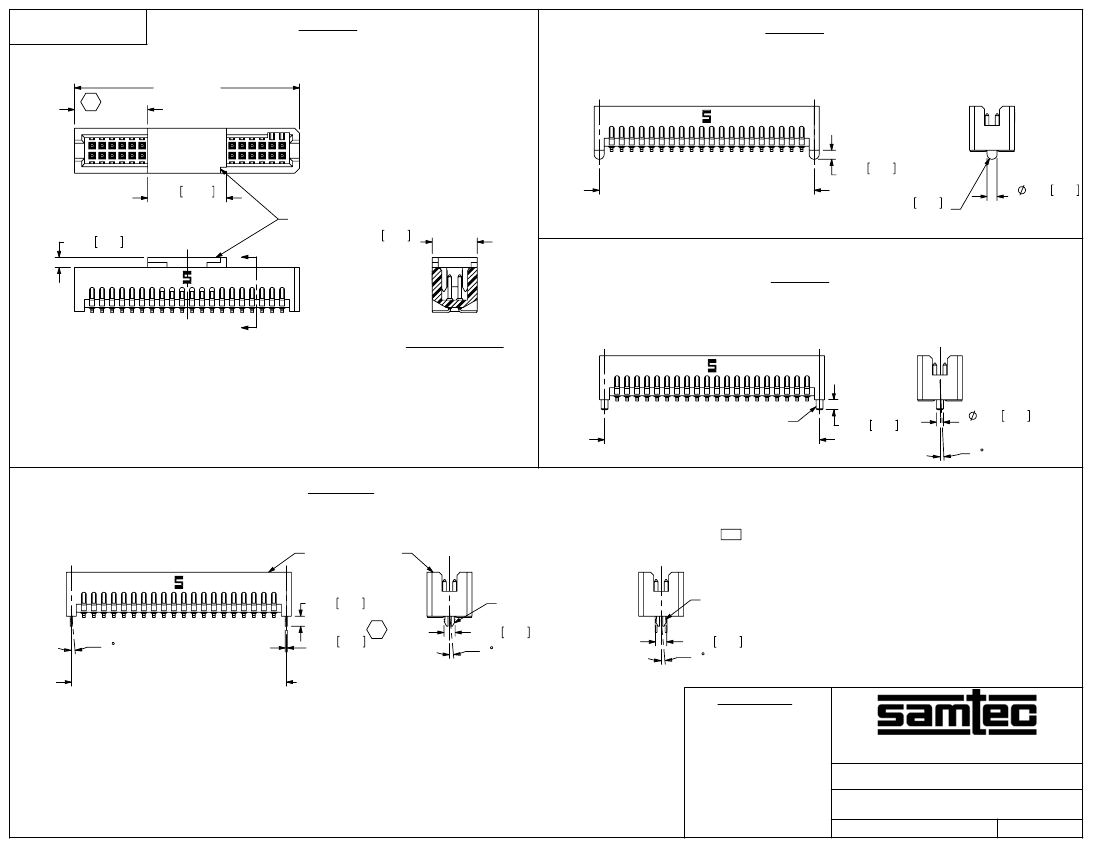

-P OPTION
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1
(PAD TO BE POSITIONED ON C.L. AS SHOWN)
"M"
(SEE NOTE)
FIGURE 7
-A OPTION
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1
FIGURE 8
C17
"P"
(SEE NOTE)
.394 10.01
REF
*PPP-04
.050 1.27
"E"
.225 5.72
REF
(No. OF POSITIONS x .050[1.27]) + .075[1.91]
.045 1.14
REF
R.025 0.64
REF
.050 1.27
REF
-SA OPTION: STAKED ALIGNMENT PIN
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1
C
L
"E"
FIGURE 9
NOTE: “M” = (No. OF POSITIONS X .050[1.27]) + .125[3.18] (REF)
“P” = {(“M” - .394[10.01] /2} ±.020[.51]
* NOTCH ON PAD FOR 10 POSITION OR LESS TO
BE ON SAME END AS THE NOTCH IN THE TFM BODY
SECTION "E"-"E"
C
L
SM-A5
(No. OF POSITIONS x .050[1.27]) + .075[1.91]
.050 1.27
.035 0.89
REF
2 MAX SWAY (TYP)
-LC OPTION
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1
(NOT AVAILBLE ON -RA)
(TFM-1XX-02-D-LC)
C
L
FIGURE 10
(TFM-1XX-01-D-LC) CW
C
L
.050 1.27
.010 0.25
REF
C18
LC-05-TM
.056 1.42 REF
2 MAX SWAY (TYP)
LC-05-TM
2 MAX SWAY (TYP)
.056 1.42
2 MAX SWAY (TYP)
(No. OF POSITIONS x .050[1.27]) + .075[1.91]±.002[.05]
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 X .050 TERMINAL STRIP
TFM-1XX-XX-XXX-X-XXX
7-10-2007
SHEET
3
OF
5
F:\DWG\SW\Exisprod\ASSEMBLY\050\TFM-1XX-XX-XXX-X-XXX.SLDDRW
BY:
B RAY
REVISION CW
.014 0.36 REF
"A" REF
CW
NOT RELEASED FOR PRODUCTION

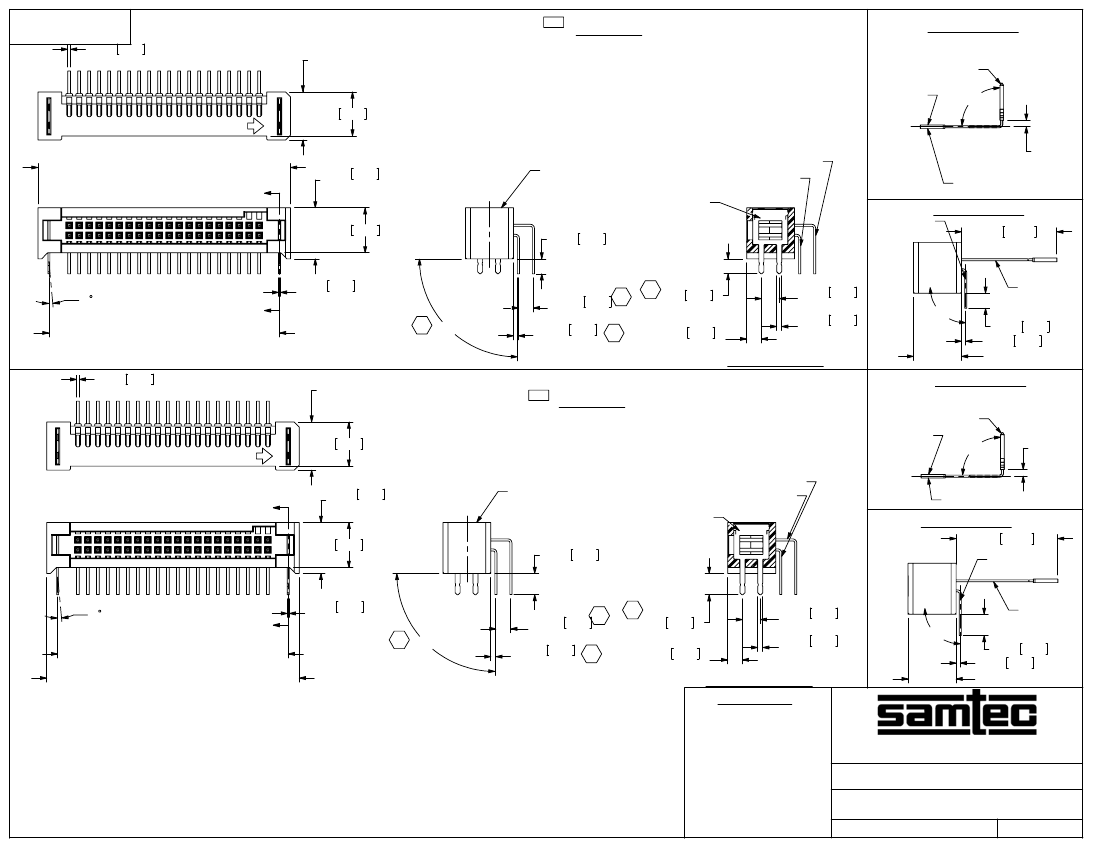

-RE1: RIGHT ANGLE ELEVATED .062 PCB
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1
FIGURE 11
(ORIENT I.D. MARK AS SHOWN)
(FOR -RA OPTION ONLY)
TERMINAL 1
I.D. MARK
90°
IN-PROCESS 1
.220 5.59 REF
"B"
(SEE NOTE 3)
(SEE TABLE 1)
CARRIER STRIP
TERMINAL 1
.075 1.91 REF
(No. OF POSITONS x .050[1.27]) + .263[6.68] REF
"F"
.255 6.48
REF
TFM-XX-D-01-RE
C
L
WT-25-05-T
T-1R16-07-XXX
T-1R16-06-XXX
IN-PROCESS 2
.477 12.11
.225 5.72 REF
2 MAX SWAY (TYP)
"F"
.010 0.25
REF (TYP)
C19
(No. OF POSITIONS x .050[1.27]) + .154[3.91]
90°
.075 1.91
(SEE NOTE 9)
.020 0.51
C21
(SEE NOTE 9)
C20
C22
.075 1.89
.074 1.87
REF
.089 2.26
REF
.025 0.64
REF
TERMINAL 2
90°
.075 1.91 REF
.020 0.51
"A" REF
SECTION "F"-"F"
.014 0.36 REF
"A" REF
CW
-RE2: RIGHT ANGLE ELEVATED .093 PCB
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1
.220 5.59 REF
FIGURE 12
NOT RELEASED FOR PRODUCTION
C
L
TFM-XX-D-01-RE
WT-25-06-T
.106 2.69 REF
T-1R16-08-XXX
T-1R16-09-XXX
(ORIENT I.D. MARK AS SHOWN)
(FOR -RA OPTION ONLY)
TERMINAL 1
(SEE NOTE 3)
I.D. MARK
(SEE TABLE 1)
90°
"B"
IN-PROCESS 1
"G"
.255 6.48
REF
.225 5.72 REF
CARRIER STRIP
IN-PROCESS 2
.508 12.89
TERMINAL 1
2 MAX SWAY (TYP)
"G"
.010 0.25
REF (TYP)
C19
(No. OF POSITIONS x .050[1.27]) + .154[3.91]
(No. OF POSITONS x .050[1.27]) + .263[6.68] REF
90°
.075 1.91
(SEE NOTE 9)
.020 0.51
C21
(SEE NOTE 9)
C20
C22
.106 2.70
.074 1.87
REF
.089 2.26
REF
.025 0.64
REF
TERMINAL 2
90°
.106 2.69 REF
.020 0.51
"A" REF
SECTION "G"-"G"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 X .050 TERMINAL STRIP
TFM-1XX-XX-XXX-X-XXX
7-10-2007
SHEET
4
OF
5
F:\DWG\SW\Exisprod\ASSEMBLY\050\TFM-1XX-XX-XXX-X-XXX.SLDDRW
BY:
B RAY

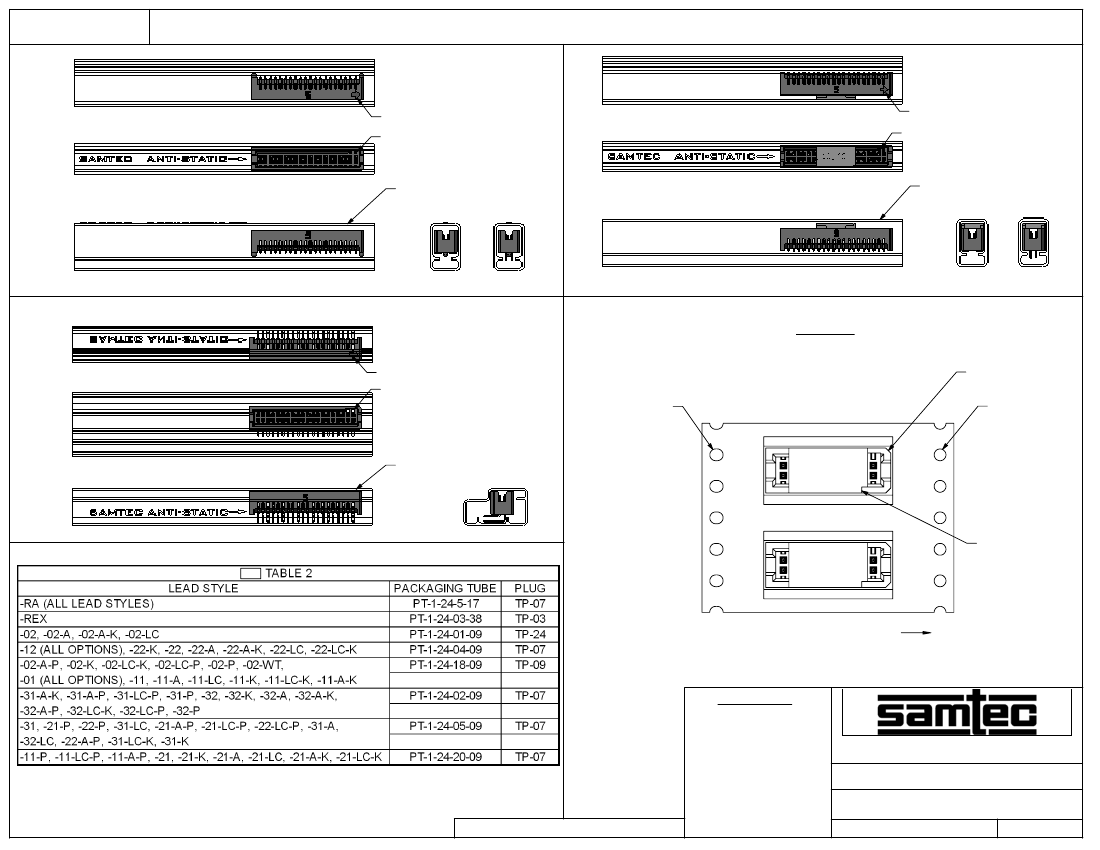

Industrial Control Electronics
京公网安备 11010802033920号
EEWORLD
