UFR7140 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> UFR7140

UFR7140: Description70 A, 300 V, SILICON, RECTIFIER DIODE, DO-203AB; CategoryDiscrete semiconductor diode; File Size207KB，4 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

UFR7140 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UFR7140	-	-	View	Buy Now

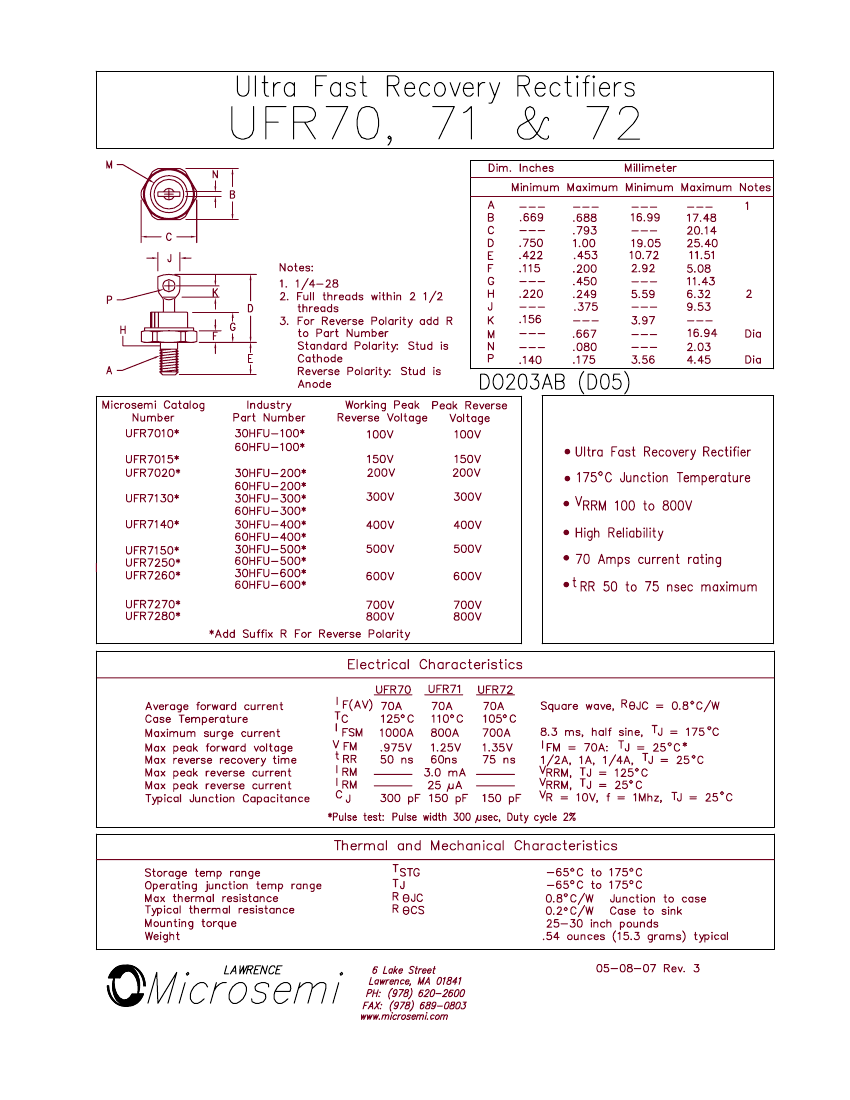

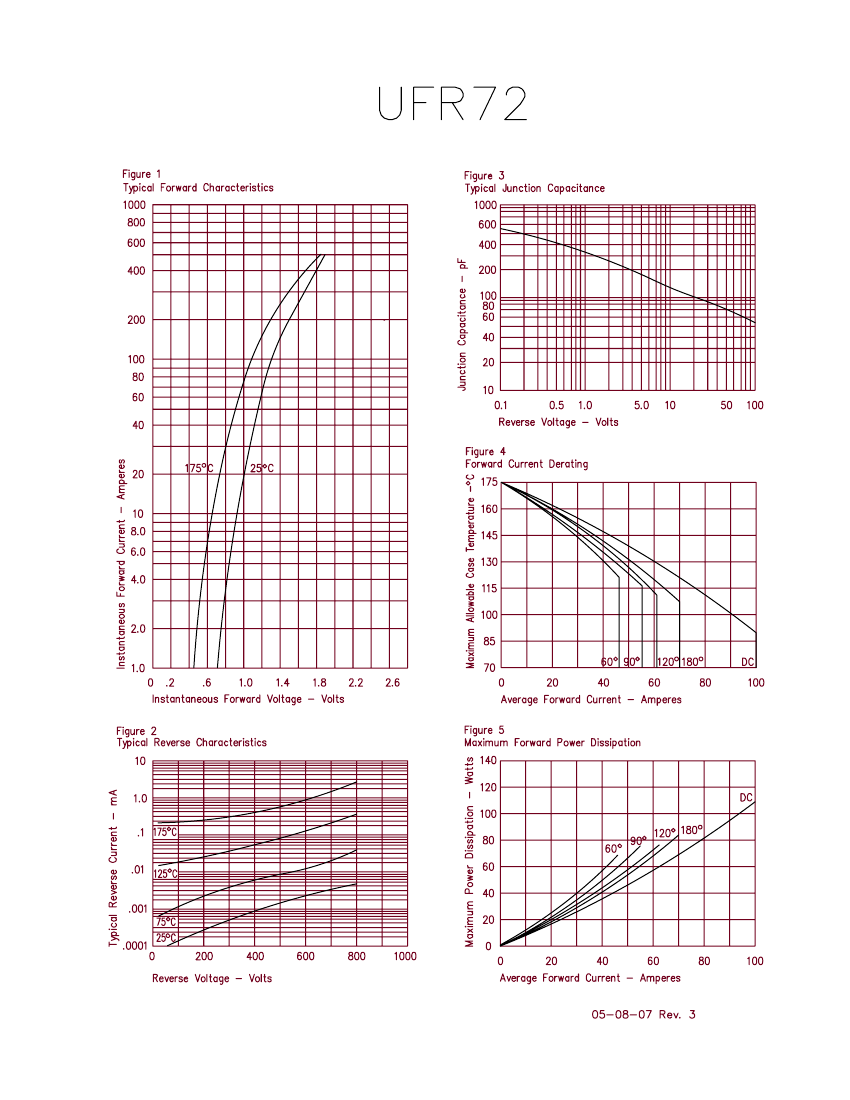

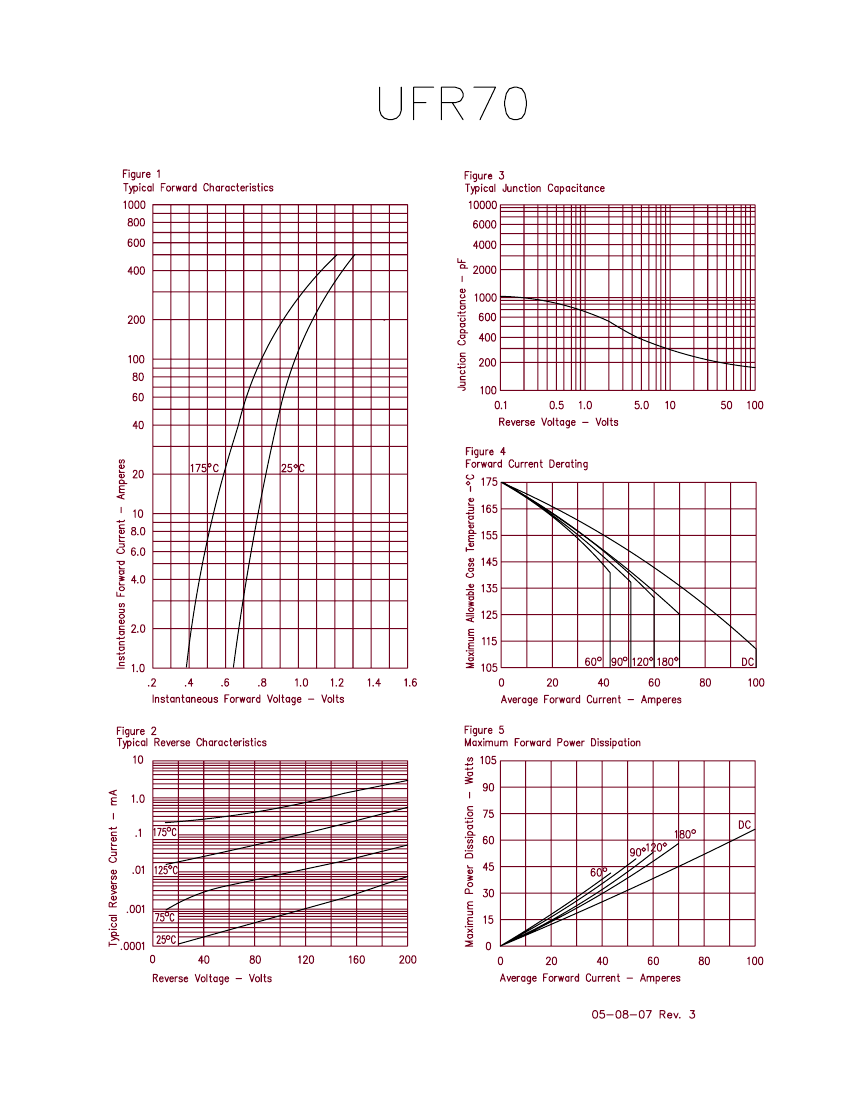

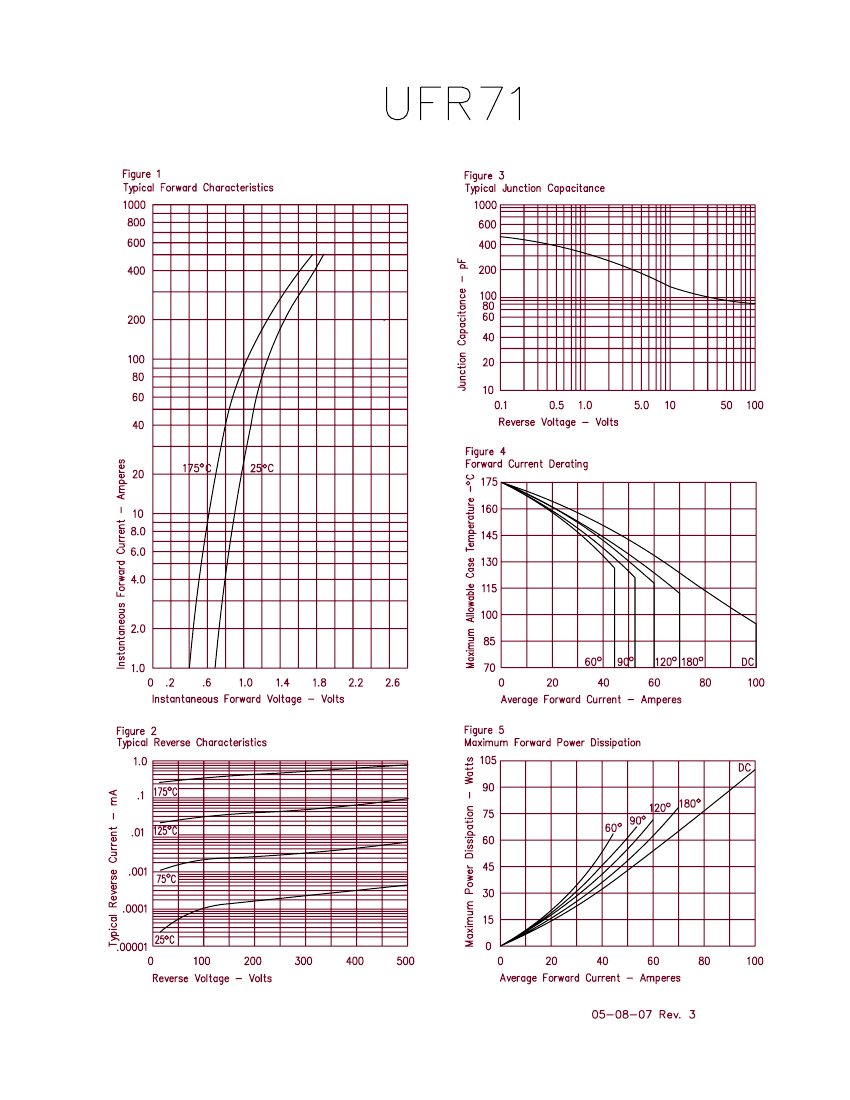

UFR7140 Overview

70 A, 300 V, SILICON, RECTIFIER DIODE, DO-203AB

UFR7140 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
Parts packaging code	DO-5
package instruction	DO-5, 1 PIN
Contacts	1
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	FAST RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
JEDEC-95 code	DO-203AB
JESD-30 code	O-MUPM-D1
JESD-609 code	e0
Maximum non-repetitive peak forward current	800 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	70 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse current	25 µA
Maximum reverse recovery time	0.075 µs
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

UFR7140 Related Products

	UFR7140	UFR7270	UFR7250	UFR7280	UFR7260	UFR7150	UFR7010	UFR7120	UFR70	UFR7015
Description	70 A, 300 V, SILICON, RECTIFIER DIODE, DO-203AB	70 A, 300 V, SILICON, RECTIFIER DIODE, DO-203AB	70 A, 300 V, SILICON, RECTIFIER DIODE, DO-203AB	70 A, 300 V, SILICON, RECTIFIER DIODE, DO-203AB	70 A, 300 V, SILICON, RECTIFIER DIODE, DO-203AB	70 A, 300 V, SILICON, RECTIFIER DIODE, DO-203AB	RECTIFIER DIODE	70 A, 300 V, SILICON, RECTIFIER DIODE, DO-203AB	70 A, 300 V, SILICON, RECTIFIER DIODE, DO-203AB	70 A, 300 V, SILICON, RECTIFIER DIODE, DO-203AB
application	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	ULTRA FAST RECOVERY	FAST RECOVERY	FAST RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Diode component materials	SILICON	silicon	silicon	silicon	silicon	SILICON	SILICON	SILICON	silicon	SILICON
Diode type	RECTIFIER DIODE	rectifier diode	rectifier diode	rectifier diode	rectifier diode	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	rectifier diode	RECTIFIER DIODE
Maximum non-repetitive peak forward current	800 A	800 A	800 A	800 A	800 A	800 A	1000 A	800 A	800 A	1000 A
Number of components	1	1	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1	1	1	1
Maximum repetitive peak reverse voltage	400 V	300 V	300 V	300 V	300 V	500 V	100 V	200 V	300 V	150 V
Maximum reverse recovery time	0.075 µs	0.0750 us	0.0750 us	0.0750 us	0.0750 us	0.075 µs	0.05 µs	0.06 µs	0.0750 us	0.05 µs
Terminal form	SOLDER LUG	Welding LUG	Welding LUG	Welding LUG	Welding LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	Welding LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
