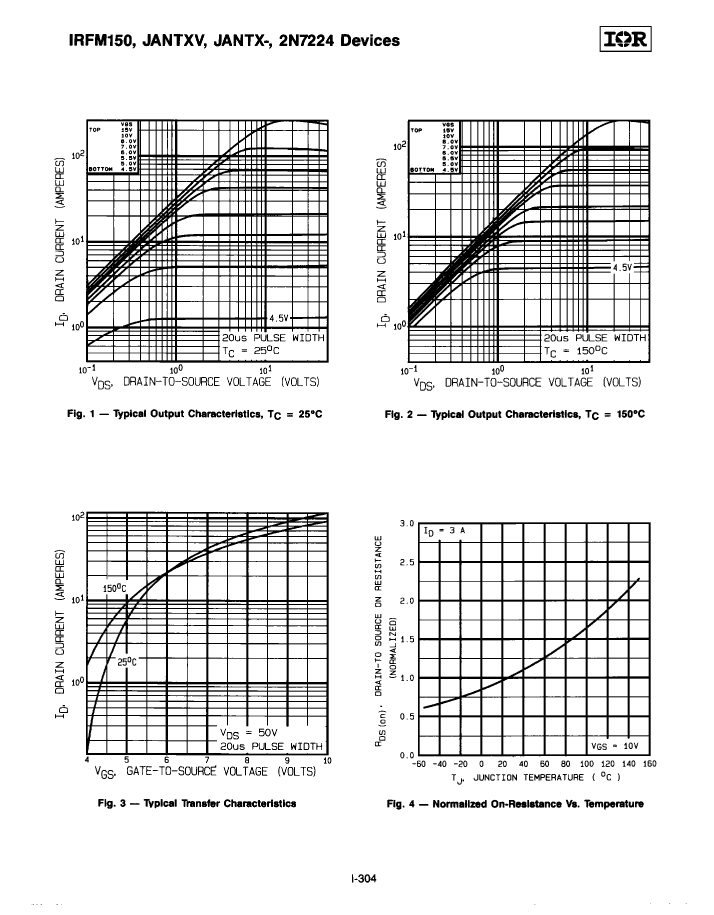

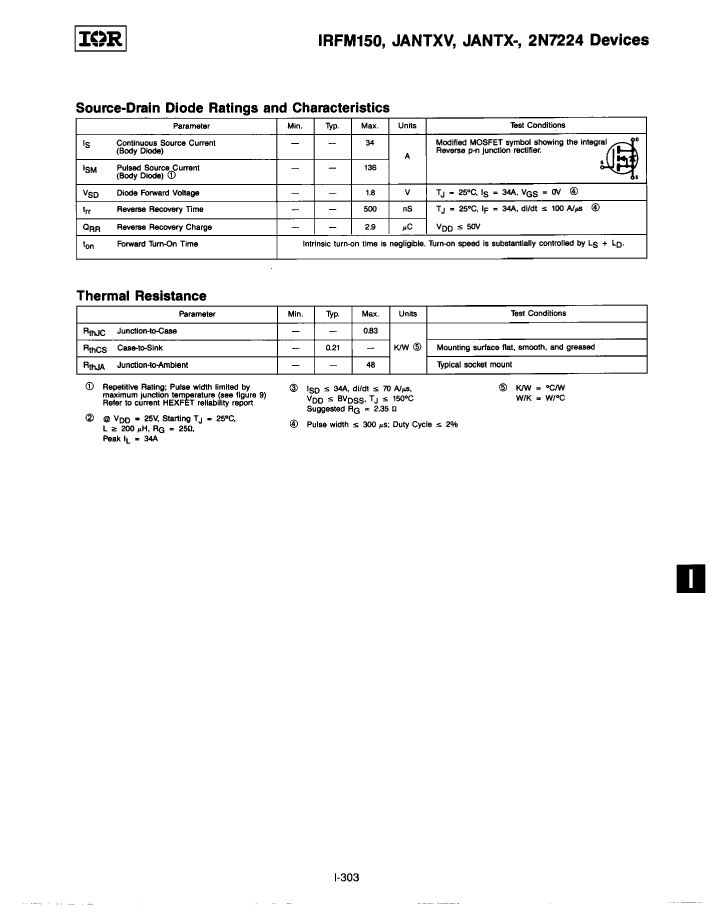

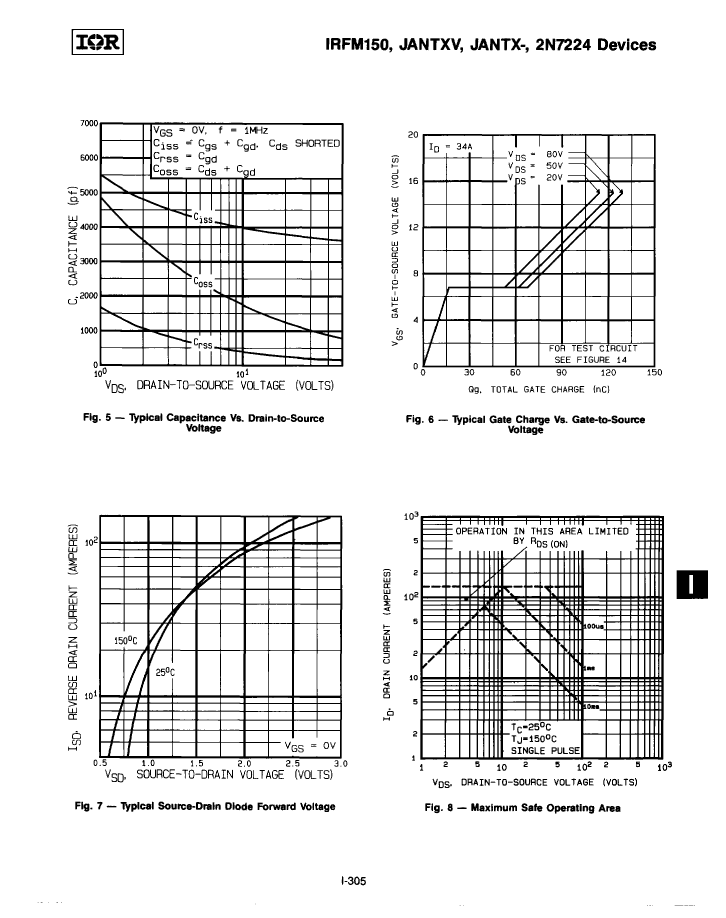

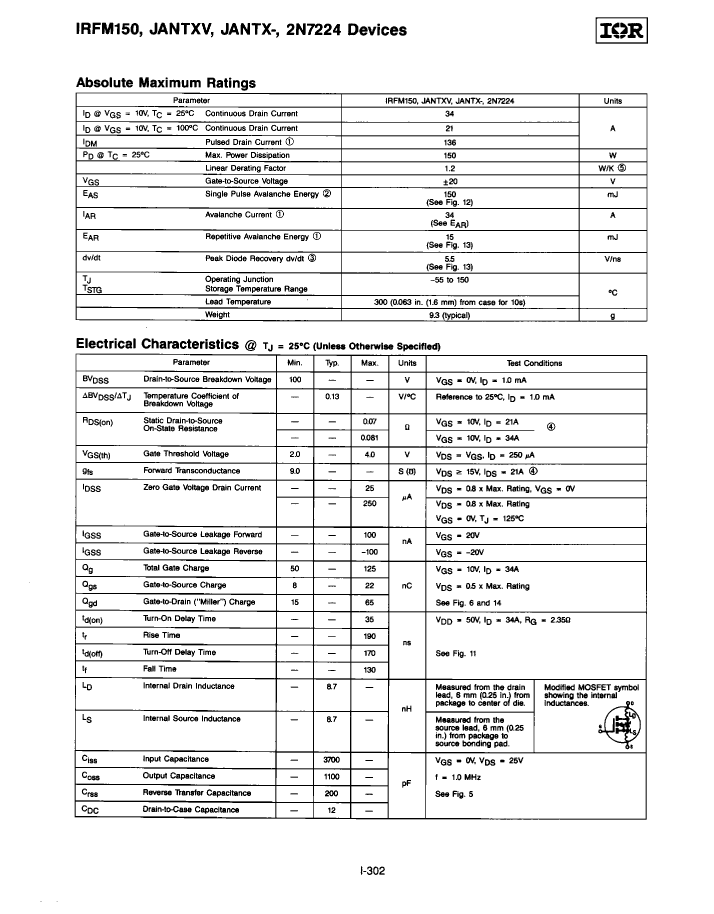

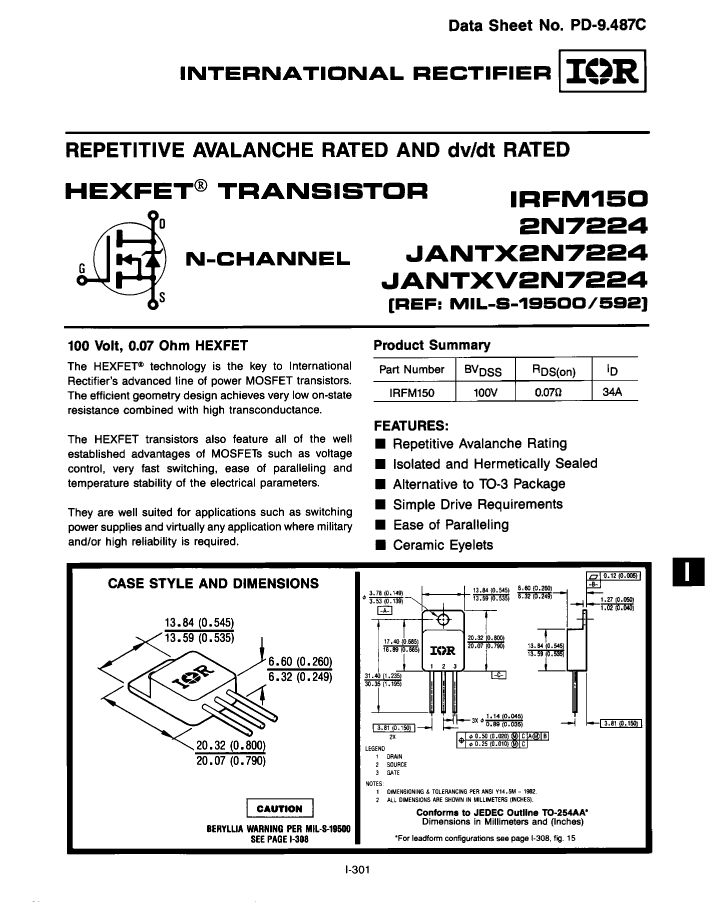

Power Field-Effect Transistor, 34A I(D), 100V, 0.081ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA,
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Avalanche Energy Efficiency Rating (Eas) | 150 mJ |
| Shell connection | ISOLATED |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Minimum drain-source breakdown voltage | 100 V |
| Maximum drain current (ID) | 34 A |
| Maximum drain-source on-resistance | 0.081 Ω |
| FET technology | METAL-OXIDE SEMICONDUCTOR |
| JEDEC-95 code | TO-254AA |
| JESD-30 code | R-MSFM-P3 |
| JESD-609 code | e0 |
| Number of components | 1 |
| Number of terminals | 3 |
| Operating mode | ENHANCEMENT MODE |
| Package body material | METAL |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | N-CHANNEL |
| Maximum pulsed drain current (IDM) | 136 A |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | PIN/PEG |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Base Number Matches | 1 |
| 2N7224U | 2N7224UPBF | 2N7224DPBF | 2N7224D | |
|---|---|---|---|---|
| Description | Power Field-Effect Transistor, 34A I(D), 100V, 0.081ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA, | 34A, 100V, 0.081ohm, N-CHANNEL, Si, POWER, MOSFET, TO-254AA | 34A, 100V, 0.081ohm, N-CHANNEL, Si, POWER, MOSFET, TO-254AA | Power Field-Effect Transistor, 34A I(D), 100V, 0.081ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA, |
| Is it Rohs certified? | incompatible | conform to | conform to | incompatible |
| Reach Compliance Code | compli | compli | compli | compli |
| Avalanche Energy Efficiency Rating (Eas) | 150 mJ | 150 mJ | 150 mJ | 150 mJ |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Configuration | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE |
| Minimum drain-source breakdown voltage | 100 V | 100 V | 100 V | 100 V |
| Maximum drain current (ID) | 34 A | 34 A | 34 A | 34 A |
| Maximum drain-source on-resistance | 0.081 Ω | 0.081 Ω | 0.081 Ω | 0.081 Ω |
| FET technology | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR |
| JEDEC-95 code | TO-254AA | TO-254AA | TO-254AA | TO-254AA |
| JESD-30 code | R-MSFM-P3 | R-MSFM-P3 | R-MSFM-P3 | R-MSFM-P3 |
| Number of components | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 |
| Operating mode | ENHANCEMENT MODE | ENHANCEMENT MODE | ENHANCEMENT MODE | ENHANCEMENT MODE |
| Package body material | METAL | METAL | METAL | METAL |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | 260 | 260 | NOT SPECIFIED |
| Polarity/channel type | N-CHANNEL | N-CHANNEL | N-CHANNEL | N-CHANNEL |
| Maximum pulsed drain current (IDM) | 136 A | 136 A | 136 A | 136 A |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO |
| Terminal surface | Tin/Lead (Sn/Pb) | NOT SPECIFIED | NOT SPECIFIED | TIN LEAD |
| Terminal form | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED | 40 | 40 | NOT SPECIFIED |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON |
| Base Number Matches | 1 | 1 | 1 | - |
| package instruction | - | FLANGE MOUNT, R-MSFM-P3 | FLANGE MOUNT, R-MSFM-P3 | FLANGE MOUNT, R-MSFM-P3 |
