8364-13-24-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8364-13-24-1

8364-13-24-1: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size78KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8364-13-24-1 Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle

8364-13-24-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.128 inch
subject depth	0.247 inch
body length	0.616 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
maximum insertion force	2.4464 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8364
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	24
Evacuation force-minimum value	.3058 N

Preview

Download Datasheet

View All

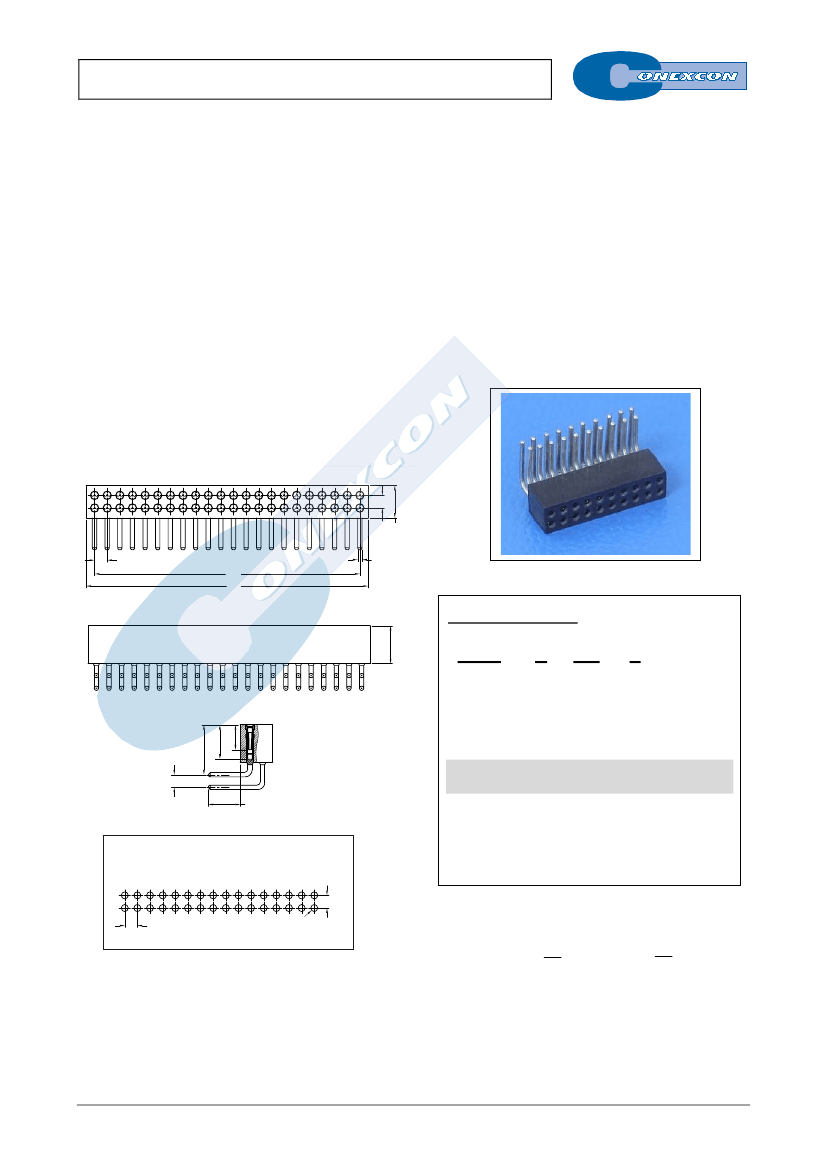

DUAL ROW RIGHT ANGLE SOCKET

8364 SERIES.

1.27 x 1.27 mm. (0.050 x 0.050”) pitch. Machined contact.

General Features

Electrical Features



Available in 4 through 80 circuits



Mates with Pin headers 1.27mm. pitch 8351, 8354 and

8357 series



Accept round pin 0.38 to 0.50 mm.



Low profile 4.10 mm. high

Materials



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Clip (3 fingers) in Beryllium copper

Sleeve: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Insertion force per pin: < 0.25 Kgf (round pin 0.41 mm)



Withdrawal force per pin: > 0.03 Kgf (round pin 0.41 mm)



Durability: 500 Cycles

Dimension Information

1.27±0.10

ø0.44

1.27±0.10

3.25±0.15

3.80±0.15

Ordering Information:

8364 -

T-

XX-

1.27±0.10

5.00±0.25

3.45

2.50

1. Connector Series

2. (T) Contact Plating



T =

13.

Selec. gold flash over 30-50µ" Ni overall

Recommended Finish

3.20±0.25



T =

15.

15µ" selec. gold over 30-50µ" Ni overall



T =

16.

30µ" selec. gold over 30-50µ" Ni overall

3. (XX) Number of circuits

RECOMMENDED HOLE PATTERN

(Tolerance ±0.05)



Available in 4 through 80 circuits

1.27

. 70

ø0

DIMENSIONS:

1.27





1.27



−







1.27









0.41









= Number of circuits

A-XX
