OCM236LDF-R1 datasheet, PDF - EEWORLD Datasheet

OCM236LDF-R1: DescriptionTransistor Output SSR, 1-Channel, 1500V Isolation; CategoryLED optoelectronic/LED photoelectric; File Size213KB，4 Pages; ManufacturerOKI; Websitehttp://www.oki.com

Download Datasheet Parametric Compare View All

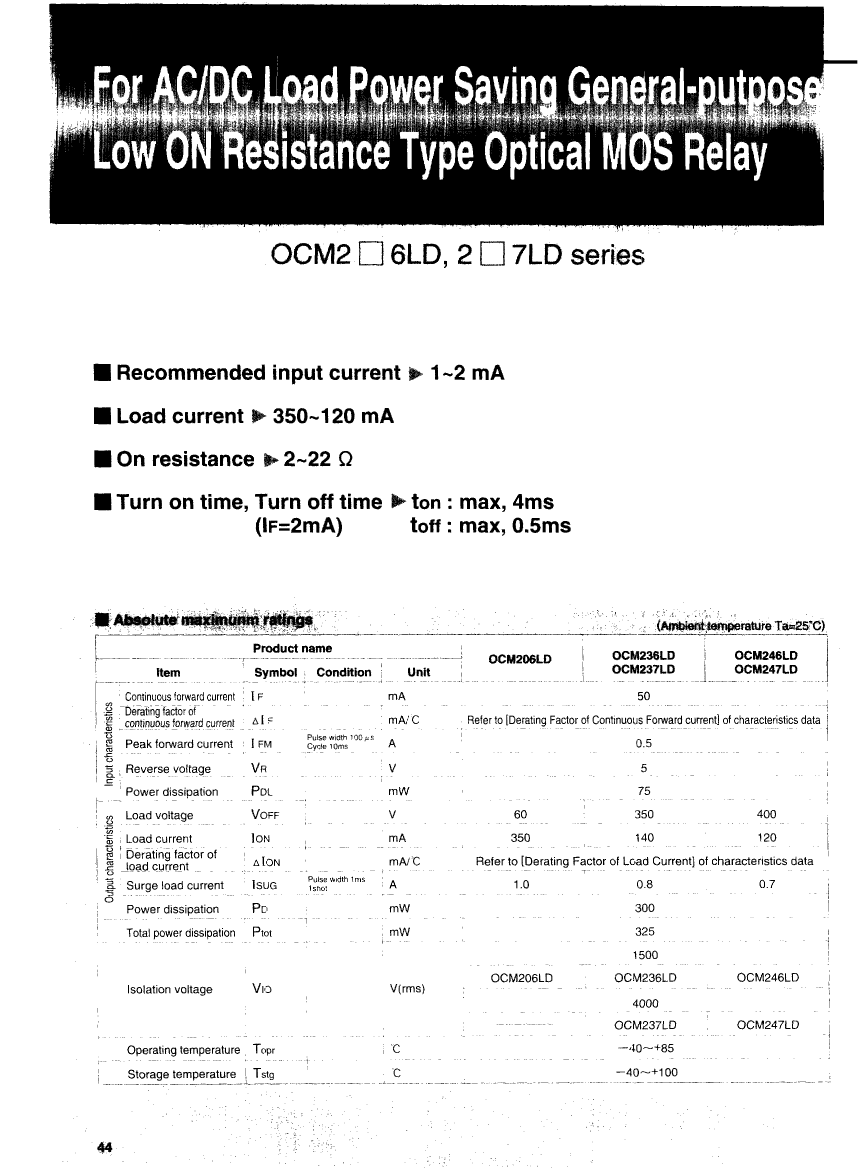

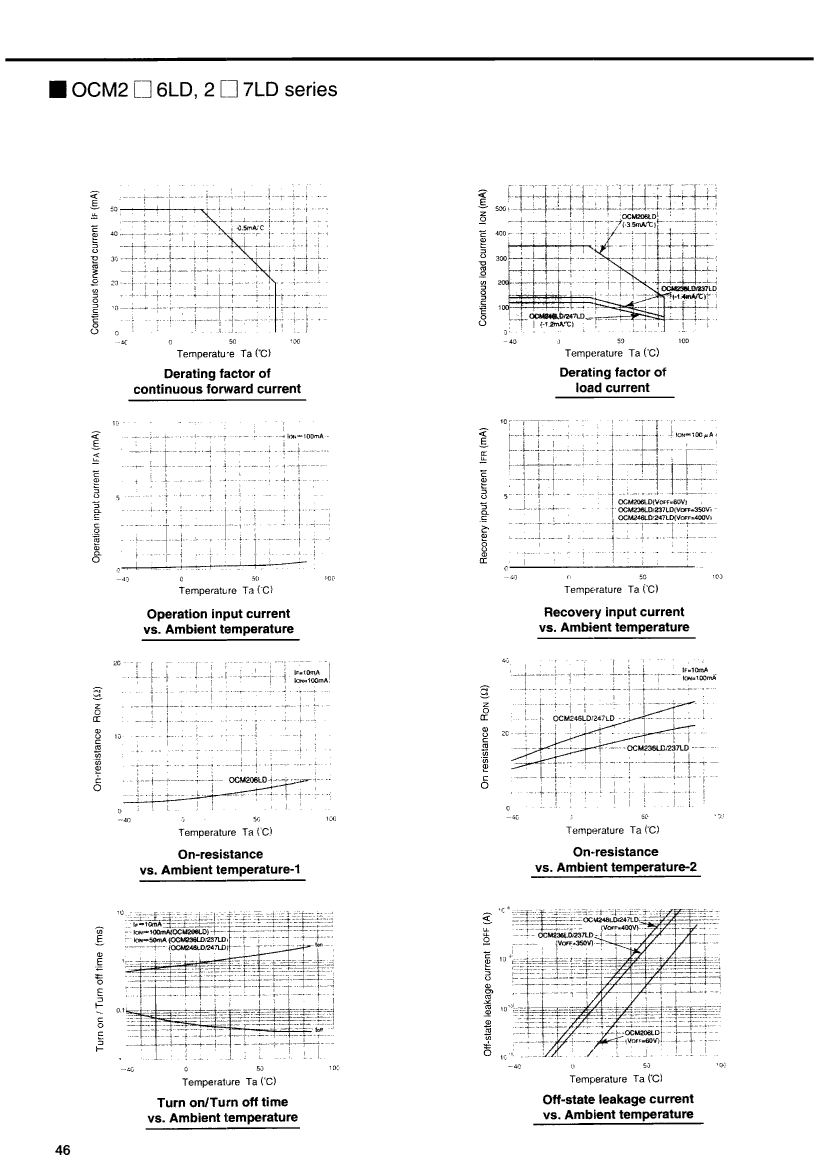

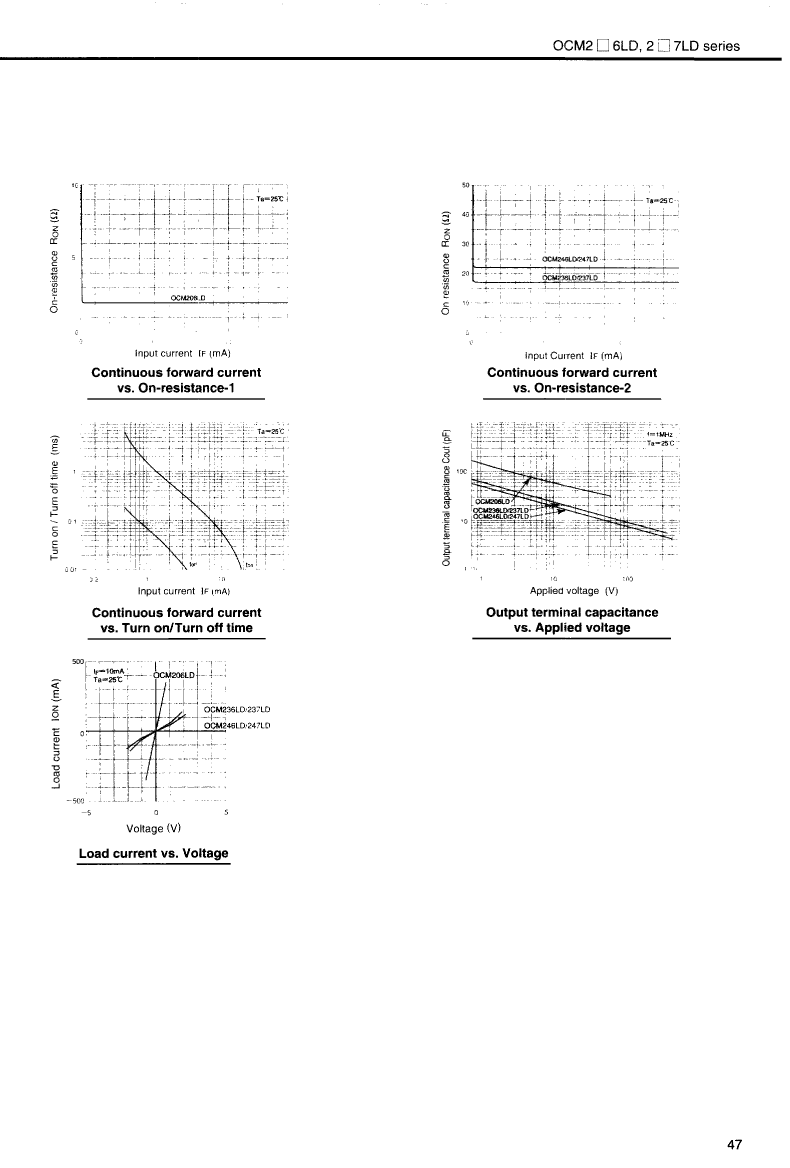

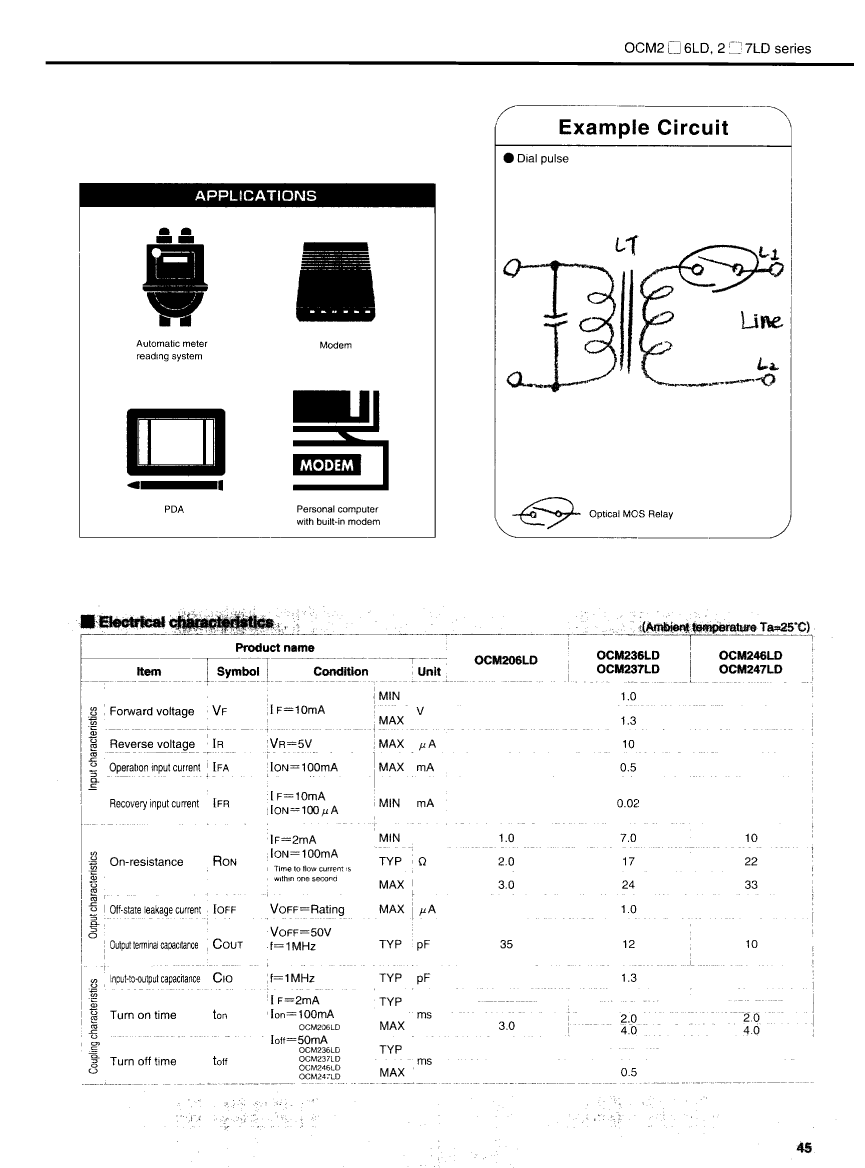

OCM236LDF-R1 Overview

Transistor Output SSR, 1-Channel, 1500V Isolation

Parameter Name	Attribute value
Maker	OKI
Objectid	1447240225
Reach Compliance Code	unknown
compound_id	11370614
Configuration	SINGLE
Maximum forward current	0.05 A
Maximum insulation voltage	1500 V
Number of components	1
Maximum on-state current	0.14 A
Maximum on-state resistance	24 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR

	OCM236LDF-R1	OCM206LDF-R1	OCM206LDF-R2	OCM237LDF-R1	OCM237LDF-R2	OCM237LDF	OCM236LDF-R2	OCM236LDF
Description	Transistor Output SSR, 1-Channel, 1500V Isolation	Transistor Output SSR, 1-Channel, 1500V Isolation	Transistor Output SSR, 1-Channel, 1500V Isolation	Transistor Output SSR, 1-Channel, 4000V Isolation	Transistor Output SSR, 1-Channel, 4000V Isolation	Transistor Output SSR, 1-Channel, 4000V Isolation	Transistor Output SSR, 1-Channel, 1500V Isolation	Transistor Output SSR, 1-Channel, 1500V Isolation
Maker	OKI	OKI	OKI	OKI	OKI	OKI	OKI	OKI
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Maximum insulation voltage	1500 V	1500 V	1500 V	4000 V	4000 V	4000 V	1500 V	1500 V
Number of components	1	1	1	1	1	1	1	1
Maximum on-state current	0.14 A	0.35 A	0.35 A	0.14 A	0.14 A	0.14 A	0.14 A	0.14 A
Maximum on-state resistance	24 Ω	3 Ω	3 Ω	24 Ω	24 Ω	24 Ω	24 Ω	24 Ω
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR
