LPT1606-223 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LPT1606-223

LPT1606-223: DescriptionGeneral Purpose Inductor, 22uH, 20%, 1 Element, Ceramic-Core, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size117KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric Compare View All

LPT1606-223 Overview

General Purpose Inductor, 22uH, 20%, 1 Element, Ceramic-Core, SMD, ROHS COMPLIANT

LPT1606-223 Parametric

Parameter Name	Attribute value
Maker	COILCRAFT
Reach Compliance Code	unknown
ECCN code	EAR99
core material	CERAMIC
DC Resistance	0.83 Ω
Nominal inductance(L)	22 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	LPT1606
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
self resonant frequency	25 MHz
Shape/Size Description	CYLINDRICAL PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

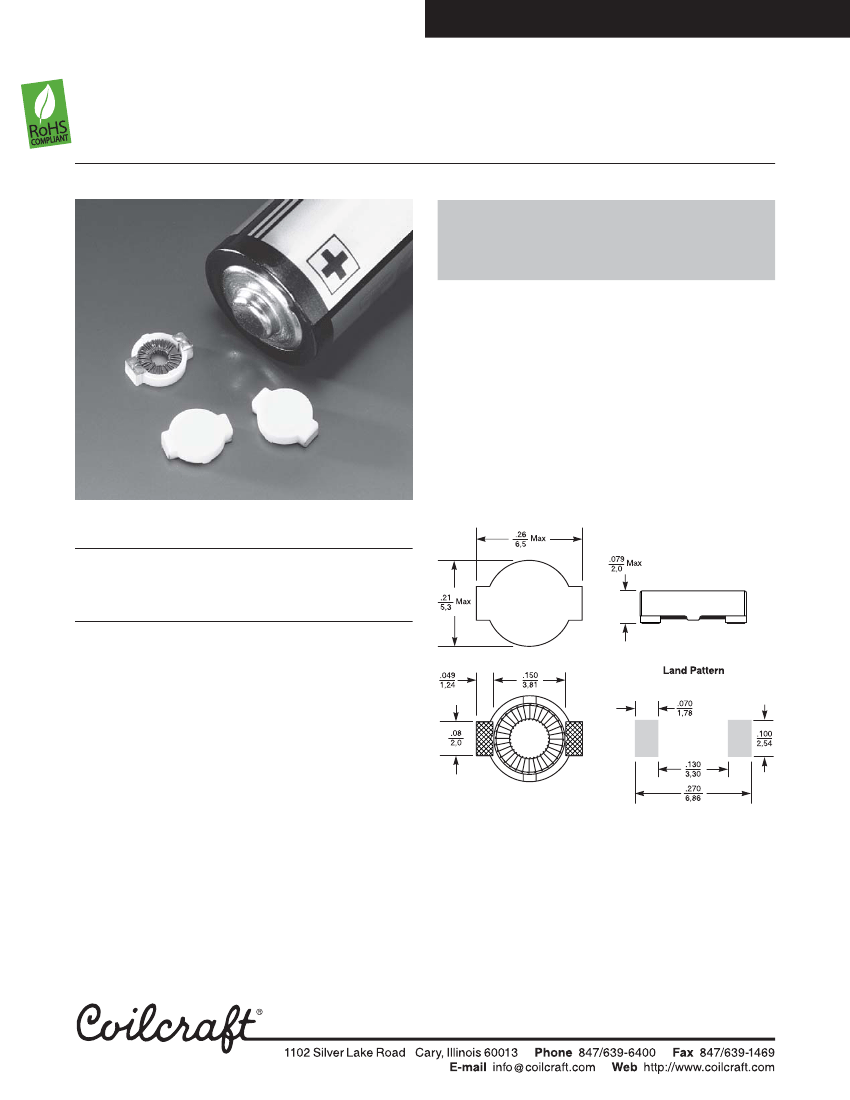

Document 214 -1

SMT Power Inductors - LPT1606 Series

This product has been discontinued

as of September 1, 2000

A recommended alternative is the DO1606 Series (page 85).

Existing customers will continue to be supported. For further

information, please contact Coilcraft.

The LPT1606 Power Wafer

is a very small self-shielded

power inductor. Its toroid construction minimizes stray

noise while its 2 mm height and tiny footprint free up

board space.

The 1 µH part has a saturation current rating of 3 A,

remarkable for an inductor this size. The flat top ceramic

case is ideal for pick and place handling.

Part

number

LPT1606-102

LPT1606-152

LPT1606-222

LPT1606-332

LPT1606-472

LPT1606-682

LPT1606-103

LPT1606-153

LPT1606-223

L ±20%

DCR max

(µH)

(Ohms)

1.0

0.11

1.5

0.13

2.2

0.16

3.3

0.195

4.7

0.24

6.8

0.345

0.44

0.65

0.83

SRF typ

(MHz)

840

505

360

230

165

130

Isat

Irms

(A)

3.0

2.0

2.4

1.8

1.6

1.5

1.2

1.5

1.1

1.3

0.8

1.1

0.7

0.9

0.6

0.8

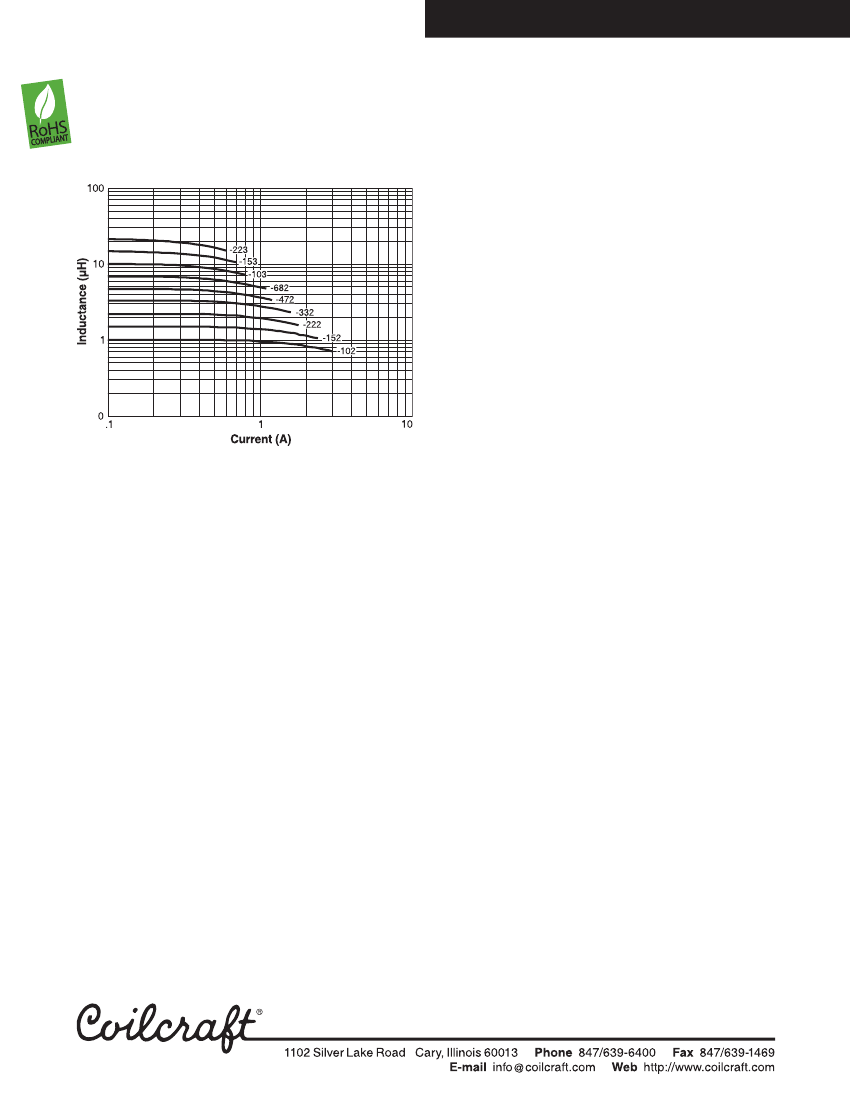

1. Inductance tested at 100 kHz, 0.1 Vrms.

2. DC current at which the inductance drops 30% (typ) from its value

without current.

3. Average current for a 40°C temperature rise from 25°C ambient.

4. Operating and storage temperature range –40°C to +85°C.

5. Electrical specifications at 25°C.

See Qualification Standards section for environmental and test data.

Terminations:

Tape and reel:

Silver-palladium-platinum

750/7″ reel; 2500/13″ reel 8 mm tape width

Specifications subject to change without notice.

Please check our website for latest information.

Document 214-1

Revised 04/27/05

LPT1606-223 Related Products

	LPT1606-223	LPT1606-102	LPT1606-152	LPT1606-682	LPT1606-103	LPT1606-153	LPT1606-222	LPT1606-332	LPT1606-472
Description	General Purpose Inductor, 22uH, 20%, 1 Element, Ceramic-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 1uH, 20%, 1 Element, Ceramic-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 1.5uH, 20%, 1 Element, Ceramic-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 6.8uH, 20%, 1 Element, Ceramic-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 10uH, 20%, 1 Element, Ceramic-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 15uH, 20%, 1 Element, Ceramic-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 2.2uH, 20%, 1 Element, Ceramic-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 3.3uH, 20%, 1 Element, Ceramic-Core, SMD, ROHS COMPLIANT	General Purpose Inductor, 4.7uH, 20%, 1 Element, Ceramic-Core, SMD, ROHS COMPLIANT
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
DC Resistance	0.83 Ω	0.11 Ω	0.13 Ω	0.345 Ω	0.44 Ω	0.65 Ω	0.16 Ω	0.195 Ω	0.24 Ω
Nominal inductance(L)	22 µH	1 µH	1.5 µH	6.8 µH	10 µH	15 µH	2.2 µH	3.3 µH	4.7 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	LPT1606	LPT1606	LPT1606	LPT1606	LPT1606	LPT1606	LPT1606	LPT1606	LPT1606
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
self resonant frequency	25 MHz	840 MHz	505 MHz	130 MHz	80 MHz	60 MHz	360 MHz	230 MHz	165 MHz
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	YES	YES	YES	YES	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Maker	COILCRAFT	-	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT
