AM2903AXC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> AM2903AXC

Preview

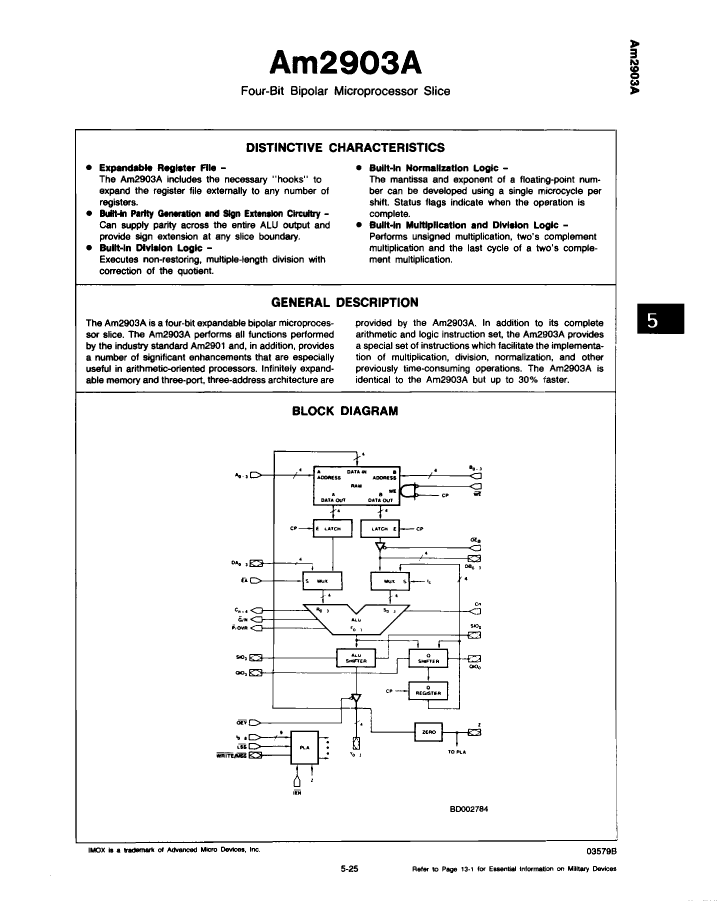

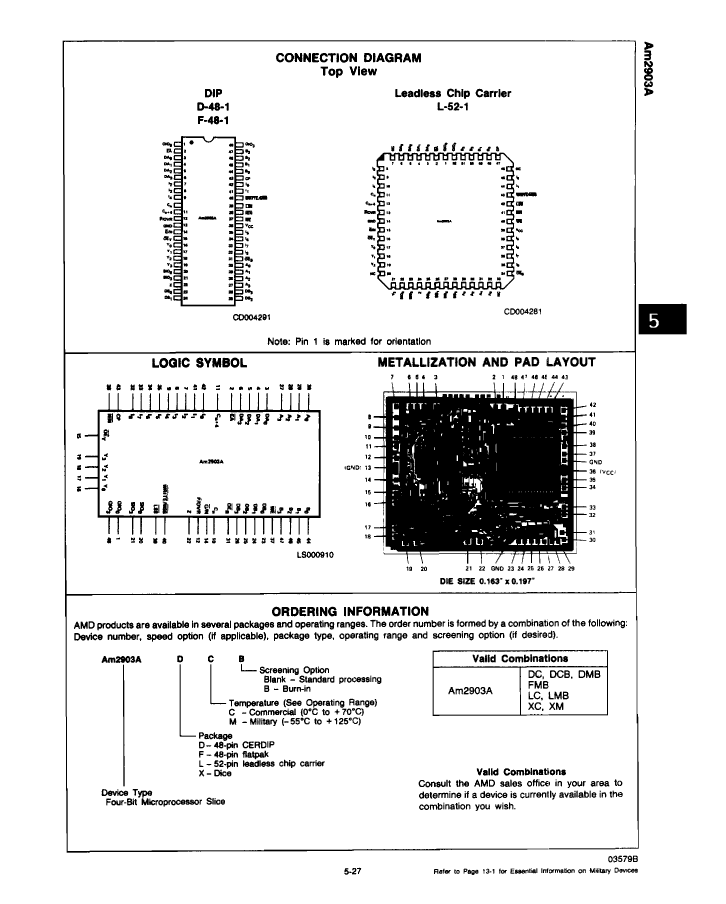

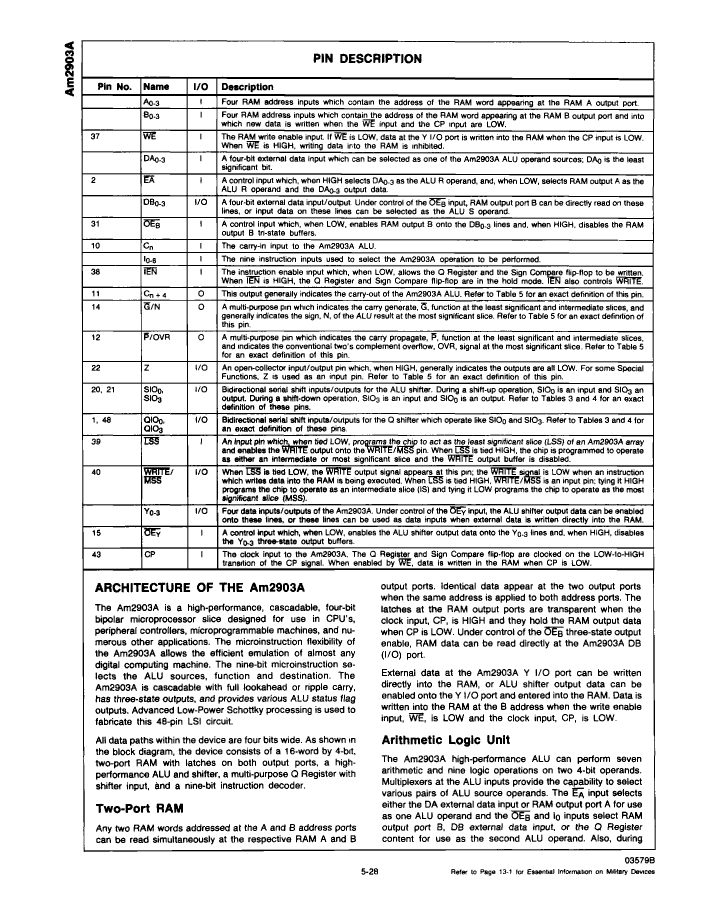

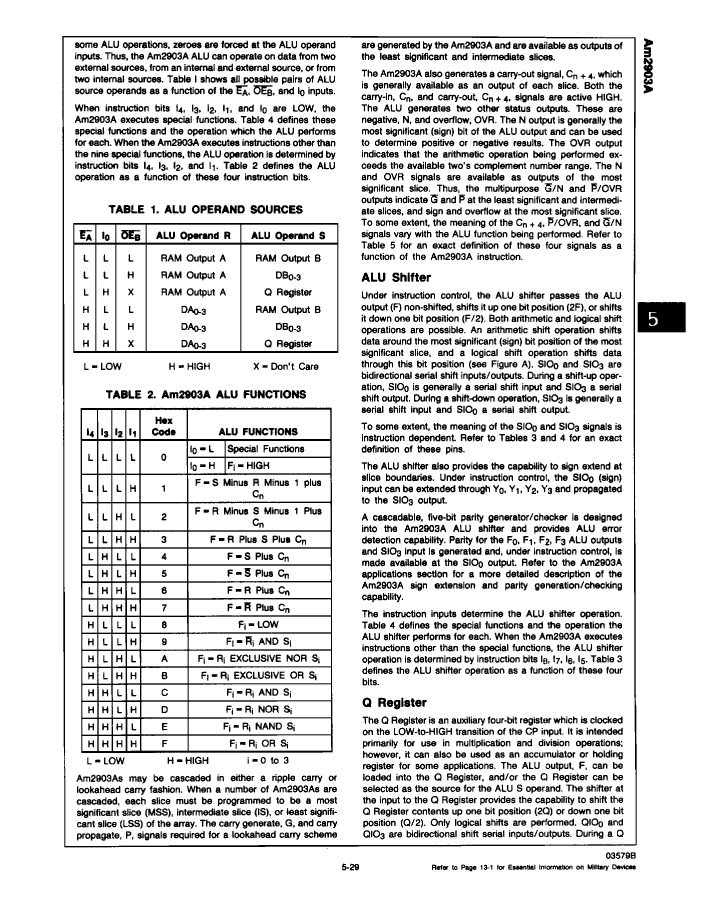

AM2903AXC: DescriptionBit-Slice Processor, 4-Bit, TTL, 0.163 X 0.197 INCH, DIE-50; CategoryThe embedded processor and controller Microcontrollers and processors; File Size783KB，23 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM2903AXC Overview

Bit-Slice Processor, 4-Bit, TTL, 0.163 X 0.197 INCH, DIE-50

AM2903AXC Parametric

Parameter Name	Attribute value
Maker	AMD
Objectid	1418245570
Parts packaging code	DIE
package instruction	DIE,
Contacts	50
Reach Compliance Code	unknown
compound_id	11153902
maximum clock frequency	10.1 MHz
External data bus width	4
JESD-30 code	R-XUUC-N50
Number of terminals	50
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum slew rate	350 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	UPPER
uPs/uCs/peripheral integrated circuit type	BIT-SLICE MICROPROCESSOR

Preview

Download Datasheet

View All

AM2903AXC Related Products

	AM2903AXC	AM2903ADMB	AM2903AXM	AM2903ADC	AM2903ADCB	AM2903ALC	AM2903ALMB	AM2903AFMB
Description	Bit-Slice Processor, 4-Bit, TTL, 0.163 X 0.197 INCH, DIE-50	Bit-Slice Processor, 4-Bit, TTL, CDIP48, HERMETIC SEALED, CERDIP-48	Bit-Slice Processor, 4-Bit, TTL, 0.163 X 0.197 INCH, DIE-50	Bit-Slice Processor, 4-Bit, TTL, CDIP48, HERMETIC SEALED, CERDIP-48	Bit-Slice Processor, 4-Bit, TTL, CDIP48, HERMETIC SEALED, CERDIP-48	Bit-Slice Processor, 4-Bit, TTL, CQCC52, LCC-52	Bit-Slice Processor, 4-Bit, TTL, CQCC52, LCC-52	Bit-Slice Processor, 4-Bit, TTL, PDFP48, FP-48
Maker	AMD	AMD	AMD	AMD	AMD	AMD	AMD	AMD
Parts packaging code	DIE	DIP	DIE	DIP	DIP	LCC	LCC	DFP
package instruction	DIE,	DIP,	DIE,	DIP, DIP48,.6	DIP, DIP48,.6	QCCN, LCC52,.75SQ	QCCN, LCC52,.75SQ	DFP, FL48,.6
Contacts	50	48	50	48	48	52	52	48
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown
External data bus width	4	4	4	4	4	4	4	4
JESD-30 code	R-XUUC-N50	R-CDIP-T48	R-XUUC-N50	R-CDIP-T48	R-CDIP-T48	S-CQCC-N52	S-CQCC-N52	R-PDFP-F48
Number of terminals	50	48	50	48	48	52	52	48
Maximum operating temperature	70 °C	125 °C	125 °C	70 °C	70 °C	70 °C	125 °C	125 °C
Package body material	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
encapsulated code	DIE	DIP	DIE	DIP	DIP	QCCN	QCCN	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR
Package form	UNCASED CHIP	IN-LINE	UNCASED CHIP	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	350 mA	395 mA	395 mA	350 mA	350 mA	350 mA	395 mA	395 mA
Maximum supply voltage	5.25 V	5.5 V	5.5 V	5.25 V	5.25 V	5.25 V	5.5 V	5.5 V
Minimum supply voltage	4.75 V	4.5 V	4.5 V	4.75 V	4.75 V	4.75 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	NO	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	FLAT
Terminal location	UPPER	DUAL	UPPER	DUAL	DUAL	QUAD	QUAD	DUAL
uPs/uCs/peripheral integrated circuit type	BIT-SLICE MICROPROCESSOR	BIT-SLICE MICROPROCESSOR	BIT-SLICE MICROPROCESSOR	BIT-SLICE MICROPROCESSOR	BIT-SLICE MICROPROCESSOR	BIT-SLICE MICROPROCESSOR	BIT-SLICE MICROPROCESSOR	BIT-SLICE MICROPROCESSOR
length	-	60.96 mm	-	60.96 mm	60.96 mm	19.05 mm	19.05 mm	30.7975 mm
Maximum seat height	-	5.08 mm	-	5.08 mm	5.08 mm	3.048 mm	3.048 mm	2.794 mm
Terminal pitch	-	2.54 mm	-	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
width	-	15.24 mm	-	15.24 mm	15.24 mm	19.05 mm	19.05 mm	16.3195 mm
Is it Rohs certified?	-	-	-	incompatible	incompatible	incompatible	incompatible	incompatible
JESD-609 code	-	-	-	e0	e0	e0	e0	e0
Encapsulate equivalent code	-	-	-	DIP48,.6	DIP48,.6	LCC52,.75SQ	LCC52,.75SQ	FL48,.6
Peak Reflow Temperature (Celsius)	-	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	-	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
