PRODUCT
announcement
1 Amp, 2 Amp and 4 Amp TRIACs
CQ223 Series
features
•
600 and 800 Volts
•
Low 1.8mm profile (23% lower than DPAK)
•
Utilizes 28% less board space
than an industry standard DPAK
in a
SOT-223
description
The CENTRAL SEMICONDUCTOR CQ223M series (1 Amp),
CQ223-2M series (2 Amp), and CQ223-4M series (4 Amp)
types are Epoxy Molded Silicon TRIACs designed for full wave
AC control applications featuring gate triggering in all four (4)
quadrants. The small size and low profile of these SOT-223
devices are perfect for designs with a limited board space or
height requirements.
For information on these devices or any other thyristors
manufactured by Central
™
, visit:
www.centralsemi.com/thyristors
Sample Devices
available
upon request.
SOT-223
Actual Size
selection guide
With Central you’re not limited to just 1 amp in a SOT-223.
Extended Range
IT (AMPS)
@ TC (
o
C)
ITSM (AMPS)
VDRM, VRRM
(VOLTS)
1.0
2.0
4.0
80
10
80
20
80
40
600
800
IGT QI
IGT QII
IGT QIII
IGT QIV
VGT QI-QIII
VGT QIV
IH
CQ223M
CQ223N*
10mA
10mA
10mA
10mA
2.0V
2.5V
10mA
CQ223-2M
CQ223-2N*
5.0mA
5.0mA
5.0mA
8.0mA
1.8V
1.8V
5.0mA
CQ223-4M
CQ223-4N *
5.0mA
5.0mA
5.0mA
9.0mA
1.75V
1.75V
5.0mA
2005
Discrete
Thyristor
Databook
To order please visit:
www.centralsemi.com/catalog
* 800 volt devices are available on request. Please consult factory.
145 Adams Avenue
•
Hauppauge
•
New York
•
11788
•
USA
•
Tel:(631) 435-1110
•
Fax: (631) 435-1824
www.centralsemi.com
1 Amp, 2 Amp and 4 Amp TRIACs
in a
SOT-223

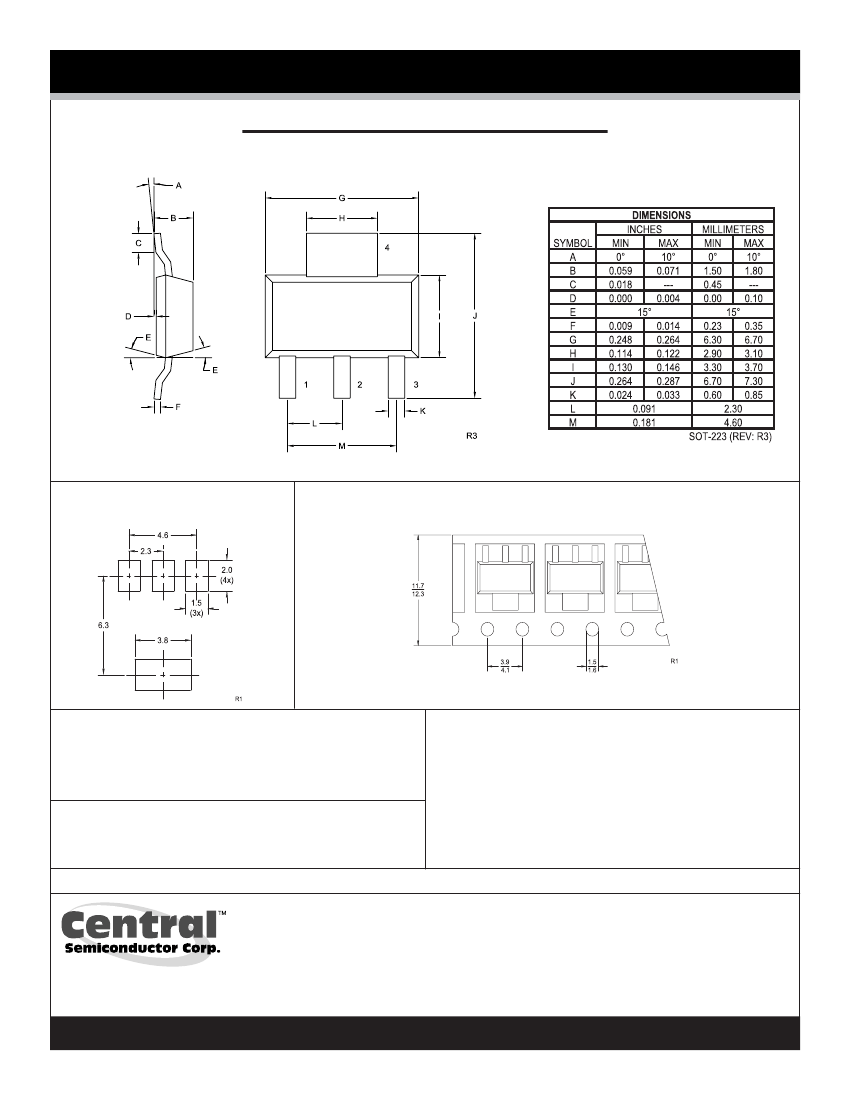

Mechanical Specifications -
SOT-223
Mounting Pad Geometry
(Dimensions in mm)
Tape Width:
12mm
Tape Dimensions and Orientation
(Dimensions in mm)
* Devices are taped in
accordance with
Electronic Industries
Association Standard
EIA-481-1-A
Direction of Unreeling
Packaging Base
7” Reel = 1,000 pcs. (add TR suffix to part number)
13” Reel = 4,000 pcs. (add TR13 suffix to part number)
Bulk = 250 pcs. (add BK suffix to part number)
Ordering Information
•
For devices taped and reeled on 7” reels, add TR
suffix to part number.
•
For devices taped and reeled on 13” reels, add
TR13 suffix to part number.
•
For devices bulk packed, add BK suffix to
part number.
•
All SMDs are available bulk packed, for prototype
and manual placement applications.
Lead Code:
1) MT1
3) GATE
2) MT2
4) MT2
For more information on this product please visit our website at www.centralsemi.com
Innovations in Discrete
Semiconductors
Sales at Central Semiconductor Corp.
(631) 435-1110 or visit our website at:
www.centralsemi.com
For further information contact:
145 Adams Avenue • Hauppauge • New York • 11788 • USA • Tel:(631) 435-1110 • Fax: (631) 435-1824
PA SOT-223 TRIAC
