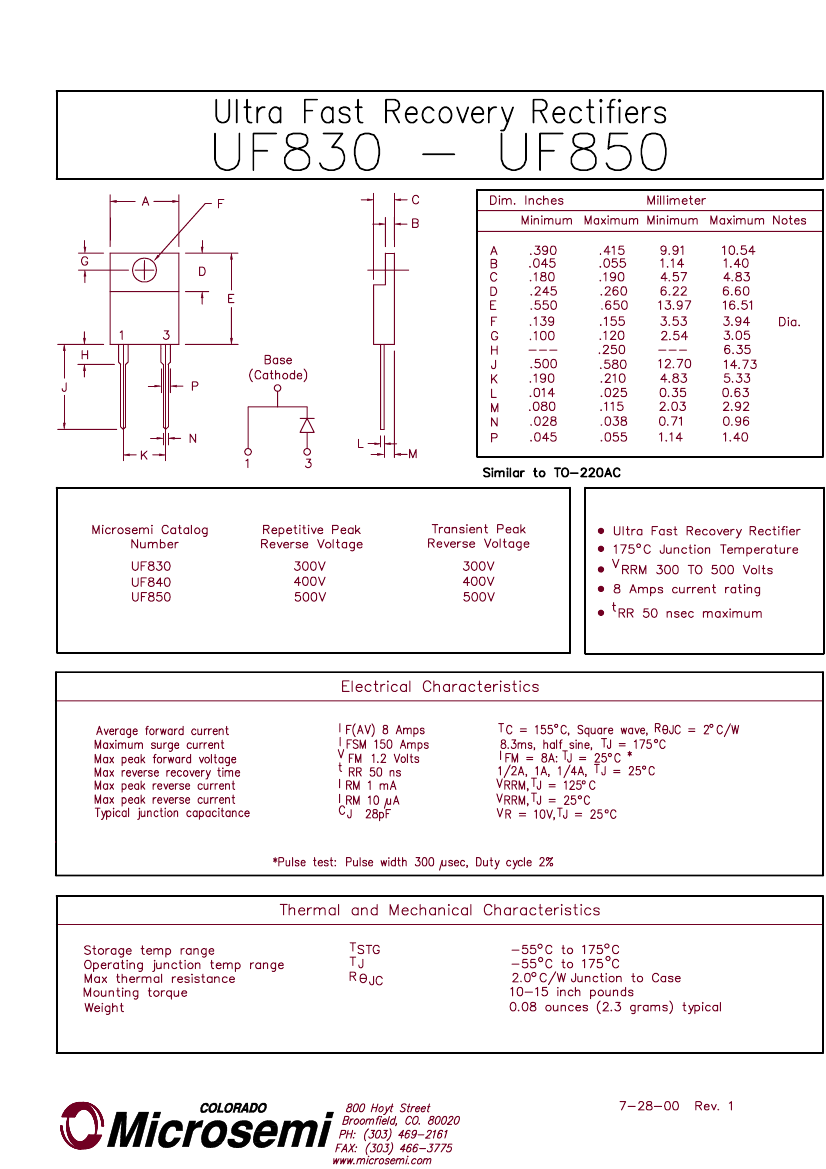

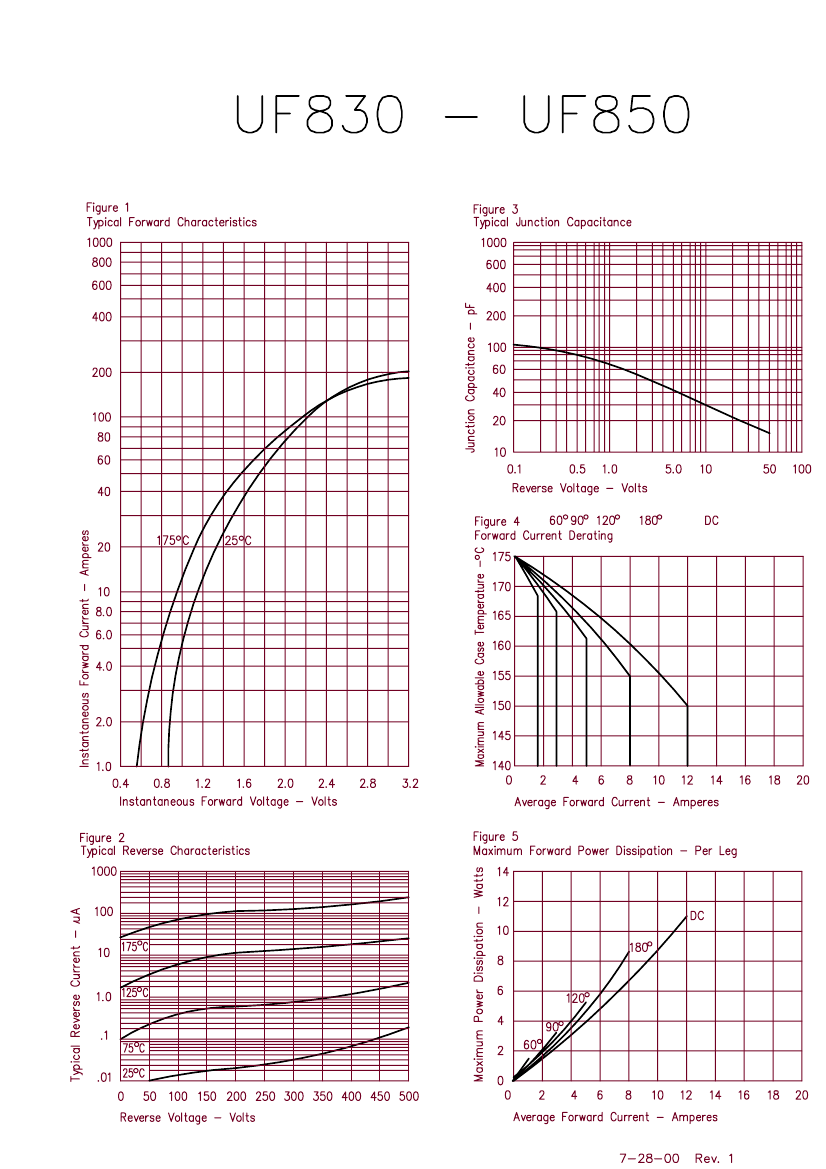

UF840 datasheet, PDF - EEWORLD Datasheet

UF840: DescriptionULTRA FAST RECOVERY RECTIFIER; CategoryDiscrete semiconductor diode; File Size121KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

UF840 Overview

ULTRA FAST RECOVERY RECTIFIER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Parts packaging code	TO-220AC
package instruction	SIMILAR TO TO-220AC, 2 PIN
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

	UF840	UF850	UF830
Description	ULTRA FAST RECOVERY RECTIFIER	ULTRA FAST RECOVERY RECTIFIER	ULTRA FAST RECOVERY RECTIFIER
Is it Rohs certified?	incompatible	-	incompatible
Maker	Microsemi	-	Microsemi
Parts packaging code	TO-220AC	-	TO-220AC
package instruction	SIMILAR TO TO-220AC, 2 PIN	-	SIMILAR TO TO-220AC, 2 PIN
Contacts	3	-	3
Reach Compliance Code	unknow	-	unknow
ECCN code	EAR99	-	EAR99
application	ULTRA FAST RECOVERY	-	ULTRA FAST RECOVERY
Shell connection	CATHODE	-	CATHODE
Configuration	SINGLE	-	SINGLE
Diode component materials	SILICON	-	SILICON
Diode type	RECTIFIER DIODE	-	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	-	1.2 V
JEDEC-95 code	TO-220AC	-	TO-220AC
JESD-30 code	R-PSFM-T2	-	R-PSFM-T2
Maximum non-repetitive peak forward current	150 A	-	150 A
Number of components	1	-	1
Phase	1	-	1
Number of terminals	2	-	2
Maximum operating temperature	175 °C	-	175 °C
Minimum operating temperature	-55 °C	-	-55 °C
Maximum output current	8 A	-	8 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	FLANGE MOUNT	-	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified
Maximum repetitive peak reverse voltage	400 V	-	300 V
Maximum reverse recovery time	0.05 µs	-	0.05 µs
surface mount	NO	-	NO
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE
Terminal location	SINGLE	-	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
