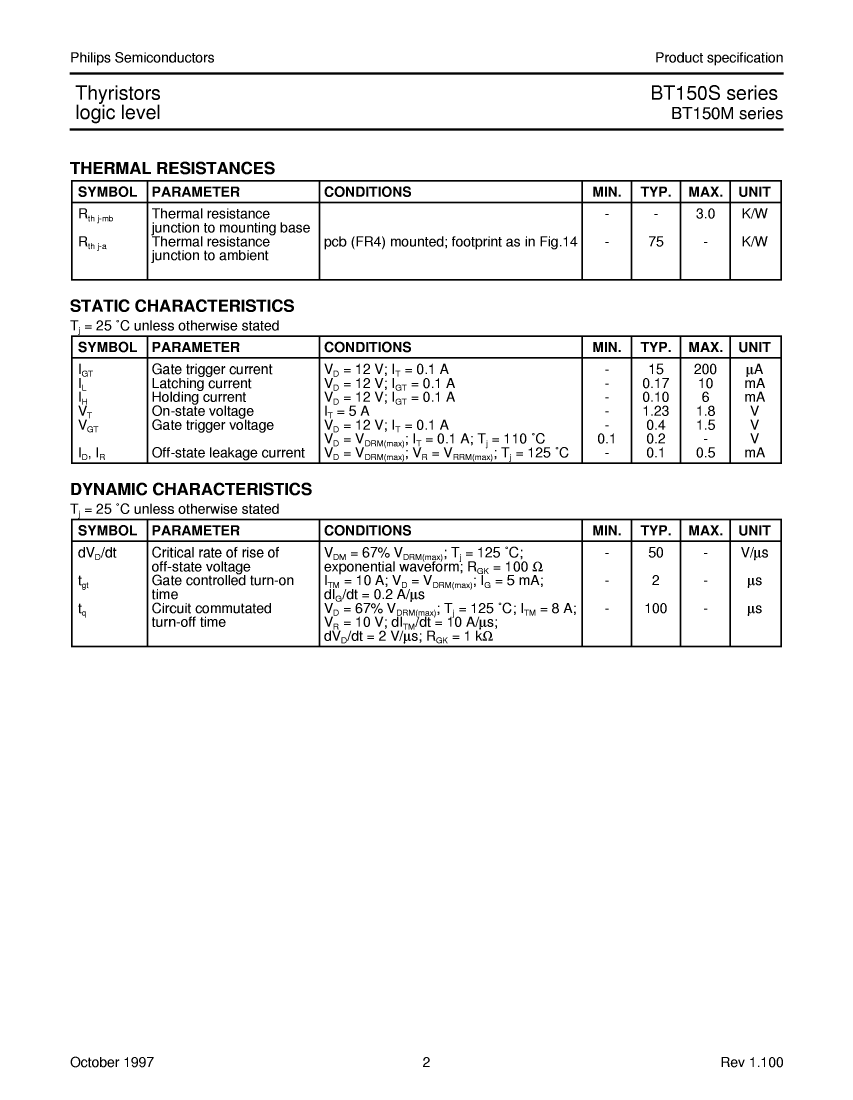

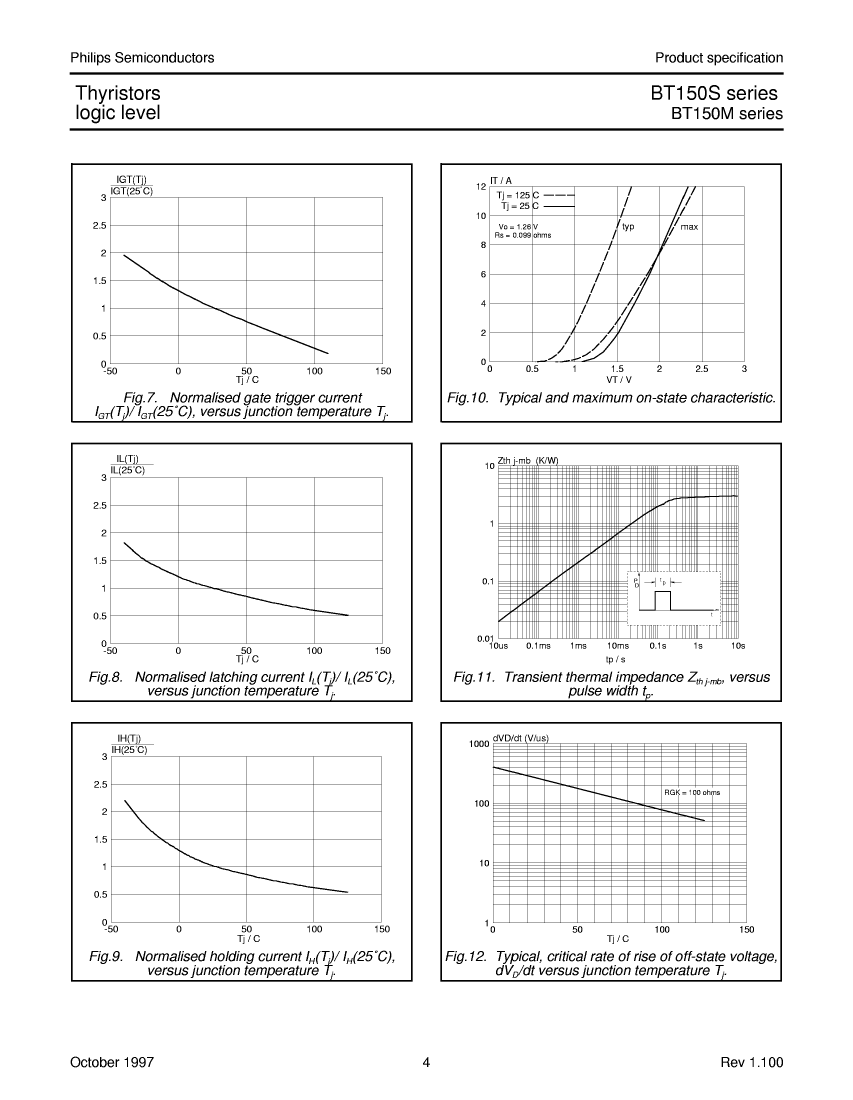

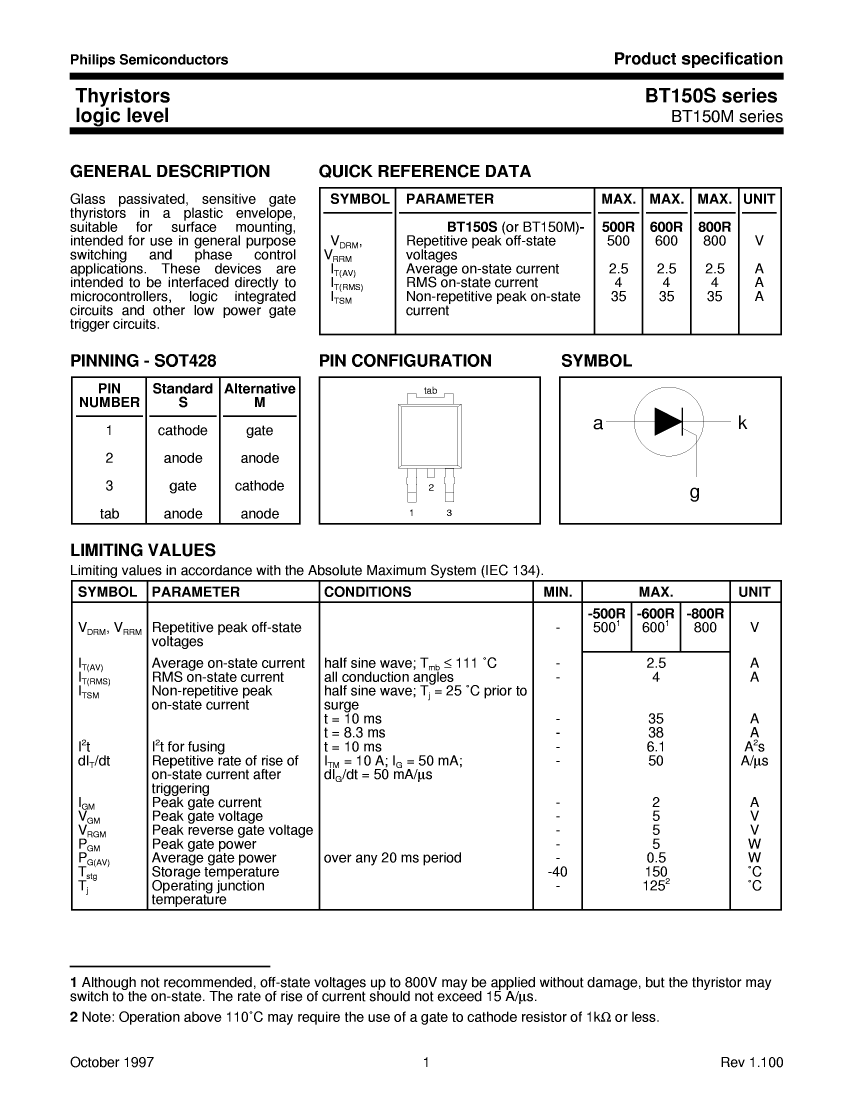

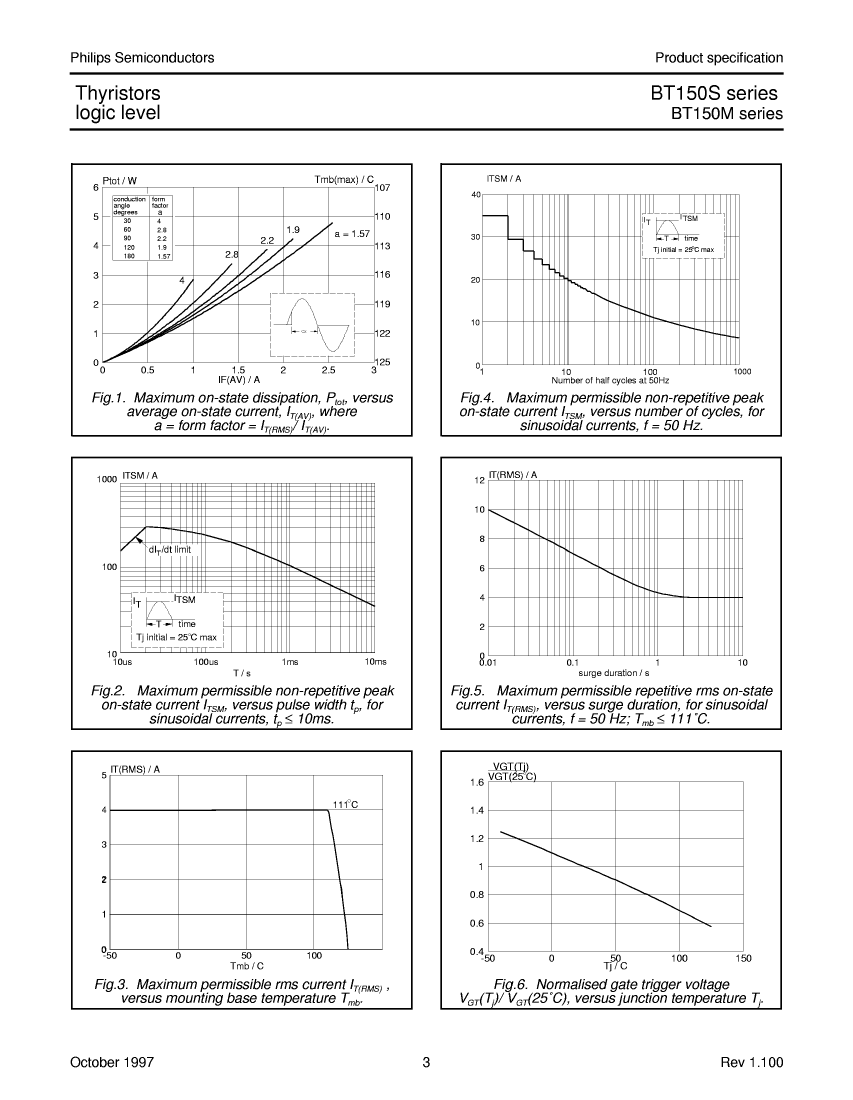

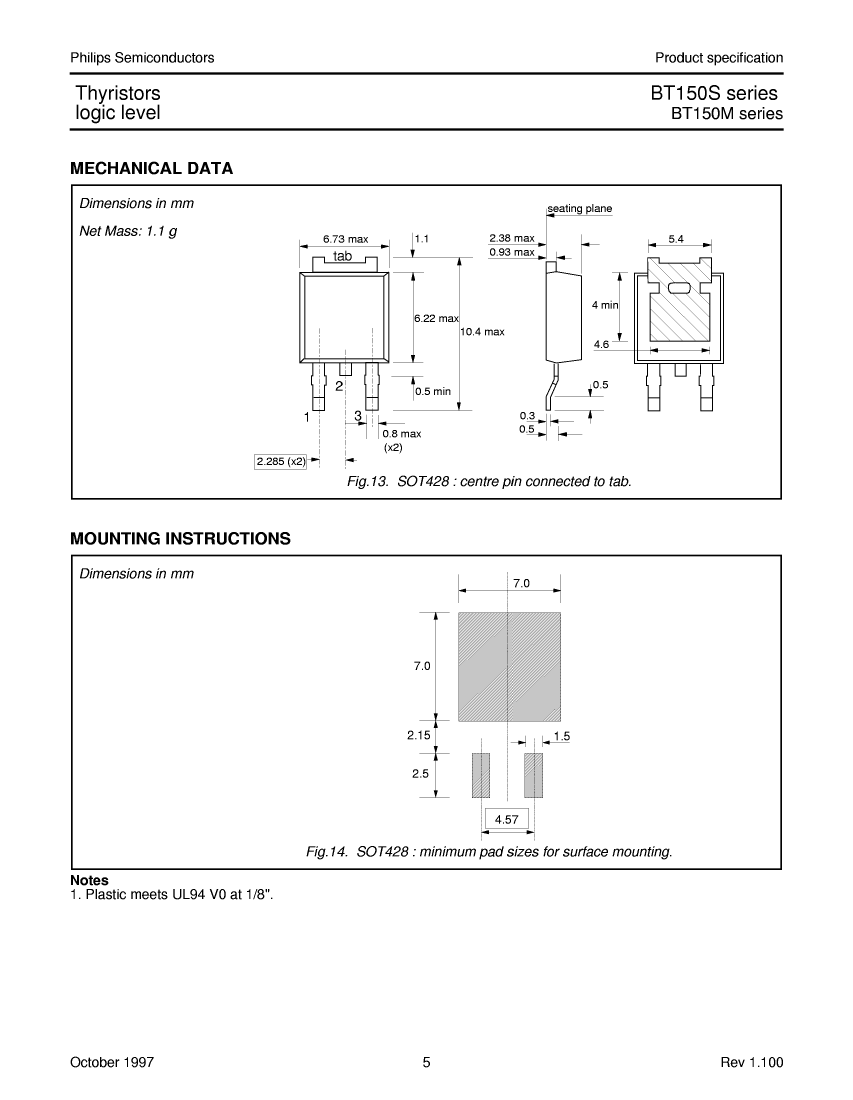

Preview

BT150M500R: DescriptionSilicon Controlled Rectifier, 2500mA I(T), 500V V(DRM); CategoryAnalog mixed-signal IC Trigger device; File Size268KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

BT150M500R Overview

Silicon Controlled Rectifier, 2500mA I(T), 500V V(DRM)

BT150M500R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	,
Reach Compliance Code	unknown
Nominal circuit commutation break time	100 µs
Maximum DC gate trigger current	0.2 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	6 mA
JESD-609 code	e0
Maximum leakage current	0.5 mA
On-state non-repetitive peak current	35 A
Maximum on-state voltage	1.8 V
Maximum on-state current	2500 A
Maximum operating temperature	125 °C
Off-state repetitive peak voltage	500 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	SCR

Preview

Download Datasheet

View All

BT150M500R Related Products

	BT150M500R	BT150S600RT/R	BT150M600R	BT150M800R	BT150S500R	BT150S500RT/R	BT150S600R	BT150S800RT/R
Description	Silicon Controlled Rectifier, 2500mA I(T), 500V V(DRM)	Silicon Controlled Rectifier, 2500mA I(T), 600V V(DRM)	Silicon Controlled Rectifier, 2500mA I(T), 600V V(DRM)	Silicon Controlled Rectifier, 2500mA I(T), 800V V(DRM)	Silicon Controlled Rectifier, 2500mA I(T), 500V V(DRM)	Silicon Controlled Rectifier, 2500mA I(T), 500V V(DRM)	Silicon Controlled Rectifier, 2500mA I(T), 600V V(DRM)	Silicon Controlled Rectifier, 2500mA I(T), 800V V(DRM)
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible	incompatible	incompatible	conform to	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown	unknown	unknow	unknow	unknow	unknow	_compli	unknow
Nominal circuit commutation break time	100 µs	100 µs	100 µs	100 µs	100 µs	100 µs	100 µs	100 µs
Maximum DC gate trigger current	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	6 mA	6 mA	6 mA	6 mA	6 mA	6 mA	6 mA	6 mA
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA
On-state non-repetitive peak current	35 A	35 A	35 A	35 A	35 A	35 A	35 A	35 A
Maximum on-state voltage	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V
Maximum on-state current	2500 A	2500 A	2500 A	2500 A	2500 A	2500 A	2500 A	2500 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Off-state repetitive peak voltage	500 V	600 V	600 V	800 V	500 V	500 V	600 V	800 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
JESD-609 code	e0	-	e0	e0	e0	e0	-	e0
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
