V582ME08 Overview

Voltage Controlled Oscillator, 1079MHz Min, 1081MHz Max

V582ME08 Parametric

Parameter Name	Attribute value
Maker	Z-Communications, Inc.
Reach Compliance Code	compliant
Maximum control voltage	4 V
Minimum control voltage	1 V
Modulation sensitivity	9 MHz/V
Installation features	SURFACE MOUNT
offset frequency	10 kHz
Maximum operating frequency	1081 MHz
Minimum operating frequency	1079 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	-1 dBm
phase noise	-117 dBc/Hz
physical size	12.7mm x 12.7mm x 5.588mm
Nominal supply voltage	5 V
surface mount	YES

Preview

Download Datasheet

View All

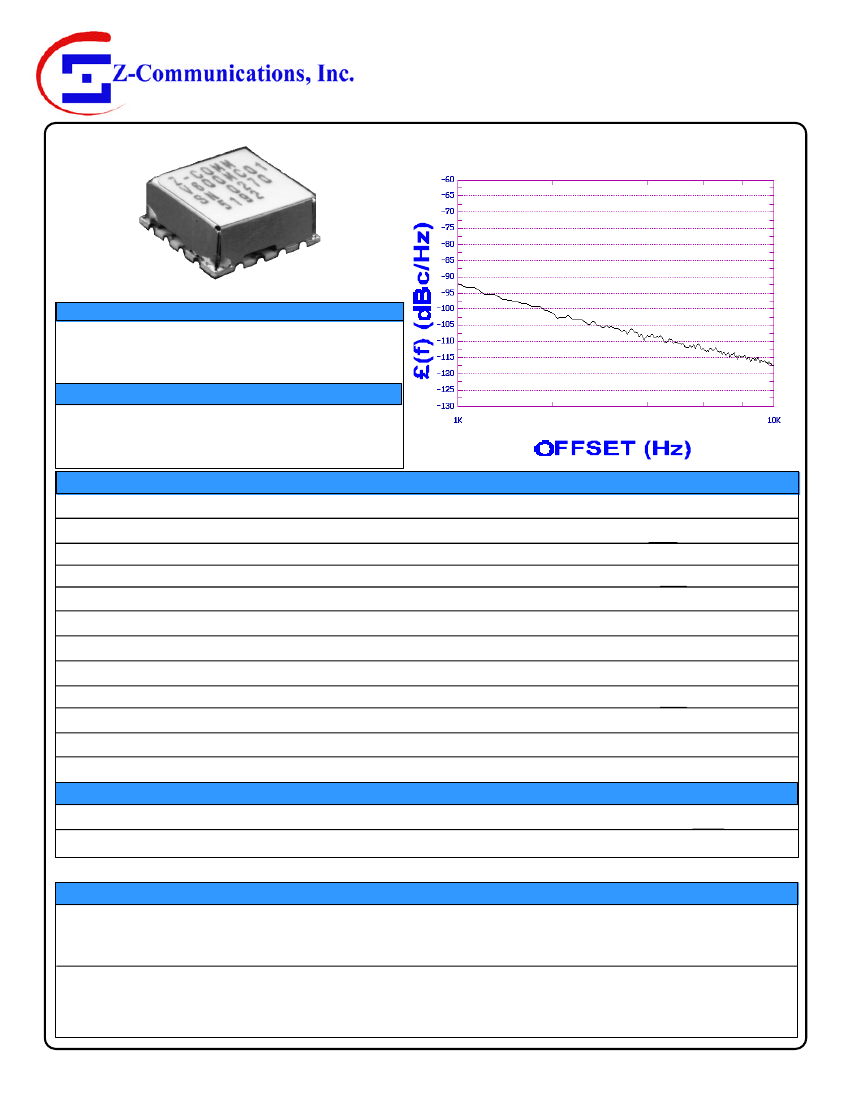

V582ME08

9939 Via Pasar • San Diego, CA 92126

TEL (619) 621-2700 FAX (619) 621-2722

VOLTAGE CONTROLLED OSCILLATOR

Rev A1

PHASE NOISE (1 Hz BW, typical)

FEATURES

• Frequency Range: 1079

1081 MHz

• Tuning Voltage:

1-4 Vdc

• MINI-14S - Style Package

APPLICATIONS

• Digital Radios

• Satellite Communications

• Basestations

PERFORMANCE SPECIFICATIONS

Oscillation Frequency Range

Phase Noise @ 10 kHz offset (1 Hz BW, typ.)

Harmonic Suppression (2nd, typ.)

Tuning Voltage

Tuning Sensitivity (avg.)

Power Output

Load Impedance

Input Capacitance (max.)

Pushing

Pulling (14 dB Return Loss, Any Phase)

VALUE

1079

1081

-117

-30

1-4

-1±2

100

-10 to 85

MINI-14S

UNITS

MHz

dBc/Hz

dBc

Vdc

MHz/V

dBm

Ω

MHz/V

MHz

°C

Operating Temperature Range

Package Style

POWER SUPPLY REQUIREMENTS

Supply Voltage (Vcc, nom.)

Supply Current (Icc, typ.)

APPLICATION NOTES

Vdc

All specifications are typical unless otherwise noted and subject to change without notice.

•

AN-100/1 : Mounting and Grounding of VCOs

•

AN-102 : Proper Output Loading of VCOs

•

AN-107 : How to Solder Z-COMM VCOs

NOTES:

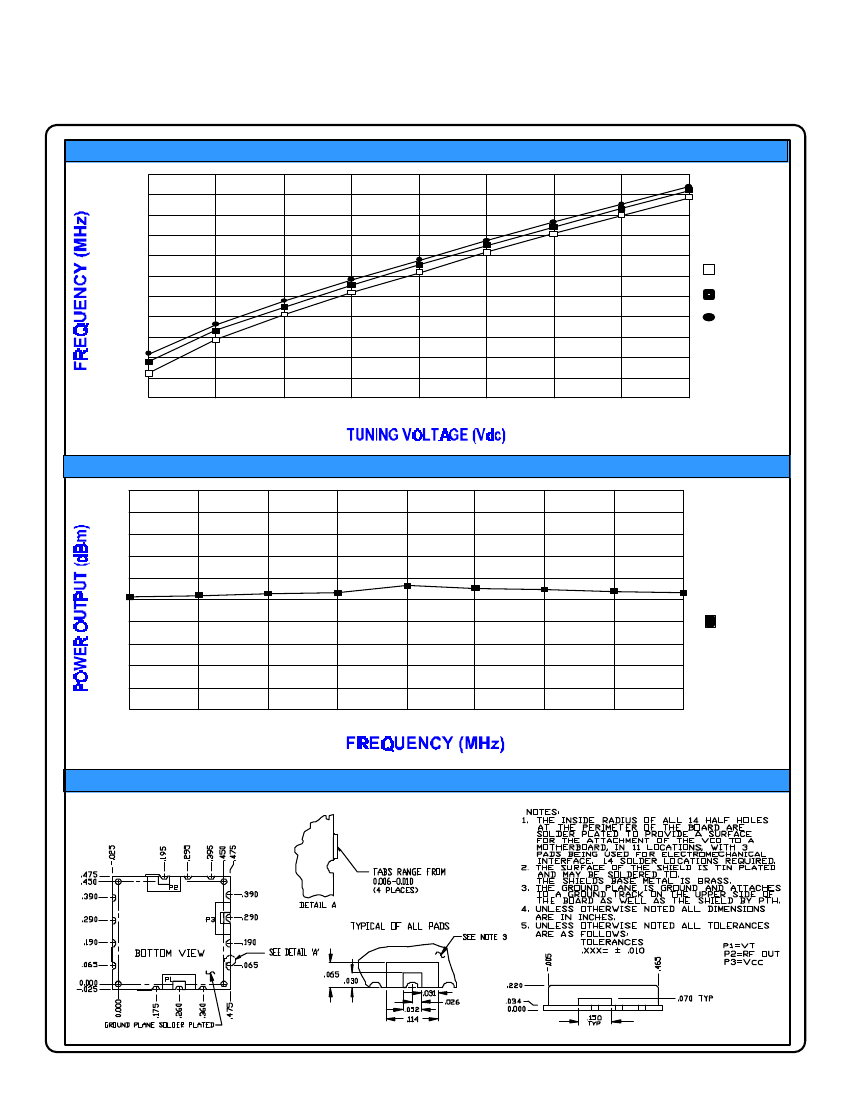

Page 1
