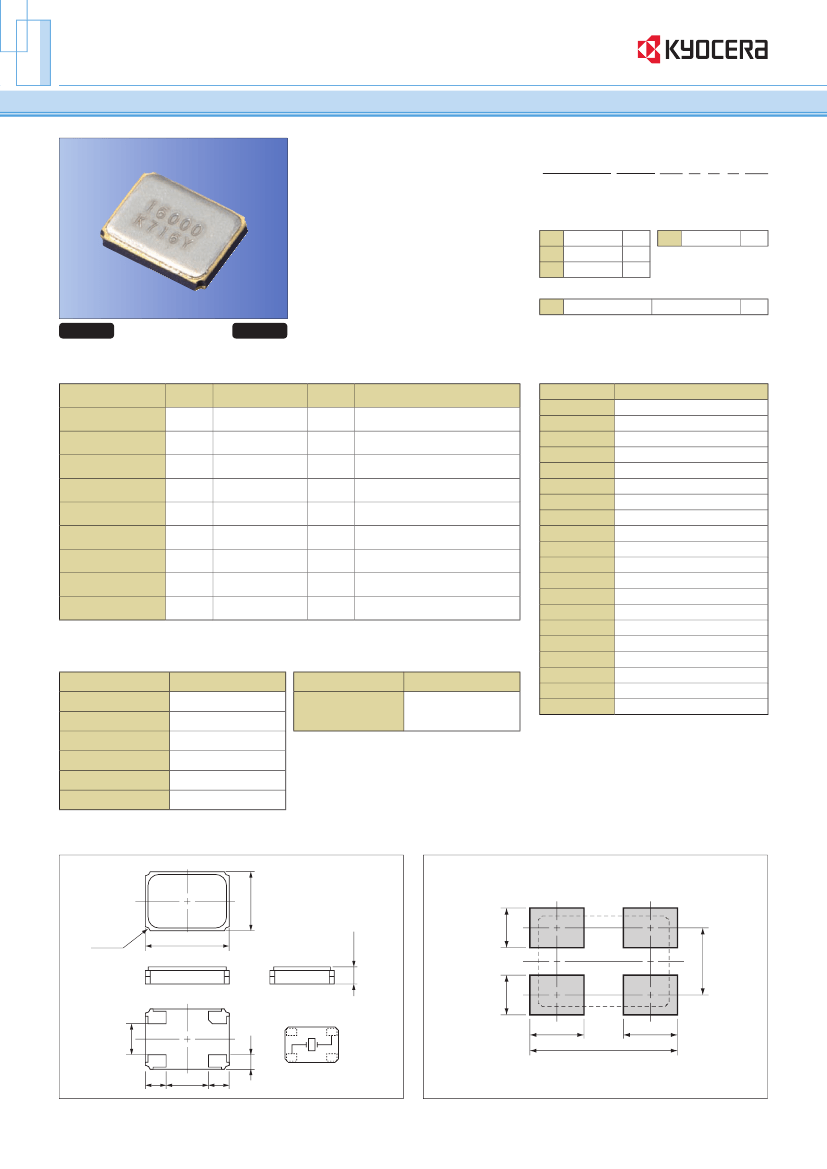

Crystal Units
Surface Mount Type CX3225SB (CX-101F)
3.22.5mm for Consumer Products
Features
• Crystal unit for Consumer Products
• Miniature and low profile (3.22.50.55mm)
• Ceramic package
• A lead free product
• Reflow compatible
How to Order
CX3225SB 12000
□□ □ □ □ □□
①
②
③ ④⑤⑥ ⑦
①
Series
③
Load Capacitance
B0
D0
F0
EJ
6 pF
8 pF
10 pF
—
Std.
—
②
Frequency
④
Frequency Stability
G
1510
6
Std.
Applications
• Digital Electronics
• Consumer Products
• Car audio and accessories
⑤
Operating Temp. Range
⑥
Frequency Temp. Stability
10
to
70C
1510
6
Std.
Pb Free
RoHS Compliant
⑦
Individual Specification
Specifications
Item
Frequency Range
Overtone Order
Load Capacitance
Frequency Stability
Motional Series Resistance
Drive Level
Operating Temp. Range
Storage Temp. Range
Frequency Temp. Characteristics
Symbol
f
_nom
OT
CL
f
_tol
R1
DL
T
_use
T
_stg
f
_tem
Specification
12000 to 54000
Fundamental
8
15
Table 1
Table 2
10
to
70
40
to
85
15
Units
kHz
―
pF
10
6
ohm
W
C
C
10
6
Freq. deviation from the value at 25C
25C3C
Remarks
Typical Frequencies and Part Numbers
Frequency (kHz)
12000.000
13560.000
14318.180
14745.600
16000.000
18432.000
20000.000
22579.200
24000.000
24576.000
25000.000
26000.000
27000.000
27120.000
30000.000
33000.000
33333.000
40000.000
48000.000
54000.000
Part Number
CX3225SB12000D0GEJZ1
CX3225SB13560D0GEJZ1
CX3225SB14318D0GEJZ1
CX3225SB14745D0GEJZ1
CX3225SB16000D0GEJZ1
CX3225SB18432D0GEJZ1
CX3225SB20000D0GEJZ1
CX3225SB22579D0GEJZ1
CX3225SB24000D0GEJZ1
CX3225SB24576D0GEJZ1
CX3225SB25000D0GEJZ1
CX3225SB26000D0GEJZ1
CX3225SB27000D0GEJZ1
CX3225SB27120D0GEJZ1
CX3225SB30000D0GEJZ1
CX3225SB33000D0GEJZ1
CX3225SB33333D0GEJZ1
CX3225SB40000D0GEJZ1
CX3225SB48000D0GEJZ1
CX3225SB54000D0GEJZ1
Please contact us for other specifications.
Table1 Motional Series Resistance Table2 Level of Drive
Frequency Range
12000 to 12999kHz
13000 to 14999kHz
15000 to 15999kHz
16000 to 19999kHz
20000 to 26999kHz
27000 to 54000kHz
Motional Series Resistance
200 max.
150 max.
100 max.
80 max.
50 max.
40 max.
Frequency Range
12000 to 54000kHz
Level of Drive
10W (100W max.)
Dimensions
(Unit: mm)
Recommended Land Pattern
(Unit: mm)
