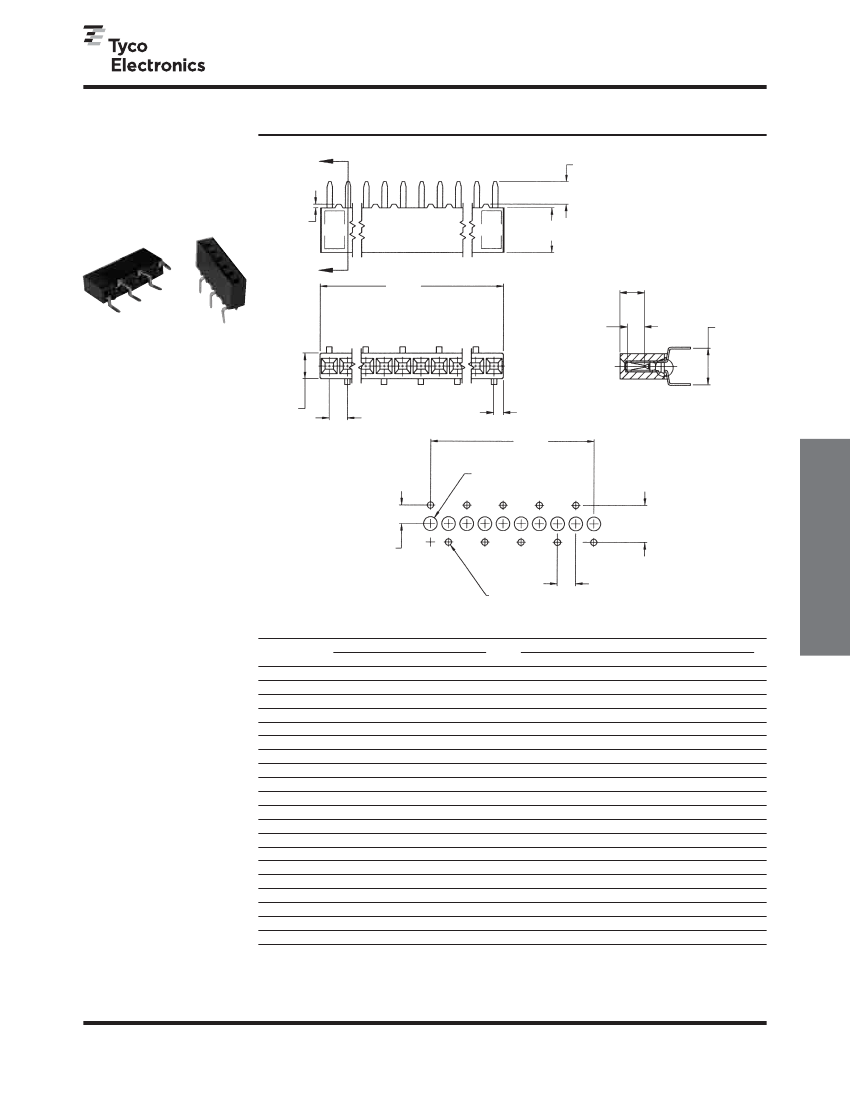

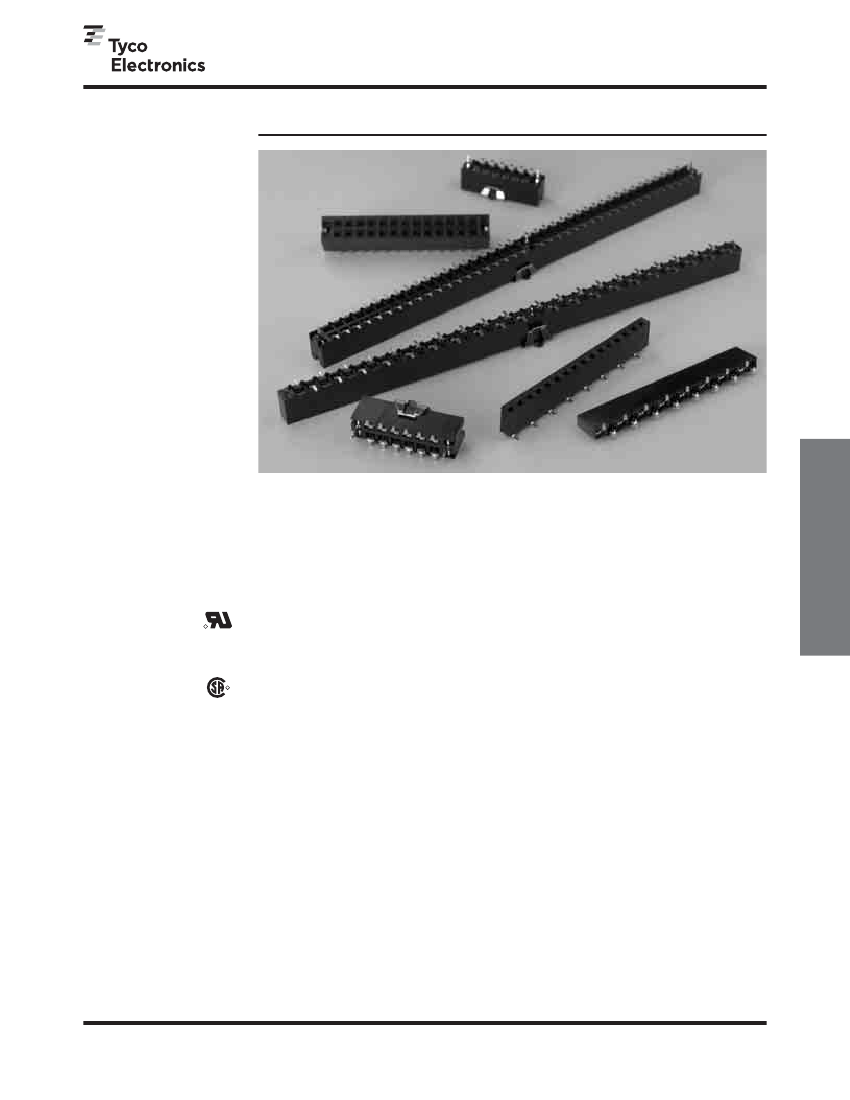

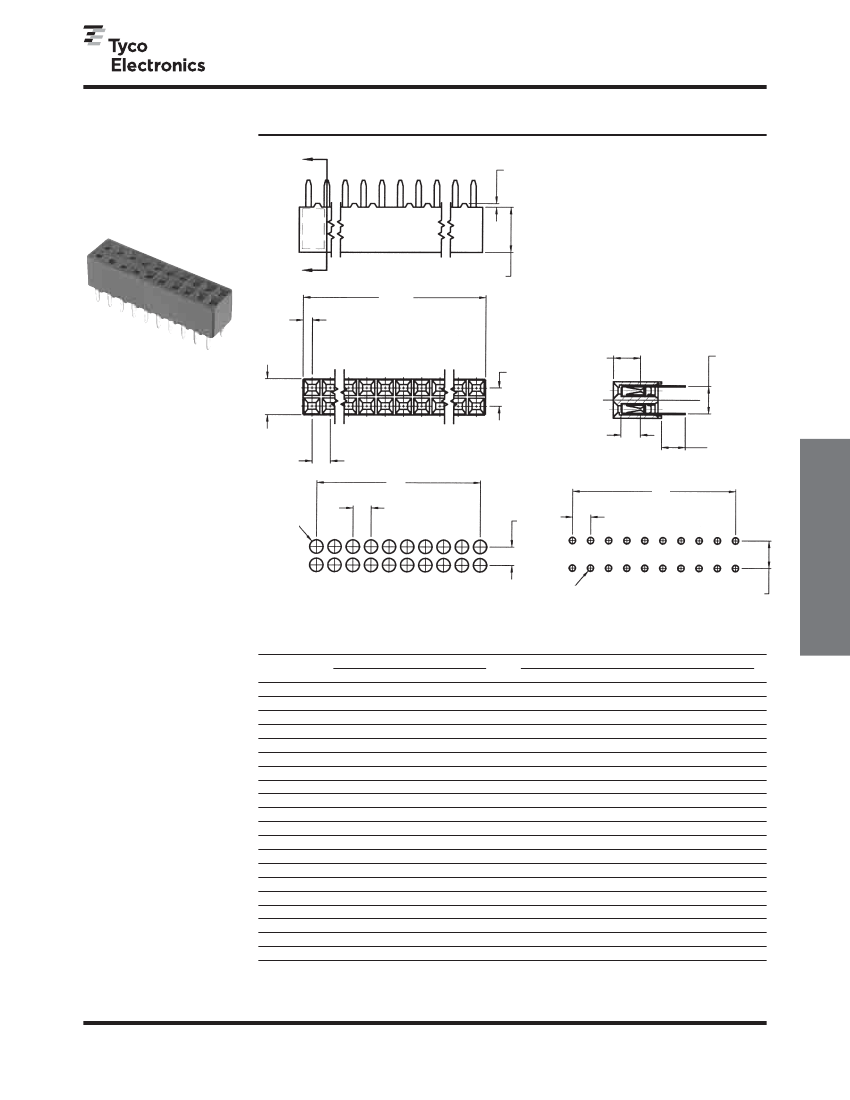

AMPMODU Interconnection System

Mod IV Receptacle Assemblies, Single-Row, Outrigger Design

.100 x .100 [2.54 x 2.54] Centerline, End To End Stackable

Dual Entry, End Stackable,

Low Profile, .100 x .100

[2.54 x 2.54] Centerline,

.200 [5.08] Tine Spacing

.125±.010

[3.17±0.25]

Typ.

.020

[0.51]

(Standoffs)

.245

[6.22]

.148

[3.77]

Typ.

.107

[2.72]

(Localized Gold

Plate Area)

Point of

Contact

.200±.003

[5.08±0.08]

Typ.

Material and Finish

Housing

— Glass-filled thermoplastic,

black, 94V-0 rated

Plating A

— Duplex .000030 [0.00076]

gold on contact area, .000150-0.000300

[0.00381-0.00762] matte tin on solder

area all over .000050 [0.00127] nickel

Plating B

— Duplex .000010

[0.000254] gold on contact area,

.000150-.000300 [0.00381-0.00762]

matte tin on solder area all over .000050

[0.00127] nickel

Plating C

— .000150-.000300

[0.00381-0.00762] matte tin on solder

leads, all over .000050 [0.00127] nickel

.140

[3.56]

.100

[2.54]

Typ.

.053

[1.34]

Typ.

.075 +.005

-.000

1.90 +0.13

-.000

Vertical Mount,

Receptacle Assemblies

[

.140

[3.56]

]

.200

[5.08]

.035±.003

Dia.

[0.89±0.08]

.100

[2.54]

Typ.

Recommended PC Board Hole Layout

No. of

Pos.

Dimensions

.300

[7.62]

.400

[10.16]

.500

[12.70]

.600

[15.24]

.700

[17.78]

.800

[20.32]

.900

[22.86]

1.000

[25.40]

1.100

[27.94]

1.200

[30.48]

1.300

[33.02]

1.400

[35.56]

1.500

[38.10]

1.600

[40.64]

1.700

[43.18]

1.800

[45.72]

1.900

[48.26]

2.000

[50.80]

3.000

[76.20]

4.000

[101.60]

.200

[5.08]

.300

[7.62]

.400

[10.16]

.500

[12.70]

.600

[15.24]

.700

[17.78]

.800

[20.32]

.900

[22.86]

1.000

[25.40]

1.100

[27.94]

1.200

[30.48]

1.300

[33.02]

1.400

[35.56]

1.500

[38.10]

1.600

[40.64]

1.700

[43.18]

1.800

[45.72]

1.900

[48.26]

2.900

[73.66]

3.900

[99.06]

Plating A

5-147720-2

5-147720-3

5-147720-4

5-147720-5

5-147720-6

5-147720-7

5-147720-8

5-147720-9

6-147720-0

6-147720-1

6-147720-2

6-147720-3

6-147720-4

6-147720-5

6-147720-6

6-147720-7

6-147720-8

7-147720-8

8-147720-8

8-147720-9

Contact Plating/Part Nos.

Plating B

5-147726-2

5-147726-3

5-147726-4

5-147726-5

5-147726-6

5-147726-7

5-147726-8

5-147726-9

6-147726-0

6-147726-1

6-147726-2

6-147726-3

6-147726-4

6-147726-5

6-147726-6

6-147726-7

6-147726-8

7-147726-8

8-147726-8

8-147726-9

Plating C

5-147727-2

5-147727-3

5-147727-4

5-147727-5

5-147727-6

5-147727-7

5-147727-8

5-147727-9

6-147727-0

6-147727-1

6-147727-2

6-147727-3

6-147727-4

6-147727-5

6-147727-6

6-147727-7

6-147727-8

7-147727-8

8-147727-8

8-147727-9

Note:

All part numbers are RoHS

compliant.

Notes:

1. Tyco Electronics recommends mating gold or duplex plated headers with duplex plated receptacle

assemblies.

2. To obtain the minimum mating post length, add .020 [0.51] (not including the post lead in chamfer) to

the maximum point-of-contact dimension and add .062 [1.57] for recommended board thickness if used in

bottom entry application.
