HM2P08PDU2M1N9LF datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> HM2P08PDU2M1N9LF

Preview

HM2P08PDU2M1N9LF: DescriptionBoard Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size225KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P08PDU2M1N9LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HM2P08PDU2M1N9LF	-	-	View	Buy Now

HM2P08PDU2M1N9LF Overview

Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P08PDU2M1N9LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Factory Lead Time	7 weeks
Other features	50 GROUND SHIELD CONTACTS IN 2 ROWS AVALABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	175
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

1 e

P

O

S

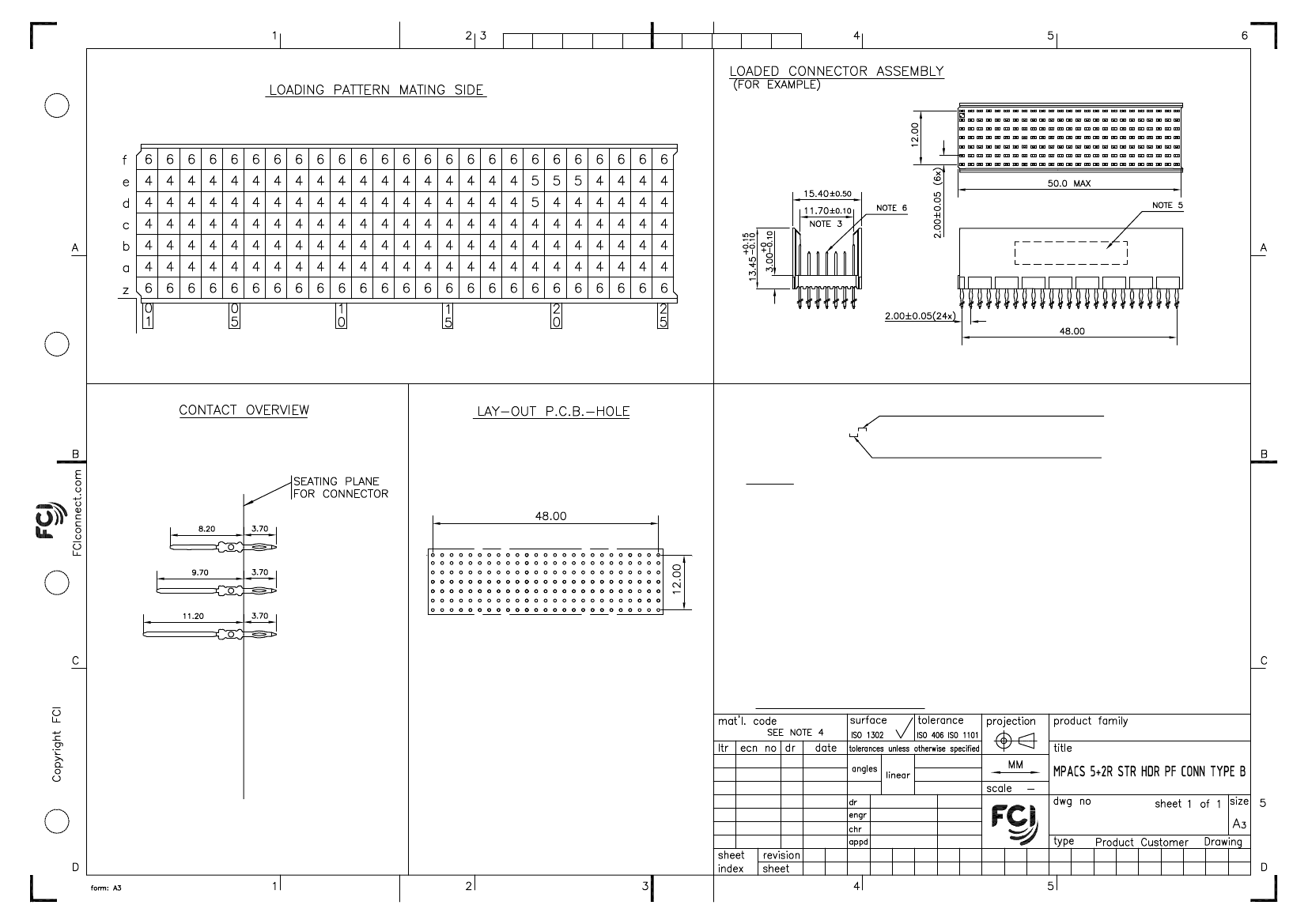

HM2P08PDU2M1----

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

NOTES

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

4

5

6

CATALOG NO: HM2P08PDU2M1----

a

MILLIPACS

A

B

C

I03-0030

I05-0171

I06-0077

JAY

MINI

04/07/2003

23/09/2005

0°±1°

JAYADEEP P

BIJU K PAUL

K V SIVADAS

C

1

.0±0.2

.00±0.1

.000±.00X

03/07/2003

22/06/2006

MINI 22/06/2006

BS, C ,203028, 048

6

PDM: Rev:C

STATUS:

Released

2 5

Printed: Dec 03, 2007

.

HM2P08PDU2M1N9LF Related Products

	HM2P08PDU2M1N9LF	HM2P08PDU2M1Z1LF	HM2P08PDU2M1E9LF	HM2P08PDU2M1Z1	HM2P08PDU2M1E9
Description	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,
Reach Compliance Code	compliant	compliant	compli	compliant	compliant
Other features	50 GROUND SHIELD CONTACTS IN 2 ROWS AVALABLE	50 GROUND SHIELD CONTACTS IN 2 ROWS AVALABLE	50 GROUND SHIELD CONTACTS IN 2 ROWS AVALABLE	50 GROUND SHIELD CONTACTS IN 2 ROWS AVALABLE	50 GROUND SHIELD CONTACTS IN 2 ROWS AVALABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	MATTE TIN	MATTE TIN	MATTE TIN	TIN LEAD	TIN LEAD
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e0	e0
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	HM2	HM2	HM2	HM2	HM2
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	7	7	7	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	175	175	175	175	175
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
