Connection
Systems
Two-Piece Backplanes
2mm Hard Metric
8+2 Connectors

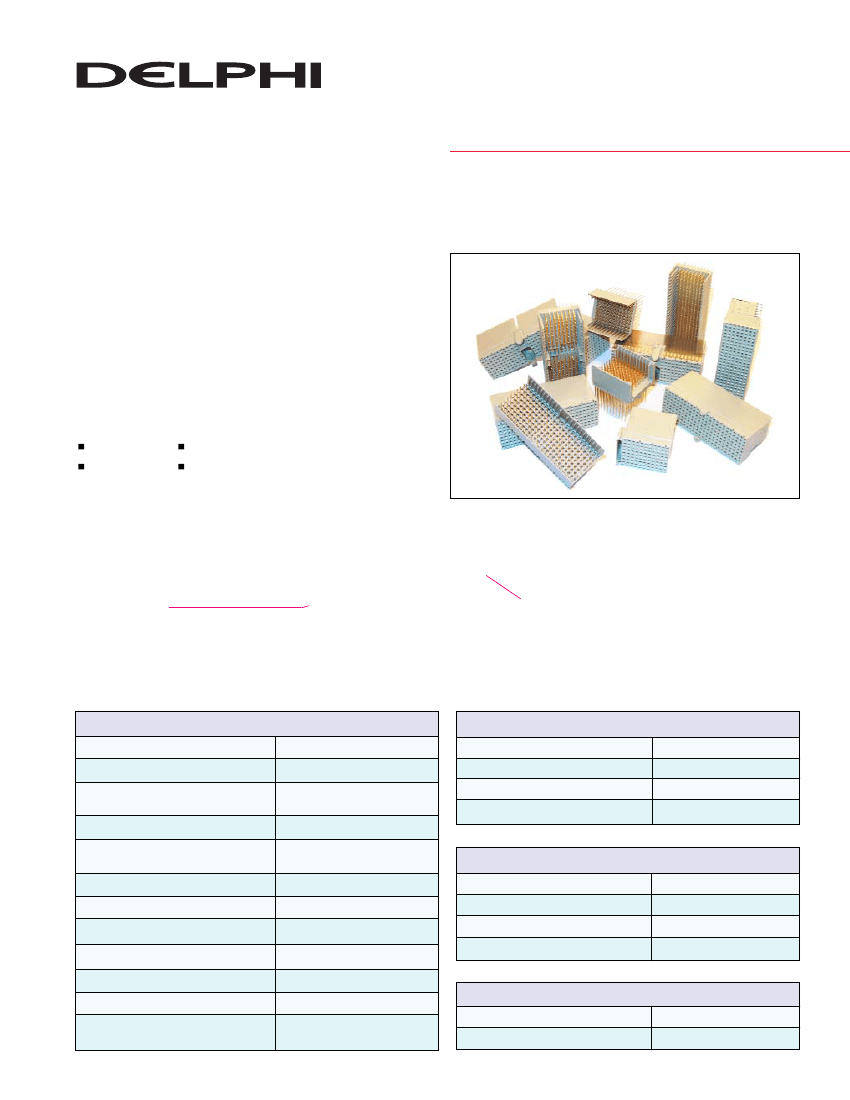

Description:
Modular, high-density, two-piece backplane connection system
Typical Applications:
Servers
Switches
Routers
Add/drop multiplexers
Benefits/Features:
Industry Standard . . Meets IEC 61076-4-101 performance requirements and extends mounting, mating and other specifications from the 5+2 series.
Versatility . . . . . . . . Configurations similar to the 5+2 series allow mix-and-match to create solutions to complex I/O requirements.
Three mating length pins allow thousands of
early mate, last break
options and reduced mating force.
Integrated shielding available to minimize EMI.
Extended tails available
for through
the backplane I/O.
mates-last, breaks-first
awkward?
Flexible code-key indexing for user-defined slot discrimination.
Reliability . . . . . . . . Generous lead-in allows self-alignment for blind mating.
Minimum contact wipe of 2mm for all pin lengths.
Mechanical and Electrical Characteristics:
Mechanical Specifications
Grid Size
Temperature Range
Insulation Material
Contact Base Material
Creepage and Clearance
Distance
Contact Levels
Tail Lengths (±0.3)
Mating Force per Signal Contact
Unmating Force
Termination Technique
Misalignment
Inclination
2.0 mm
-55°C to +105°C
Glass filled polymer,
UL94V-0
Phosphor bronze
0.40 mm contact row
0.40 mm adjacent contacts
5.3, 6.8, 8.3 mm
3.7, 13.0, 14.5, 16.0 mm
0.75 N [0.169 lbf] max.
0.12 N [0.027 lbf] min.
Press-fit
2.0 mm
Longitudinal: ±2°
Transverse: ±2°
Electrical Performance
Current Rating
Voltage Rating
Insulation Resistance
Dielectric Withstanding Voltage
1 amp
30 VAC
Initial: 10,000 MΩ
750 VAC
Recommended PCB Plated Through Holes
Drilled Hole
Cu
Sn
Plated Through Hole
0.69 - 0.72 mm
0.25 µm min.
0.10 µm max.
0.55 - 0.65 mm
Performance Class
1
2
500 mating cycles
250 mating cycles
2mm Hard
Metric 8+2
Connectors

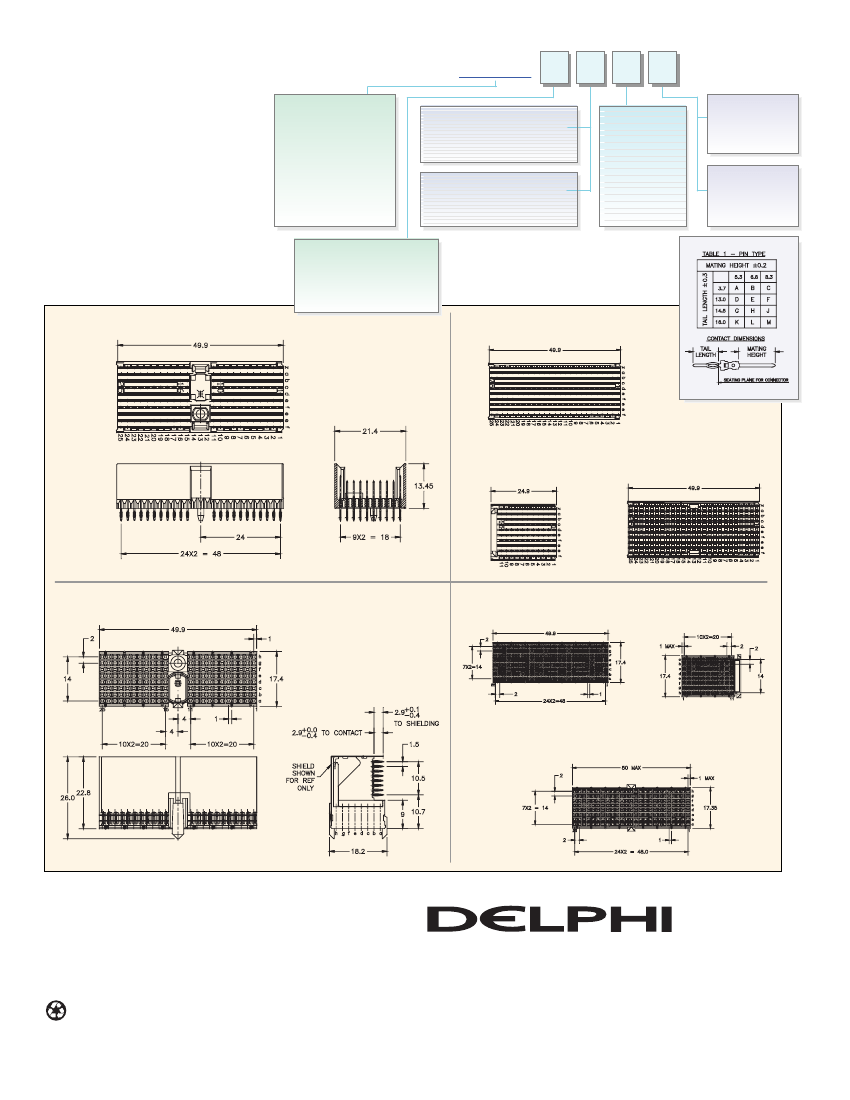

Ordering Nomenclature
Part Number:
Male
D . . .
HM14M
E . . .
HM15M
F . . .
HM16M
DE . .
HM30M
Female D . . .
HM14F
E . . .
HM15F
F . . .
HM16F
DE . .
HM30F
HM14M S
Shielding:
Male
0
= None
2
= Row Z
1
= Row Y
3
= Row Y & Z
0
2
A
Pin Type:
Male
See Table 1
Shielding:
Female
0
= None
2
= Bottom
1
= Upper
3
= Both
Performance
Class:
1
= Perf. Class 1
2
= Perf. Class 2
3
= Perf. Class 1
with LUB
4
= Perf. Class 2
with LUB
Pin Type:
Female
N
= None
Sub-Configuration:
S
= Standard
V
= 22 column (E & DE only)
W
= 19 column (E & DE only)
HM14M
HM15M
HM16M
HM30M
HM14F
HM15F
HM16F
TITLE
HM30F
Dimensions are shown in millimeters.
For additional information, please contact us or visit our website.
www.delphi.com/connect
Printed on Recycled Paper.
© 2002, Delphi. All rights reserved.
Printed in the U.S.A.
1202/3W • 203/1mGBS • U803/3W
DP-02-E-081
