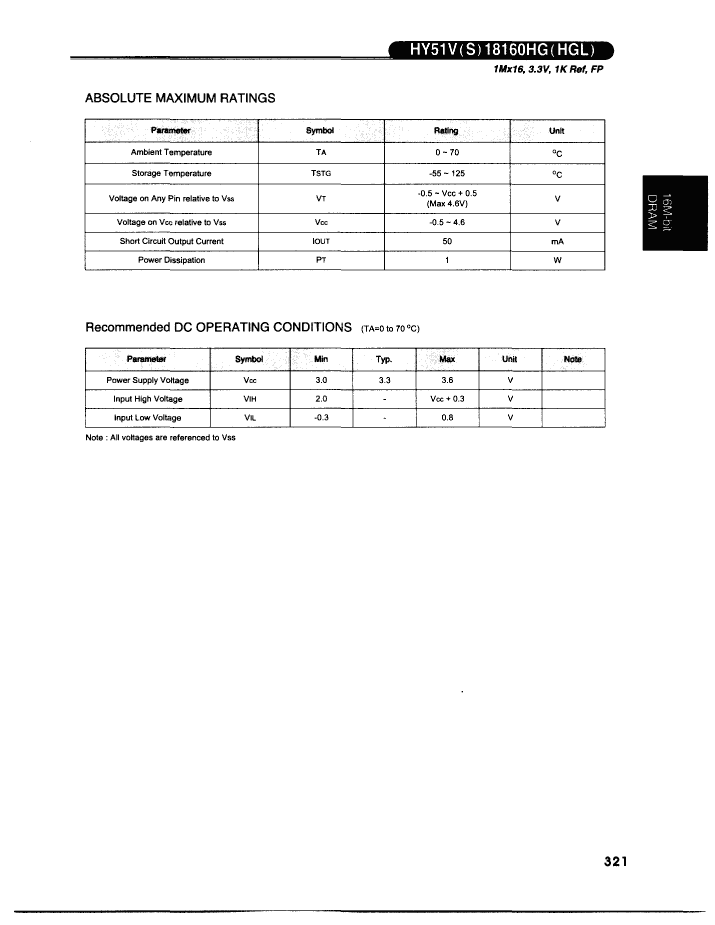

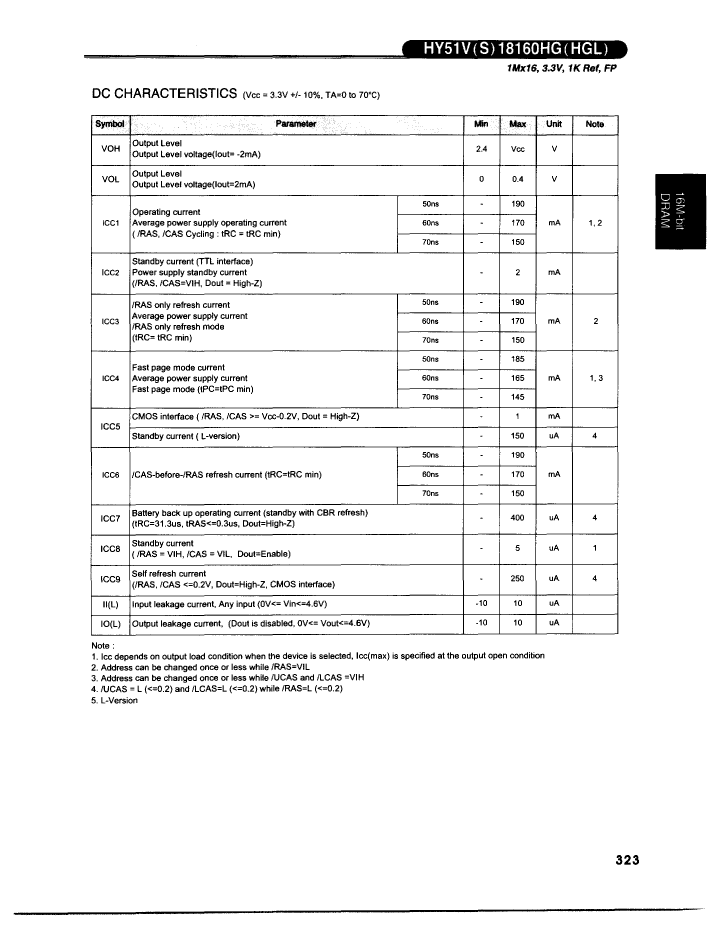

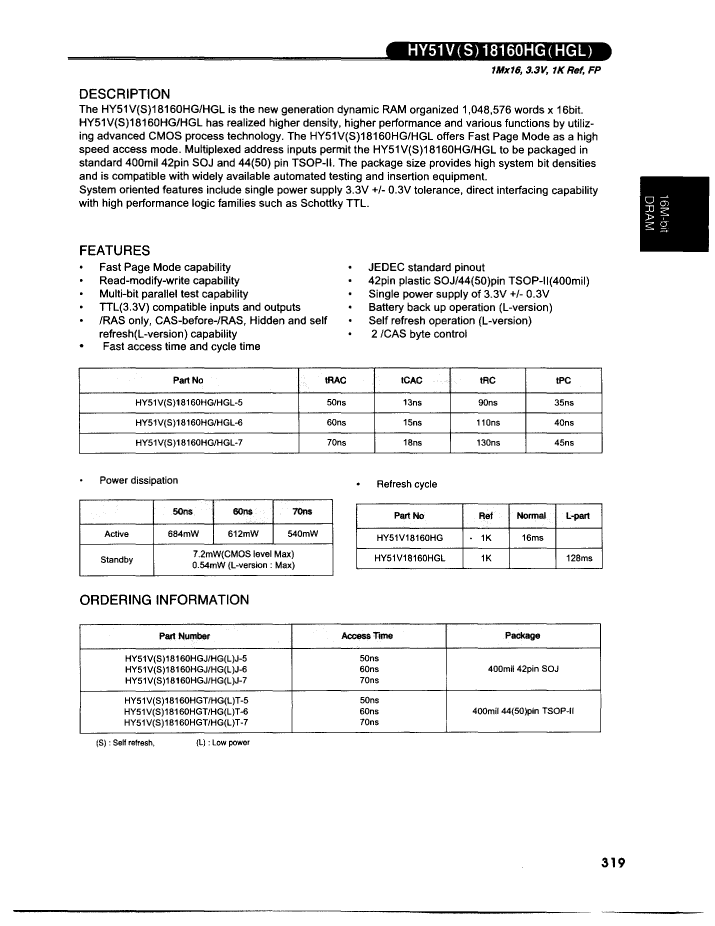

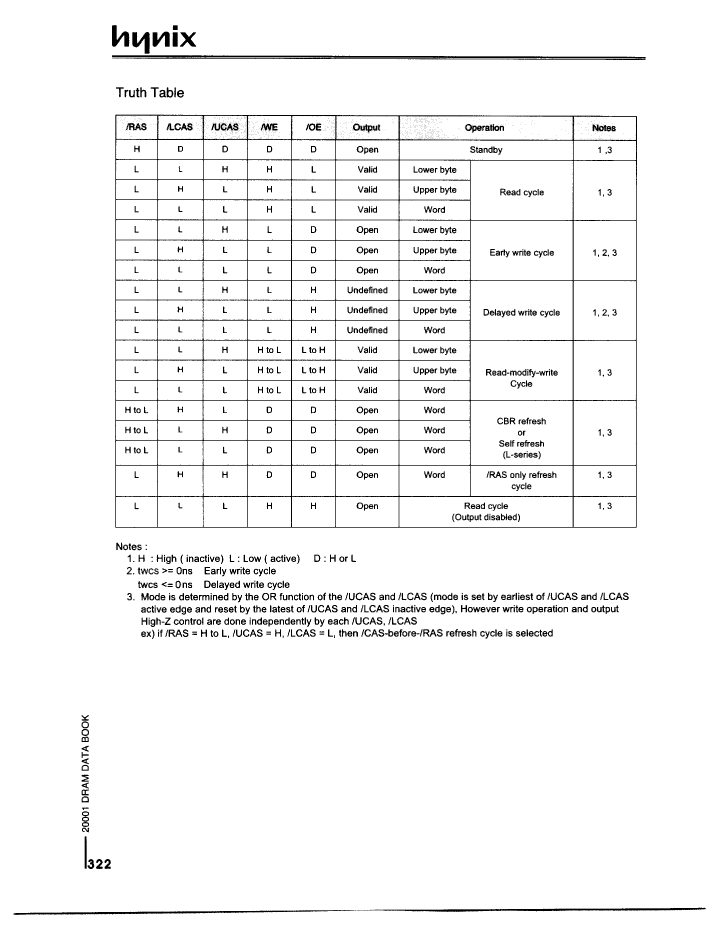

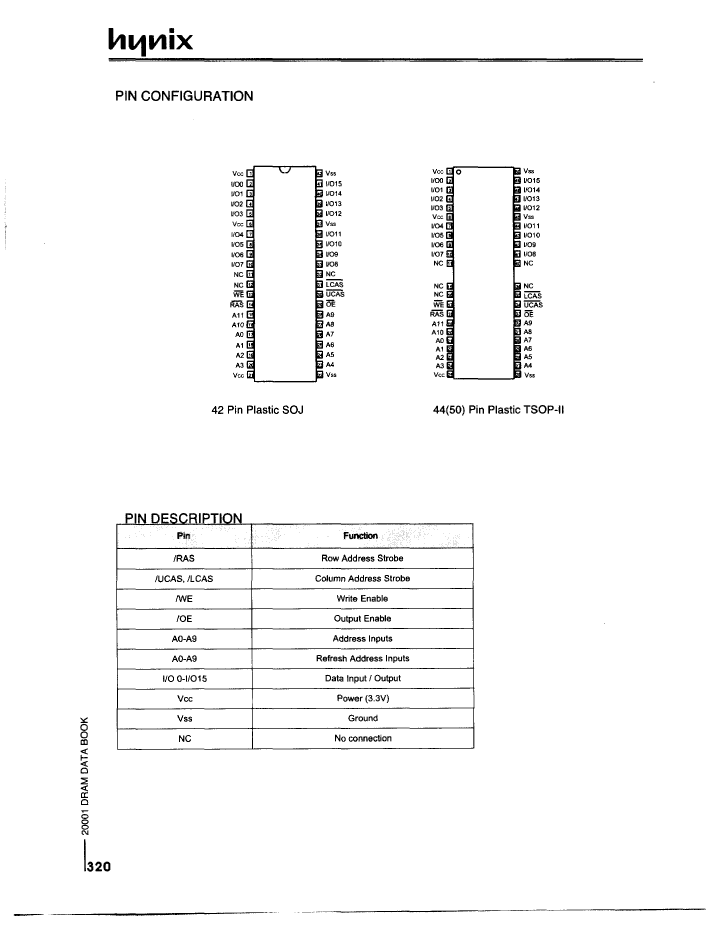

HY51V18160HGJ-5 datasheet, PDF

HY51V18160HGJ-5: DescriptionFast Page DRAM, 1MX16, 50ns, CMOS, PDSO42, 0.400 INCH, PLASTIC, SOJ-42; Categorystorage storage; File Size371KB，12 Pages; ManufacturerSK Hynix; Websitehttp://www.hynix.com/eng/

Download Datasheet Parametric View All

HY51V18160HGJ-5 Overview

Fast Page DRAM, 1MX16, 50ns, CMOS, PDSO42, 0.400 INCH, PLASTIC, SOJ-42

Parameter Name	Attribute value
Maker	SK Hynix
Parts packaging code	SOJ
package instruction	SOJ, SOJ42,.44
Contacts	42
Reach Compliance Code	compliant
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	50 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-PDSO-J42
length	27.06 mm
memory density	16777216 bit
Memory IC Type	FAST PAGE DRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	42
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ42,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	3.76 mm
self refresh	NO
Maximum standby current	0.000005 A
Maximum slew rate	0.19 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
width	10.16 mm
