FEATURES
Metalized Polypropylene
–
multiple case sizes
–
Low ESR and self inductance
APPLICATIONS
EMI/RFI Suppression
–
Line Bypass
–
EMI Filters
–
Across the line
–
Line to
ground
-40°C to +110°C
+10% at 1 kHz, 20°C
+5% optional
300 VAC
310 VAC
.1% Max
Operating Temperature Range
Capacitance Tolerance
IEC60384-14,
AC voltage
GB/T14472
UL,CUL
Dissipation Factor
Tan
δ
at 1 kHz and 20°C
Insulation Resistance
@20°C (<70% RH)for 1 minute at
100VDC applied
Self Inductance
Terminal to Terminal
15000
MΩ
Minimum
Terminal to Case
30000
MΩ
Minimum@100 VDC
500
MΩ
Minimum @ 500 VDC
<1 nano-Henry per mm of lead spacing and lead length
Terminal to Terminal
Dielectric Strength
Terminal to case
Life Expectancy
2250 VDC or 1500 VAC applied for 60
Seconds and 20°C or 3000VDC applied
for 3 seconds
2050VAC applied between the terminals
Cut off current: 2Aac or 10mAdc
and case for 60 Seconds and 20°C
Current limiting resistance: 1Ω/V
Slew rate: 100V/s
1000 hours at 110°C at 170% of rated voltage with once every hour the voltage
is increased to 1000 VAC for 0.1 seconds
Capacitance change
<10% of initially measured value
Dissipation Factor change
<0.15% at 1kHz
Insulation resistance change
>50% of initially specified value
Metallized Polypropylene film
Vacuum deposited Metal layers
Flame retardant Solvent resistant plastic case with epoxy end fill (UL94V-0)
Lead free tinned copper leads
Construction
Electrodes
Coating
Lead terminations
*17mm lead length available upon request
Safety agency
UL/CUL
ENEC (SEMKO)
CB (Sweden)
CQC
Standard
UL1283
IEC 60384-14
IEC60384-14
GB/T14472-1998
Voltage
310
300
300
300
Class
Y2/X1
Y2/X1
Y2/X1
Y2
Certificate number
E221690
SE/0252-3
SE-55114
CQC08001028115

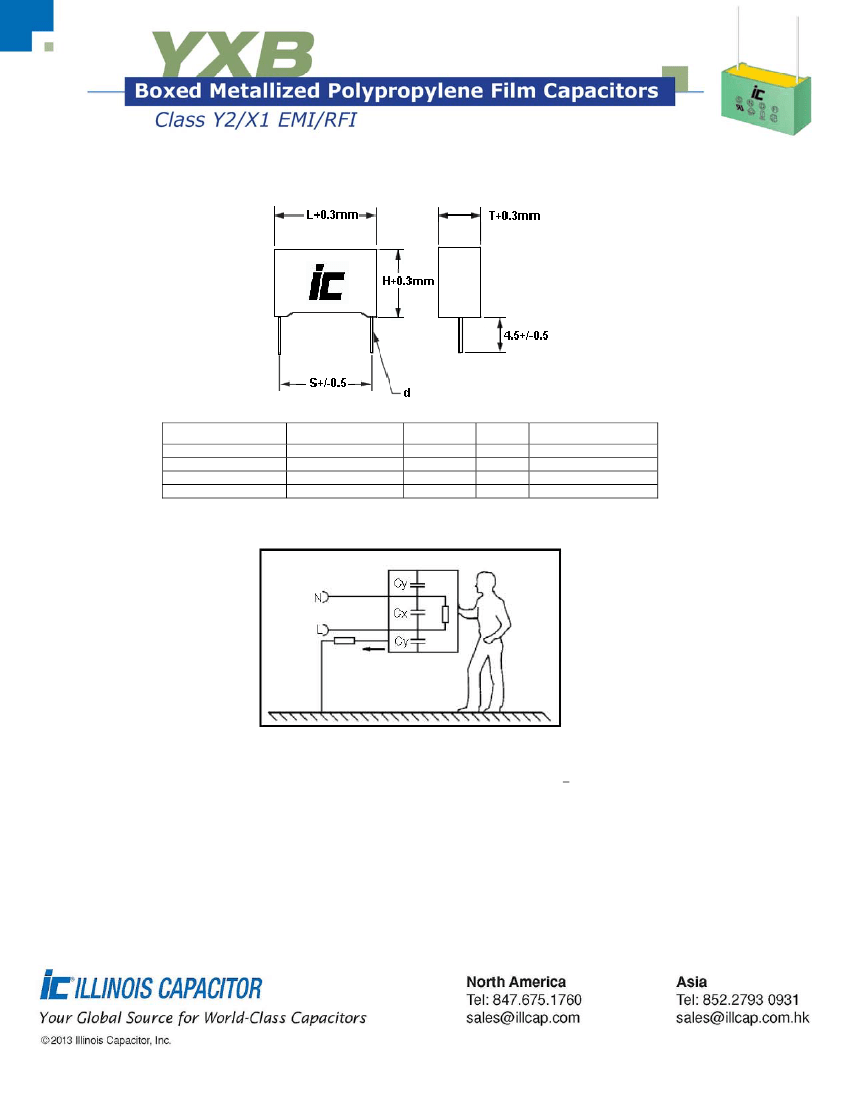

X capacitors are used to suppress electrical noise by reducing the input impedance of the device incorporating the capacitor.
X capacitors are connected across the supply line where failure of the capacitor will not result in personal exposure to electrical shock.
X2 capacitors are to be used in applications where the peak voltage is <1200V.
