PF0560.152NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PF0560.152NL

PF0560.152NL: DescriptionGeneral Purpose Inductor, 1.5uH, 30%, 1 Element, SMD, 4141, ROHS COMPLIANT; CategoryPassive components inductor; File Size422KB，3 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric View All

PF0560.152NL Overview

General Purpose Inductor, 1.5uH, 30%, 1 Element, SMD, 4141, ROHS COMPLIANT

PF0560.152NL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pulse Electronics
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	4141
structure	Shielded
DC Resistance	0.0081 Ω
Nominal inductance(L)	1.5 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	4 mm
Package length	10.4 mm
Package form	SMT
Package width	10.4 mm
method of packing	Tray
Maximum rated current	6.5 A
self resonant frequency	40 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	30%

Preview

Download Datasheet

View All

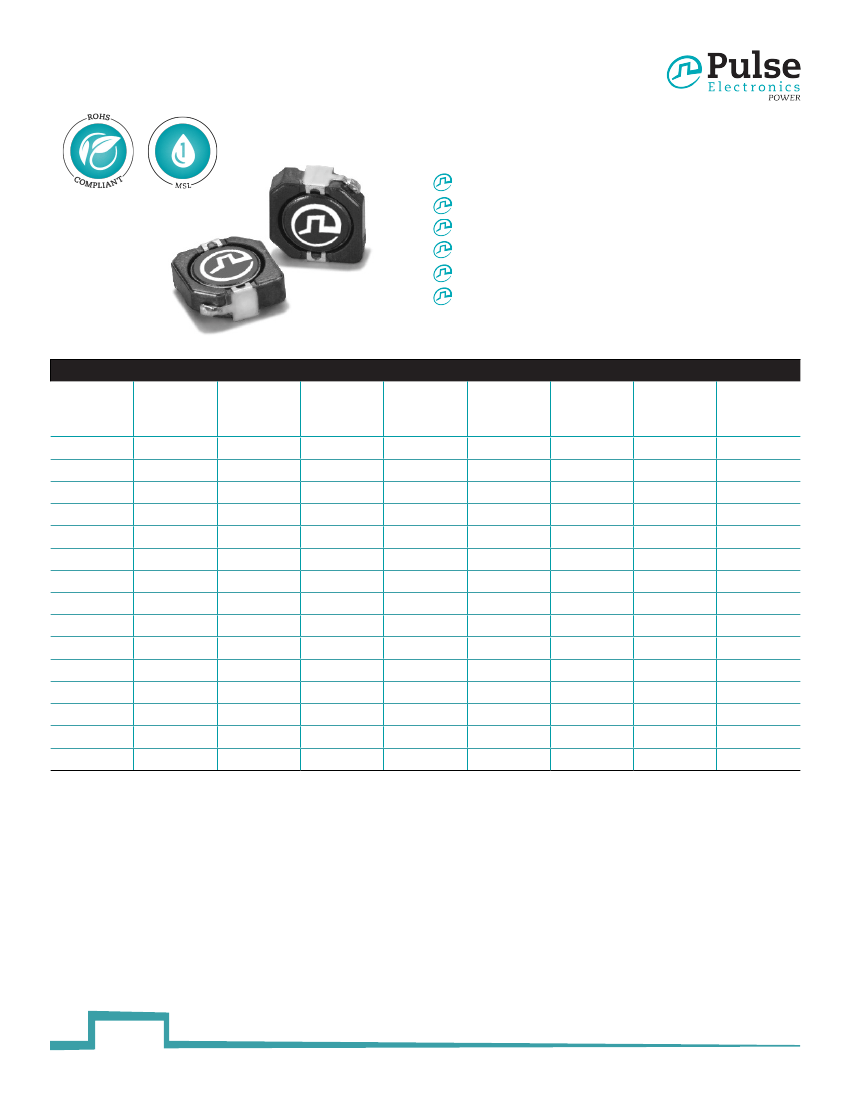

SMT Power Inductors

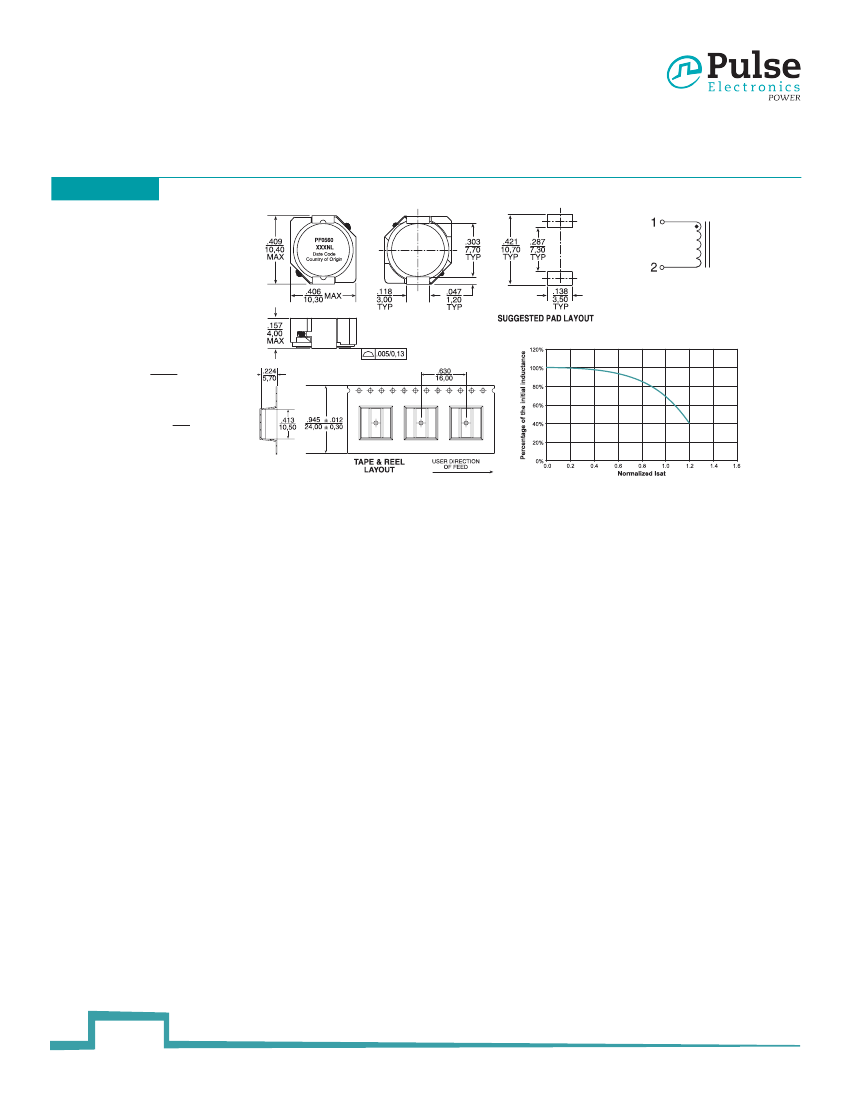

Shielded Drum Core - PF0560 NL Series

Height:

4.0mm Max

Footprint:

10.4 x 10.4mm Max

Current Rating:

up to 6.5A

Inductance Range:

1.5µH to 330µH

260°C reflow peak temperature qualified

Leaded technology compatible

Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C

Part

2,3

Number

PF0560.152NL

F0560.252NL

F0560.382NL

F0560.522NL

F0560.702NL

F0560.103NL

F0560.153NL

F0560.223NL

F0560.333NL

F0560.473NL

F0560.683NL

F0560.104NL

F0560.154NL

F0560.224NL

F0560.334NL

Inductance

@ OA

(µH)

1.5

±30%

2.5

±30%

3.8

±30%

5.2

±30%

7.0

±30%

±25%

100

±25%

150

±25%

220

±25%

330

±25%

Inductance

@ Irated

(µH TYP)

1.5

2.5

3.8

5.2

7.0

100

150

220

330

Irated

(A)

6.5

6.1

5.5

5.4

4.5

3.8

3.1

2.5

2.2

1.9

1.42

1.25

0.85

0.7

0.52

DCR

(mΩ MAX)

8.1

10.5

128

213

304

506

756

1090

Saturation

Current I

SAT

-35% (A)

7.5

6.0

5.5

4.8

4.4

3.6

2.9

2.3

2.1

1.5

1.35

1.15

0.92

0.70

Heating

Current IDC

+30°C (A)

6.5

6.1

5.5

5.4

4.5

3.8

3.1

2.5

2.2

1.9

1.42

1.25

0.85

0.7

0.52

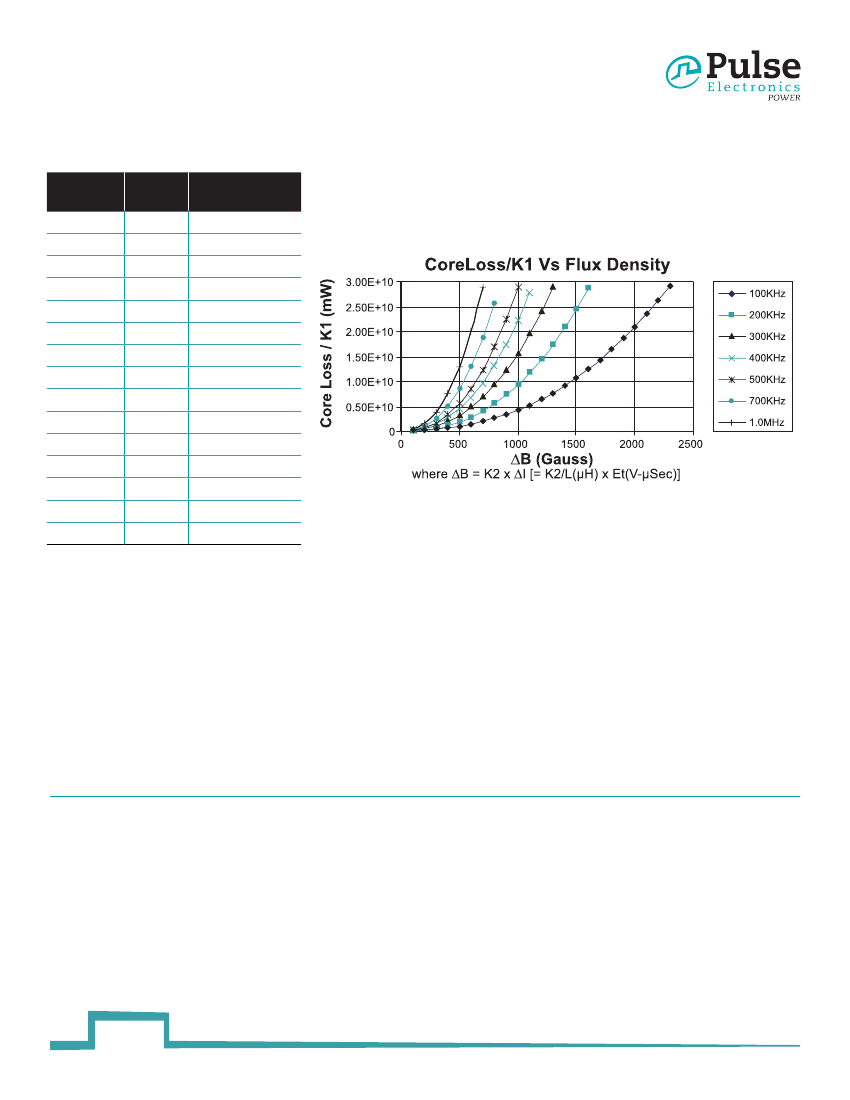

Core Loss

Factor

(K2)

260

330

420

480

500

630

790

910

1200

1300

1700

2000

2400

2900

3580

SRF

(MHZ)

>40

9.0

6.6

5.4

5.2

3.2

power.pulseelectronics.com

SPM2007_24(08/17)

http://www.power.pulseelectronics.com/contact
