SMBTA92
PNP Silicon
Elektroni sche Bauelemente
RoHS Compliant Product
A suffix of "-C" specifies halogen & lead-free
Collector
Epitaxial Planar Transistor
SOT-23
Dim
A
B
C
D
G
H
J
K
L
S
V
J
Description
The SMBTA92 is designed for application
as a video output to drive color CRT, or as
a dialer circuit in electronics telephone.
3
3
1
Base
Min
2.800
1.200
0.890
0.370
1.780
0.013
0.085
0.450
0.890
2.100
0.450
Max
3.040
1.400
1.110
0.500
2.040
0.100
0.177
0.600
1.020
2.500
0.600
A
L
B S
2
Emitter
Top View
1
2
V
G
C
D
H
K
*
MAXIMUM RATINGS* T
A
=25
o
C unless otherwise noted
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current -Continuous
Total Power Dissipation
Junction and Storage Temperature
o
All Dimension in mm
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
D
TJ, Tstg
Value
-300
-300
-5
500
350
-55~+150
Units
V
V
V
mA
mW
o
C
ELECTRICAL CHARACTERISTICS (Tamb=25 C unless otherwise specified)
Parameter
Collector-Base Breakdown
Collector-Emitter Breakdown
Emitter-Base Breakdown Voltage
Collector-Base Cutoff Current
Collector Saturation Voltage
Collector Saturation Voltage
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
V
CE
(sat)
V
BE
(sat)
hFE1
hFE2
hFE3
fT
C
ob
Min
-300
-300
-5
-
-
-
25
40
25
50
-
Typ.
-
-
-
-
-
-
-
-
-
-
-
Max
-
-
-
250
500
900
-
-
-
-
6.0
MHz
pF
Unit.
V
V
V
nA
mV
mV
Test Conditions
IC= -100uA ,IE=0
IC= -1mA ,IB=0
IE= -100uA ,IC=0
VCB=-200V, IE=0
IC=-20mA, IB=-2mA
IC=-20mA, IB=-2mA
VCE=-10V, IC=-1mA
VCE=-10V, IC=-10mA
VCE=-10V, IC=-30mA
VCE=-20V, IC=-10mA, f=100MHz
VCB=-20V, f=1MHz
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
16-Jul-2007 Rev. A
Page 1 of 2
SMBTA92
PNP Silicon
Elektroni sche Bauelemente
Epitaxial Planar Transistor

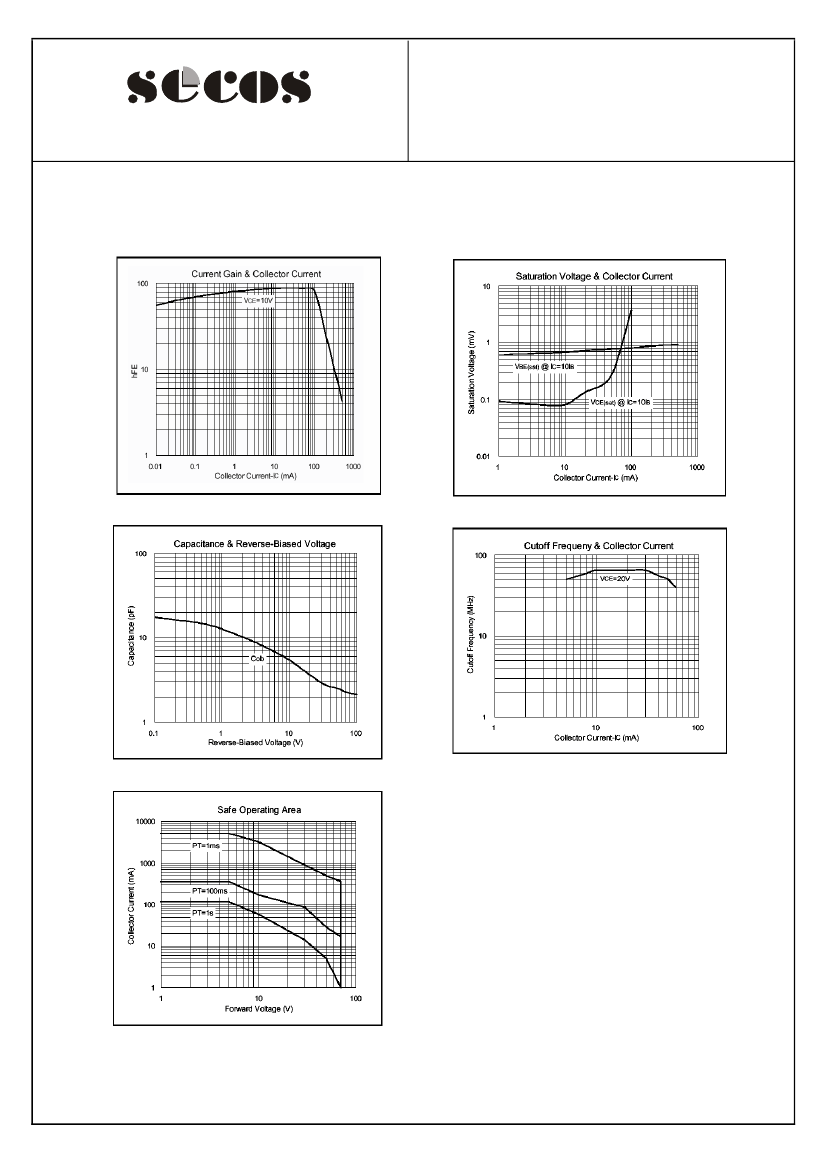

Electrical characteristic curves
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
16-Jul-2007 Rev. A
Page 2 of 2
