TW-47-11-L-T-250-150 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> TW-47-11-L-T-250-150

Preview

TW-47-11-L-T-250-150: DescriptionBoard Stacking Connector, 141 Contact(s), 3 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TW-47-11-L-T-250-150 Overview

Board Stacking Connector, 141 Contact(s), 3 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, ROHS COMPLIANT

TW-47-11-L-T-250-150 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
subject depth	0.25 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	TW
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	3
Options	GENERAL PURPOSE
Plating thickness	10u inch
Rated current (signal)	5.2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.15 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	141

Preview

Download Datasheet

View All

F-212

TW–08–09–F–T–250–100

TW–16–06–L–D–500–100

(2,00mm) .0787"

TM

TW–20–03–T–Q–400–085

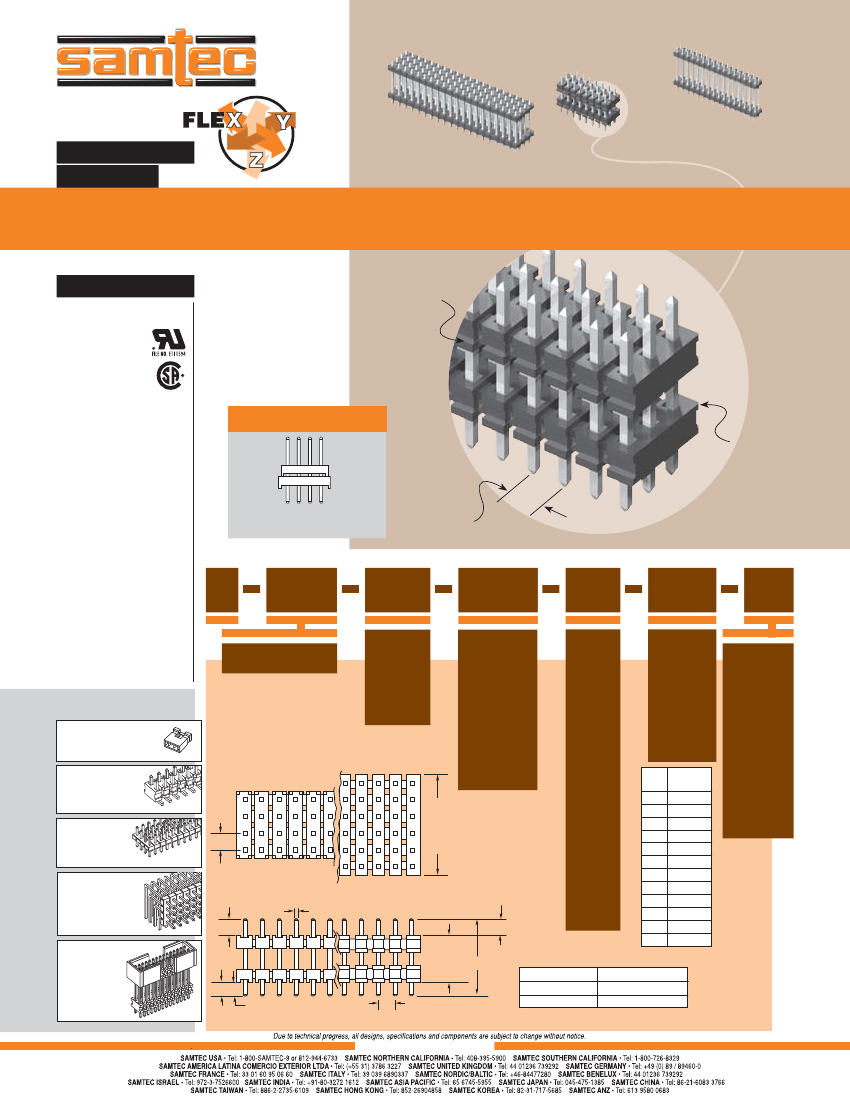

TW SERIES

THROUGH-HOLE BOARD STACKERS

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?TW-TH

Insulator Material:

Black Liquid

Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over 50µ"

(1,27µm) Ni

Current Rating:

3A @ 80°C ambient

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

Mates with:

CLT, SQT, SQW, ESQT,

TLE, SMM, MMS, TCSD

Specify stacker

height in (0,13mm)

.005" increments

ALSO AVAILABLE

Choice of

one through

six rows

Paste In Hole (PIH) processing.

Contact Samtec ASP Group.

(2,00mm)

.0787 pitch

TW

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

below.

PLATING

OPTION

ROW

OPTION

STACKER

HEIGHT

TAIL

SPEC

–F

= Gold ﬂash

on post,

Matte Tin on tail

–S

= Single

Row

Note:

This Series is

non-standard, non-returnable.

02 thru 50

–“XXX”

= Tail Length

in inches

(0,13mm) .005"

increments

Example: -150

Example: –250

= (3,81mm)

= (6,35mm)

.150"

.250"

LEAD

STYLE

Also Available

2mm Shunt

See 2SN Series.

–L

= 10µ" (0,25µm)

Gold on post,

Matte Tin on tail

–D

= Double

Row

= Stacker

Height

in inches

(0,13mm)

.005"

increments

–“XXX”

–T

= Triple

Row

Surface

Mount

See previous page.

300

04

–T

= Matte Tin

Note:

Other Gold

No. of

plating options

rows

available.

x

(2,00)

Contact Samtec.

.0787

OAL

(8,20) .323

(9,60) .377

(13,60) .535

(14,10) .555

(15,10) .594

(17,10) .673

(19,10) .751

(21,10) .830

(11,60) .456

(15,60) .614

(10,08) .397

(28,19) 1.110

–“XXX”

= Polarized

Position

(Specify

position to

be removed)

(2,00)

.0787

TYP

–Q

= Four

Row

Low

Proﬁle

See TMM Series.

01

–5

= Five

Row

–S, –D*, –Q

Right

Angle

See TMM Series.

POST

–T, –5, –6

(0,51) .020 SQ

295

–6

= Six

Row

STACKER

(1,27)

HEIGHT

See

OAL

.050

MIN

Chart

Shrouded

Double

Row

See ZLTMM

Series.

–01

–02

–03

–04

–05

–06

–07

*

–08

–09

–10

–11

*

–12

*

Style –08 & –12 = S & D only

ROW OPTION

STACKER HEIGHT

(3,05) .120 MIN

(4,06) .160 MIN

TAIL

(0,00) .000 MIN

(2,00) .0787

–S, –D*, & –Q

–T, –5, –6

will not have standoffs.

–S, –D*, –Q

–T, –5, –6

*

–D with stacker height greater than (4,06mm) .160"
