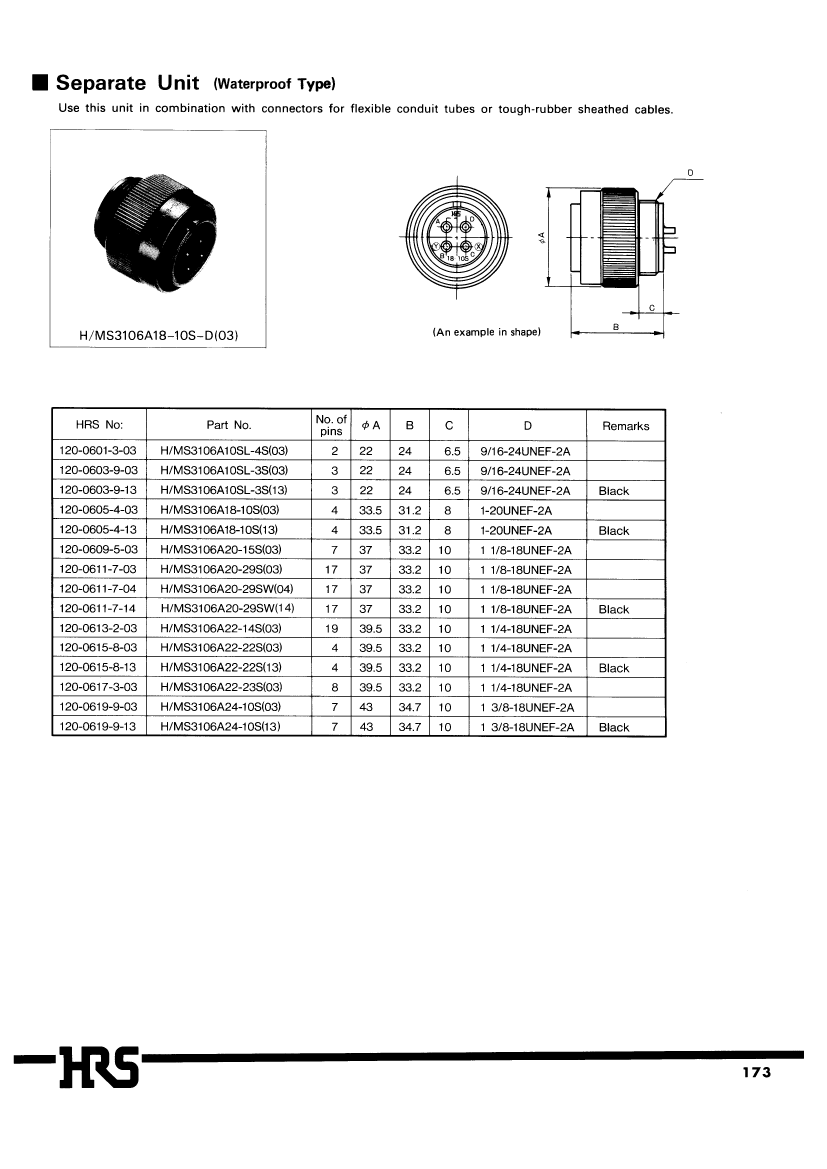

PDF
Preview

H/MS3106A20-29SW(14)

Description
MIL Series Connector, 17 Contact(s), Aluminum/Zinc Alloy, Female, Solder Terminal, Plug
CategoryThe connector    The connector
File Size59KB，1 Pages
ManufacturerHirose
Websitehttp://www.hirose-connectors.com/
Download Datasheet Parametric Compare View All

H/MS3106A20-29SW(14) Overview

MIL Series Connector, 17 Contact(s), Aluminum/Zinc Alloy, Female, Solder Terminal, Plug

H/MS3106A20-29SW(14) Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerHirose
Reach Compliance Codeunknown
Other featuresSTANDARD: MIL-C-5015
Back shell typeSOLID
Body/casing typePLUG
Connector typeMIL SERIES CONNECTOR
Contact completed and terminatedSILVER
Contact point genderFEMALE
Coupling typeTHREADED
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceYES
Manufacturer's serial numberH/MS
Mixed contactsNO
Installation typeCABLE
OptionsWATERPROOF
Shell surfaceZINC PLATED
Shell materialALUMINUM/ZINC ALLOY
Housing size20
Termination typeSOLDER
Total number of contacts17

Preview

Download Datasheet

H/MS3106A20-29SW(14) Related Products

H/MS3106A20-29SW(14) H/MS3106A10SL-3S(13) H/MS3106A10SL-4S(03) H/MS3106A22-23S(03) H/MS3106A24-10S(03) H/MS3106A24-10S(13) H/MS3106A20-15S(03) H/MS3106A10SL-3S(03) H/MS3106A22-14S(03) H/MS3106A20-29SW(04)
Description MIL Series Connector, 17 Contact(s), Aluminum/Zinc Alloy, Female, Solder Terminal, Plug MIL Series Connector, 3 Contact(s), Aluminum/Zinc Alloy, Female, Solder Terminal, Plug MIL Series Connector, 2 Contact(s), Aluminum/Zinc Alloy, Female, Solder Terminal, Plug MIL Series Connector, 8 Contact(s), Aluminum/Zinc Alloy, Female, Solder Terminal, Plug MIL Series Connector, 7 Contact(s), Aluminum/Zinc Alloy, Female, Solder Terminal, Plug MIL Series Connector, 7 Contact(s), Aluminum/Zinc Alloy, Female, Solder Terminal, Plug MIL Series Connector, 7 Contact(s), Aluminum/Zinc Alloy, Female, Solder Terminal, Plug MIL Series Connector, 3 Contact(s), Aluminum/Zinc Alloy, Female, Solder Terminal, Plug MIL Series Connector, 19 Contact(s), Aluminum/Zinc Alloy, Female, Solder Terminal, Plug MIL Series Connector, 17 Contact(s), Aluminum/Zinc Alloy, Female, Solder Terminal, Plug
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown unknow
Other features STANDARD: MIL-C-5015 STANDARD: MIL-C-5015 STANDARD: MIL-C-5015 STANDARD: MIL-C-5015 STANDARD: MIL-C-5015 STANDARD: MIL-C-5015 STANDARD: MIL-C-5015 STANDARD: MIL-C-5015 STANDARD: MIL-C-5015 STANDARD: MIL-C-5015
Back shell type SOLID SOLID SOLID SOLID SOLID SOLID SOLID SOLID SOLID SOLID
Body/casing type PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG
Connector type MIL SERIES CONNECTOR MIL SERIES CONNECTOR MIL SERIES CONNECTOR MIL SERIES CONNECTOR MIL SERIES CONNECTOR MIL SERIES CONNECTOR MIL SERIES CONNECTOR MIL SERIES CONNECTOR MIL SERIES CONNECTOR MIL SERIES CONNECTOR
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Coupling type THREADED THREADED THREADED THREADED THREADED THREADED THREADED THREADED THREADED THREADED
DIN compliance NO NO NO NO NO NO NO NO NO NO
empty shell NO NO NO NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
MIL compliance YES YES YES YES YES YES YES YES YES YES
Manufacturer's serial number H/MS H/MS H/MS H/MS H/MS H/MS H/MS H/MS H/MS H/MS
Mixed contacts NO NO NO NO NO NO NO NO NO NO
Installation type CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE
Options WATERPROOF WATERPROOF WATERPROOF WATERPROOF WATERPROOF WATERPROOF WATERPROOF WATERPROOF WATERPROOF WATERPROOF
Shell surface ZINC PLATED ZINC PLATED ZINC PLATED ZINC PLATED ZINC PLATED ZINC PLATED ZINC PLATED ZINC PLATED ZINC PLATED ZINC PLATED
Shell material ALUMINUM/ZINC ALLOY ALUMINUM/ZINC ALLOY ALUMINUM/ZINC ALLOY ALUMINUM/ZINC ALLOY ALUMINUM/ZINC ALLOY ALUMINUM/ZINC ALLOY ALUMINUM/ZINC ALLOY ALUMINUM/ZINC ALLOY ALUMINUM/ZINC ALLOY ALUMINUM/ZINC ALLOY
Housing size 20 10SL 10SL 22 24 24 20 10SL 22 20
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 17 3 2 8 7 7 7 3 19 17
Maker Hirose - - Hirose Hirose Hirose Hirose Hirose Hirose Hirose
