KCDA56-136 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> KCDA56-136

KCDA56-136: DescriptionSmart/Normal 7 Seg Numeric LED Display, Blue, 14.22mm, ROHS COMPLIANT PACKAGE-20; CategoryLED optoelectronic/LED photoelectric; File Size230KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

KCDA56-136 Overview

Smart/Normal 7 Seg Numeric LED Display, Blue, 14.22mm, ROHS COMPLIANT PACKAGE-20

KCDA56-136 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-20
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IC COMPATIBLE
color	BLUE
Configuration	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT
Display height	14.22 mm
Maximum forward current	0.03 A
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

SURFACE MOUNT DISPLAY

Part Number: KCDA56-136

Blue

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

Features

0.56 inch digit height.

Low current operation.

Excellent character appearance.

Mechanically rugged.

Gray face, white segment.

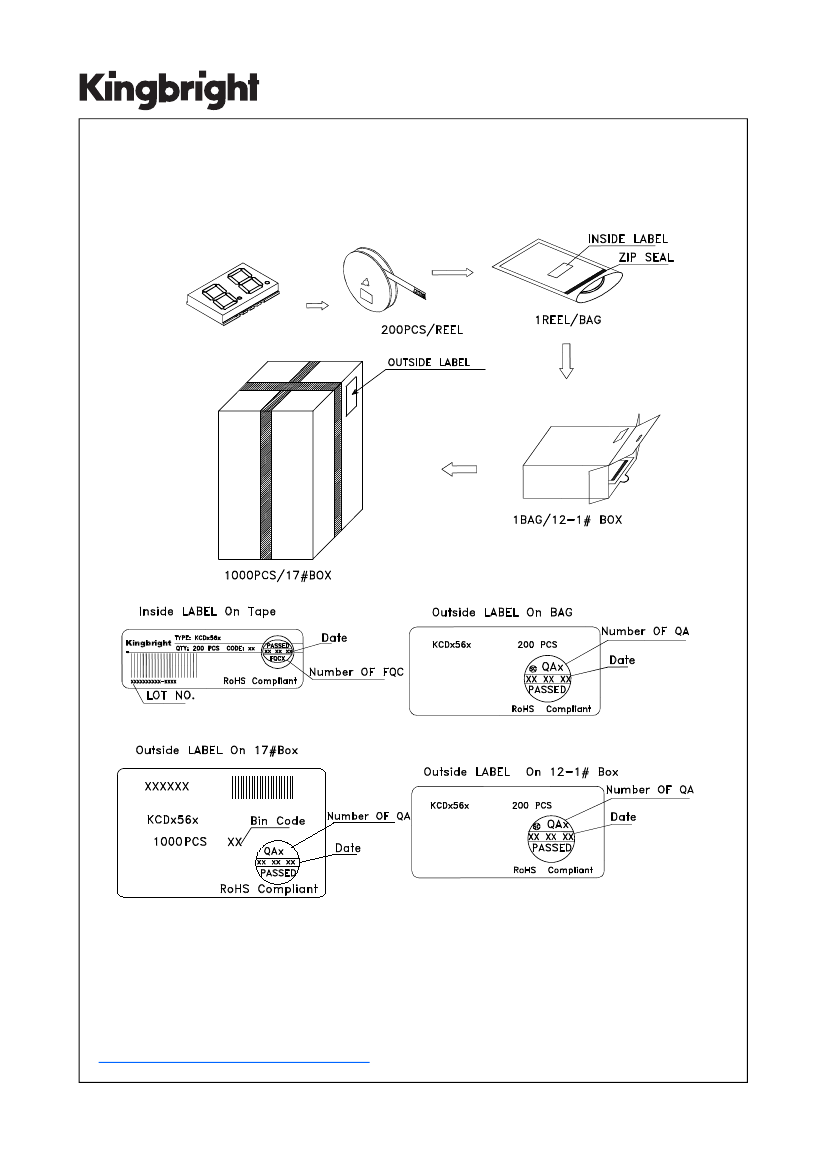

Package: 200pcs/ reel.

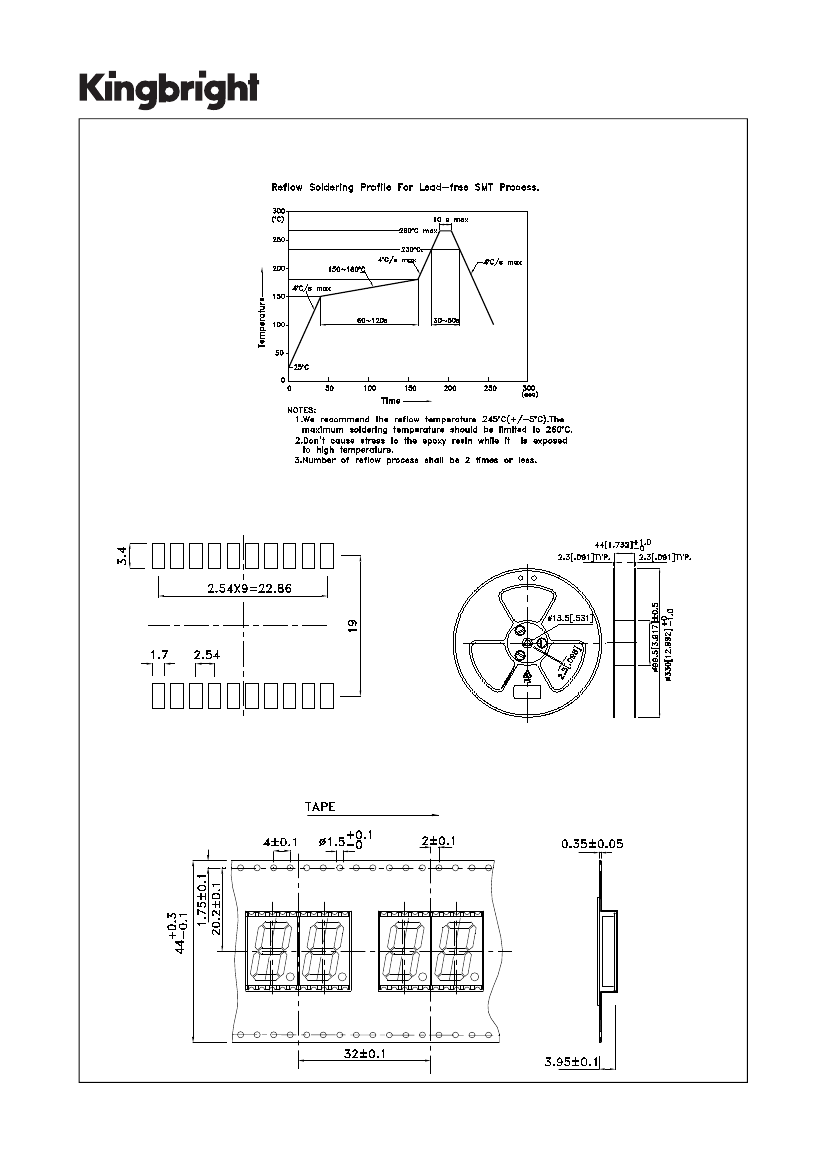

Moisture sensitivity level : level 2a.

RoHS compliant.

Description

The Blue source color devices are made with InGaN

on SiC Light Emitting Diode.

Static electricity and surge damage the LEDS.

It is recommended to use a wrist band or anti-electrostatic

glove when handling the LEDs.

All devices, equipment and machinery must be electrically

grounded.

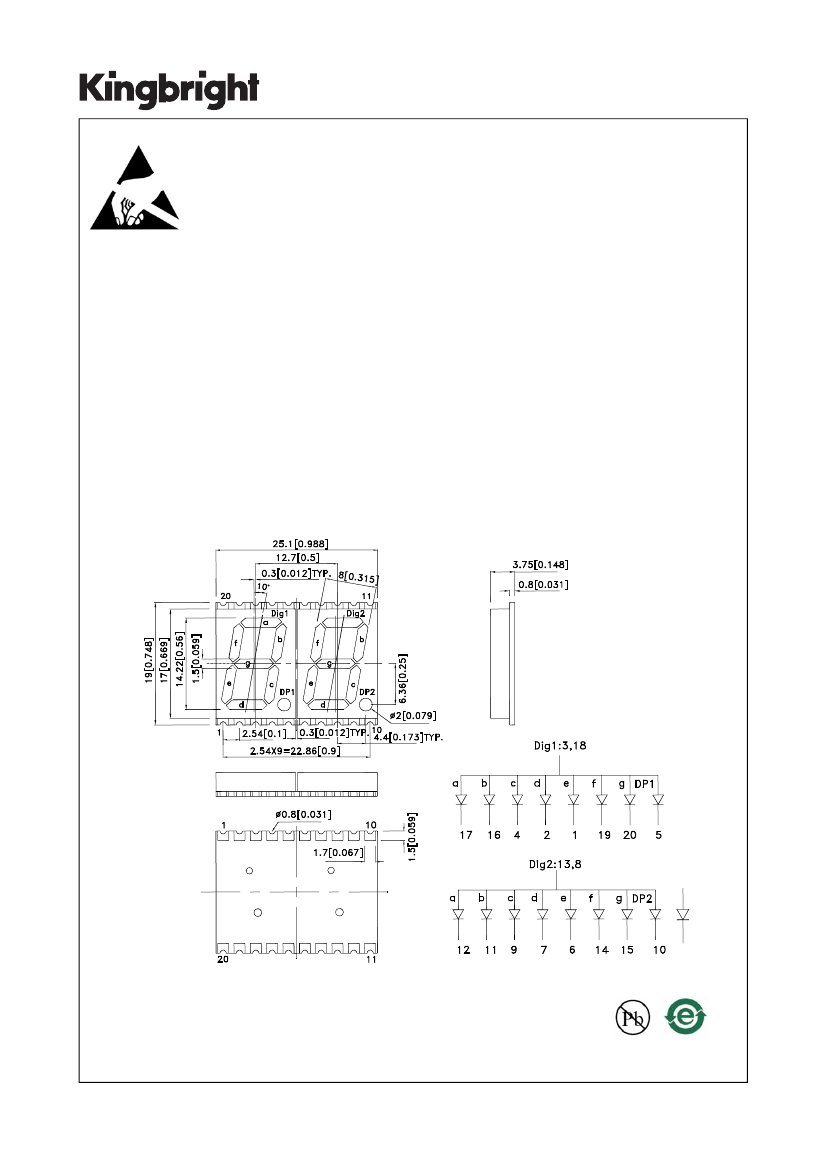

Package Dimensions& Internal Circuit Diagram

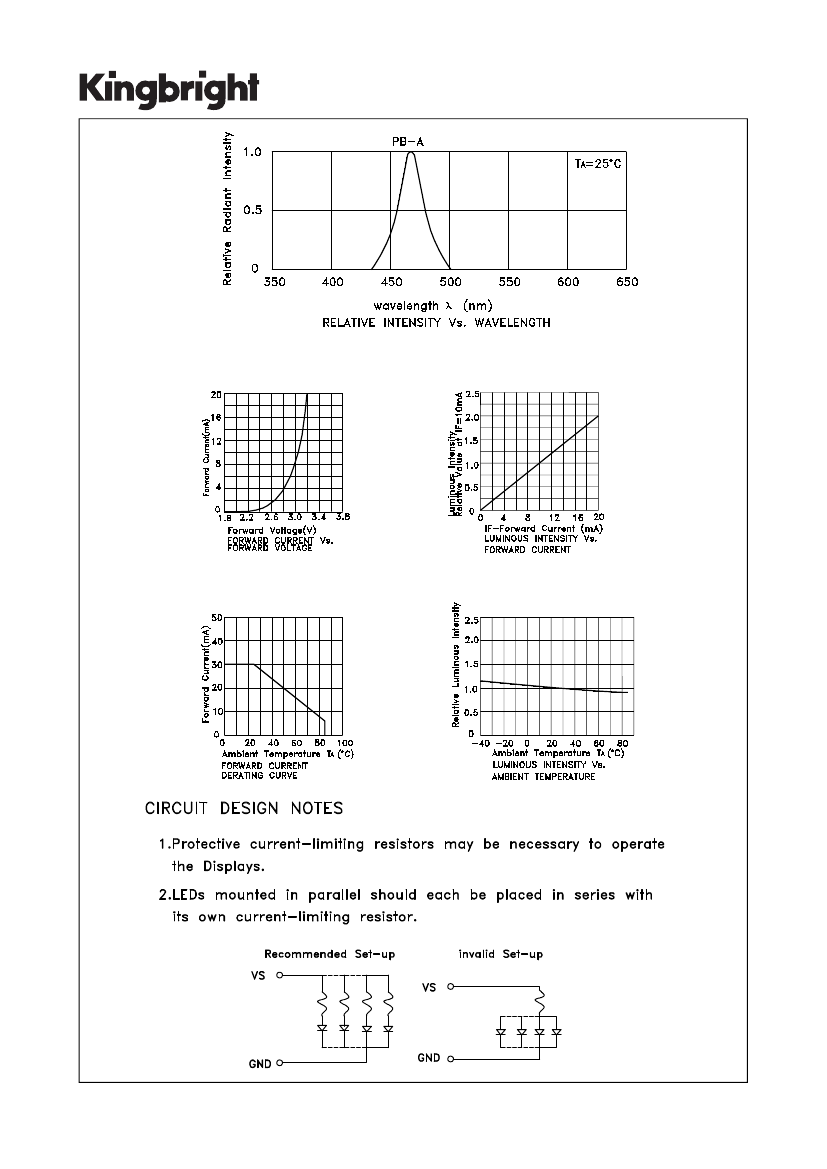

PB-A

Notes:

1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.

2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

3.The gap between the reflector and PCB shall not exceed 0.25mm.

SPEC NO: DSAG7880

APPROVED: WYNEC

REV NO: V.3B

CHECKED: Joe Lee

DATE: MAR/21/2013

DRAWN: F.Cui

PAGE: 1 OF 5

ERP: 1352000337
