1461353-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 1461353-4

1461353-4: DescriptionPOWER/SIGNAL RELAY, SPST, MOMENTARY, 0.04A (COIL), 5VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size899KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

1461353-4 Overview

POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.04A (COIL), 5VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

1461353-4 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
seal	RT3
Coil power	200 mW
Relay action	Transient
Relay function	single pole single throw
Coil resistance	125 ohm
Electrical life	30000 Cycle(s)
terminal coating	NOT APPLICABLE
Manufacturer Series	1461353
Maximum DC coil current	0.0400 A
Maximum DC coil voltage	5 V
Maximum AC contact current	5 A
Maximum DC contact current	5 A
Maximum AC contact voltage	277 V
Maximum DC contact voltage	30 V
DC coil operating voltage	3.75 V
DC coil release voltage	0.2500 V
width	10 mm
high	15.2 mm
length or diameter	20 mm
Installation features	Through hole installation
operating hours	10 ms
Relay type	POWER/SIGNAL RELAY
release time	5 ms
Terminal type	welding

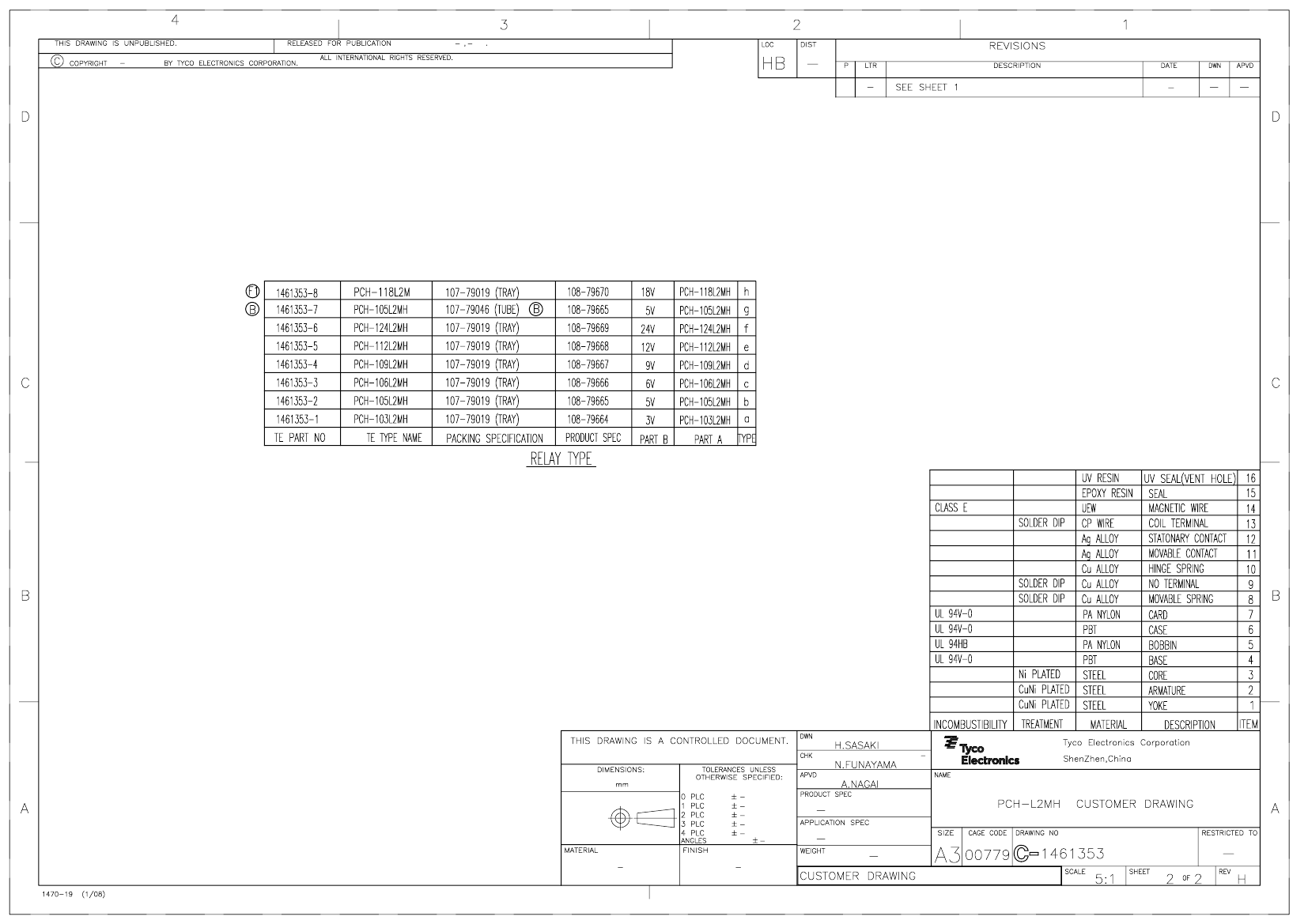

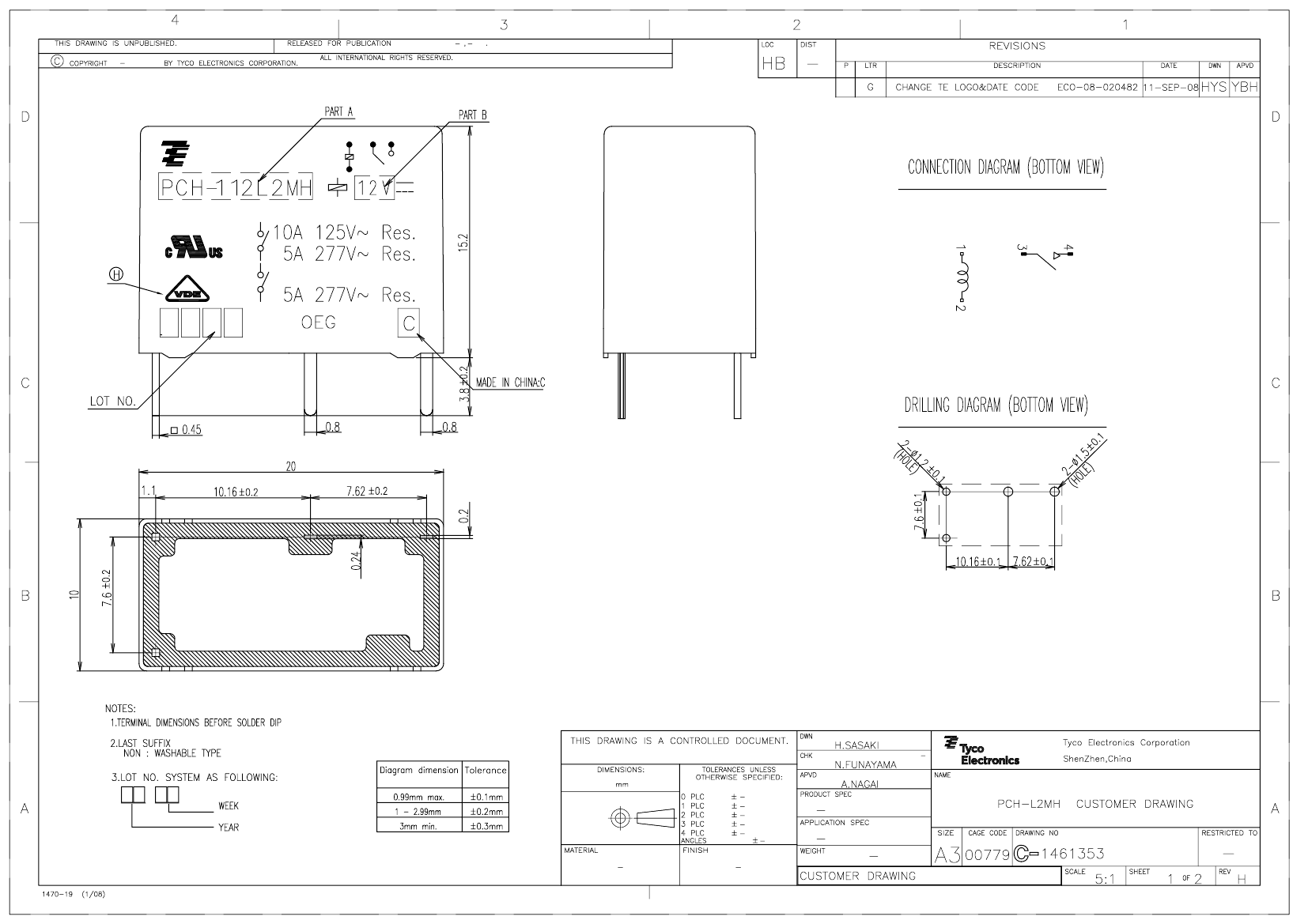

Preview

Download Datasheet

View All

1461353-4 Related Products

	1461353-4	1461353	1461353-1	1461353-3	1461353-7	1461353-8	1461353-2	1461353-5	1461353-6
Description	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.04A (COIL), 5VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.04A (COIL), 5VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.04A (COIL), 5VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.04A (COIL), 5VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.04A (COIL), 5VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.04A (COIL), 5VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.04A (COIL), 5VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.017A (COIL), 12VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.04A (COIL), 5VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT
Maximum operating temperature	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel
Minimum operating temperature	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel
Processing package description	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	TRANSFERRED	ACTIVE
seal	RT3	RT3	RT3	RT3	RT3	RT3	RT3	RT3	RT3
Coil power	200 mW	200 mW	200 mW	200 mW	200 mW	200 mW	200 mW	200 mW	200 mW
Relay action	Transient	Transient	Transient	Transient	Transient	Transient	Transient	MOMENTARY	Transient
Relay function	single pole single throw	single pole single throw	single pole single throw	single pole single throw	single pole single throw	single pole single throw	single pole single throw	SPST	single pole single throw
Coil resistance	125 ohm	125 ohm	125 ohm	125 ohm	125 ohm	125 ohm	125 ohm	720 ohm	125 ohm
Electrical life	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)
Manufacturer Series	1461353	1461353	1461353	1461353	1461353	1461353	1461353	1461353	1461353
Maximum DC coil current	0.0400 A	0.0400 A	0.0400 A	0.0400 A	0.0400 A	0.0400 A	0.0400 A	0.0170 A	0.0400 A
Maximum DC coil voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	12 V	5 V
Maximum AC contact current	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Maximum DC contact current	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Maximum AC contact voltage	277 V	277 V	277 V	277 V	277 V	277 V	277 V	277 V	277 V
Maximum DC contact voltage	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V
DC coil operating voltage	3.75 V	3.75 V	3.75 V	3.75 V	3.75 V	3.75 V	3.75 V	9 V	3.75 V
DC coil release voltage	0.2500 V	0.2500 V	0.2500 V	0.2500 V	0.2500 V	0.2500 V	0.2500 V	0.6000 V	0.2500 V
width	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm
high	15.2 mm	15.2 mm	15.2 mm	15.2 mm	15.2 mm	15.2 mm	15.2 mm	15.2 mm	15.2 mm
length or diameter	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
Installation features	Through hole installation	Through hole installation	Through hole installation	Through hole installation	Through hole installation	Through hole installation	Through hole installation	THROUGH HOLE-STRAIGHT MOUNT	Through hole installation
operating hours	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms
Terminal type	welding	welding	welding	welding	welding	welding	welding	SOLDER	welding
Lead-free	Yes	Yes	Yes	Yes	Yes	Yes	Yes	-	Yes
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes	Yes	Yes	-	Yes
terminal coating	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	-	NOT APPLICABLE
