SNAPTACC07PDC04CH02 datasheet, PDF

Datasheet> All Categories > The connector> The connector> SNAPTACC07PDC04CH02

SNAPTACC07PDC04CH02: DescriptionCircular Connector, 7 Contact(s), Aluminum Alloy, Male, Solder Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size944KB，8 Pages; ManufacturerHypertronics Corporation; Environmental Compliance

Download Datasheet Parametric View All

SNAPTACC07PDC04CH02 Overview

Circular Connector, 7 Contact(s), Aluminum Alloy, Male, Solder Terminal, Plug, ROHS COMPLIANT

SNAPTACC07PDC04CH02 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Hypertronics Corporation
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	SHIELDED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	BERYLLIUM COPPER/BRASS
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Environmental characteristics	VIBRATION RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	ZINC
Shell material	ALUMINUM ALLOY
Termination type	SOLDER
Total number of contacts	7

Preview

Download Datasheet

View All

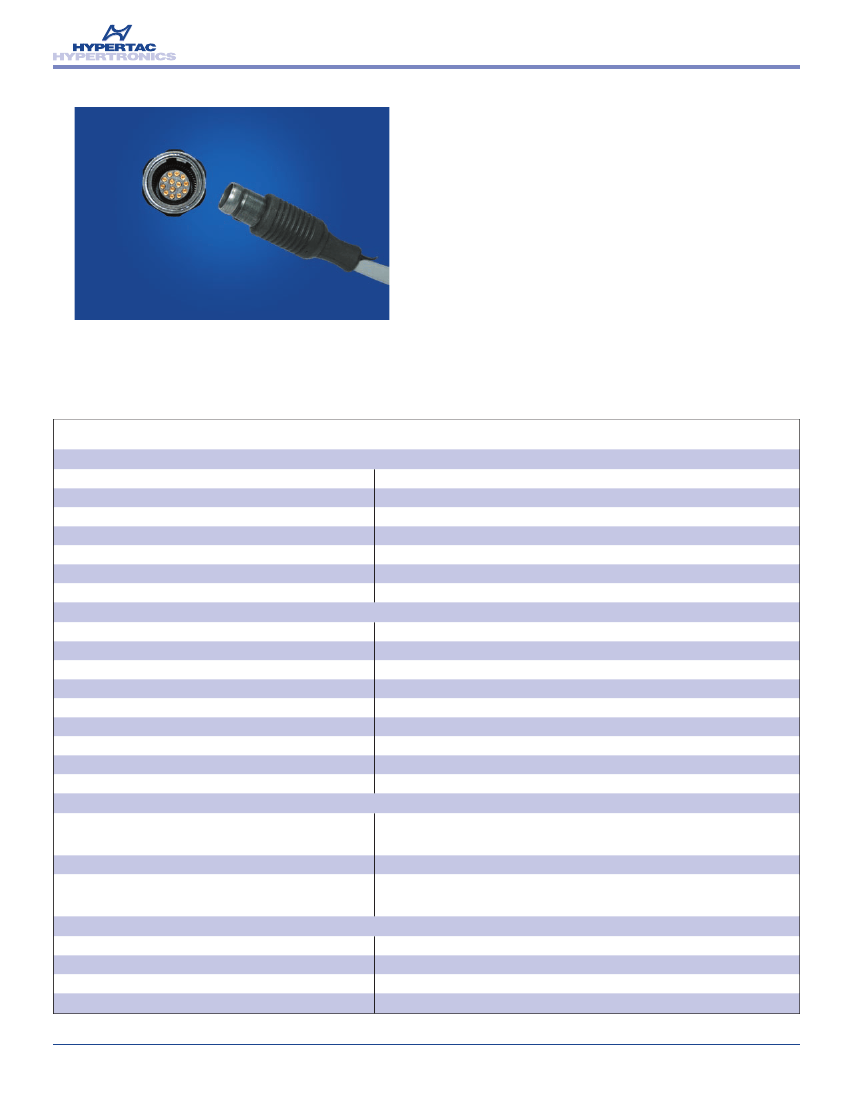

SnapTac Series

Miniature Circular

Connectors

• HyperSpring

spring loaded contacts, self-cleaning

wiping action

• 7, 13, or 19 contact configurations

• Combine robust environmental performance with

compact size and light weight

• Easy and fast snap on locking mechanism

• Full line EMI shielding

• IP67 sealing when mated and unmated

• Different hardware coding to avoid mismatching

• Overmolding solutions

• Upgrade commercial high speed Fast Ethernet, USB,

IEEE 1394 interconnect to Mil Spec performances

• Protection cup available on request

General Specifications

General

Number of Contacts

Receptacle Terminations

Plug Termination

Cable Diameter Range

AWG Contact

HyperSpring Force

Connector Unmating Force

7, 13, 19

Solder Cup, Dip Solder

Solder Cup

7 Contacts: 0.236 [6.00] max., 13 Contacts: 0.295 [7.50] max., 19 Contacts: 0.335 [8.50] max.

24 - 28

5.5 oz. max. per contact

140.0 oz. max.

Electrical and Mechanical Characteristics

EMI Shielding

Current Rating

Breakdown Voltage

Dielectric Withstanding Voltage

(between contacts)

Contact Resistance

(low level)

Insulation Resistance

Vibration

Shock

Weight

(Plug and Receptacle – with contacts – without cabling)

Yes

3 Amps at 25° C

625V

500V

< 15 milliohms

5000 Megohms at 500VDC - EIA364.21

EIA364.28 Condition III

EIA364.27 Condition G

7 Contacts: 0.3 oz., 13 Contacts: 0.5 oz., 19 Contacts: 0.56 oz.

Materials and Plating

Housing

– Material

– Plating

Overmolding

(Plug)

Contact

– Material

– Plating

Aluminum alloy

Zinc cobalt conductive – RoHS compliant

Thermoplastic hotmelt

Brass, beryllium copper

Gold

Environmental Characteristics

Temperature Range

Salt Spray

Humidity

IP Level

-65° C to 80° C

EIA364.26 Condition A (mated connectors)

EIA364.31 Method IV

67 mated and unmated

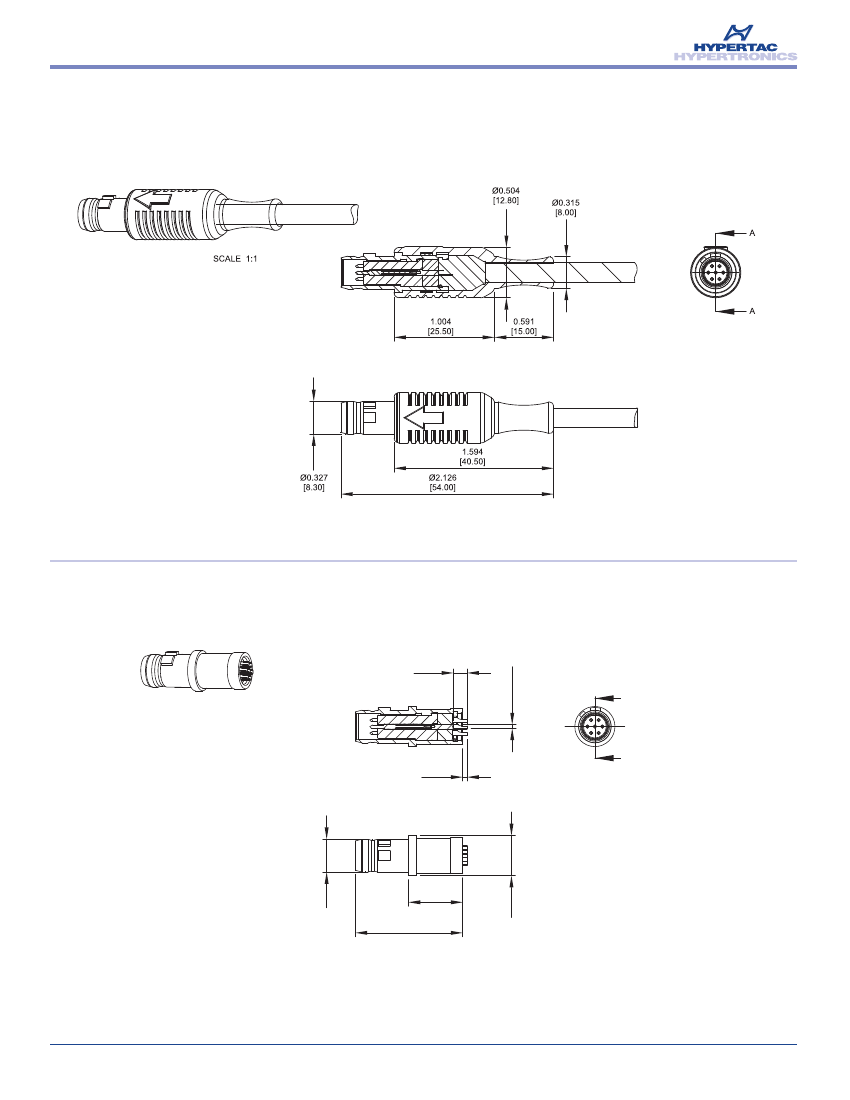

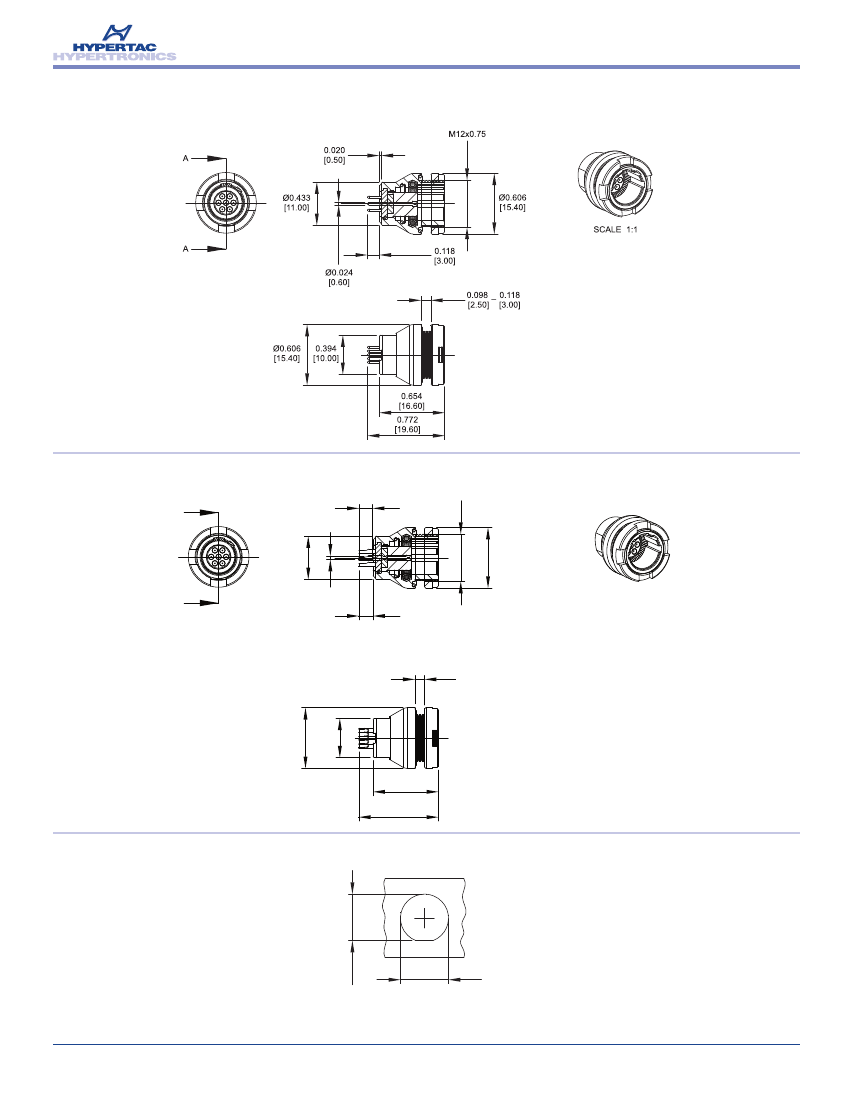

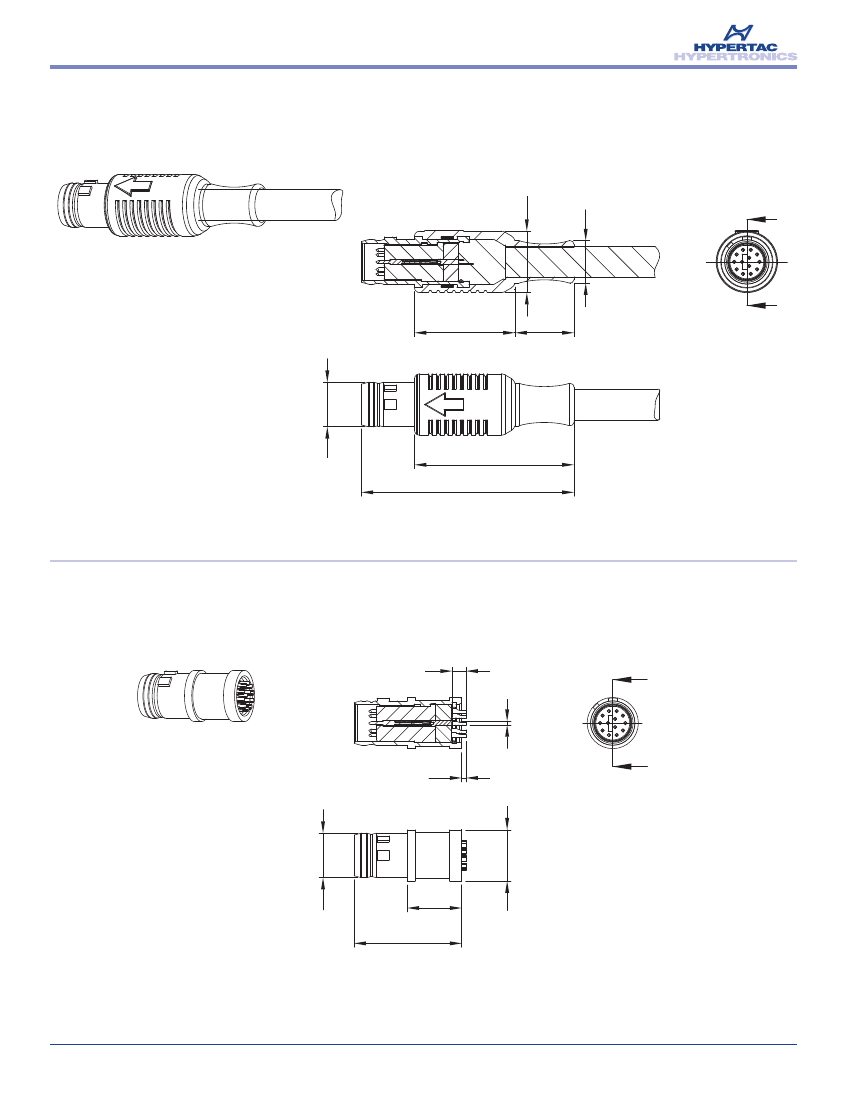

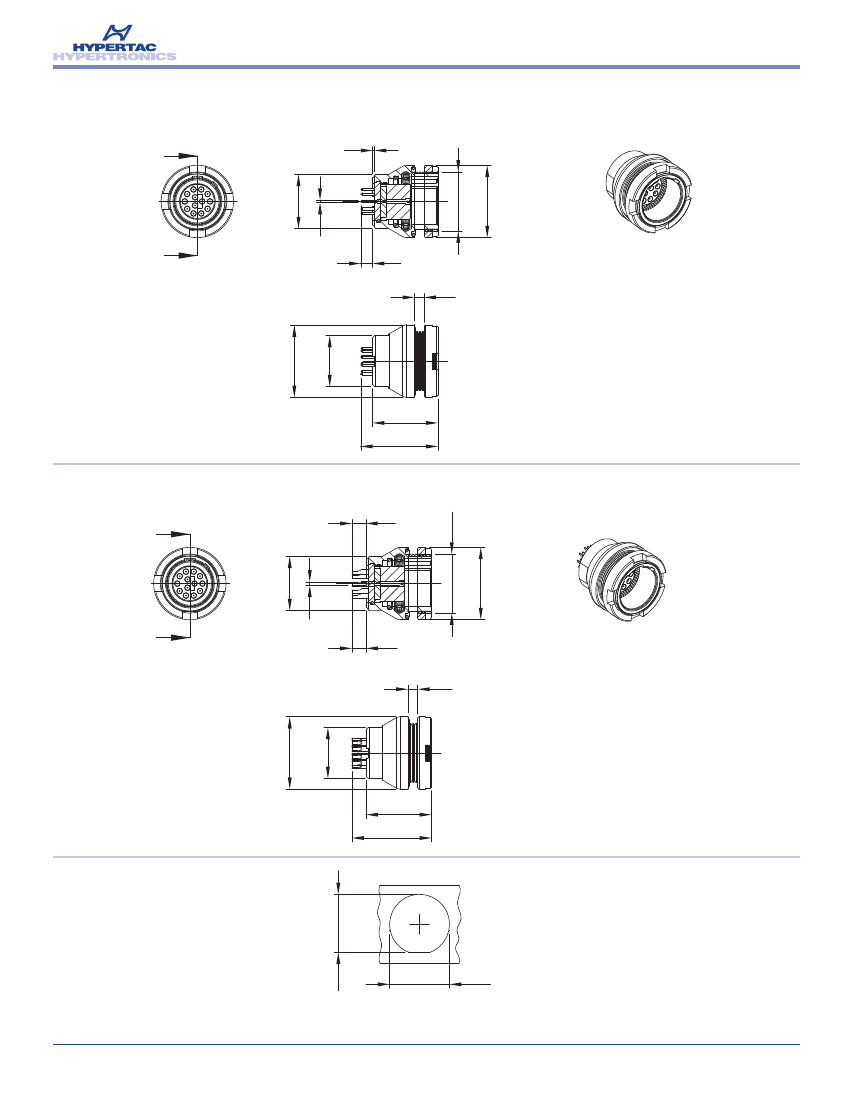

Dimensions are in inches [mm]

www.hypertronics.com

2 / 51
