2SC5343
NPN Silicon Transistor
Description
•
General small signal amplifier
PIN Connection
C
Features
•
Low collector saturation voltage
: V
CE(sat)
=0.25V(Max.)
•
Low output capacitance : C
ob
=2pF(Typ.)
•
Complementary pair with 2SA1980
B
C
E
B
E
TO-92
Ordering Information
Type NO.
2SC5343
Marking
C5343
Package Code
TO-92
Absolute maximum ratings
Characteristic
Collector-Base voltage
Collector-Emitter voltage
Emitter-Base voltage
Collector current
Collector dissipation
Junction temperature
Storage temperature
Ta=25°C
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
T
j
T
stg
Ratings
60
50
5
150
500
150
-55~150
Unit
V
V
V
mA
mW
°C
°C
Electrical Characteristics
Characteristic
Collector-Base breakdown voltage
Collector-Emitter breakdown voltage
Emitter-Base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-Emitter saturation voltage
Transistion frequency
Collector output capacitance
Noise figure
Ta=25°C
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
h
FE
*
V
CE(sat)
f
T
C
ob
NF
Test Condition
I
C
=100μA, I
E
=0
I
C
=1mA, I
B
=0
I
E
=10μA, I
C
=0
V
CB
=60V, I
E
=0
V
EB
=5V, I
C
=0
V
CE
=6V, I
C
=2mA
I
C
=100mA, I
B
=10mA
V
CE
=10V, I
C
=1mA
V
CB
=10V, I
E
=0, f=1MHz
V
CE
=6V, I
C
=0.1mA,
f=1KHz, Rg=10KΩ
Min. Typ. Max.
60
50
5
-
-
70
-
80
-
-
-
-
-
-
-
-
-
-
2
-
-
-
-
0.1
0.1
700
0.25
-
3.5
10
Unit
V
V
V
μA
μA
-
V
MHz
pF
dB
* : h
FE
rank / O : 70 ~ 140, Y : 120 ~ 240, G : 200 ~ 400, L : 300 ~ 700
KSD-T0A018-000
1
2SC5343

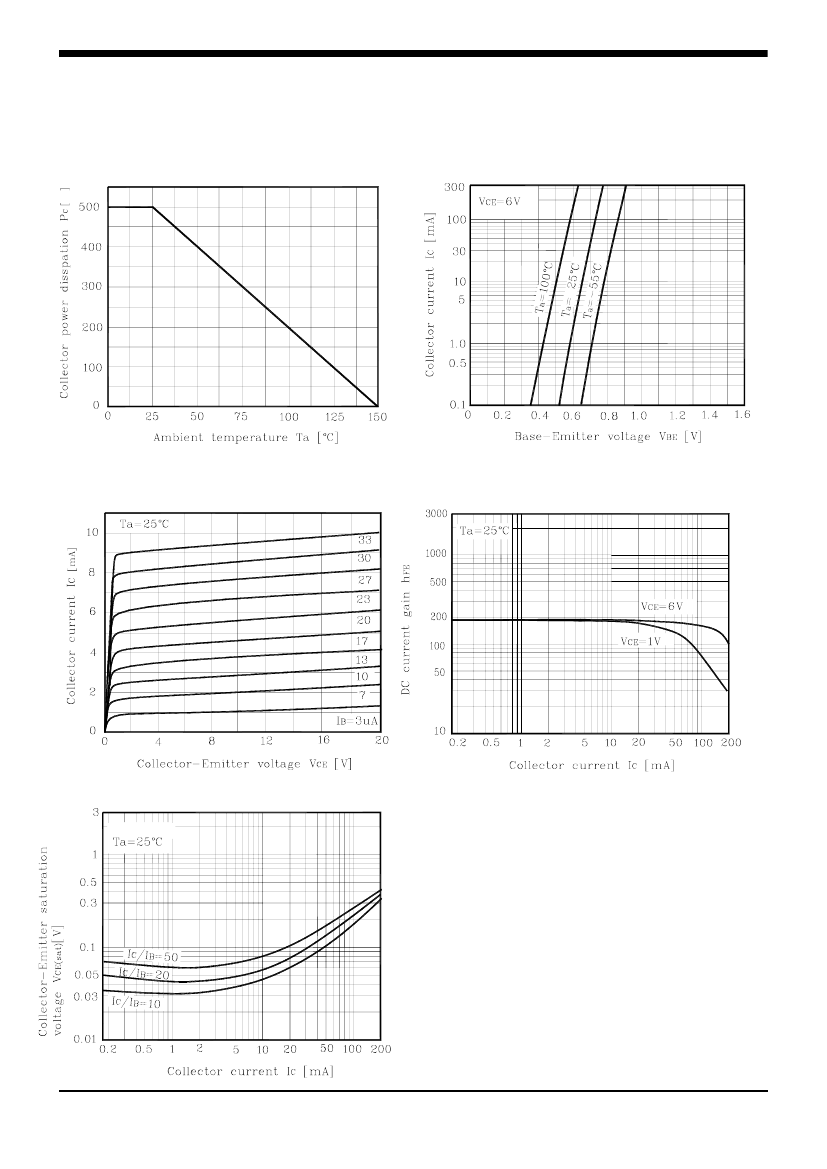

Electrical Characteristic Curves
Fig. 1 P
C
–T
a
½
Fig. 2 I
C
-V
BE
Fig. 3 I
C
-V
CE
Fig. 4 h
FE
-I
C
Fig. 5 V
CE(sat)
-I
C
KSD-T0A018-000
2
2SC5343

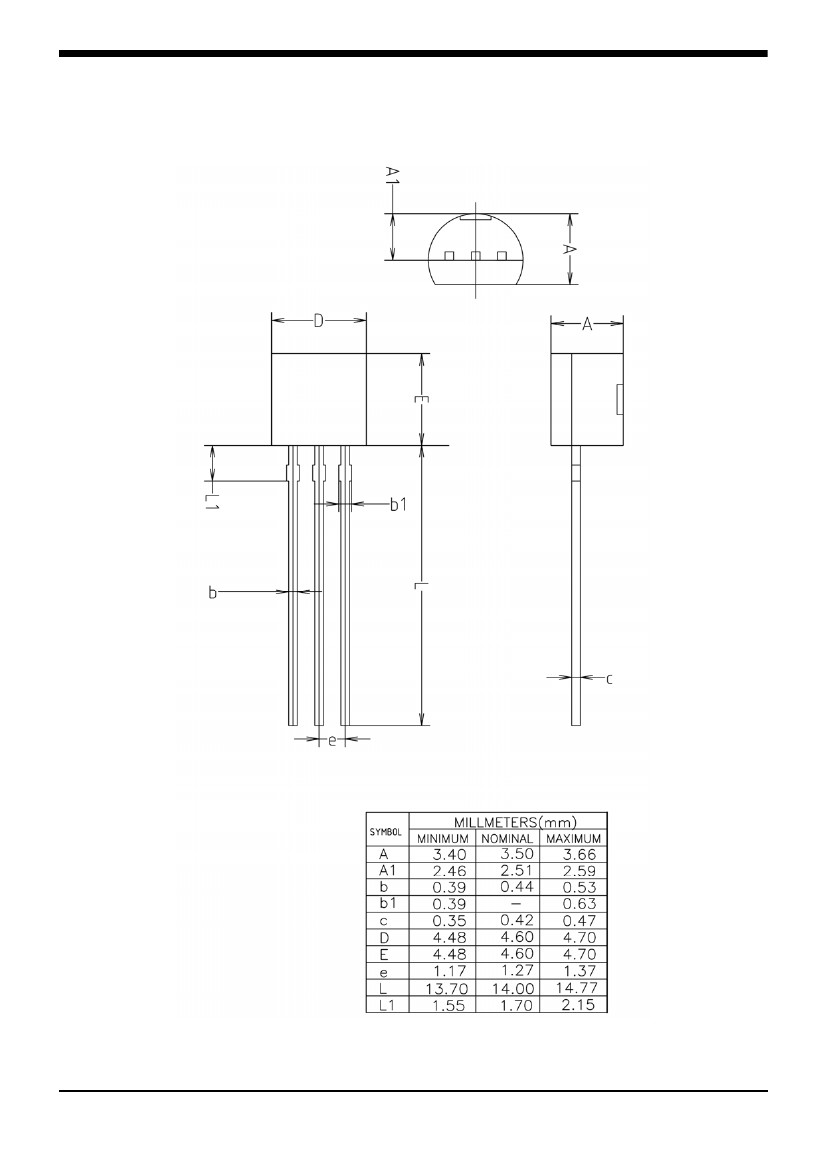

Outline Dimension
KSD-T0A018-000
3
2SC5343
The AUK Corp. products are intended for the use as components in general electronic
equipment (Office and communication equipment, measuring equipment, home
appliance, etc.).
Please make sure that you consult with us before you use these AUK Corp. products
in equipments which require high quality and / or reliability, and in equipments which
could have major impact to the welfare of human life(atomic energy control, airplane,
spaceship, transportation, combustion control, all types of safety device, etc.). AUK
Corp. cannot accept liability to any damage which may occur in case these AUK Corp.
products were used in the mentioned equipments without prior consultation with AUK
Corp..
Specifications mentioned in this publication are subject to change without notice.
KSD-T0A018-000
4
